Rexroth VT3000-36A Service-Ready Spare for Industrial Maintenance

Rexroth VT3000-36A Service-Ready Spare for Industrial Maintenance

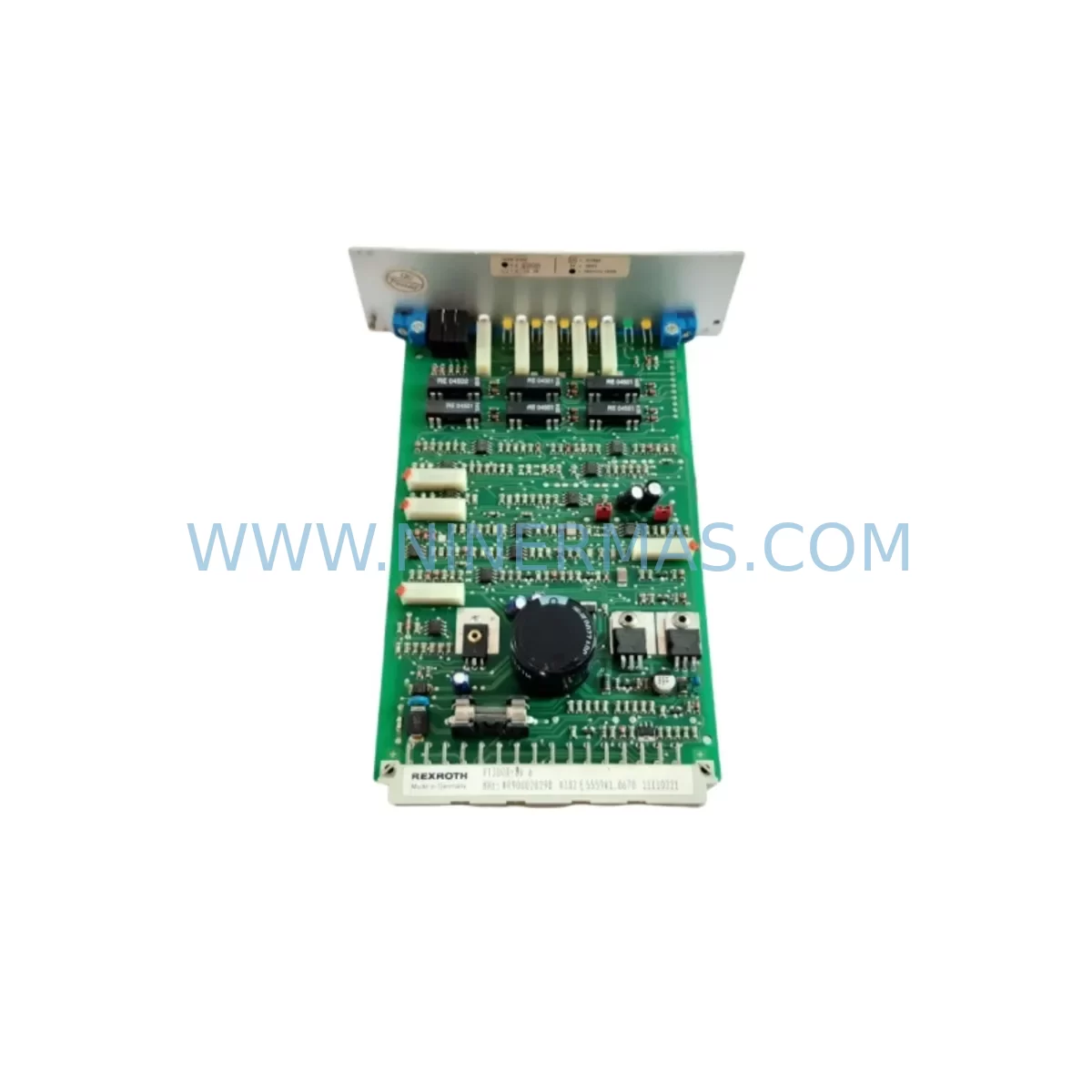

The Rexroth VT3000-36A is a ruggedized analog amplifier module engineered for proportional valve control in demanding hydraulic servo systems. As a service-ready spare part, it is designed to support rapid replacement during unplanned downtime events, scheduled annual overhauls, and proactive spare parts inventory programs across manufacturing, press, injection molding, and heavy-duty automation environments. Each unit supplied by NINERMAS is pre-shipment tested, verified for electrical integrity, and backed by a 12-month warranty — ensuring your production line returns to full operation with minimal disruption.

For maintenance engineers managing aging Bosch Rexroth hydraulic control cabinets, the VT3000-36A occupies a critical position in the signal chain between the PLC or DCS command output and the proportional directional valve. Its failure — whether from capacitor degradation, connector oxidation, or firmware drift — directly causes erratic valve response, pressure instability, or complete axis loss. Stocking a verified replacement eliminates the multi-week lead time risk associated with sourcing obsolete amplifier cards through standard distribution channels.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the VT3000-36A in the field, a disciplined maintenance engineer will not stop at the amplifier card alone. The surrounding electrical circuit and control cabinet components must be inspected simultaneously to prevent repeat failures and ensure the replacement delivers its full service life.

Begin with the 24 VDC power supply feeding the amplifier rail. A degraded Rexroth PSM01.1-FW power supply module or an undersized industrial SMPS can introduce voltage ripple that corrupts the analog command signal, causing the new VT3000-36A to exhibit the same erratic behavior as the failed unit. Verify supply voltage under load before re-energizing the amplifier.

Next, inspect the signal wiring between the PLC analog output card and the VT3000-36A input terminals. Shielded cable integrity, terminal block torque, and ground continuity are critical. If the control system uses a Rexroth CSB01.1C-SE-ENS-NNN control unit or a third-party PLC analog output module, confirm the output range is correctly scaled to ±10 V and that no ground loop exists between the controller chassis and the amplifier card.

The solenoid coil resistance of the connected proportional valve should be measured before reconnecting the amplifier output. A shorted or open coil — common in valves that have experienced thermal cycling or hydraulic contamination — will immediately stress the new amplifier’s output stage. Cross-reference the valve model against the VT3000-36A’s rated output current range.

For systems using Rexroth IndraControl or IndraDrive platforms, also verify the HMS01.1N-W0020 servo module and HCS02.1E-W0028 drive firmware versions. Incompatible firmware can generate command signal artifacts that appear as amplifier faults. Similarly, if the cabinet includes a Rexroth VT3002-1-2X ramp generator card upstream of the VT3000-36A, inspect its potentiometer settings and output signal quality — a drifted ramp card will mask the true performance of a correctly functioning amplifier.

Signal isolation should not be overlooked. Where the analog command originates from a remote I/O module or a distributed DCS marshalling cabinet, a signal isolator or barrier (such as a Phoenix Contact or Weidmuller analog isolator) protects the amplifier input from common-mode noise. Inspect isolator calibration and output linearity as part of the replacement workflow.

Finally, review the terminal strip labeling and wiring documentation. Aging control cabinets often accumulate undocumented field modifications. Confirm that the enable signal, ramp enable, and fault reset wiring match the VT3000-36A terminal assignment before powering up. A Rexroth VT-VRPA2-2-1X proportional amplifier card used elsewhere in the same cabinet can serve as a reference for wiring conventions within the VT series family.

Site Replacement Workflow

The VT3000-36A is a direct form-fit-function replacement for earlier VT3000-36 variants within the same series. No mechanical modification to the mounting rail or connector housing is required. The replacement procedure follows a structured sequence to minimize downtime and avoid secondary faults:

Step 1 — Isolation: De-energize the control cabinet and lock out the 24 VDC supply rail feeding the amplifier slot. Confirm zero voltage at the amplifier input terminals using a calibrated multimeter.

Step 2 — Documentation: Photograph the existing wiring, potentiometer settings, and DIP switch configuration on the failed VT3000-36A before removal. These settings encode the ramp time, dither frequency, and gain parameters tuned for the specific valve and hydraulic circuit.

Step 3 — Removal and Inspection: Extract the failed module and inspect the connector pins for corrosion, bent contacts, or heat discoloration. Clean the connector housing with isopropyl alcohol before installing the replacement.

Step 4 — Configuration Transfer: Replicate the documented potentiometer and DIP switch settings on the new VT3000-36A before installation. This preserves the tuned valve response and avoids a full recommissioning cycle.

Step 5 — Installation and Verification: Seat the replacement module, reconnect all wiring, and restore power. Monitor the analog command signal and solenoid current output with an oscilloscope or current clamp during the first actuator cycle to confirm correct operation.

Step 6 — System Test: Run the axis through its full stroke at reduced speed, then at nominal speed. Verify pressure, position, and velocity response against the baseline commissioning record. Document the replacement in the maintenance log with the new module’s serial number and warranty start date.

Spare Parts Support FAQ

Q1: Is the VT3000-36A still available as a new original spare, or only as a refurbished unit?
NINERMAS supplies the VT3000-36A as an original spare part sourced from authorized channels and long-term inventory agreements. Each unit undergoes pre-shipment electrical testing to verify analog input response, output current linearity, and enable circuit function. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q2: How do I confirm compatibility between the VT3000-36A and my existing proportional valve?
Compatibility is determined by the valve’s solenoid current rating and the command signal range. The VT3000-36A is designed for Rexroth VT3000 series proportional valves accepting a ±10 V analog command. Cross-reference your valve model number against the VT3000 series amplifier selection guide, or contact our technical team with your valve part number for confirmation before ordering.

Q3: What is the recommended inventory strategy for the VT3000-36A in a multi-axis hydraulic system?
For systems with three or more axes using VT3000-series amplifiers, maintaining a minimum of one spare VT3000-36A per five installed units is recommended. Given the end-of-life status of this series, procurement engineers should consider a strategic buffer stock purchase to cover a 24–36 month operational horizon. NINERMAS supports long-term supply agreements and reserved inventory arrangements for high-volume or critical-application customers.

Q4: Can the VT3000-36A be shipped internationally with export documentation?
Yes. NINERMAS ships the VT3000-36A globally with full commercial invoice, packing list, and country-of-origin documentation (Germany). HS code classification and export compliance documentation are available upon request. Standard lead time from confirmed order to dispatch is 1–3 business days for in-stock units.
