R. STAHL 9468/32-08-11-C1174 Service-Ready Spare Part

R. STAHL 9468/32-08-11-C1174 Service-Ready Spare Part for Industrial Maintenance

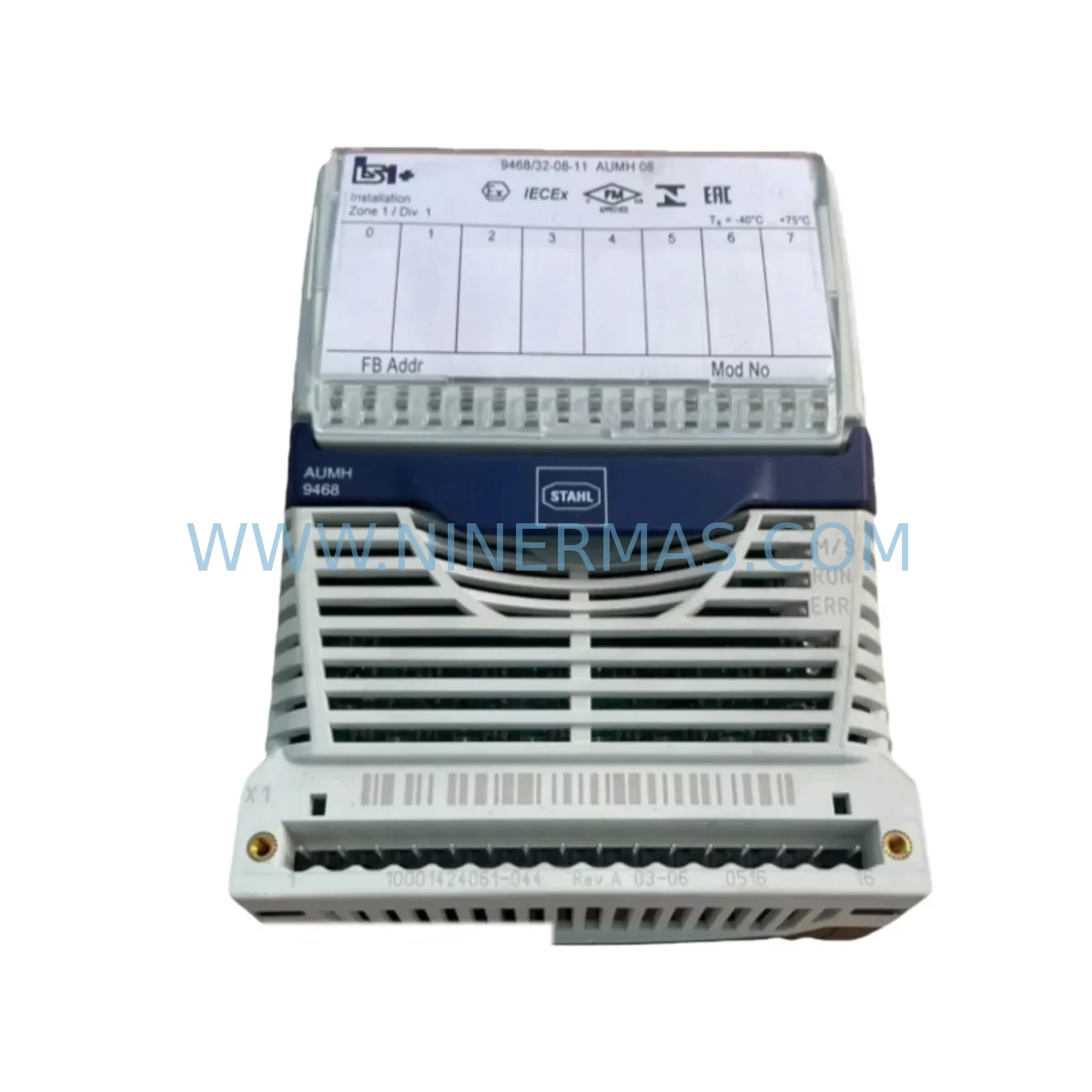

The R. STAHL 9468/32-08-11-C1174 is an original analog universal module designed for use in intrinsically safe (IS) control systems operating in hazardous area environments. As a certified spare part within the R. STAHL 9468 Series, this module plays a critical role in maintaining signal integrity between field instruments and the control system — making it an essential component in any well-managed spare parts inventory for process plants, chemical facilities, oil & gas installations, and pharmaceutical production lines.

Unplanned downtime caused by a failed analog input/output module can halt an entire production line. Stocking the 9468/32-08-11-C1174 as a service-ready spare ensures that maintenance engineers can execute rapid board-level replacement without waiting weeks for procurement. With a 12-month warranty and pre-shipment functional testing, every unit shipped from our inventory is verified ready for immediate installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules replacement of the 9468/32-08-11-C1174, the surrounding system components should be inspected simultaneously to prevent repeat failures and maximize the value of each planned maintenance window. The 9468 Series backplane and bus connector should be checked for oxidation or mechanical stress, as a degraded backplane can cause intermittent signal faults that mimic module failure. The associated field barrier modules — such as the R. STAHL 9001 Series Zener barriers or 9160 Series galvanic isolators — should be tested for leakage current and isolation resistance, since a compromised barrier can damage a newly installed analog module within weeks.

Power supply integrity is equally critical. The 24 VDC system power supply feeding the IS segment should be load-tested and its output ripple measured; units such as the R. STAHL 9210 Series power supplies or equivalent SITOP PSU300M modules are common in these architectures and should be part of the annual inspection checklist. Fuse holders and miniature circuit breakers protecting the IS power rail must be verified for correct rating and contact condition.

On the signal side, field wiring terminations at the terminal blocks — typically Phoenix Contact or Weidmüller DIN rail terminal strips — should be re-torqued and inspected for corrosion, particularly in humid or coastal environments. The 4–20 mA signal loop should be verified end-to-end using a loop calibrator before the replacement module is commissioned. If the plant uses HART-enabled field instruments, the HART communication path through the new 9468/32-08-11-C1174 should be validated with a HART communicator to confirm device descriptor compatibility.

For facilities running a distributed control system (DCS) or safety instrumented system (SIS), the I/O assignment in the controller configuration should be confirmed before hot-swap or cold-swap replacement. Communication modules linking the 9468 remote I/O segment to the DCS — such as PROFIBUS DP or Modbus RTU interface modules — should be checked for firmware version compatibility. HMI faceplates tied to the affected analog channels should be monitored during commissioning to confirm correct engineering unit scaling and alarm setpoint restoration.

Procurement engineers sourcing the 9468/32-08-11-C1174 should also consider building a consolidated spare parts kit that includes signal isolators, surge protection devices for field cable entries, and replacement module labels, ensuring that the next replacement cycle can be completed entirely from on-site stock without emergency procurement delays.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a work permit and confirm the affected analog channel is in manual mode or bypassed at the DCS/SIS level. Notify the control room operator before proceeding.

Step 2 — Document Current Configuration: Record the existing module’s channel configuration, HART tag assignments, and any jumper or DIP switch settings. Photograph the wiring before disconnection.

Step 3 — Physical Removal: Disconnect field wiring at the terminal block, noting wire labels. Release the module from the 9468 Series backplane using the ejector lever. Inspect the backplane connector pins for damage or contamination.

Step 4 — Install Replacement 9468/32-08-11-C1174: Verify the replacement unit’s firmware version and hardware revision match or are backward-compatible with the existing system. Seat the module firmly onto the backplane and reconnect field wiring per the documented configuration.

Step 5 — Loop Verification: Apply a known 4 mA and 20 mA reference signal from a loop calibrator and confirm correct DCS readback at both ends of the range. Verify HART communication if applicable.

Step 6 — Return to Service: Remove the bypass, return the channel to automatic control, and confirm alarm and interlock functions are restored. Update the maintenance record with the replacement date, new module serial number, and technician sign-off.

This structured workflow minimizes the risk of commissioning errors that could cause nuisance trips or undetected signal faults, and ensures full system compatibility is maintained after the spare part replacement.

Spare Parts Support FAQ

Q1: Is the 9468/32-08-11-C1174 compatible with all revisions of the R. STAHL 9468 Series backplane?
The 9468/32-08-11-C1174 is designed for use within the R. STAHL 9468 Series platform. Hardware revision compatibility should be confirmed against the system’s installed backplane revision. Our technical team can assist with cross-referencing the installed base revision prior to shipment to ensure a drop-in fit.

Q2: What testing is performed before shipment?
Every 9468/32-08-11-C1174 unit undergoes pre-shipment functional testing including power-on verification, analog signal path continuity, and isolation resistance checks. A test report is available upon request. All units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can you support long-term or blanket purchase orders for this spare part?
Yes. NINERMAS supports long-term supply agreements for critical spare parts including the 9468/32-08-11-C1174. Blanket orders with scheduled releases help procurement engineers lock in pricing, guarantee stock availability, and reduce emergency procurement risk for planned turnarounds and annual shutdowns.

Q4: What is the lead time, and do you hold stock?
We maintain ready stock of the 9468/32-08-11-C1174 to support urgent maintenance requirements. Standard lead time for in-stock units is 3–7 business days for international shipments. For time-critical shutdowns, expedited shipping options are available. Contact our sales team to confirm current stock status before raising a purchase order.
