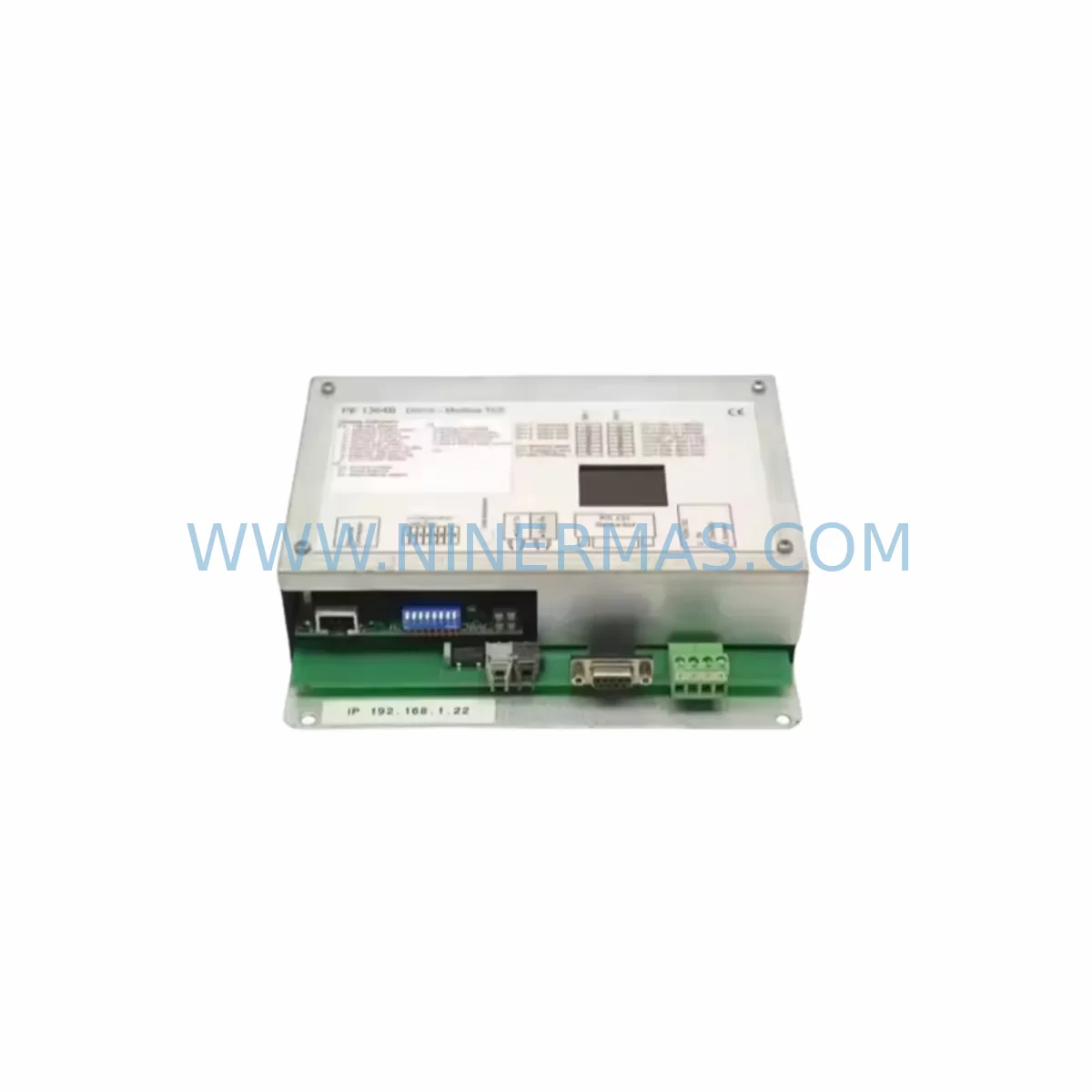

PROCESSELEKTRONIK PE1364B Safety-Reliable Modbus TCP Gateway

PROCESSELEKTRONIK PE1364B DDCS-MODBUS TCP: Safety-Reliable Modbus Gateway for Critical Industrial Control Sites

The PROCESSELEKTRONIK PE1364B DDCS-MODBUS TCP is a high-integrity communication gateway engineered for demanding industrial environments where control continuity, signal integrity, and communication reliability are non-negotiable. Designed to bridge DDCS (Distributed Drive Control System) architectures with Modbus TCP Ethernet networks, the PE1364B delivers deterministic data exchange between drive systems and supervisory control layers — even under conditions of high electromagnetic interference, voltage fluctuation, and mechanical vibration.

In continuous production facilities — including petrochemical plants, power generation stations, mineral processing operations, and heavy metallurgical lines — any interruption in the communication chain between drive controllers and the process control system can trigger unplanned shutdowns, safety interlock failures, or cascading equipment faults. The PE1364B is purpose-built to eliminate these risks by maintaining stable, low-latency Modbus TCP communication across the full operating lifecycle of the control cabinet.

NINERMAS maintains verified stock of the PE1364B with pre-shipment functional testing, ensuring every unit dispatched meets original PROCESSELEKTRONIK performance specifications. A 12-month warranty is included as standard, supporting long-term spare parts programs for critical infrastructure operators.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered industrial control cabinet, the PE1364B DDCS-MODBUS TCP gateway occupies a critical position in the communication backbone. Its role is to translate real-time drive status, speed references, torque feedback, and fault signals from the DDCS fiber optic ring into Modbus TCP data frames readable by PLCs, DCS controllers, and SCADA systems. When this link is compromised — due to component aging, surge damage, or firmware incompatibility — the entire drive supervision chain is at risk.

To build a resilient control architecture around the PE1364B, operators typically deploy it alongside complementary protection and communication components. On the drive side, the ABB NDCO-03 DDCS Communication Option Board and ABB RDCO-03 Drive Communication Module form the fiber optic interface layer that feeds data into the PE1364B. On the network side, an industrial Ethernet switch with managed VLAN capability ensures that Modbus TCP traffic is isolated from general IT network congestion, preserving polling cycle integrity.

Power quality is equally critical. Deploying a 24 VDC DIN rail power supply with active power factor correction — such as units from the Phoenix Contact QUINT series or SITOP PSU series — ensures the PE1364B and associated I/O modules receive clean, regulated DC power even during upstream AC voltage sags. Pairing this with a DC UPS module provides ride-through capability during brief power interruptions, preventing communication dropouts that could trigger false safety interlock trips.

For surge and transient protection, a DIN rail surge protection device (SPD) rated for 24 VDC control circuits should be installed upstream of the gateway. In high-EMI environments — such as those near large variable frequency drives, arc furnaces, or high-current bus bars — additional ferrite core EMI filters on signal cables further reduce the risk of data corruption on the Modbus TCP link.

Where the PE1364B interfaces with safety-rated control systems, it is common practice to integrate a safety relay module or safety PLC I/O card that monitors the gateway’s heartbeat signal. A loss of Modbus TCP communication within a defined timeout window can then trigger a controlled safe-state response rather than an uncontrolled process trip. This architecture is particularly relevant in SIL 2-rated interlock loops for emergency shutdown (ESD) systems in oil and gas or chemical processing facilities.

For legacy DCS environments where the PE1364B must coexist with older serial Modbus RTU infrastructure, a Modbus RTU-to-TCP converter can bridge the two protocol domains, allowing the PE1364B to serve as the upstream Ethernet gateway while preserving compatibility with existing RS-485 field devices and marshalling panels.

Critical Industrial Safety Applications

Petrochemical and Refinery Operations: In continuous catalytic cracking units, compressor trains, and pump stations, the PE1364B enables real-time drive monitoring from the DCS without interrupting the DDCS fiber ring. Operators can read motor current, speed, and fault status directly in the process historian, supporting predictive maintenance and reducing unplanned shutdowns in hazardous area control rooms.

Power Generation and Utilities: In coal-fired, gas turbine, and hydroelectric generation facilities, auxiliary drive systems — including boiler feed pumps, induced draft fans, and cooling water pumps — rely on stable DDCS-to-Modbus TCP communication for load management and protection coordination. The PE1364B ensures that drive data reaches the plant DCS with the determinism required for automatic generation control (AGC) and load-frequency regulation.

Mining and Mineral Processing: Conveyor drives, ball mill drives, and slurry pump systems in underground and open-pit mining operations are subject to extreme vibration, dust ingress, and wide temperature swings. The PE1364B’s robust industrial design supports reliable communication in these conditions, enabling remote monitoring of drive health from surface control rooms and reducing the need for manual inspections in hazardous zones.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities depend on variable speed drives for pump and blower control. The PE1364B allows SCADA systems to read and write drive parameters over Modbus TCP, supporting automated flow control, energy optimization, and alarm management without requiring direct panel access.

Metallurgy and Steel Production: In electric arc furnace (EAF) auxiliary systems, rolling mill drives, and ladle crane controls, the PE1364B bridges high-power drive controllers with plant-level automation systems. Its EMI tolerance is particularly valuable in EAF environments where electromagnetic noise levels are among the highest encountered in industrial settings.

Port and Marine Applications: Ship-to-shore crane drives, container handling equipment, and vessel propulsion control systems increasingly use Modbus TCP as the supervisory communication protocol. The PE1364B supports integration of DDCS-based drive systems into these Ethernet-centric control architectures, enabling centralized monitoring and fault logging from port operations centers.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the PE1364B DDCS-MODBUS TCP?
All PE1364B units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. This warranty covers functional failures under normal operating conditions and includes technical support for installation and commissioning. Replacement or repair is provided at no additional cost within the warranty period.

Q2: Is pre-shipment testing performed on each unit?
Yes. Every PE1364B dispatched by NINERMAS undergoes functional verification testing prior to shipment. This includes communication protocol validation, power-up self-test confirmation, and physical inspection for connector integrity and component condition. Test records are available upon request for quality-critical procurement processes.

Q3: Is the PE1364B compatible with ABB ACS and DCS drive series using DDCS fiber optic interfaces?
The PE1364B is designed for use with PROCESSELEKTRONIK DDCS communication architectures, which are compatible with ABB drive systems utilizing the DDCS fiber optic ring protocol — including ACS 600, ACS 800, and DCS 600 series drives. Compatibility with specific drive firmware versions and DDCS node configurations should be verified against the original PROCESSELEKTRONIK documentation. NINERMAS technical staff can assist with compatibility assessment prior to order confirmation.

Q4: Can NINERMAS support long-term spare parts supply for the PE1364B?
Yes. NINERMAS specializes in long-term spare parts programs for industrial automation components, including discontinued and hard-to-source items. We maintain stock of the PE1364B and can support scheduled procurement agreements, consignment stock arrangements, and emergency supply for unplanned outages. Contact our team to discuss a tailored spare parts support plan for your facility.
