Pro-face GP2301-SC41-24V Safety-Reliable HMI for Critical Control

Pro-face GP2301-SC41-24V Safety-Reliable HMI for Critical Control Sites

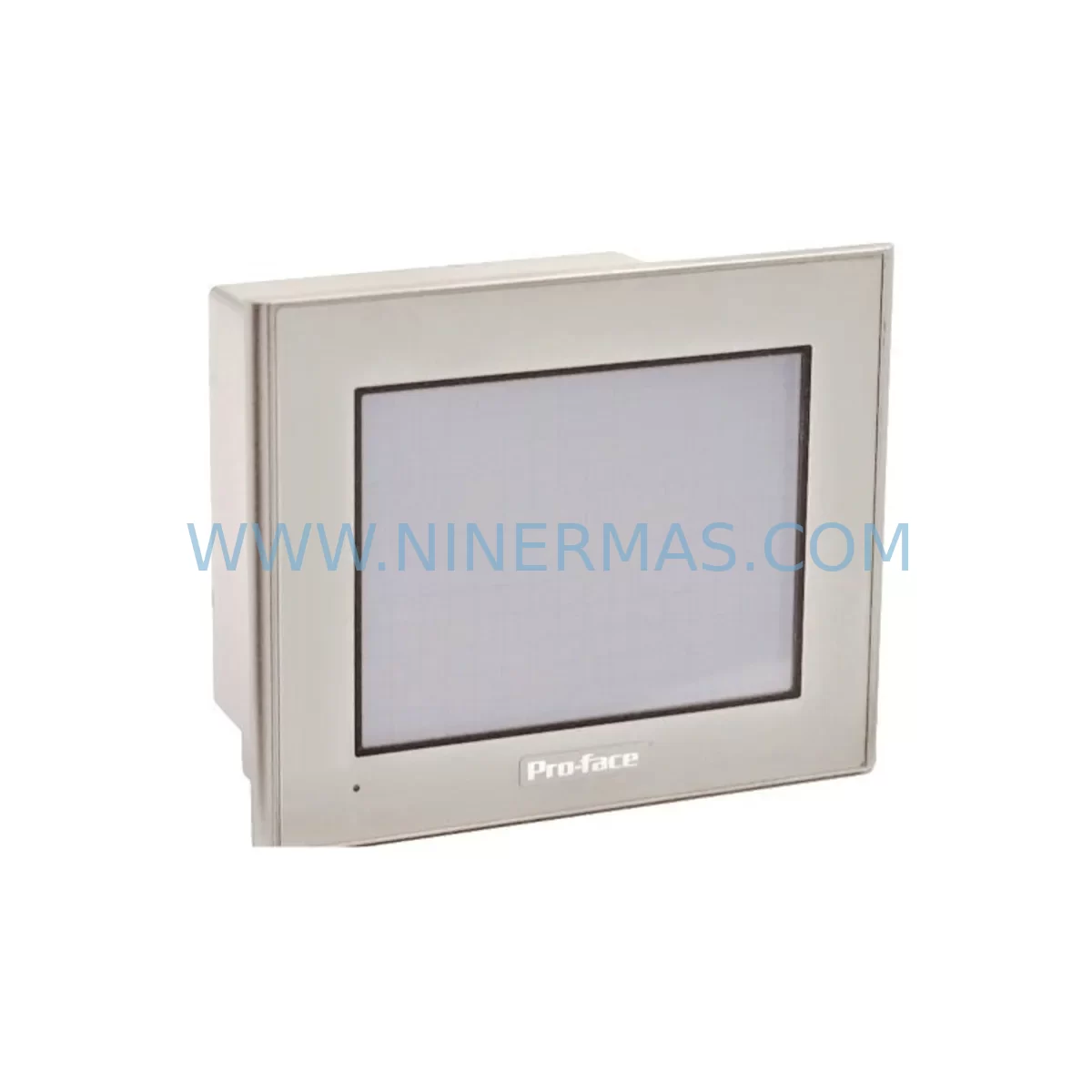

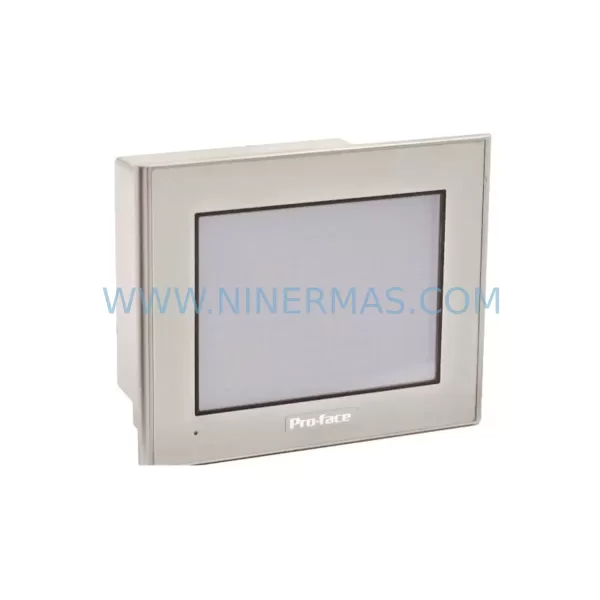

The Pro-face GP2301-SC41-24V is a compact, 24 VDC-powered Human-Machine Interface engineered for continuous-duty industrial environments where operator visibility, control loop integrity, and unplanned-downtime prevention are non-negotiable. Designed as a direct drop-in replacement for the GP2301 Series platform, this HMI delivers stable, high-contrast display performance and reliable serial/parallel communication in the harshest control-cabinet conditions — including high electromagnetic interference, vibration, dust ingress, and wide ambient temperature swings. Every unit shipped by NINERMAS undergoes pre-delivery functional verification and is backed by a 12-month warranty, ensuring your critical production line stays protected from the moment of installation.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a modern industrial control cabinet, every component in the operator interface chain contributes to — or detracts from — overall system safety. The GP2301-SC41-24V sits at the human-machine boundary, translating PLC logic states into actionable operator information. When this interface fails or delivers corrupted display data, operators lose situational awareness, increasing the probability of incorrect manual interventions, missed alarms, and cascading process upsets.

To build a robust, low-risk control architecture around the GP2301-SC41-24V, NINERMAS recommends pairing it with complementary safety and power components. On the power supply side, a Pro-face GP070-PS100 or equivalent 24 VDC DIN-rail power supply with active power factor correction and surge suppression ensures the HMI receives clean, stable voltage even when heavy motor starters or variable-frequency drives — such as the Siemens SINAMICS G120 series — generate transient spikes on the cabinet bus. Upstream surge protection devices (SPDs), such as a Phoenix Contact TRABTECH Type 2 surge arrester, further shield the 24 VDC rail from lightning-induced or switching transients that could corrupt the HMI’s display memory or communication registers.

For serial communication integrity, the GP2301-SC41-24V’s RS-485 port should be terminated with matched impedance resistors and routed away from high-current AC conductors. Where long cable runs are unavoidable — common in large petrochemical or water-treatment facilities — an Advantech ADAM-4520 RS-232-to-RS-485 converter with optical isolation eliminates ground-loop noise that would otherwise cause signal drift or communication timeouts between the HMI and the host Mitsubishi MELSEC Q-series PLC or Omron CJ2M CPU.

Safety interlock circuits connected to the same control cabinet should be routed through dedicated Pilz PNOZ X or Schmersal SRB safety relays, ensuring that E-stop commands and guard-door interlocks remain independent of the HMI communication bus. This architectural separation means a communication fault on the GP2301-SC41-24V will never inadvertently mask a safety-critical trip signal. Complementing this, a Weidmüller ACT20P signal conditioner on analog process inputs prevents 4–20 mA signal drift from appearing as false process readings on the HMI screen — a common root cause of operator misjudgment in high-temperature or high-humidity environments.

For cabinet-level thermal management, pairing the HMI with a Rittal SK 3105 cabinet air conditioner or filtered fan unit maintains internal temperatures within the GP2301-SC41-24V’s 0–50 °C operating range, preventing premature LCD degradation and backlight failure that would otherwise force unplanned shutdowns for panel replacement. Together, these layered protective measures — clean power, isolated communications, independent safety relays, signal conditioning, and thermal control — form a comprehensive risk-reduction strategy that keeps the GP2301-SC41-24V performing reliably across the full production lifecycle.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous-process refinery units, the GP2301-SC41-24V provides operators with real-time visibility of reactor temperature, pressure, and flow setpoints. Its IP65 front panel resists hydrocarbon vapour condensation and cleaning-agent splashes, while its EMI-hardened design tolerates the dense cable trays and high-power motor drives common in ATEX Zone 2 adjacent control rooms. Reliable HMI operation in these environments directly reduces the risk of operator error during critical process transitions such as startup, shutdown, and product changeover.

Electric Power Generation & Substation Control: Substations and power plant auxiliary control panels demand operator interfaces that remain functional during switching transients and ground faults. The GP2301-SC41-24V’s compliance with CE EMC standards and its robust 24 VDC supply tolerance make it a dependable choice for generator excitation control panels, transformer protection relay HMI stations, and auxiliary load management consoles where display blackouts could delay fault isolation and increase equipment damage risk.

Mining & Mineral Processing: Underground and surface mining operations expose control equipment to extreme vibration, coal dust, and humidity. The GP2301-SC41-24V’s vibration-rated construction and sealed front panel allow it to operate reliably on conveyor drive control panels, crusher monitoring stations, and ventilation fan control cabinets — environments where a failed HMI can halt ore production and trigger safety shutdowns requiring manual inspection before restart.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities run 24/7 with minimal staffing. The GP2301-SC41-24V enables operators to monitor pump sequencing, chemical dosing, and filtration status from a single panel interface. Its long backlight life (≥50,000 hours) minimises maintenance interventions in remote pump stations, and its serial communication compatibility with widely deployed Schneider Electric Modicon M340 PLCs ensures seamless integration into existing SCADA architectures without costly protocol conversion.

Metallurgy & Steel Manufacturing: Rolling mills and smelting operations generate intense electromagnetic fields from large induction furnaces and DC drive systems. The GP2301-SC41-24V’s EMI-hardened design maintains stable screen rendering and communication throughput in these environments, giving furnace operators accurate temperature and drive-status readouts that are essential for maintaining product quality and preventing thermal runaway events.

Port & Marine Cargo Handling: Ship-to-shore crane control cabinets and marine engine room panels face salt-air corrosion, vibration from vessel motion, and wide temperature cycling. The GP2301-SC41-24V’s robust construction and 24 VDC compatibility with marine-grade power distribution systems make it a reliable operator interface for hoist control, ballast management, and engine monitoring applications where display failures could compromise load safety and vessel stability.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the GP2301-SC41-24V?
The NINERMAS 12-month warranty covers all manufacturing defects, component failures, and functional faults that arise under normal operating conditions within the specified environmental ratings. If the unit fails within the warranty period, NINERMAS will arrange repair or replacement at no additional cost. Warranty claims are processed promptly to minimise your production downtime.

Q2: What pre-shipment testing is performed on each GP2301-SC41-24V unit?
Every GP2301-SC41-24V dispatched by NINERMAS undergoes a full functional verification test prior to shipment. This includes display power-on and pixel integrity checks, communication port continuity verification, and supply voltage tolerance testing. Units that do not pass all test criteria are quarantined and not shipped, ensuring you receive only field-ready hardware.

Q3: Is the GP2301-SC41-24V a direct drop-in replacement for existing GP2301 Series panels?
Yes. The GP2301-SC41-24V is designed as a direct mechanical and electrical replacement for GP2301 Series HMI panels. The panel cutout dimensions, mounting hardware, and 24 VDC supply requirements are identical, eliminating the need for cabinet re-engineering. Communication wiring (RS-232C / RS-422 / RS-485) is pin-compatible with standard GP2301 Series installations, allowing replacement to be completed during a planned maintenance window with minimal downtime.

Q4: Can NINERMAS support long-term or bulk procurement for critical spare-parts programs?
Absolutely. NINERMAS specialises in long-lifecycle spare-parts supply for industrial automation components, including the GP2301-SC41-24V and the broader Pro-face GP2301 Series. We support scheduled procurement agreements, safety-stock reservations, and multi-site spare-parts programs for customers in petrochemical, power, mining, and manufacturing sectors. Contact our team to discuss volume pricing, lead-time commitments, and dedicated stock allocation for your critical control sites.
