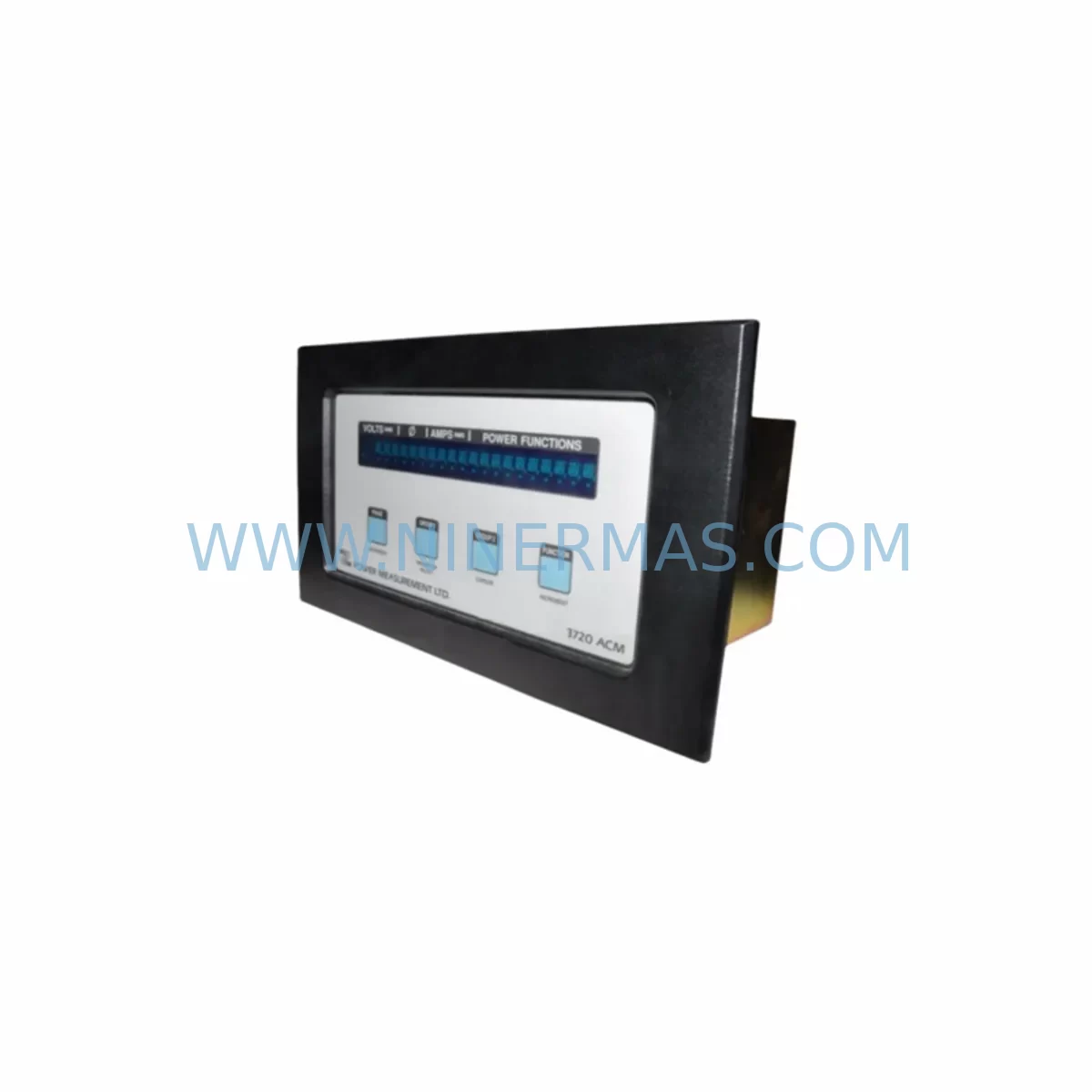

The Power Measurement 3720 ACM is a ruggedized power measurement module engineered for continuous operation in harsh industrial environments. Designed to deliver accurate, real-time energy metering and power quality analysis, the 3720 ACM is a critical component in electrical distribution panels, motor control centers (MCCs), and DCS/PLC-integrated power monitoring systems across oil & gas, petrochemical, water treatment, and heavy manufacturing facilities.

When a 3720 ACM fails or reaches end-of-life, the consequences extend beyond a single measurement point. Power monitoring gaps can trigger cascading alarms, disable load-shedding logic, and compromise energy compliance reporting — all while the production line remains at risk. NINERMAS maintains verified stock of the Power Measurement 3720 ACM to support emergency replacement, planned annual shutdowns, and long-term spare parts programs. Each unit is pre-shipment tested, covered by a 12-month warranty, and dispatched with full documentation to minimize your site commissioning time.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the Power Measurement 3720 ACM in isolation rarely resolves the root cause of a power monitoring failure. Experienced maintenance engineers treat the 3720 ACM replacement as a trigger for a broader electrical cabinet inspection. The following components should be evaluated concurrently to ensure system integrity and prevent repeat failures:

CT and PT Signal Wiring: Inspect current transformer (CT) and potential transformer (PT) secondary wiring for insulation degradation, loose terminations, and polarity errors. Faulty CT/PT inputs are a leading cause of premature 3720 ACM measurement errors and module stress.

RS-485 Communication Cable: Verify the Modbus RTU communication cable connecting the 3720 ACM to the SCADA or DCS host. Damaged shielding, incorrect termination resistors, or ground loops can cause intermittent data loss that mimics module failure.

Power Supply Module: Confirm that the auxiliary power supply feeding the 3720 ACM meter chassis is within specification. Voltage sags or ripple from an aging DC power supply module can corrupt measurement accuracy and shorten module life.

I/O and Relay Output Modules: If the 3720 ACM drives demand-response relays or alarm outputs, inspect the associated relay output modules and I/O terminal blocks for contact wear, coil resistance drift, and wiring integrity.

Terminal Blocks and Busbars: Loose or corroded terminal block connections in the metering circuit introduce resistance that distorts current readings. Torque-check all CT secondary terminals and busbar connections during the replacement window.

Signal Isolators: Where the 3720 ACM analog outputs feed into a DCS analog input card, verify that any interposing signal isolators are functioning correctly. A failed isolator can cause the DCS to report erroneous power values even after a new 3720 ACM is installed.

Fuses and Circuit Protection: Replace the PT fuses and auxiliary supply fuses as a matter of course during any 3720 ACM swap. These low-cost components are frequently overlooked and can cause immediate re-failure of a new module.

HMI Display and Operator Panel: If the facility uses a local HMI panel to display 3720 ACM data, confirm that the HMI communication driver and tag mapping are intact after module replacement. Firmware version mismatches between the new module and the HMI can require a driver update.

Backplane and Meter Chassis: Inspect the 3720 series meter chassis backplane connector for bent pins, oxidation, or mechanical damage. A damaged backplane will cause repeated module failures regardless of module quality.

Grounding and Shielding: Verify that the meter chassis, CT secondary circuits, and communication cable shields are all bonded to a common instrument ground. Poor grounding is the single most common cause of noise-induced measurement errors in power metering systems.

Addressing these components during a planned 3720 ACM replacement significantly reduces the probability of unplanned downtime and extends the service life of the entire power monitoring system.

Site Replacement Workflow

The following workflow is recommended for maintenance engineers replacing a Power Measurement 3720 ACM in a live industrial facility:

Step 1 — Isolation and Lockout/Tagout (LOTO): De-energize the meter chassis auxiliary supply and open the CT shorting links before removing the 3720 ACM module. Never open CT secondary circuits under load.

Step 2 — Document Existing Configuration: Record the existing Modbus device address, baud rate, parity settings, and any demand interval or alarm threshold configurations stored in the outgoing module. This data is required to commission the replacement unit identically.

Step 3 — Module Removal: Release the module retention latch, slide the 3720 ACM out of the chassis slot, and inspect the backplane connector for damage before inserting the replacement unit.

Step 4 — Install Replacement 3720 ACM: Seat the new module firmly into the chassis slot until the retention latch engages. Restore CT shorting links and auxiliary power in the correct sequence per OEM commissioning documentation.

Step 5 — Configuration Restore: Using the front-panel keypad or the Power Measurement ION Setup software, restore the Modbus address, communication parameters, CT/PT ratios, and alarm setpoints recorded in Step 2.

Step 6 — Verification: Confirm that the SCADA or DCS host is receiving valid power, current, voltage, and power factor data from the new 3720 ACM. Compare readings against a reference clamp meter to validate accuracy before returning the system to service.

Step 7 — Documentation: Update the maintenance management system (CMMS) with the replacement date, new module serial number, and any observations noted during the inspection. Schedule the next inspection interval.

This structured approach minimizes downtime, ensures system compatibility, and provides a clear audit trail for compliance and reliability reporting.

Spare Parts Support FAQ

Q1: Is the Power Measurement 3720 ACM a direct drop-in replacement for the existing module in my 3720 series meter?
A: Yes. The 3720 ACM is designed as a field-replaceable module for the 3720 series meter chassis. Provided the chassis backplane and firmware are compatible, the replacement module installs without mechanical modification. NINERMAS recommends verifying the chassis firmware version against the module compatibility matrix before installation. Contact our technical team with your chassis serial number for confirmation.

Q2: What pre-shipment testing does NINERMAS perform on the 3720 ACM before dispatch?
A: Every 3720 ACM unit shipped by NINERMAS undergoes functional verification testing to confirm module power-up, communication response, and measurement output integrity. Units that do not pass testing are not dispatched. A test report is available upon request for critical applications.

Q3: Can NINERMAS support a long-term spare parts program for the 3720 ACM and related 3720 series components?
A: Yes. NINERMAS offers long-term supply agreements for the 3720 ACM and associated 3720 series modules, including communication cards and chassis components. Long-term programs include reserved stock allocation, fixed pricing for the agreement period, and priority dispatch for emergency orders. Contact sale@ninermas.com to discuss program terms.

Q4: What does the 12-month warranty cover for the Power Measurement 3720 ACM?
A: The NINERMAS 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Warranty claims are supported by return merchandise authorization (RMA) with replacement or repair at NINERMAS’s discretion. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification. Full warranty terms are provided with each shipment.
