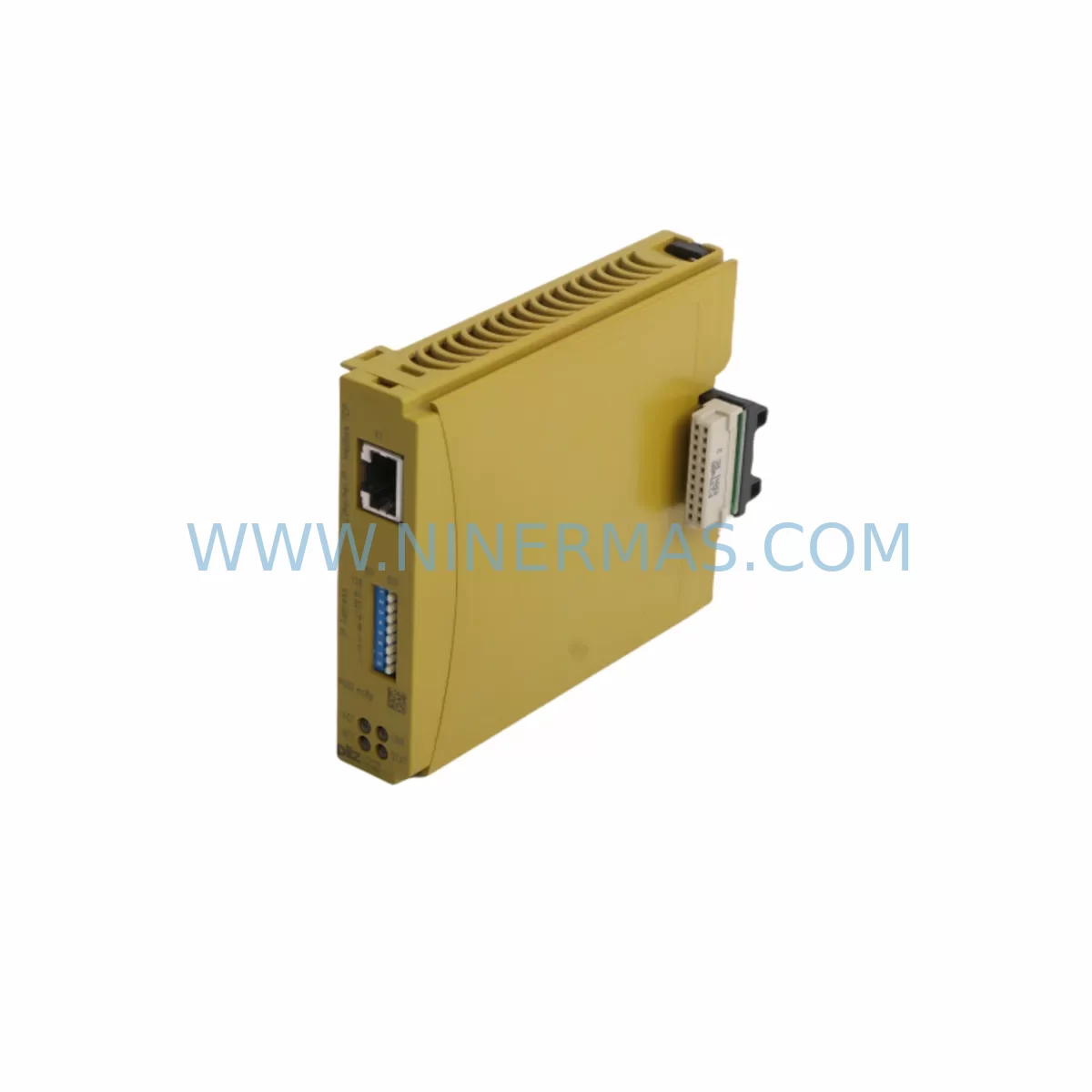

PILZ 773730 PNOZ mc8p Safety-Reliable Expansion Module

PILZ 773730 PNOZ mc8p Safety-Reliable Expansion Module for Critical Control Sites

The PILZ 773730 PNOZ mc8p is a ruggedized safety expansion module engineered for deployment in the most demanding industrial control environments. As part of the proven PNOZmulti 2 safety controller family, this module extends the I/O capacity of safety-critical control cabinets while maintaining the highest standards of functional safety, signal integrity, and operational continuity. Whether installed in petrochemical interlock panels, power generation switchgear, mining control rooms, or continuous process manufacturing lines, the 773730 PNOZ mc8p delivers the reliable performance that safety engineers and plant managers depend on.

Designed to operate in environments characterized by high electromagnetic interference, wide temperature fluctuations, mechanical vibration, dust ingress, and humidity, this module’s ruggedized construction ensures that safety functions remain active and uncompromised even under the harshest field conditions. Its robust housing and conformal-coated PCB provide protection against corrosive atmospheres and condensation — common challenges in water treatment facilities, offshore platforms, and metallurgical plants.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In safety-critical control cabinets, every component in the safety chain must perform without compromise. The PILZ 773730 PNOZ mc8p integrates directly with the PILZ PNOZmulti 2 base unit (e.g., PNOZ m B0, PNOZ m B1) via a secure plug-in connection, eliminating loose wiring between the base controller and expansion I/O — a common source of intermittent faults in high-vibration environments. This tight integration ensures that safety output commands are executed with deterministic response times, reducing the risk of delayed actuator de-energization during emergency stop sequences.

Power supply stability is foundational to safe operation. Pairing the 773730 PNOZ mc8p with a PILZ PNOZpower 24 V DC SITOP-class power supply or equivalent redundant 24 V DC rail ensures that voltage dips caused by motor starts, contactor switching, or grid disturbances do not propagate into the safety I/O layer. For installations where power quality is a concern, an inline surge protection device (SPD) on the 24 V DC bus — such as those from the Phoenix Contact TRABTECH or Dehn series — provides transient suppression upstream of the safety module.

Signal integrity across the safety loop is maintained through the module’s internal cross-circuit detection and short-circuit monitoring on each of its 8 p-switching outputs. When used alongside PILZ PNOZ mc6p or PNOZ mc7p expansion modules in multi-zone safety architectures, the system can independently monitor and control separate machine zones without cross-contamination of fault states — a critical requirement in multi-robot cells and automated guided vehicle (AGV) dispatch areas.

For communication-intensive installations, the PILZ PNOZmulti 2 fieldbus expansion modules — including PROFINET, EtherNet/IP, and PROFIBUS variants — allow the safety controller to report diagnostic data to the plant DCS or SCADA system in real time. This visibility enables predictive maintenance teams to identify output load trends, contact wear on downstream safety relays (e.g., PILZ PNOZ X series or PNOZ s series), and insulation degradation before a nuisance trip occurs.

In heavy-load switching applications — such as controlling safety-rated solenoid valves, hydraulic directional control valves, or motor contactors — the 2 A per-channel rating of the PNOZ mc8p provides sufficient drive capacity for direct load switching without intermediate relay amplifiers in most standard actuator configurations. Where inductive loads are present, installing freewheeling diodes or RC snubber circuits across the load terminals protects the module’s semiconductor outputs from back-EMF spikes, extending service life in high-cycle applications.

Grounding and shielding discipline within the control cabinet further reduces susceptibility to radiated EMI from variable frequency drives (VFDs), servo amplifiers, and high-current bus bars. Routing safety I/O cables in dedicated shielded conduits, separated from power wiring, and bonding cable shields at a single point to the cabinet’s equipotential bonding bar are standard practices that complement the module’s built-in EMC immunity.

Critical Industrial Safety Applications

The PILZ 773730 PNOZ mc8p is deployed across a wide spectrum of safety-critical industrial applications where unplanned control interruptions carry significant operational, financial, and human safety consequences.

In petrochemical and refinery plants, the module serves as the output stage for emergency shutdown (ESD) systems, controlling safety-instrumented functions (SIFs) such as isolation valve closure, pump trip, and burner management interlock. Its SIL 3 capability satisfies the requirements of IEC 61511 for high-demand safety instrumented systems protecting against loss of containment events.

In electric power generation and substation automation, the PNOZ mc8p is used in turbine protection panels and generator excitation control cabinets, where its fast output response time and high noise immunity prevent spurious trips caused by switching transients on high-voltage busbars.

In underground and surface mining operations, the module controls conveyor belt emergency stop circuits, hoist brake release interlocks, and methane gas detection shutdown loops. Its wide operating temperature range and vibration resistance make it suitable for installation in mobile equipment control panels and fixed plant substations alike.

In water and wastewater treatment facilities, the 773730 PNOZ mc8p manages pump station safety interlocks, chemical dosing system shutdowns, and UV disinfection system fault responses. The module’s IP20 rating, combined with cabinet-level IP54 or IP65 enclosures, provides adequate protection against the humid, chemically aggressive atmospheres typical of these facilities.

In metallurgical and steel production environments, the module is integrated into rolling mill safety systems, ladle transfer car interlocks, and furnace door position monitoring circuits — applications where thermal cycling, heavy vibration, and intense electromagnetic fields from arc furnaces demand the highest levels of component robustness.

In port and maritime logistics, the PNOZ mc8p is found in ship-to-shore crane safety systems, automated stacking crane (ASC) emergency stop circuits, and vessel mooring winch control panels, where reliable safety output switching is essential to prevent load drop incidents and personnel injury.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the PILZ 773730 PNOZ mc8p?
All PILZ 773730 PNOZ mc8p units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by our technical team with replacement dispatch or repair coordination within agreed lead times.

Q2: Is the module tested before shipment?
Yes. Every unit undergoes pre-shipment functional verification, including safety output actuation testing, supply voltage tolerance checks, and visual inspection for physical integrity. Test records are available upon request for quality-critical procurement processes.

Q3: Is the PILZ 773730 PNOZ mc8p compatible with existing PNOZmulti 2 installations?
The PNOZ mc8p is designed as a plug-in expansion module for the PNOZmulti 2 system and is compatible with all current PNOZmulti 2 base units. Configuration is performed via the PNOZmulti Configurator software. Customers upgrading from earlier PNOZmulti (first generation) systems should verify base unit compatibility before ordering. Our technical team can assist with compatibility confirmation.

Q4: Can NINERMAS support long-term and repeat supply of this module?
Yes. NINERMAS maintains a stocked spare parts program for the PILZ PNOZmulti 2 series, including the 773730 PNOZ mc8p, to support lifecycle extension programs and planned maintenance schedules. We offer framework agreements for repeat orders with fixed lead times, ensuring continuity of supply for critical plant spare parts inventories.
