PILZ 773540 PNOZ ml1p Safety-Reliable Relay for Critical Control

PILZ 773540 PNOZ ml1p: Safety-Reliable Relay for Critical Industrial Control Sites

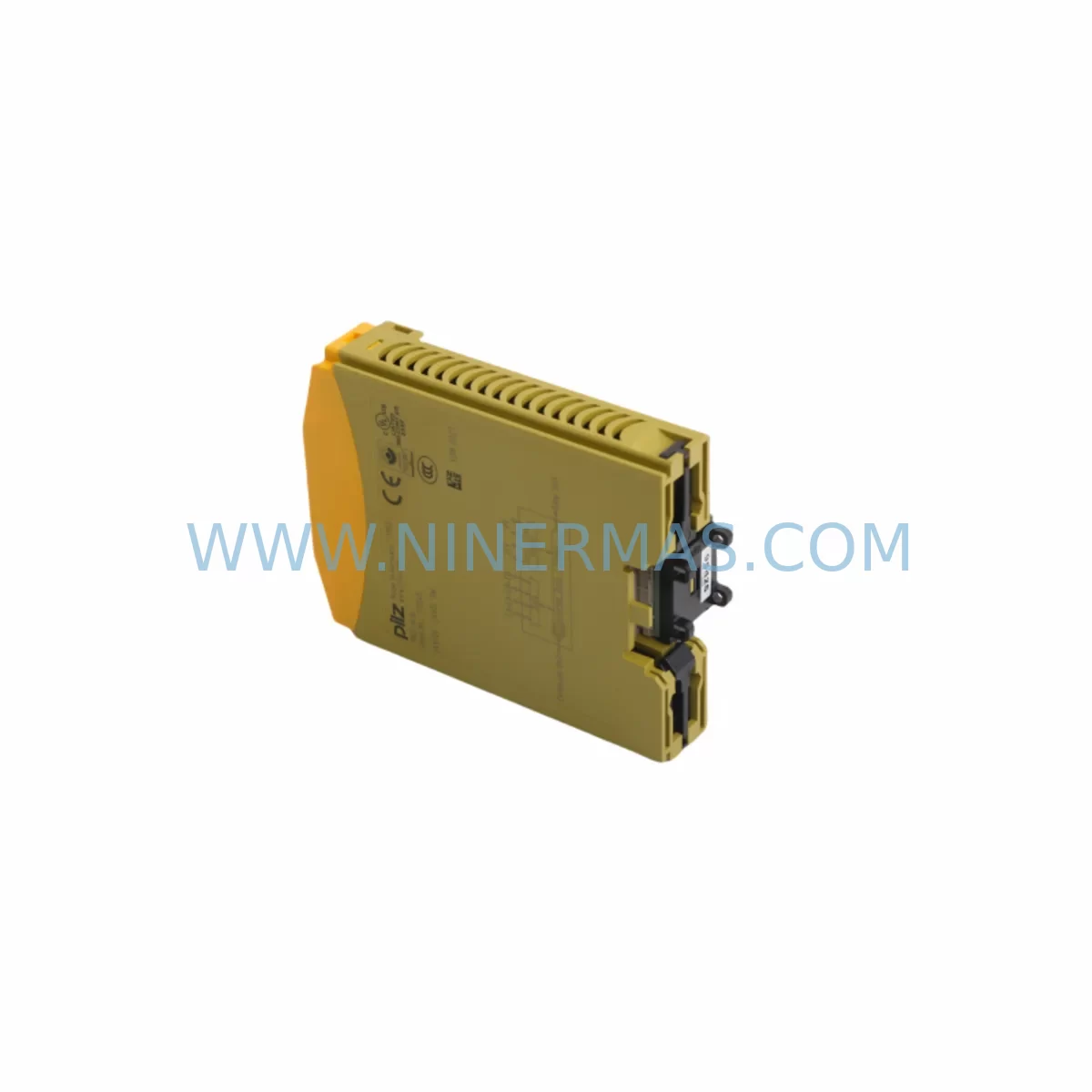

The PILZ 773540 PNOZ ml1p is a ruggedized safety relay module engineered for the most demanding industrial control environments. Designed to meet the stringent requirements of IEC 61508 and EN ISO 13849-1, this module delivers consistent, fail-safe performance in continuous production lines, critical interlock circuits, and high-load control cabinets where unplanned downtime carries severe operational and safety consequences. At NINERMAS, every unit is pre-shipment tested and backed by a 12-month warranty, ensuring your critical control infrastructure remains protected from the moment of installation.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In modern safety-critical control cabinets, a single point of failure in the safety relay chain can cascade into full-line shutdowns, regulatory non-compliance, or — in the worst case — personnel injury. The PILZ 773540 PNOZ ml1p is specifically architected to eliminate these risks through its modular, plug-in design that integrates seamlessly with the PILZ PNOZ m B0 base safety controller. This architecture allows engineers to expand safety functions without rewiring the entire cabinet, dramatically reducing commissioning time and human error during maintenance windows.

When deployed alongside the PILZ PNOZ m EF 4DI digital input expansion module, the ml1p enables comprehensive monitoring of emergency stop circuits, light curtains, two-hand controls, and safety door switches within a single coordinated safety network. For applications requiring Ethernet-based diagnostics and remote monitoring, pairing the ml1p with the PILZ PNOZ m ES ETH communication module provides real-time safety status visibility — a critical capability for predictive maintenance programs in continuous process plants.

Power supply stability is a foundational requirement for any safety relay system. Voltage sags, surges, and transient spikes are among the leading causes of nuisance trips and relay contact degradation in industrial environments. Integrating a PILZ PMCprimo DriveP or a dedicated 24 V DC SITOP PSU100S power supply upstream of the PNOZ m system ensures the ml1p receives clean, regulated power even during grid disturbances. For surge protection at the cabinet entry point, a Phoenix Contact TRABTECH surge protection device is recommended to absorb transient overvoltages before they reach sensitive relay electronics.

In high electromagnetic interference (EMI) environments — common in variable frequency drive (VFD) cabinets, arc furnace control rooms, and heavy motor starter panels — the ml1p’s compliance with EN 61000-6-2 industrial immunity standards ensures signal integrity is maintained. Supplementing the installation with Weidmüller WTR ferrite core filters on signal cables and using shielded twisted-pair wiring for all safety input circuits further reduces susceptibility to conducted and radiated interference. For I/O signal conditioning in mixed-signal cabinets, Phoenix Contact MACX MCR signal conditioners provide galvanic isolation that prevents ground loop interference from corrupting safety input states.

Where the PNOZ ml1p monitors safety door interlock circuits in dusty or humid environments — such as grain handling facilities, cement plants, or coastal marine installations — the module’s IP20 rating requires proper cabinet sealing. Pairing the control cabinet with Rittal TS 8 enclosures rated to IP54 or IP65 provides the environmental barrier that allows the ml1p’s internal electronics to operate reliably across the full -10 °C to +55 °C temperature range. For high-vibration installations such as offshore platforms or mining conveyors, DIN rail locking clips and vibration-damping mounting plates are essential accessories to prevent connector loosening over time.

Finally, for facilities operating under IEC 62061 or EN ISO 13849-1 functional safety management frameworks, the ml1p’s certified SIL 3 / PLe rating simplifies the safety validation documentation process. When combined with PILZ PNOZmulti Configurator software, safety engineers can generate automated safety function reports, reducing the time required for third-party safety audits and regulatory submissions.

Critical Industrial Safety Applications

The PILZ 773540 PNOZ ml1p has established a proven track record across the most demanding industrial sectors where control system reliability is non-negotiable.

Petrochemical and Refinery Plants: In hydrocarbon processing facilities, the ml1p is deployed in emergency shutdown (ESD) systems to monitor high-pressure vessel interlock circuits, compressor over-speed protection, and burner management system (BMS) safety loops. Its SIL 3 rating satisfies the functional safety requirements of IEC 61511, the process industry safety standard, making it a compliant choice for safety instrumented systems (SIS) in ATEX Zone 2 adjacent control rooms.

Electric Power Generation and Transmission: Substation control panels and turbine protection systems demand safety relays that can withstand high-voltage transients and maintain contact integrity over decades of service. The ml1p’s robust semiconductor outputs and certified EMC immunity make it suitable for generator protection relay panels, transformer differential protection auxiliary circuits, and grid-tie inverter safety interlock systems.

Mining and Mineral Processing: Conveyor belt emergency stop systems, crusher interlock circuits, and hoist over-travel protection in underground and open-pit mining operations rely on safety relays that perform reliably in high-dust, high-vibration, and wide-temperature-range conditions. The ml1p’s IEC 60068-2-6 vibration compliance and modular expandability make it a preferred choice for mine safety system integrators.

Water and Wastewater Treatment: Pump station motor protection, chemical dosing interlock systems, and UV disinfection safety circuits in municipal water treatment plants require safety relays that operate continuously in humid, chemically aggressive environments. The ml1p’s sealed electronics and wide humidity tolerance (5–95% RH) support reliable long-term operation in these conditions.

Metallurgy and Steel Production: Rolling mill emergency stop circuits, ladle crane overload protection, and furnace temperature interlock systems in steel plants expose safety relays to extreme thermal cycling, heavy electromagnetic interference from large motor drives, and mechanical shock from heavy rolling equipment. The ml1p’s certified shock and vibration resistance, combined with its fast ≤10 ms response time, ensures safety functions are executed before hazardous conditions can develop.

Port and Maritime Operations: Ship-to-shore crane safety systems, container terminal conveyor interlocks, and vessel mooring winch protection circuits in port environments face salt air corrosion, high humidity, and variable power quality. The ml1p’s industrial-grade construction and broad operating temperature range support reliable deployment in these coastal and marine-adjacent control applications.

Continuous Manufacturing (Automotive, Food & Beverage, Pharmaceuticals): In high-throughput production lines where every minute of unplanned downtime translates directly to lost revenue, the ml1p’s modular plug-in design enables rapid module replacement without full cabinet rewiring — minimizing mean time to repair (MTTR) and supporting lean maintenance strategies.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the PILZ 773540 PNOZ ml1p?
All PILZ 773540 PNOZ ml1p units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify relay output operation, safety input response, and bus communication integrity before dispatch. Warranty claims are supported by our technical team with replacement or repair options.

Q2: How is the PNOZ ml1p tested before shipment?
Every unit is subjected to a pre-shipment inspection protocol that includes power-on functional verification, safety output switching tests, and visual inspection for physical damage or connector integrity issues. Units that do not pass all test criteria are quarantined and not dispatched. Test records are available upon request for quality-critical procurement programs.

Q3: Is the PILZ 773540 PNOZ ml1p compatible with existing PNOZ m systems?
Yes. The PNOZ ml1p is a modular expansion unit designed to plug directly into the PILZ PNOZ m B0 base safety controller. It is compatible with the full PNOZ m modular system family, including digital input expansion modules (PNOZ m EF 4DI), communication modules (PNOZ m ES ETH), and other ml-series output expansion modules. Always verify the base unit firmware version compatibility with PILZ documentation before installation.

Q4: Can NINERMAS support long-term and repeat supply of the PNOZ ml1p for lifecycle extension programs?
Yes. NINERMAS maintains stock commitment programs specifically designed for industrial facilities running long lifecycle automation systems. We support scheduled delivery agreements, buffer stock arrangements, and multi-year supply contracts for the PILZ PNOZ m series, including the 773540 PNOZ ml1p. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to discuss your facility’s spare parts program requirements.
