Phoenix Contact 2866763 Retrofit 24VDC 10A PSU for Legacy Systems

Phoenix Contact 2866763 Retrofit 24VDC 10A PSU for Legacy Systems: Seamless Legacy System Compatibility and Smooth Upgrade

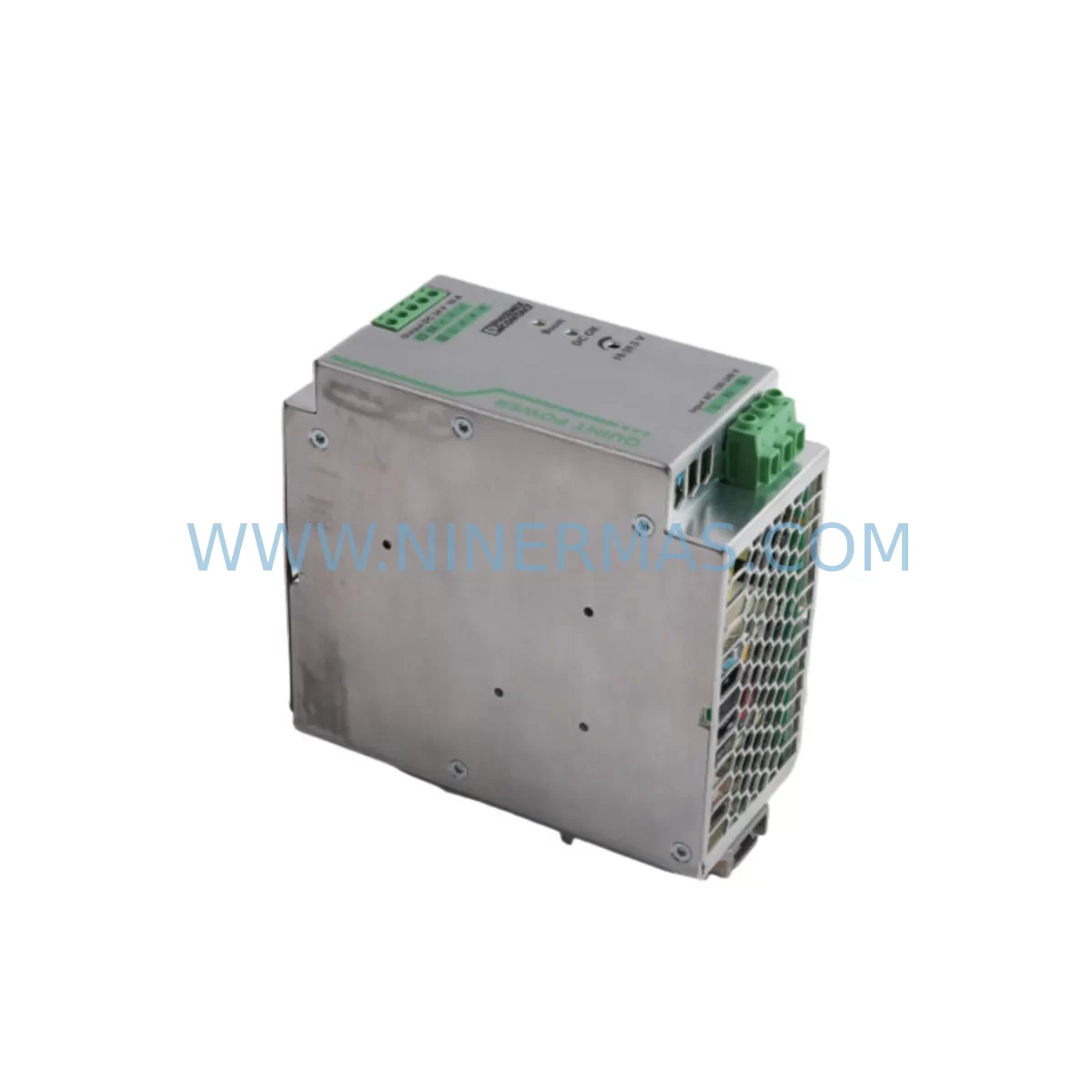

The Phoenix Contact 2866763 QUINT-PS/1AC/24DC/10 is a high-performance DIN rail-mounted power supply module delivering 24 VDC at 10 A from a single-phase AC input. Designed for industrial automation environments, this unit is a direct retrofit-compatible replacement for aging or discontinued 24 VDC rail PSU modules across a wide range of legacy control cabinets, PLC racks, and distributed I/O systems. Whether you are upgrading an obsolete power rail, restoring a discontinued spare part, or modernizing a legacy control platform, the 2866763 provides the electrical performance, form factor compatibility, and diagnostic capability required for a reliable, low-risk migration.

NINERMAS maintains verified in-stock inventory of the Phoenix Contact 2866763, pre-shipment tested and covered by a 12-month warranty, ensuring your retrofit project proceeds without supply chain delays.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a 24 VDC power supply in a live automation environment requires careful pre-migration planning. The Phoenix Contact 2866763 QUINT-PS/1AC/24DC/10 is engineered to fit into existing control cabinet layouts with minimal modification, but engineers should verify several key parameters before committing to a swap.

Power Capacity and Load Audit: Before installation, audit the total DC load on the existing rail. If the legacy PSU was rated below 10 A and the actual load has grown over time, the 2866763 provides headroom for expansion. For higher-current applications, the QUINT PS/1AC/24DC/20 (2866776) offers 20 A output on the same single-phase input, while the QUINT PS/1AC/24DC/5 (2866750) is available for lighter-load panels where a 5 A unit is sufficient. Matching the PSU rating to the actual load prevents nuisance tripping and extends service life.

Terminal Wiring and Backplane Interface: The 2866763 uses standard screw terminals compatible with most legacy cabinet wiring. Confirm conductor cross-sections and verify that the existing AC input wiring (L, N, PE) and DC output wiring (+ and −) align with the terminal layout. In systems where the legacy PSU fed a Phoenix Contact backplane or terminal block bus, the output polarity and terminal pitch of the 2866763 are designed to match standard QUINT PS footprints, reducing rewiring time.

Redundancy and UPS Integration: For critical processes where power continuity is mandatory, the QUINT-DIODE/12-24DC/2X20/1X40 (2866514) redundancy module can be paired with two 2866763 units to create a fully redundant 24 VDC supply without single points of failure. Where battery-backed operation is required during mains outages, the QUINT-UPS/24DC/24DC/10 (2320225) UPS module integrates directly with the QUINT PS series, and the QUINT-BAT/24DC/7.2AH (2866352) battery module provides the energy buffer. These combinations are common in legacy system upgrades where the original design lacked redundancy but the modernized system requires higher availability.

I/O and Signal Compatibility: In retrofit projects involving distributed I/O expansion, the 24 VDC output of the 2866763 directly powers Phoenix Contact Inline I/O modules such as the IB IL 24 DI 16 (2862928) digital input module. Signal isolation between legacy field devices and modern controllers is often required; the MCR-SL-S-100-I (2864493) signal isolator is a common companion component in such migrations, ensuring clean signal transmission without ground loops.

Communication Protocol Migration: When upgrading legacy control cabinets that include Ethernet-based communication, the FL SWITCH SFNB 8TX (2891002) unmanaged Ethernet switch is frequently installed alongside the new PSU to support protocol migration from serial fieldbus to Ethernet/IP or PROFINET. The 2866763 provides the stable 24 VDC rail required to power such network infrastructure reliably.

Three-Phase and Alternative PSU Paths: In facilities with three-phase AC distribution, the QUINT PS/3AC/24DC/20 (2866792) is the preferred upgrade path for higher-power panels. For compact control cabinets where space is constrained, the TRIO-PS/1AC/24DC/5 (2866310) offers a narrower footprint at reduced current output, suitable for auxiliary supply rails within the same cabinet.

Module Address and Program Compatibility: Unlike PLC I/O modules, a DIN rail PSU replacement does not require address reconfiguration or PLC program changes. However, if the legacy PSU included a remote signaling contact wired into the PLC’s digital input for fault monitoring, verify that the 2866763’s potential-free signaling contact is wired to the same input channel and that the HMI alarm screen reflects the correct fault label.

Downtime Control During System Migration

Minimizing production downtime during a PSU replacement is a primary concern for maintenance engineers. The Phoenix Contact 2866763 supports a structured hot-swap migration approach in systems where a temporary parallel supply can be arranged.

Pre-Shutdown Preparation: Before de-energizing the legacy PSU, document the existing output voltage setpoint using a calibrated multimeter. Note the DC bus voltage under full load. Pre-configure the 2866763 output trimmer to match this setpoint before installation. This eliminates post-installation voltage adjustment under live conditions.

Program Logic Protection: In PLC-controlled systems, ensure the controller is placed in STOP mode or that the process is in a safe hold state before interrupting the 24 VDC supply. For systems using Phoenix Contact ILC or RFC controllers, verify that the program is saved to non-volatile memory and that the I/O configuration is backed up before the power interruption.

Field Control Continuity: Where field devices (sensors, actuators, solenoid valves) are powered from the same 24 VDC rail, coordinate the shutdown sequence to avoid uncontrolled actuator movement. Use the QUINT-UPS/24DC/24DC/10 (2320225) buffer module to maintain 24 VDC to critical field devices during the PSU swap window if a brief interruption cannot be tolerated.

Post-Installation Commissioning: After installing the 2866763, verify output voltage under no-load and full-load conditions. Confirm the SFB (Selective Fuse Breaking) function by briefly short-circuiting the output through a test load and verifying recovery. Check the signaling contact output and confirm the HMI fault indicator clears. Log the commissioning results for traceability.

NINERMAS ships all 2866763 units with pre-shipment functional testing completed. Each unit is verified for output voltage accuracy, current limiting behavior, and signaling contact operation before dispatch, reducing on-site commissioning risk.

Retrofit Support FAQ

Q1: Is the Phoenix Contact 2866763 a direct replacement for my existing 24 VDC / 10 A DIN rail PSU?
In most cases, yes. The 2866763 QUINT-PS/1AC/24DC/10 is designed to replace legacy 24 VDC / 10 A single-phase DIN rail power supplies with a standard 70 mm width footprint. Verify the terminal layout, output polarity, and DIN rail slot width before installation. If your legacy unit was a different Phoenix Contact QUINT PS variant, the 2866763 is a form-fit-function compatible replacement.

Q2: What wiring changes are required during installation?
Typically none, provided the existing AC input and DC output conductors are within the 2866763’s terminal capacity (up to 10 mm² cross-section). Reuse existing cable ferrules where possible. If the legacy unit used a different terminal pitch or connector type, prepare new ferrules and verify conductor insulation ratings before reconnection.

Q3: Has the unit been tested before shipment, and what warranty is provided?
Yes. All Phoenix Contact 2866763 units supplied by NINERMAS undergo pre-shipment functional testing covering output voltage, current limiting, and signaling contact operation. Every unit is covered by a 12-month warranty from the date of delivery. Warranty claims are handled directly by NINERMAS with replacement or repair turnaround support.

Q4: Is stock available for immediate shipment?
NINERMAS maintains verified in-stock inventory of the 2866763. Units are available for immediate dispatch with standard lead times. For bulk orders or reserved inventory agreements for long-term maintenance programs, contact our team directly to discuss stock reservation and pricing.
