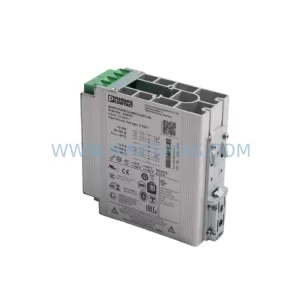

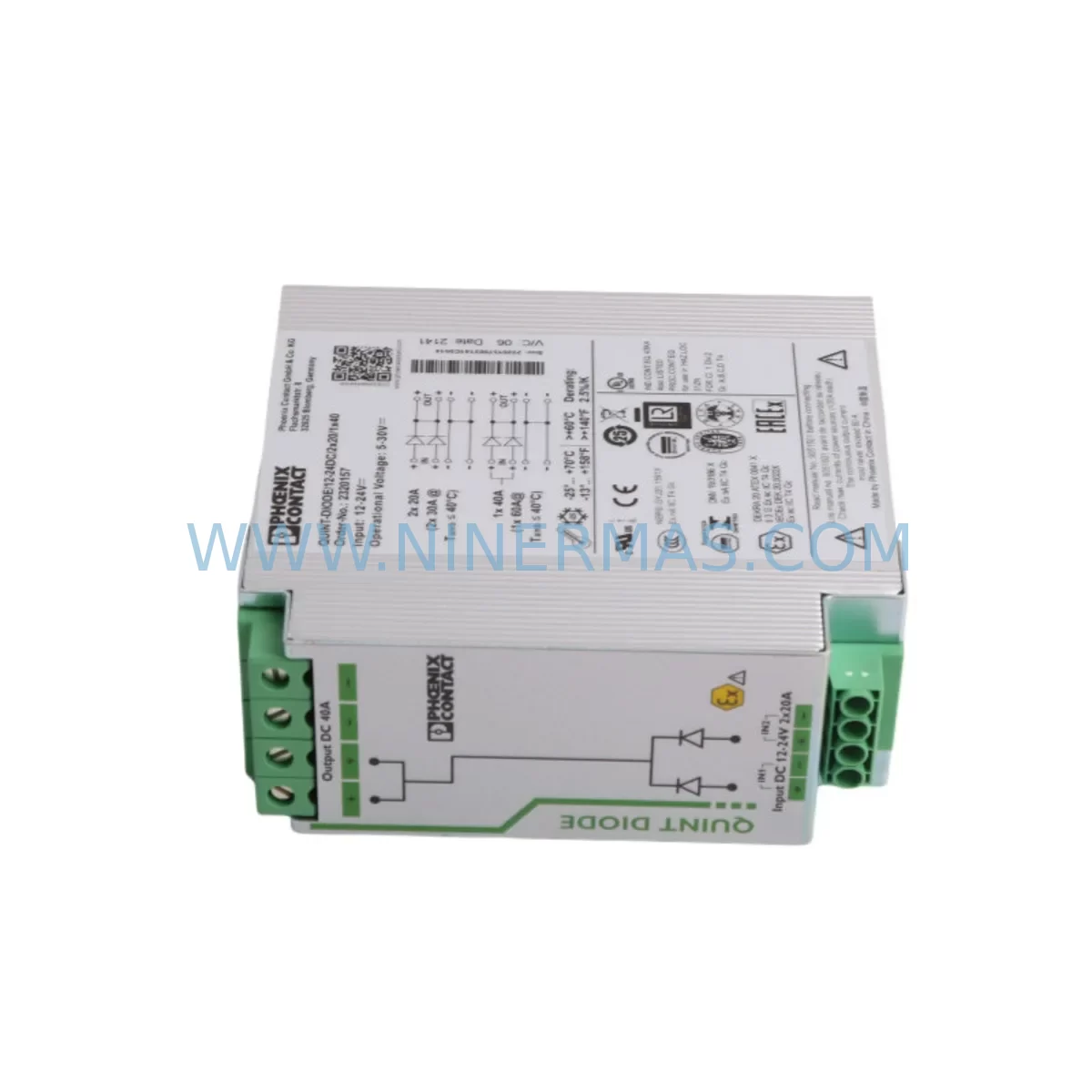

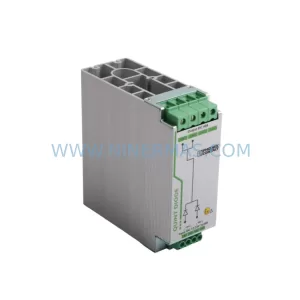

The Phoenix Contact 2320157 QUINT-DIODE/12-24DC/2X20/1X40 is a high-reliability diode redundancy module engineered for 12–24 VDC industrial power distribution systems. Designed to decouple two parallel power supply outputs and combine them into a single redundant load circuit, this module is a critical component in any fault-tolerant control cabinet architecture. When one power supply fails or is taken offline for maintenance, the QUINT-DIODE ensures uninterrupted current delivery to the load — eliminating single points of failure in PLCs, DCS panels, safety relay circuits, and HMI systems.

For maintenance engineers managing aging automation infrastructure, the 2320157 represents a service-ready, drop-in replacement for end-of-life or degraded redundancy modules. NINERMAS maintains verified stock of this part with pre-shipment electrical testing, ensuring every unit shipped meets original Phoenix Contact specifications. A 12-month warranty is included as standard on all units.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the Phoenix Contact 2320157 QUINT-DIODE is rarely an isolated task. In a well-maintained control cabinet, the redundancy module sits at the intersection of the power supply rail, the load bus, and the protective circuit — meaning a failure here often signals stress on adjacent components that should be inspected simultaneously.

When scheduling a replacement of the 2320157, maintenance engineers should begin with the upstream power supplies. If the cabinet uses QUINT-PS/1AC/24DC/20 or QUINT4-PS/1AC/24DC/20 units feeding the diode module, verify their output voltage stability and check for capacitor aging or fan wear. A degraded power supply feeding a redundancy module can cause asymmetric loading that accelerates diode wear.

Downstream of the QUINT-DIODE, inspect the QUINT-UPS/24DC/24DC/20 uninterruptible power supply and any QUINT-BUFFER/24DC/24DC/40 buffer modules. These units depend on stable, clean DC input from the redundancy stage — any ripple or voltage sag introduced by a failing diode module will degrade their bridging performance during mains interruptions.

Within the same cabinet, check the PT 4-PE/L/N terminal blocks and PTFIX distribution terminal blocks for signs of overheating, loose connections, or discoloration — symptoms that often accompany sustained overcurrent events that may have stressed the redundancy module. Similarly, inspect CB TM1/TM2 miniature circuit breakers protecting individual load branches; a nuisance trip history may indicate the diode module was operating near its thermal limit.

For cabinets integrating safety circuits, verify the status of PLC-RSC-24DC/21 safety relay modules and any MCR-SL signal conditioners or isolators on the I/O rail. These components are sensitive to power quality and may exhibit intermittent faults if the redundancy module has been delivering degraded output. If the system includes a QUINT-ORING module or a secondary ORing diode assembly, inspect it in parallel with the 2320157 replacement.

Finally, for cabinets with Ethernet-based communication, check the FL SWITCH 2005 or FL SWITCH 2008 industrial Ethernet switches powered from the same 24 VDC rail. Network instability during power events is a common symptom of redundancy module degradation that is often misdiagnosed as a communication fault rather than a power distribution issue.

A structured inspection covering these components — power supplies, buffer modules, terminal blocks, circuit breakers, relay modules, signal isolators, and communication switches — transforms a reactive spare part replacement into a proactive maintenance event that extends system uptime and reduces the risk of repeat failures.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement unit part number is 2320157 and matches the QUINT-DIODE/12-24DC/2X20/1X40 designation. Verify input voltage (12–24 VDC), dual 20 A input channels, and 40 A combined output against your system’s load profile. Cross-reference with the cabinet’s electrical drawings before proceeding.

Step 2 — Safe isolation: De-energize the cabinet following your site’s lockout/tagout (LOTO) procedure. If the system supports hot-swap maintenance via a redundant supply path, confirm the secondary supply is carrying full load before removing the module. Do not remove the QUINT-DIODE under load without a verified redundant path active.

Step 3 — Physical removal and inspection: Release the DIN rail locking tab and slide the module free. Inspect the terminal connections for arc marks, discoloration, or corrosion. Check the DIN rail segment for deformation. Document the condition with photographs for your maintenance log.

Step 4 — Installation of replacement unit: Clip the new 2320157 onto the DIN rail and reconnect input and output terminals to the torque specification in the Phoenix Contact datasheet (typically 0.5–0.6 Nm for screw terminals). Verify polarity on both input channels before re-energizing.

Step 5 — Functional verification: Re-energize the cabinet and measure output voltage at the load bus. Confirm both input channels are contributing current (use a clamp meter on each input feed). Verify the signaling LED status on the module matches normal operation. Log the replacement date, part number, and test results in your CMMS or maintenance record system.

This workflow minimizes downtime, ensures system compatibility, and provides a traceable maintenance record — critical for ISO-compliant facilities and warranty claim support.

Spare Parts Support FAQ

Q1: Is the 2320157 still available as a new original part, or is it end-of-life?
The Phoenix Contact 2320157 QUINT-DIODE/12-24DC/2X20/1X40 may have limited availability through standard distribution channels as the QUINT4 series has superseded earlier QUINT variants. NINERMAS maintains dedicated long-term stock of legacy QUINT series components specifically to support installed base maintenance. All units are original Phoenix Contact manufacture, not aftermarket substitutes. Contact us to confirm current stock levels and lead times before scheduling your maintenance window.

Q2: How do I verify compatibility with my existing QUINT power supply installation?
The 2320157 is compatible with any 12–24 VDC dual-supply redundancy architecture where each supply delivers up to 20 A and the combined load does not exceed 40 A. It is designed to work alongside QUINT-PS, QUINT4-PS, and equivalent 24 VDC DIN rail power supplies. If your cabinet uses a different voltage range or higher current rating, contact our technical team with your cabinet’s electrical drawings for a compatibility assessment before ordering.

Q3: What pre-shipment testing does NINERMAS perform on the 2320157?
Every unit undergoes electrical functional testing prior to dispatch, including input/output voltage verification, forward voltage drop measurement across both diode channels, and thermal performance check under load. Units that do not meet original Phoenix Contact specifications are rejected. A test report is available on request. All units ship with a 12-month warranty covering manufacturing defects and electrical performance.

Q4: What is the recommended spare parts inventory strategy for QUINT-DIODE modules?
For facilities with multiple redundant power distribution cabinets, we recommend maintaining a minimum of one 2320157 per five installed units as a cold-spare buffer. Given the end-of-life trajectory of the QUINT series, procurement engineers should consider a forward-buy of 2–3 units to hedge against future availability constraints. NINERMAS offers reserved inventory agreements for high-volume or long-term maintenance contracts — contact us to discuss a supply arrangement aligned with your annual maintenance schedule.
