Phoenix 2938646 Service-Ready Spare Part for Industrial Maintenance

Phoenix 2938646 Service-Ready Spare Part for Industrial Maintenance

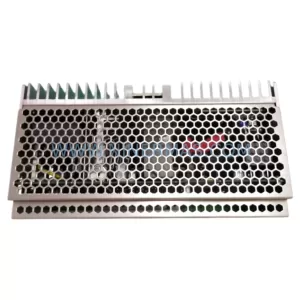

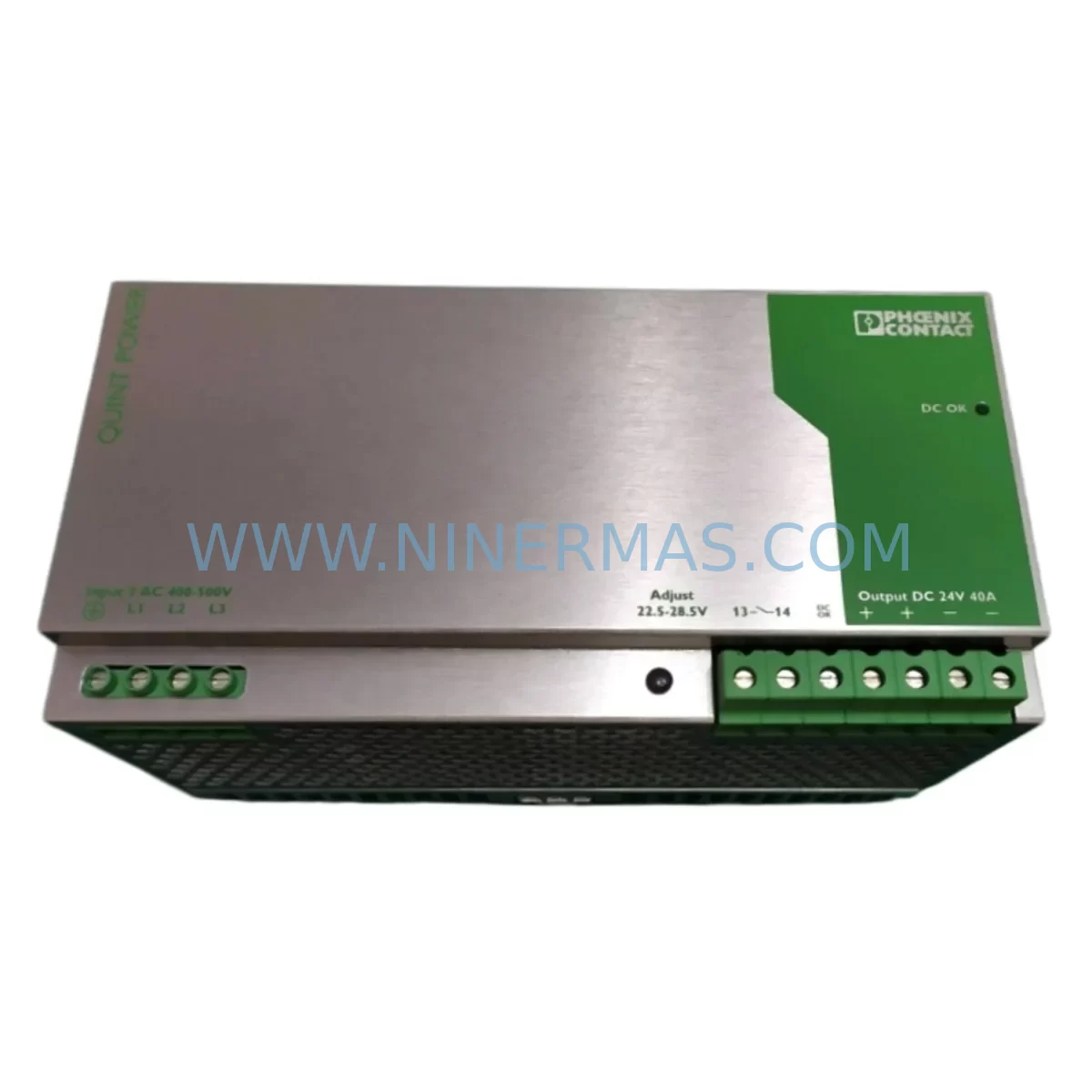

The Phoenix Contact 2938646 is a ruggedized 3-phase power supply module engineered for continuous operation in demanding industrial environments. As a critical component in control cabinet power distribution, this module delivers stable, regulated DC output from a 3-phase AC input — making it an essential spare part for maintenance engineers managing PLC-driven production lines, DCS control systems, and automated manufacturing cells. Whether you are responding to an unplanned shutdown or executing a scheduled annual overhaul, having a verified, service-ready 2938646 in your spare parts inventory is a proven strategy for minimizing mean time to repair (MTTR) and protecting production uptime.

At NINERMAS, every Phoenix Contact 2938646 unit is sourced from authorized supply channels, inspected prior to dispatch, and backed by a 12-month warranty. We support maintenance teams and procurement engineers across process industries, automotive assembly, water treatment, oil & gas, and discrete manufacturing with long-term, reliable spare parts supply.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a Phoenix Contact 2938646 power supply module fails or approaches end-of-life, the impact extends well beyond the module itself. A systematic control cabinet inspection is essential to prevent cascading failures and ensure a clean, reliable restoration of power to your automation system. Maintenance engineers should treat the replacement of this module as an opportunity to audit the entire power distribution chain.

Begin by verifying the integrity of the 3-phase input wiring and terminal blocks — loose connections or corroded terminals are a leading cause of premature power supply failure. Inspect the Phoenix Contact UK series terminal strips or equivalent DIN rail terminal blocks for signs of overheating, discoloration, or mechanical damage. Check the input-side fuses or circuit breakers (such as Phoenix Contact TMC or Siemens 5SY series) to confirm they are correctly rated and have not been weakened by repeated overcurrent events.

On the DC output side, evaluate the condition of the 24 VDC bus bars and distribution terminals feeding downstream loads. If the control cabinet includes a Phoenix Contact QUINT-UPS or MINI-UPS buffer module, verify that the buffer capacitors or battery pack are still within service life — a degraded UPS will not protect the system during the next power interruption. For cabinets with redundant power supply configurations using a Phoenix Contact QUINT-ORING or redundancy module, confirm that the redundancy diode or active ORing circuit is functioning correctly before returning the system to service.

Inspect all 24 VDC relay outputs — including Phoenix Contact PLC-RSC or Finder relay modules — for contact wear, especially on high-cycle outputs controlling solenoids, motor starters, or safety circuits. Review the I/O modules connected to the power rail: Phoenix Contact Inline or Axioline I/O modules, or third-party equivalents from Siemens ET 200, Beckhoff EtherCAT, or Rockwell Point I/O families, should be checked for correct supply voltage and signal integrity. A power supply replacement is also an ideal time to inspect signal isolators and signal conditioners — such as Phoenix Contact MCR or MACX series — that protect sensitive analog inputs from ground loops and electrical noise.

For systems with PROFIBUS, PROFINET, EtherNet/IP, or Modbus TCP communication modules, confirm that the communication power supply (often a separate 24 VDC rail) is stable and within tolerance after the main module replacement. Check the HMI panel supply — whether a Siemens TP series, Weintek, or Proface unit — to ensure the display and touchscreen are receiving clean, regulated power. Finally, review the backplane or rack power distribution in any modular PLC or DCS system to confirm that all slots are receiving correct voltage before re-enabling the control program.

Site Replacement Workflow

Replacing the Phoenix Contact 2938646 in the field is a straightforward process when the correct spare is on hand and the replacement procedure is followed systematically. Begin by isolating the control cabinet from the 3-phase AC supply using the main disconnect or lockout/tagout (LOTO) procedure in accordance with your site safety standards. Document the existing wiring configuration — particularly the 3-phase input connections, PE grounding, and DC output terminal assignments — before removing the failed module.

Remove the defective 2938646 from the DIN rail by releasing the mounting clip and carefully disconnecting all terminal connections. Install the replacement unit on the DIN rail, reconnect all terminals in the documented sequence, and verify torque on all screw terminals to the manufacturer’s specification (typically 0.5–0.6 Nm for Phoenix Contact spring-cage or screw terminals). Before re-energizing, use a multimeter to confirm input phase voltage and verify that no short circuits exist on the DC output bus.

Re-energize the 3-phase input and measure the DC output voltage under no-load and then full-load conditions. Confirm that the output is within the rated tolerance (typically ±1% for Phoenix Contact QUINT-PS series). Check the status LEDs on the module — a steady green DC OK indicator confirms normal operation. If the cabinet includes a Phoenix Contact QUINT-DIAG or remote monitoring module, verify that the power supply status is correctly reported to the SCADA or BMS system before releasing the equipment back to production.

This systematic approach eliminates the risk of re-energizing a cabinet with hidden wiring faults, reduces the likelihood of a repeat failure, and ensures full system compatibility — particularly important when replacing an older 2938646 unit that may have been in service for 5–10 years in a harsh environment.

Spare Parts Support FAQ

Q1: Is the Phoenix Contact 2938646 a direct drop-in replacement for the original module?
Yes. The 2938646 supplied by NINERMAS is an original Phoenix Contact part with the same electrical specifications, mechanical dimensions, and DIN rail mounting footprint as the factory-installed unit. No wiring modifications or firmware changes are required for a direct replacement in compatible Phoenix Contact QUINT-PS or TRIO-PS series installations.

Q2: How do you verify the unit before shipment?
Every Phoenix Contact 2938646 unit undergoes a pre-shipment inspection that includes visual examination, input/output voltage verification, and functional testing under load. Units are packaged in anti-static, shock-resistant packaging to ensure they arrive in service-ready condition. A test report is available upon request for critical infrastructure procurement.

Q3: What is your long-term supply commitment for the 2938646?
NINERMAS maintains ongoing stock and sourcing relationships to support long-term supply of the Phoenix Contact 2938646 and related spare parts. For customers managing aging control systems or planning multi-year maintenance contracts, we offer blanket order arrangements and reserved stock programs to eliminate procurement risk and ensure parts availability when needed.

Q4: What warranty and after-sales support do you provide?
All 2938646 units sold by NINERMAS are covered by a 12-month warranty from the date of shipment. In the event of a warranty claim, our technical team will work with you to diagnose the issue, arrange a replacement, and minimize any impact on your maintenance schedule. We support customers across Asia, Europe, and the Americas with responsive after-sales service and technical consultation.
