Parker P11-014DR Retrofit-Compatible HMI for Legacy Systems

Parker P11-014DR Retrofit-Compatible HMI for Legacy Systems

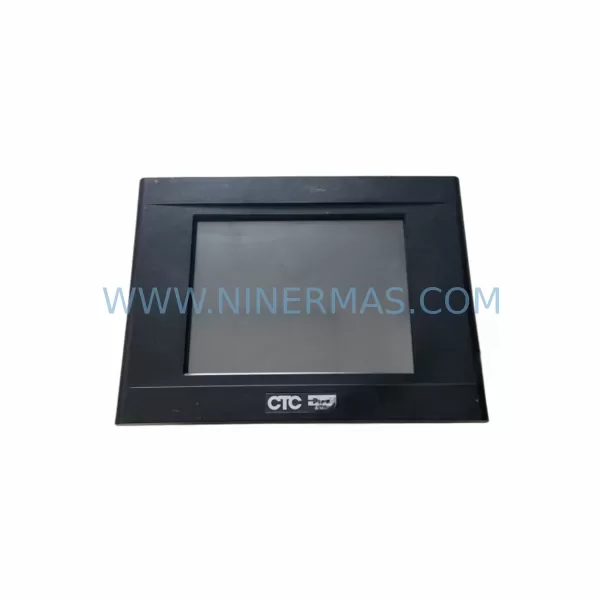

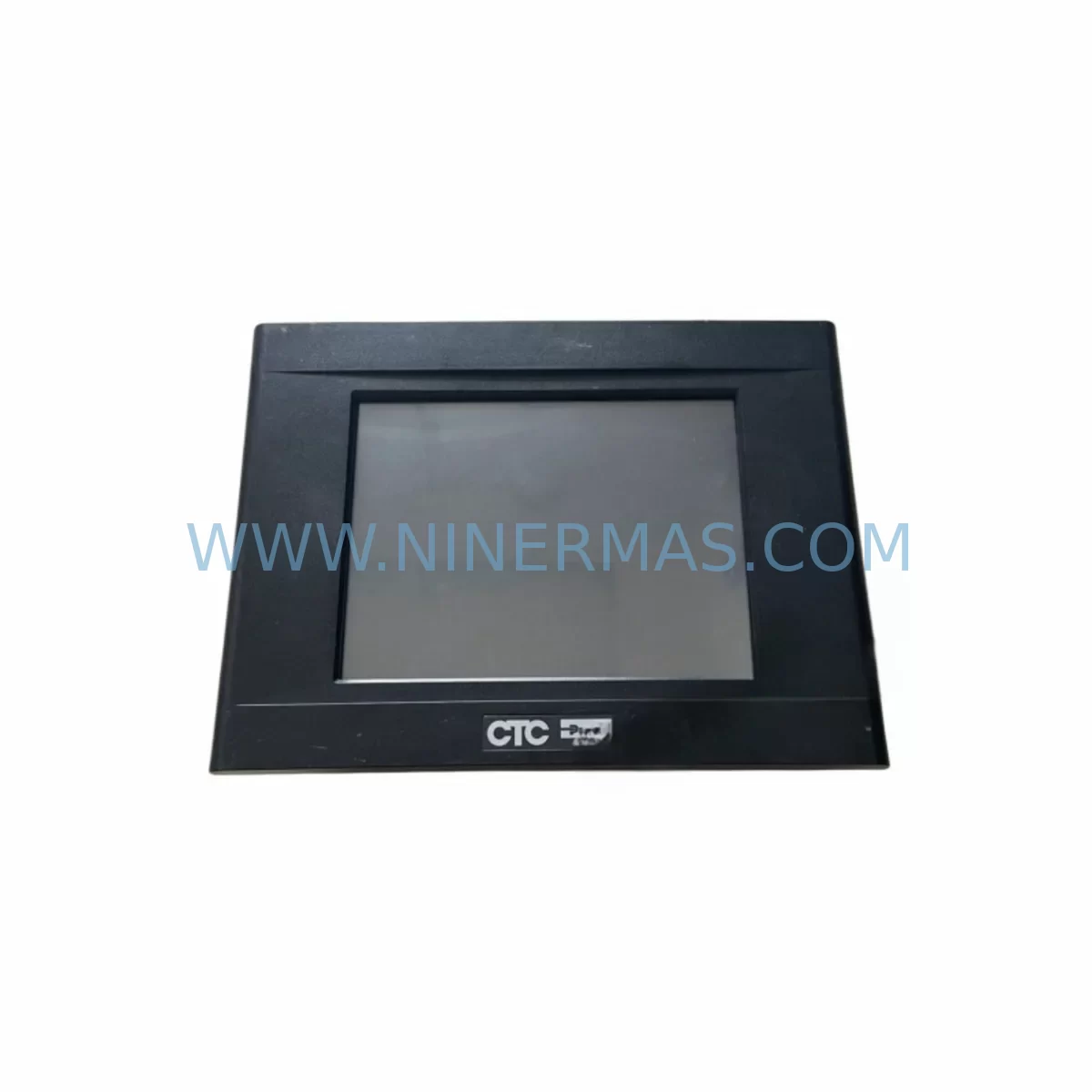

The Parker P11-014DR is a ruggedized operator interface module (HMI) engineered for demanding industrial environments and designed to serve as a direct retrofit replacement for aging or discontinued operator panels in Parker-based automation systems. As legacy control architectures reach end-of-life, maintenance engineers and procurement teams face increasing pressure to source compatible HMI units that can be installed without extensive reprogramming, panel redesign, or extended downtime. The P11-014DR addresses this challenge by offering a proven, field-compatible interface solution that integrates seamlessly into existing Parker control platforms.

Whether you are managing a scheduled control cabinet upgrade, responding to an unplanned HMI failure, or executing a phased modernization of an older production line, the P11-014DR provides the compatibility, ruggedness, and reliability required to restore operator visibility and control with minimal disruption. Its ruggedized construction makes it suitable for environments with elevated vibration, dust ingress, temperature variation, and continuous industrial operation — conditions common in manufacturing, process control, packaging, and material handling applications.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing an HMI in a live or recently shut-down production environment requires careful coordination across multiple system layers. When installing the Parker P11-014DR as a retrofit replacement, the maintenance team should begin by auditing the existing control cabinet layout to confirm available panel cutout dimensions and mounting depth clearance. The P11-014DR follows the standard P11 series panel-mount format, but engineers should verify that the replacement unit fits within the existing enclosure without requiring structural modification.

Power supply compatibility is a critical first checkpoint. The P11-014DR operates on 24 VDC, and the existing cabinet power supply — often a Parker or third-party 24V DC rail module — must be confirmed to provide adequate current capacity for the new HMI alongside other connected loads such as I/O modules, relay output cards, and communication adapters. If the existing power supply is marginal or aging, this retrofit presents an appropriate opportunity to replace it concurrently.

Communication wiring must be carefully mapped before disconnecting the old unit. The P11-014DR typically communicates via RS-232 or RS-485 serial links to the host controller — commonly a Parker AC890, Parker SSD 590, or a compatible Parker programmable controller. Engineers should document the existing baud rate, parity settings, and communication address configured in the host controller before removal. These parameters must be replicated in the replacement HMI during commissioning to avoid communication faults.

Screen program compatibility is another key consideration. If the original HMI was programmed with Parker’s HMI configuration software, the existing project file should be retrieved from backup or re-read from the old unit (if still partially functional) before replacement. The P11-014DR supports the same programming environment as other P11 series panels, allowing direct project transfer in most cases. Where screen layouts reference specific I/O tags, relay status bits, or analog signal values from connected Parker I/O expansion modules or signal isolators, these tag mappings should be verified against the current PLC or drive program.

Terminal block wiring — including power, communication, and any discrete I/O connections routed through the HMI — should be photographed and labeled before disconnection. In cabinets where the HMI is integrated with a Parker motion controller, servo drive, or frequency inverter, the wiring harness routing and connector pinout must be confirmed against the P11-014DR’s terminal specification. Any discrepancies between the old and new unit’s connector layout should be resolved with appropriate wiring adapters rather than forced connections.

For systems where the HMI interfaces with a SCADA layer or upstream DCS via Modbus RTU or a proprietary Parker protocol, the communication gateway or protocol converter settings must also be reviewed. Replacing the HMI without updating the gateway configuration can result in communication timeouts or data mapping errors that prevent the operator station from displaying live process values correctly.

Downtime Control During System Migration

Minimizing downtime during an HMI retrofit requires a structured pre-outage preparation process. Before the planned maintenance window, the engineering team should complete all documentation, software backup, and spare parts staging so that the physical replacement can be executed within the shortest possible window.

The recommended sequence for replacing the Parker P11-014DR in a live system begins with a full backup of the existing HMI project, followed by a controlled shutdown of the affected control loop or production cell. The old unit should be de-energized, disconnected, and removed with all wiring labeled. The P11-014DR replacement unit — pre-tested and pre-configured where possible — is then installed, wired, and powered up in sequence.

Communication link verification should be performed before returning the system to automatic mode. Engineers should confirm that the HMI is successfully polling the host controller, that all screen pages load correctly, and that alarm and status indicators reflect actual system states. Where the HMI is connected to a Parker drive or motion controller, a brief manual jog test of the controlled axis or process loop is recommended before resuming production.

For systems where extended downtime is not acceptable, a parallel commissioning approach can be used: the replacement P11-014DR is pre-configured and bench-tested against a spare controller or simulator before the maintenance window, reducing on-site commissioning time to a simple swap-and-verify procedure. This approach is particularly effective in high-availability environments such as continuous process lines, packaging systems, and automated assembly cells.

Stocking a pre-configured P11-014DR as a cold standby spare — alongside related components such as the communication cable set, 24V power supply module, and terminal block connectors — further reduces mean time to repair (MTTR) in the event of an unplanned HMI failure. A documented replacement procedure stored with the spare unit ensures that any qualified technician can execute the swap without specialist support.

Retrofit Support FAQ

Q1: Is the Parker P11-014DR a direct replacement for the P11-014 and other P11 series variants?
The P11-014DR is designed as a retrofit-compatible replacement within the Parker P11 operator interface series. In most applications, it can replace the P11-014 and closely related variants without panel cutout modification. Engineers should verify communication settings, power supply voltage, and screen program compatibility before installation to ensure a seamless transition.

Q2: What commissioning steps are required after installing the P11-014DR?
After physical installation and wiring, the key commissioning steps include: setting the correct communication address and baud rate to match the host controller configuration, loading or transferring the existing HMI project file, verifying all screen pages and tag mappings, and confirming communication link status with the connected Parker controller or drive. A functional test of all operator controls and display elements should be completed before returning the system to production.

Q3: How is the P11-014DR tested before shipment?
Each P11-014DR unit undergoes pre-shipment functional verification covering power-on self-test, display operation, keypad response, and communication port integrity. Units that do not pass all test criteria are not dispatched. A 12-month warranty from the shipment date covers manufacturing defects and functional failures under normal operating conditions.

Q4: Can long-term supply of the P11-014DR be arranged for ongoing maintenance programs?
Yes. The P11-014DR is maintained in stock to support both immediate replacement needs and planned maintenance programs. For customers managing multiple Parker-based systems or executing a phased retrofit program across several production lines, blanket order arrangements and reserved inventory allocation can be discussed. Contact our technical sales team to confirm current stock levels and lead times for volume requirements.
