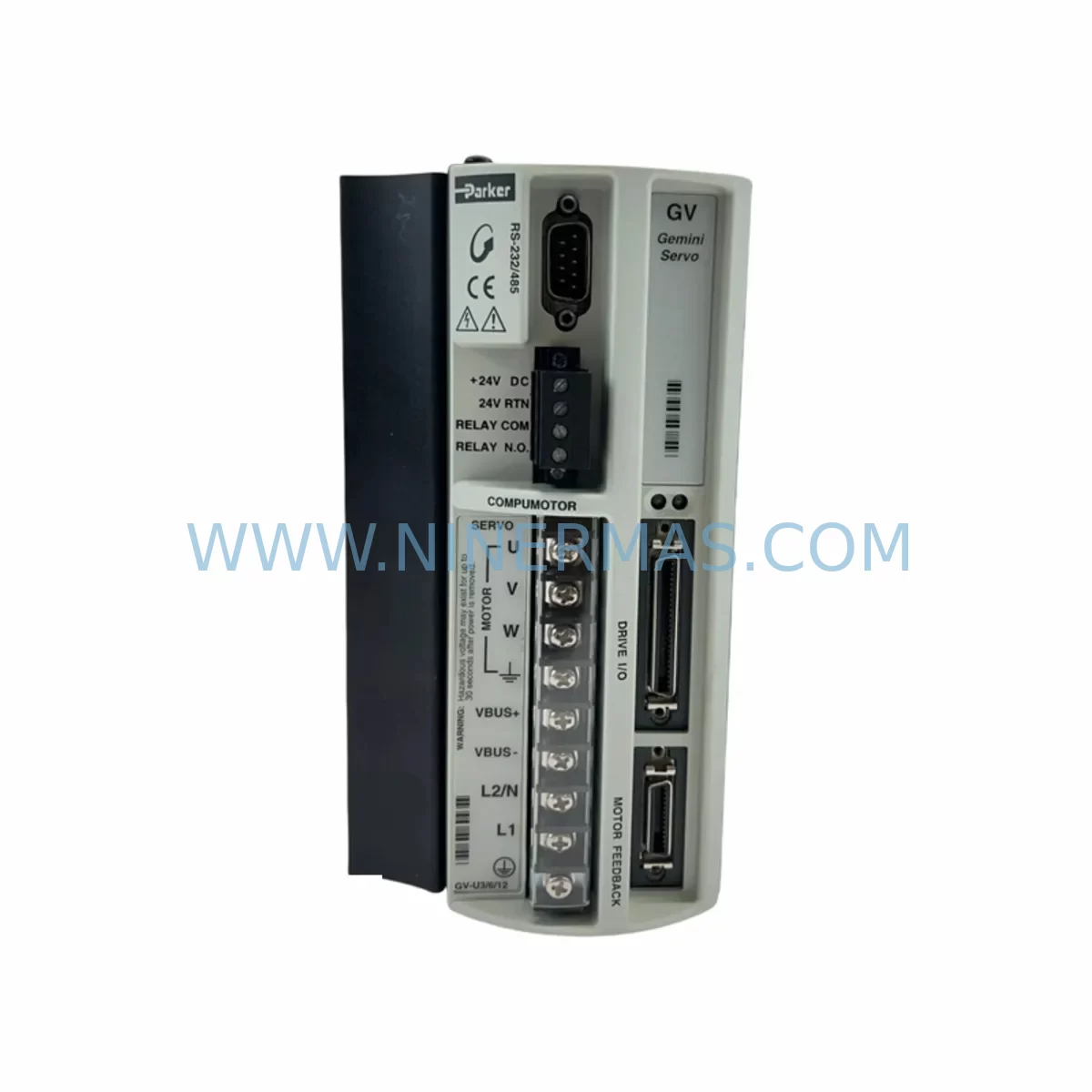

The Parker GV-U6E-310 is a high-performance AC servo drive from the Parker Gemini Series, purpose-built for demanding motion control applications in industrial automation environments. As legacy Gemini Series installations age and original spare parts become increasingly difficult to source, the GV-U6E-310 has emerged as a critical retrofit and replacement component for engineers tasked with modernizing aging control cabinets, extending production line lifecycles, and maintaining operational continuity without full system overhauls.

NINERMAS maintains verified in-stock inventory of the Parker GV-U6E-310 to support planned maintenance programs, emergency breakdowns, and long-term spare parts procurement strategies. Each unit ships with a 12-month warranty and undergoes pre-shipment functional testing to ensure compatibility with your existing Gemini Series infrastructure.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a Parker GV-U6E-310 in an active production environment requires careful pre-planning across multiple system layers. Before removing the failed or end-of-life drive, engineers should document the existing terminal wiring layout — including motor power leads (U, V, W), brake resistor connections, and encoder feedback cable routing — to ensure the replacement unit is wired identically and avoids phase reversal or feedback signal errors.

In multi-axis Gemini Series cabinets, the GV-U6E-310 typically shares a common DC bus or operates alongside companion drives such as the GV-L3E-310 or GV-U3E-310. Confirm that the shared bus voltage and current capacity remain within specification after the swap, particularly if the cabinet also houses a Parker GV-U12E-310 or higher-rated axis. The Parker AC30 series power supply module or equivalent 24 VDC logic supply feeding the drive’s control board should be verified for output stability before powering up the replacement unit.

Communication continuity is equally critical. In RS-485 multi-drop networks, the GV-U6E-310’s node address must be reconfigured to match the original axis assignment recognized by the host controller — typically a Parker ACR9000 or ACR8020 motion controller. If the system uses a Parker Aries AR-series drive on adjacent axes, confirm that the communication daisy-chain termination resistor is correctly positioned after the replacement drive is inserted into the network.

For cabinets integrating Parker HMI panels or third-party SCADA displays, verify that axis status tags, fault codes, and position feedback variables mapped to the GV-U6E-310 remain consistent after the drive swap. HMI screen logic referencing drive-specific parameter addresses may require a brief re-mapping session if firmware versions differ between the old and new unit.

I/O wiring should also be audited: digital inputs for enable, fault reset, and home switch signals, as well as analog command inputs (±10 V or 4–20 mA), must be reconnected to the correct terminal block positions on the replacement GV-U6E-310. In installations where a Parker SSD 690+ series or similar drive occupies an adjacent slot, ensure that shared I/O commons and ground references are not inadvertently disrupted during the swap.

Finally, confirm physical installation clearances. The GV-U6E-310 requires adequate vertical airflow spacing within the control cabinet. If the original unit was mounted with custom brackets or spacers, replicate the same mechanical arrangement to avoid thermal derating or vibration-induced connector fatigue over time.

Downtime Control During System Migration

Minimizing unplanned downtime during a GV-U6E-310 replacement begins well before the maintenance window opens. The most effective approach is to pre-stage the replacement drive with all parameter settings loaded and verified offline using Parker Motion Planner software. Export the axis configuration file from the original drive (if still functional) or reconstruct it from the machine’s commissioning documentation, then load and validate it on the bench unit before the scheduled swap.

During the physical exchange, follow a structured lockout/tagout procedure and label every wire before disconnection. Use the original wiring diagram — or photograph the terminal block layout — to ensure the replacement drive is reconnected identically. Pay particular attention to the encoder feedback connector pinout, as incorrect wiring here will prevent the drive from achieving commutation and may trigger immediate fault conditions on power-up.

Once the replacement GV-U6E-310 is installed and wired, perform a controlled power-up sequence: apply control power first, confirm no fault LEDs, then enable the drive in a low-speed jog mode before returning to full automatic operation. Verify that the host controller — whether a Parker ACR9000, a Rockwell ControlLogix, or a Siemens S7-series PLC — recognizes the drive on the communication network and that all axis status bits reflect normal operation.

For critical production lines where even brief interruptions carry significant cost, NINERMAS recommends maintaining at least one GV-U6E-310 as a pre-configured cold standby spare. This strategy, combined with a documented swap procedure and pre-loaded parameter file, can reduce mean time to repair (MTTR) to under two hours for experienced maintenance teams.

Retrofit Support FAQ

Q1: Is the Parker GV-U6E-310 a direct drop-in replacement for my existing Gemini Series drive?
In most cases, yes. The GV-U6E-310 is designed as a form-fit-function replacement within the Gemini GV sub-series. However, you should verify the input voltage rating, continuous output current, and feedback interface type (incremental encoder vs. resolver) against your motor and application requirements before installation. NINERMAS can assist with cross-reference verification prior to shipment.

Q2: Can I reuse my existing motor cables and encoder wiring?
Yes, provided the cable specifications and connector types are compatible with the GV-U6E-310’s terminal layout. Inspect cables for insulation wear, especially in high-flex or high-temperature environments, and replace any damaged sections before commissioning the new drive. Reusing verified, intact cabling significantly reduces installation time and risk.

Q3: What commissioning steps are required after installing the replacement drive?
After physical installation and wiring, you will need to: (1) load or re-enter the axis parameter set using Parker Motion Planner; (2) confirm the node address and communication baud rate match the host controller’s configuration; (3) perform a motor auto-tune or verify existing PID gain settings; and (4) run a low-speed jog test before returning the axis to full automatic mode. NINERMAS provides basic commissioning guidance with every unit shipped.

Q4: Does NINERMAS provide a warranty and pre-shipment testing for the GV-U6E-310?
Yes. Every Parker GV-U6E-310 supplied by NINERMAS undergoes a functional power-on and communication verification test before dispatch. All units are covered by a 12-month warranty from the date of shipment. In the event of a warranty claim, NINERMAS will arrange replacement or repair with priority handling to minimize your production impact. Contact us at sale@ninermas.com or +0086 187 5021 5667 for stock availability and lead time confirmation.
