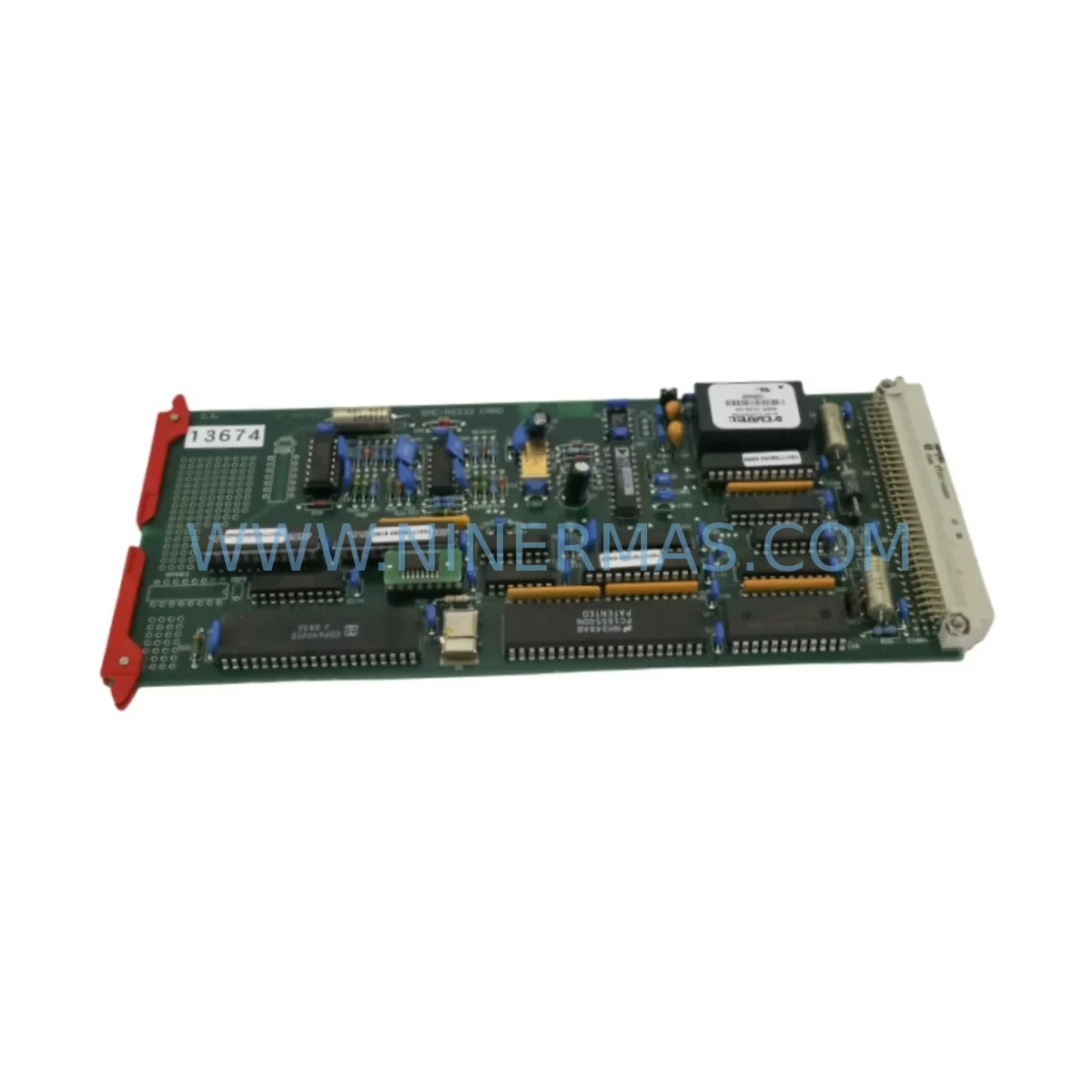

The OPAL EA70417880100 SMC-RS232 is a serial communication module engineered for the OPAL P3G4 Series industrial control platform. Designed to maintain RS232 serial data exchange between PLCs, DCS controllers, HMI panels, and peripheral field devices, this module is a critical link in legacy and active automation architectures. When this component fails or degrades, the entire communication chain between the controller and connected devices is interrupted — resulting in unplanned downtime, production loss, and costly emergency procurement.

At NINERMAS, we maintain service-ready stock of the EA70417880100 to support maintenance engineers and procurement teams who require fast, verified replacement parts. Every unit is pre-shipment tested, ships with a 12-month warranty, and is sourced to meet original OPAL specifications. Whether you are executing a planned annual overhaul, responding to an emergency fault, or building a strategic spare parts buffer, the EA70417880100 is available for immediate dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the OPAL EA70417880100 in a live P3G4 control cabinet is rarely an isolated task. Maintenance engineers who have performed field replacements consistently report that adjacent components in the same communication loop or power distribution rail show accelerated wear when a communication module has been operating in a degraded state. A structured inspection of the following components is strongly recommended during any EA70417880100 replacement event:

• P3G4 CPU Module (e.g., OPAL EA70417880000 or equivalent P3G4 processor card) — Verify firmware version compatibility with the replacement SMC-RS232 module. A CPU firmware mismatch can cause silent communication errors that are difficult to diagnose post-replacement.
• P3G4 Power Supply Module — Inspect the backplane power rail voltage under load. A marginal power supply delivering fluctuating 5 VDC or 24 VDC to the backplane is a common root cause of repeated communication module failures.
• P3G4 Backplane / Rack Assembly — Check backplane connector pins for oxidation, mechanical damage, or intermittent contact. A faulty backplane slot will cause the replacement EA70417880100 to fail prematurely.
• RS485 / RS422 Communication Modules (same P3G4 rack) — If the control cabinet uses mixed serial protocols, inspect adjacent RS485 or RS422 modules for ground loop issues or shielding failures that can induce noise on the RS232 channel.
• Signal Isolators (e.g., DIN-rail RS232 galvanic isolators) — In long-cable or electrically noisy environments, a signal isolator between the EA70417880100 and the field device protects the module from surge damage. Verify isolator condition and isolation resistance.
• Terminal Blocks and Cable Connectors — Inspect DB9 or RJ45 connectors, cable shielding continuity, and terminal block torque on the RS232 cable run. Loose or corroded connections are a leading cause of intermittent serial faults.
• I/O Modules (Digital Input / Digital Output cards in the P3G4 rack) — Confirm that DI/DO modules sharing the same backplane are not generating electrical interference. Faulty output drivers can inject noise into the communication bus.
• Relay Output Modules — Relay coil switching transients can couple into serial communication lines if suppression diodes or RC snubbers have failed. Inspect relay modules in the same cabinet for proper arc suppression.
• HMI Panel Communication Port — If the EA70417880100 connects to an HMI (operator panel), verify the HMI’s RS232 port settings (baud rate, parity, stop bits) match the replacement module’s configuration. A misconfigured HMI will appear as a module fault.
• Industrial 24 VDC Power Supply (external DIN-rail PSU) — Measure output ripple and voltage stability. An aging SMPS with high ripple voltage degrades communication module performance and shortens service life across the entire P3G4 rack.

Stocking one spare EA70417880100 alongside a P3G4 CPU module and a matched power supply module is the minimum recommended buffer for facilities operating P3G4-based control systems in critical production environments. NINERMAS can assist procurement teams in building a tailored spare parts list aligned to your installed base and annual maintenance schedule.

Site Replacement Workflow

The following workflow is recommended for field replacement of the OPAL EA70417880100 SMC-RS232 module to minimize downtime and ensure system compatibility:

1. Pre-Replacement Documentation — Record the current module’s slot position, DIP switch settings, jumper configuration, and any parameter settings stored in the P3G4 CPU that reference the SMC-RS232 module address or port assignment. Photograph the wiring before disconnection.
2. Safe Isolation — Follow your site’s lockout/tagout (LOTO) procedure. De-energize the P3G4 rack or confirm hot-swap capability for your specific backplane revision before removing the module.
3. Module Extraction — Release the module retention latch, extract the EA70417880100 from the backplane slot, and inspect the backplane connector for damage or contamination before inserting the replacement unit.
4. Replacement Installation — Insert the new EA70417880100, confirm the retention latch is fully engaged, and verify that DIP switch or jumper settings on the replacement unit match the documented configuration of the removed module.
5. Communication Verification — Re-energize the rack, monitor the P3G4 CPU diagnostic LEDs and communication status registers, and confirm that the connected field device (HMI, drive, or peripheral) is exchanging data correctly. Use a serial port monitor or the P3G4 programming environment to verify frame integrity.
6. Compatibility Confirmation for Legacy Replacements — If replacing an older revision of the SMC-RS232 module, confirm firmware compatibility with the P3G4 CPU. NINERMAS technical support can assist with cross-reference validation between legacy and current module revisions.
7. Post-Replacement Documentation — Update your maintenance log with the replacement date, new module serial number, and test results. This record supports warranty claims and future fault analysis.

This structured approach reduces mean time to repair (MTTR), prevents secondary damage from incorrect installation, and ensures the replacement EA70417880100 operates within its rated service life from day one.

Spare Parts Support FAQ

Q1: Is the OPAL EA70417880100 still available as a new part, or only as refurbished stock?
NINERMAS maintains both new and refurbished-tested inventory of the EA70417880100. Refurbished units undergo full functional communication testing and are covered by the same 12-month warranty as new stock. Availability status is confirmed at the time of order. For long-term supply agreements or reserved inventory, contact our procurement team to discuss dedicated stock allocation.

Q2: How do I verify compatibility between the EA70417880100 and my specific P3G4 rack revision?
Compatibility depends on your P3G4 backplane revision, CPU firmware version, and slot assignment. Provide your P3G4 rack model number, CPU part number, and current firmware version when placing your order. NINERMAS will cross-reference these against known compatibility matrices and advise on any firmware update requirements before shipment.

Q3: What pre-shipment testing is performed on each EA70417880100 unit?
Every unit dispatched by NINERMAS undergoes a functional serial communication test that verifies RS232 signal integrity, connector continuity, and module initialization. Test results are documented and available upon request. This process ensures that the replacement module is operational before it reaches your facility, reducing the risk of a failed replacement during a critical maintenance window.

Q4: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as specified in the OPAL P3G4 documentation. It does not cover damage caused by incorrect installation, overvoltage, or environmental conditions outside the rated operating range. To initiate a warranty claim, contact NINERMAS with your order reference, a description of the fault, and photographic evidence of the installation. Replacement or repair is processed within agreed lead times, and NINERMAS maintains long-term supply commitments to support warranty fulfilment for end-of-life components.
