NTron AV56A-1XFX6YXGP50 Service-Ready Spare Part for Industrial Maintenance

NTron AV56A-1XFX6YXGP50 Service-Ready Spare Part for Industrial Maintenance

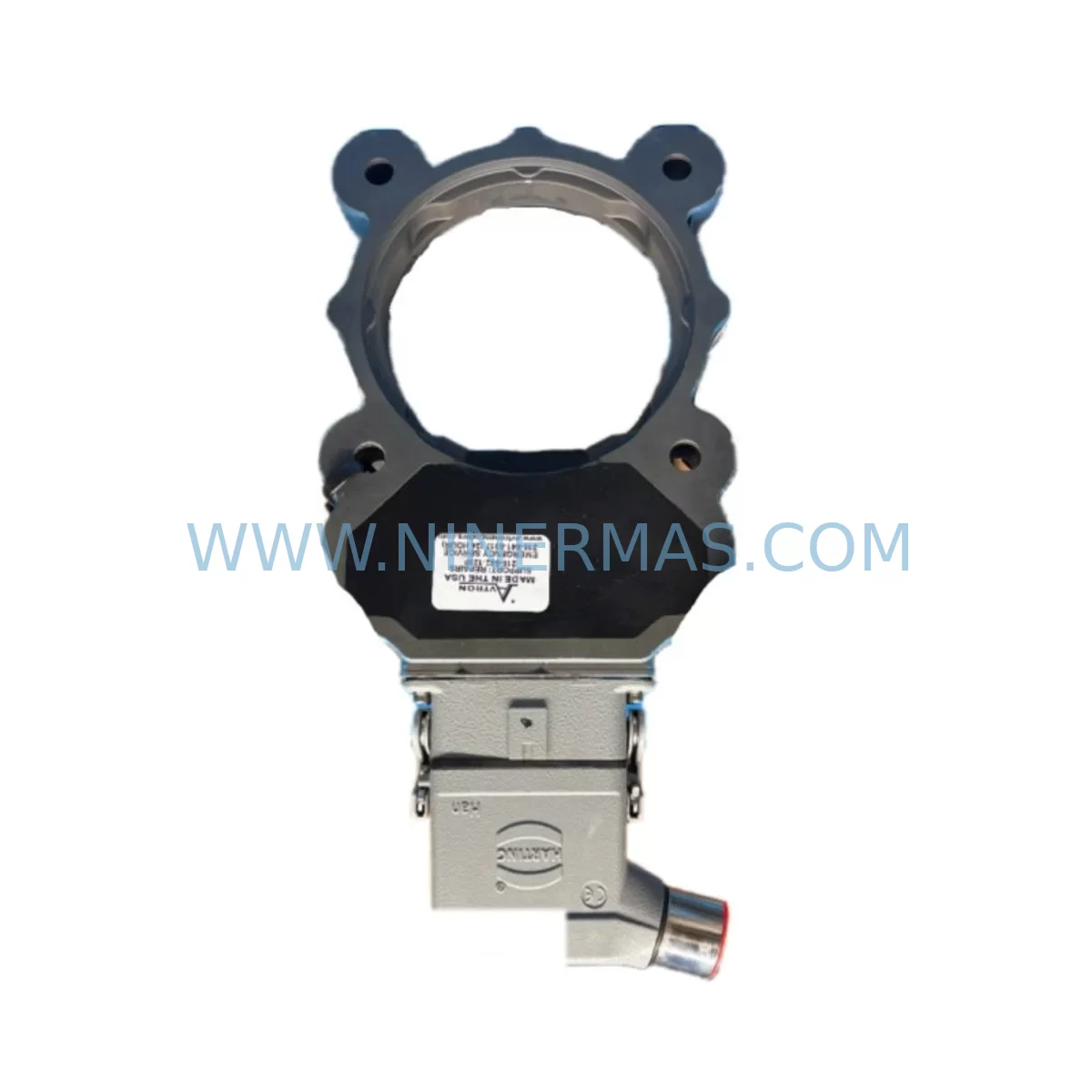

The NTron AV56A-1XFX6YXGP50 is a service-ready incremental encoder spare part designed for industrial automation maintenance, downtime recovery, and long-term spare parts inventory management. As a direct original replacement for the AV56A encoder series, this unit is fully compatible with existing NTron encoder wiring harnesses, mounting flanges, and signal conditioning circuits — enabling maintenance engineers to execute fast, reliable field swaps without system reconfiguration or extended production halts.

For facilities operating servo drives, motion controllers, or PLC-based positioning systems that depend on the AV56A encoder series, maintaining at least one AV56A-1XFX6YXGP50 in the spare parts cabinet is a recognized best practice in predictive maintenance programs. Encoder failure is among the leading causes of unplanned downtime in automated production lines, and the ability to replace a failed unit within a single maintenance window — rather than waiting days or weeks for emergency procurement — directly translates to reduced mean time to repair (MTTR) and lower production loss costs.

This unit ships fully tested and verified against NTron factory specifications, with each encoder inspected for output signal integrity, shaft runout tolerance, and housing seal condition prior to dispatch. A 12-month warranty is included with every unit, covering manufacturing defects and premature failure under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the AV56A-1XFX6YXGP50 encoder in the field, a thorough maintenance inspection of the surrounding electrical and mechanical system is strongly recommended. Encoder failures rarely occur in isolation — they are often preceded or accompanied by degradation in connected components that, if left unaddressed, will cause the replacement unit to fail prematurely.

Begin by inspecting the encoder power supply circuit. The AV56A series typically draws from a dedicated 24 VDC or 5 VDC regulated rail. Verify that the supply voltage is within tolerance using a calibrated multimeter; voltage ripple or transient spikes from a failing 24 VDC SMPS power supply module are a common root cause of encoder signal corruption and premature bearing wear. If the power supply shows signs of aging — output voltage drift, excessive heat, or audible noise — replace it concurrently with the encoder.

Next, inspect the encoder cable and shielded signal wiring. The A, B, and Z channel cables should be routed away from high-voltage AC conductors and VFD output cables. Check the cable shield termination at both the encoder connector and the control cabinet entry point; a broken or floating shield is a frequent source of noise-induced counting errors in PLC encoder input modules. Replace any cable showing cracked insulation, damaged connectors, or corroded pins — a quality shielded encoder cable assembly rated for the application’s flex cycle requirements is essential for long-term reliability.

At the control cabinet level, inspect the PLC encoder input module or high-speed counter module that receives the AV56A-1XFX6YXGP50 signals. Verify that the input filter settings and counting mode (x1, x2, x4 quadrature) are correctly configured for 50 PPR operation. If the system uses a signal isolator or pulse repeater between the encoder and the PLC input, confirm that the isolator’s frequency response is adequate for the maximum shaft speed in the application — an undersized isolator will clip high-frequency pulses and cause position errors.

For systems where the encoder feeds a servo drive or motion controller, review the drive’s encoder diagnostic page for accumulated error counts, signal loss events, or Z-channel reference pulse anomalies logged prior to the failure. These logs often reveal whether the encoder failed suddenly (bearing seizure, cable break) or gradually (signal degradation, intermittent contact). This distinction informs whether additional components — such as the servo drive encoder feedback board or the flexible encoder coupling connecting the encoder shaft to the motor or machine axis — also require replacement.

During the annual maintenance cycle or control cabinet inspection, also verify the condition of the terminal blocks and DIN rail wiring in the encoder signal circuit. Loose terminal connections cause intermittent signal interruptions that are difficult to diagnose under normal operating conditions but become apparent during vibration or thermal cycling. Tighten all encoder signal terminals and inspect for signs of oxidation or arcing. If the cabinet also houses relay output modules or I/O expansion modules on the same backplane as the encoder input card, inspect those modules for signs of contact wear or firmware faults that could affect encoder data processing.

For older systems where the AV56A-1XFX6YXGP50 supports a legacy HMI position display or SCADA feedback loop, confirm that the HMI’s encoder input scaling parameters are correctly set after replacement — particularly if the new unit’s Z-channel reference pulse position differs slightly from the worn original. A brief homing cycle or reference run after installation will confirm correct position registration before returning the machine to production.

Site Replacement Workflow

The AV56A-1XFX6YXGP50 is designed as a direct drop-in replacement for worn or failed AV56A series encoders, minimizing the engineering effort required during an unplanned maintenance event. Follow this workflow to ensure a safe, efficient, and fully verified replacement:

1. Isolate and de-energize. Follow your site’s lockout/tagout (LOTO) procedure for the affected machine axis. Confirm zero energy state at the encoder power supply terminal and the PLC encoder input module before disconnecting any wiring.

2. Document existing wiring. Photograph or sketch the encoder connector pinout and cable routing before removal. Confirm that the replacement AV56A-1XFX6YXGP50 uses the same connector type and pinout as the original — NTron AV56A series encoders use a standardized connector configuration, but verify against your site’s wiring diagram to avoid signal channel transposition.

3. Remove the failed encoder. Loosen the mounting flange screws and carefully withdraw the encoder from the coupling. Inspect the flexible coupling insert for wear or cracking — a damaged coupling will transmit shaft runout to the new encoder and shorten its service life. Replace the coupling insert if any deformation is visible.

4. Install the replacement unit. Mount the AV56A-1XFX6YXGP50 to the flange, ensuring correct shaft alignment and coupling engagement. Torque the mounting screws to the specified value. Reconnect the encoder cable, verifying correct pin-to-pin continuity with a multimeter before energizing.

5. Power-up and signal verification. Restore power and use the PLC’s encoder diagnostic tool or an oscilloscope to verify clean A, B, and Z channel signals at the expected amplitude and frequency for a slow manual shaft rotation. Confirm that the Z-channel reference pulse occurs once per revolution at the correct angular position.

6. Functional test and return to service. Execute a homing cycle or reference run as required by the machine’s control program. Confirm correct position feedback, velocity feedback, and any alarm-free operation through a full production cycle before releasing the machine to operators.

This structured replacement workflow reduces the risk of repeat failures, ensures compatibility is fully verified before production resumes, and provides a documented maintenance record for future reference.

Spare Parts Support FAQ

Q1: Is the AV56A-1XFX6YXGP50 a genuine original NTron spare part, and what does the 12-month warranty cover?
Yes. Each AV56A-1XFX6YXGP50 unit supplied by NINERMAS is an original NTron spare part sourced through authorized industrial distribution channels. The 12-month warranty covers manufacturing defects and premature failure under normal operating conditions from the date of shipment. Warranty claims are supported by our technical team at sale@ninermas.com, and replacement or repair is arranged without requiring the customer to return to the original equipment manufacturer directly.

Q2: How do I confirm compatibility before ordering, and can this encoder replace older AV56A variants?
The AV56A-1XFX6YXGP50 is the standard 50 PPR variant of the NTron AV56A series and is directly compatible with all standard AV56A mounting configurations, connector pinouts, and signal interfaces. If your existing encoder carries a different suffix (indicating a different PPR count, output type, or shaft configuration), please contact our technical team with your full part number and application details before ordering. We can confirm compatibility or identify the correct replacement variant to avoid costly installation errors.

Q3: What is your recommended spare parts inventory strategy for facilities running multiple AV56A-equipped machines?
For facilities with three or more machines using AV56A series encoders, we recommend maintaining a minimum of two AV56A-1XFX6YXGP50 units in the on-site spare parts store at all times. Encoder MTBF in typical industrial environments ranges from 3 to 7 years depending on operating speed, temperature, and vibration levels. A two-unit buffer ensures that a second failure can be addressed immediately while the first replacement unit is being replenished through standard procurement. NINERMAS supports long-term supply agreements and scheduled replenishment orders for high-volume customers.

Q4: What pre-shipment testing is performed on each AV56A-1XFX6YXGP50 unit?
Every unit undergoes functional testing prior to dispatch, including output signal verification (A, B, Z channels), shaft runout measurement, housing seal inspection, and connector integrity check. Test results are retained in our quality records. Units that do not meet NTron factory specifications are quarantined and not shipped. This pre-shipment testing protocol ensures that the replacement encoder performs correctly from the first power-up on site, reducing the risk of a second maintenance event caused by a defective spare part.
