NIKKI NPSA-ZMTA-101AE-CE Service-Ready Spare Part

NIKKI NPSA-ZMTA-101AE-CE Service-Ready Spare Part: Minimise Downtime with Proven Servo Drive Replacement

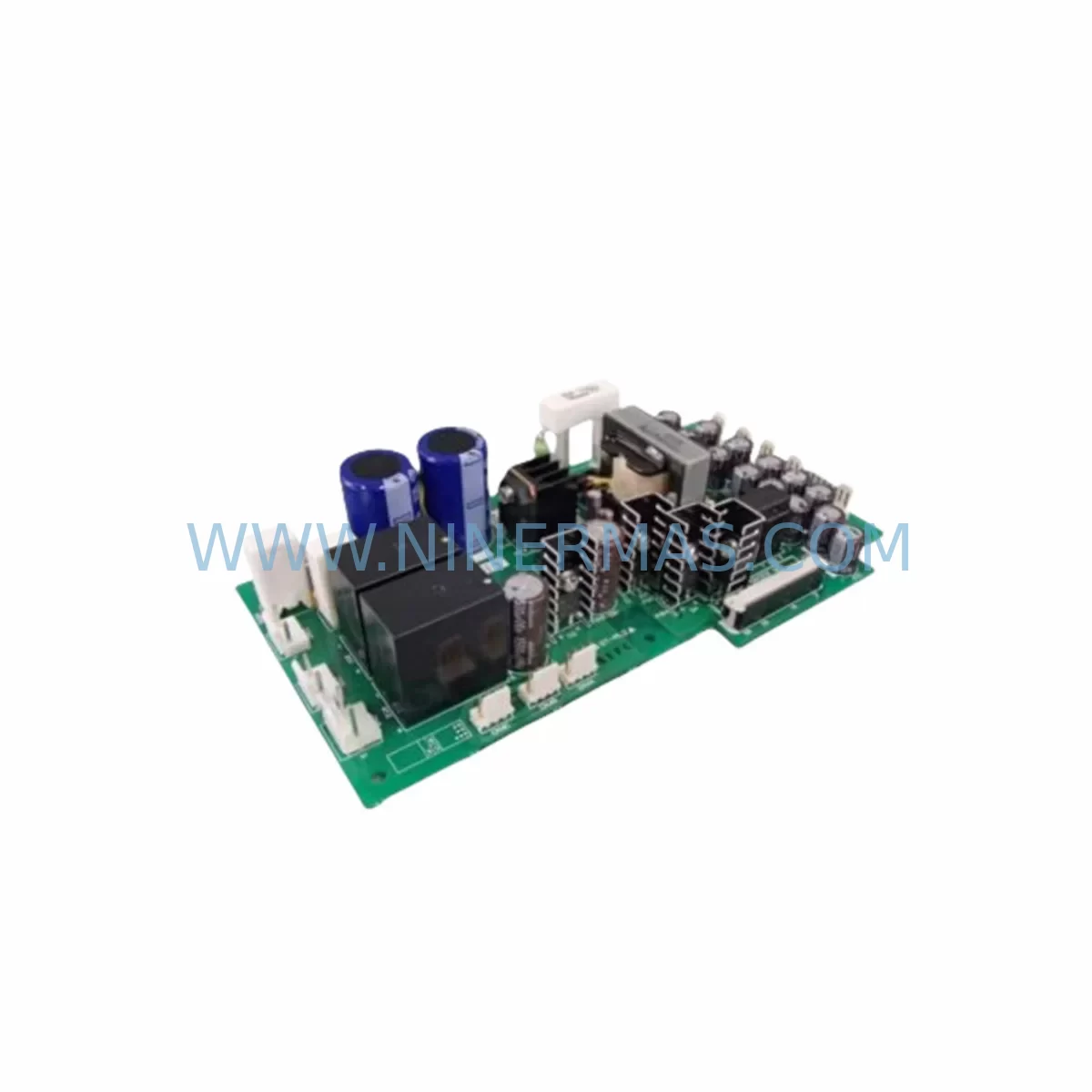

The NIKKI NPSA-ZMTA-101AE-CE is a ruggedized servo drive module engineered for demanding industrial environments where reliability, precision motion control, and long-term spare parts availability are non-negotiable. Designed within NIKKI’s NPSA/ZMTA series architecture, this CE-certified drive module delivers consistent servo performance across a wide range of process automation, machine tool, and production line applications. For maintenance engineers managing aging control systems, the NPSA-ZMTA-101AE-CE represents a direct-fit, service-ready replacement that eliminates the risk of extended unplanned downtime caused by obsolete or unavailable OEM components.

Industrial facilities operating continuous production lines cannot afford the delays associated with sourcing obscure servo drive components through fragmented supply chains. NINERMAS maintains verified stock of the NIKKI NPSA-ZMTA-101AE-CE with pre-shipment functional testing, ensuring that every unit dispatched meets original performance specifications. Each module is covered by a 12-month warranty, providing procurement engineers with the confidence required for long-term maintenance planning and capital spares budgeting.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a servo drive module such as the NIKKI NPSA-ZMTA-101AE-CE is identified as a failure point or scheduled for preventive replacement, experienced maintenance engineers understand that the drive itself is rarely the only component requiring attention. A structured inspection of the surrounding electrical circuit and control cabinet is essential to prevent repeat failures and ensure a clean, stable return to production.

Begin with the servo power supply module feeding the NPSA-ZMTA-101AE-CE. Verify input voltage stability, check for capacitor bulge or leakage, and confirm that the DC bus voltage is within the drive’s rated input range. A degraded power supply is a common root cause of premature servo drive failure and is frequently overlooked during reactive maintenance. Alongside the power supply, inspect the regenerative braking resistor or braking unit associated with the ZMTA series drive — excessive regenerative energy from deceleration cycles can stress both the drive and the braking circuit simultaneously.

The encoder feedback cable and its associated signal isolator should be inspected for insulation damage, connector corrosion, and shield continuity. Degraded encoder signals produce erratic positioning errors that are often misdiagnosed as drive faults. If the system uses a NIKKI NPSA series servo motor paired with this drive, verify motor winding resistance and insulation resistance to ground before commissioning the replacement drive — connecting a new drive to a failing motor will shorten the replacement unit’s service life significantly.

Within the control cabinet, check the 24 VDC control power supply that energises the drive’s logic board and I/O interface. Inspect the terminal block assemblies on the drive’s I/O connector for loose wiring, oxidised contacts, or incorrect torque on screw terminals — these are a frequent source of intermittent faults in high-vibration environments. Review the safety relay module or STO (Safe Torque Off) circuit wiring, as incorrect STO signal continuity will prevent the drive from enabling regardless of parameter configuration.

For systems integrated into a PLC or DCS architecture, confirm that the motion controller output card — whether a pulse-direction interface, analogue ±10 V command card, or fieldbus communication module (e.g., PROFIBUS-DP, EtherCAT, or CANopen) — is functioning correctly and that the drive’s communication parameters are restored from a verified backup. Where a NIKKI NPSA series parameter unit or handheld programmer is used for drive commissioning, ensure the firmware version is compatible with the NPSA-ZMTA-101AE-CE hardware revision.

Finally, inspect the cabinet’s cooling fan units, air filter mats, and thermal overload relay settings. Servo drives operating in ruggedized enclosures are particularly sensitive to thermal accumulation; a blocked filter or failed cabinet fan can cause thermal shutdown within hours of recommissioning. Including these ancillary components in your annual spare parts inventory — alongside the NPSA-ZMTA-101AE-CE drive module itself — is the most cost-effective strategy for maintaining production continuity in facilities where servo-driven axes are on the critical path.

Site Replacement Workflow

Step 1 — Fault Isolation: Before removing the NIKKI NPSA-ZMTA-101AE-CE from service, record all active fault codes from the drive’s display or via the connected HMI/SCADA system. Document the drive’s parameter set using the NIKKI parameter unit or a connected programming tool. This backup is essential for rapid recommissioning of the replacement unit.

Step 2 — Safe Isolation: Isolate the drive from mains power and the DC bus. Follow LOTO (Lockout/Tagout) procedures. Allow the DC bus capacitors to discharge fully — verify with a calibrated multimeter before touching internal connections. Disconnect the motor power cable (U/V/W), encoder feedback cable, control I/O connector, and communication bus connector in sequence.

Step 3 — Mechanical Removal: Remove the NPSA-ZMTA-101AE-CE from its mounting position. Note the physical orientation, cable routing, and any shielding clamps or ferrite cores fitted to the motor cable — these must be reinstated on the replacement unit to maintain EMC compliance under the CE marking requirements.

Step 4 — Replacement Installation: Mount the new NIKKI NPSA-ZMTA-101AE-CE in the same position. Reconnect all cables in reverse order of removal. Restore the parameter backup to the replacement drive. Verify that the motor feedback type, control mode, and communication node address match the original configuration exactly.

Step 5 — Commissioning and Test: Re-energise the system in a controlled sequence. Perform a no-load jog test before connecting the mechanical load. Verify encoder feedback signal quality, confirm correct direction of rotation, and check that all I/O signals — including STO, enable, fault reset, and speed reference — respond correctly. Log the commissioning results and update the maintenance record.

Step 6 — Return to Production: Once the replacement NPSA-ZMTA-101AE-CE has passed all commissioning checks, return the axis to automatic operation under PLC/DCS control. Monitor the drive’s thermal status and output current for the first production cycle to confirm stable operation.

Spare Parts Support FAQ

Q1: Is the NIKKI NPSA-ZMTA-101AE-CE a direct drop-in replacement for older NPSA series servo drives?
The NPSA-ZMTA-101AE-CE is designed within the NIKKI NPSA/ZMTA series architecture and is intended as a compatible replacement for drives within this series. However, compatibility depends on the specific hardware revision, motor feedback interface type, and control bus configuration of your existing system. NINERMAS recommends providing your existing drive’s full nameplate data — including hardware revision and firmware version — so that compatibility can be confirmed before dispatch. Pre-shipment testing is performed on every unit to verify baseline functionality.

Q2: What is included in the 12-month warranty, and what does it cover?
Every NIKKI NPSA-ZMTA-101AE-CE supplied by NINERMAS is covered by a 12-month warranty from the date of dispatch. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, mechanical impact, or operation outside the drive’s rated environmental parameters. In the event of a warranty claim, NINERMAS will arrange replacement or repair subject to inspection of the returned unit.

Q3: How should the NPSA-ZMTA-101AE-CE be stored as a capital spare?
For long-term storage as a capital spare, the NIKKI NPSA-ZMTA-101AE-CE should be kept in its original anti-static packaging in a dry, temperature-controlled environment (typically 0–40°C, relative humidity below 75% non-condensing). Avoid storage near strong magnetic fields or corrosive atmospheres. Electrolytic capacitors in servo drives can degrade during extended storage; NINERMAS recommends a controlled power-up procedure (gradual voltage ramp using a variac) for units stored longer than 24 months before placing them into service.

Q4: Can NINERMAS support long-term supply of the NIKKI NPSA-ZMTA-101AE-CE for multi-year maintenance programmes?
Yes. NINERMAS specialises in long-term spare parts supply for industrial automation systems, including obsolete and hard-to-source servo drive components. We can support blanket purchase orders, scheduled delivery programmes, and consignment stock arrangements for facilities with ongoing maintenance requirements. Contact our team to discuss a tailored supply agreement that aligns with your planned maintenance schedule and capital spares budget.
