MTL MTL4544 Safety-Reliable Zener Barrier for Critical Control Sites

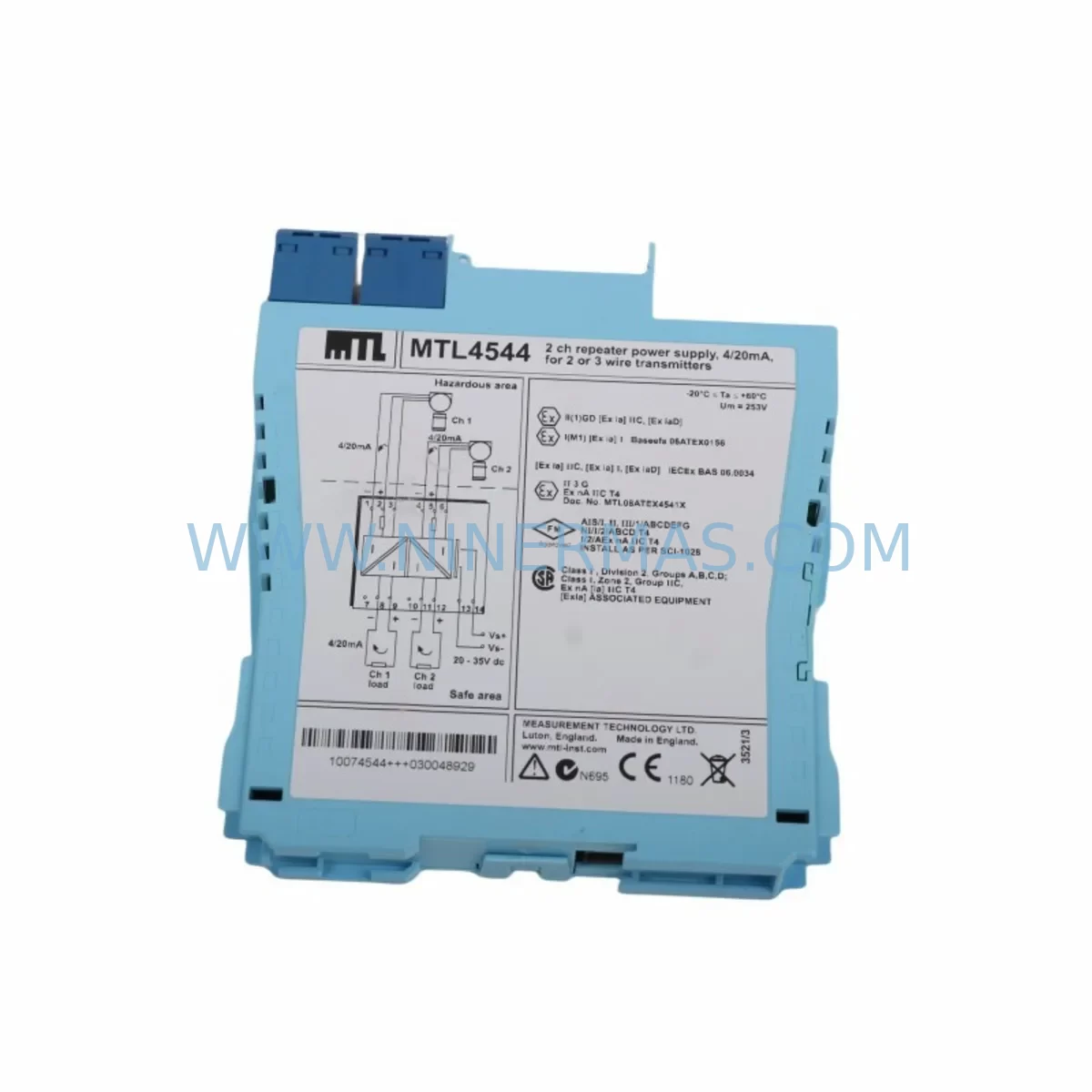

The MTL MTL4544 is a high-integrity Zener barrier designed for intrinsically safe signal circuits in the most demanding industrial environments. As part of the renowned MTL4500 Series, the MTL4544 provides robust galvanic isolation and energy-limiting protection for field instruments operating in Zone 0, Zone 1, and Zone 2 hazardous areas — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, port terminals, and continuous process manufacturing sites.

Engineered to IEC 60079-11 and ATEX/IECEx standards, the MTL4544 delivers consistent, repeatable performance across wide temperature ranges and in the presence of high electromagnetic interference (EMI), vibration, moisture, and airborne particulates. Its solid-state Zener diode architecture eliminates mechanical wear, ensuring long service life and minimal maintenance intervention — critical factors in facilities where unplanned downtime carries severe safety and financial consequences.

At NINERMAS, every MTL MTL4544 unit is sourced from authorized supply chains, subjected to pre-shipment functional testing, and backed by a 12-month warranty. We maintain ready stock to support urgent replacement and scheduled maintenance programs alike.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered intrinsically safe control cabinet, the MTL MTL4544 Zener barrier serves as the primary energy-limiting interface between the safe area control system and hazardous area field instruments. Its role is to clamp voltage and current to levels that cannot ignite a flammable atmosphere, even under single-fault conditions — a requirement mandated by IEC 60079-11 for Category ia and ib circuits.

To maximize system reliability and minimize the risk of control interruption, the MTL4544 is typically deployed alongside complementary components within the same control enclosure. The MTL4500 Bus Connector System enables rapid DIN rail assembly and simplifies field wiring, reducing installation errors that could compromise safety circuit integrity. For applications requiring galvanic isolation in addition to Zener protection, the MTL4600 Series Isolating Barriers provide an alternative or supplementary layer of protection, particularly where ground loop interference or high common-mode voltages are present.

Power supply stability is equally critical. The MTL MPAX Power Supply Unit and compatible 24 V DC DIN rail power supplies with active power factor correction ensure that the MTL4544 receives a clean, regulated supply voltage — preventing Zener diode stress caused by supply transients or voltage spikes from inductive loads switching elsewhere in the cabinet. Surge protection devices (SPDs) such as the MTL SPA Series Surge Protectors are recommended at cabinet entry points to absorb lightning-induced and switching transients before they reach the barrier network.

For signal integrity in high-EMI environments — common in variable frequency drive (VFD) rooms, motor control centers (MCCs), and high-voltage switchgear bays — shielded twisted-pair field cables terminated with MTL cable glands and EMC cable entries prevent capacitive and inductive coupling from corrupting 4–20 mA analog signals or HART digital overlays passing through the MTL4544. Where HART communication is used, the MTL HART Multiplexer (HIM) Series enables non-intrusive asset management and loop diagnostics without breaking the intrinsically safe circuit.

In safety instrumented systems (SIS) governed by IEC 61511, the MTL4544 is often paired with Triconex or Yokogawa ProSafe safety PLCs on the safe area side, with the barrier providing the certified interface to pressure transmitters, temperature sensors, and level switches in the hazardous zone. Proper documentation of the entity parameters — Ui, Ii, Pi, Ci, Li — for each connected field device is essential to maintain the overall intrinsic safety certificate of the loop.

Routine inspection of the Zener barrier network, including verification of earth continuity to the IS earth busbar (resistance < 1 Ω per IEC 60079-14), is a mandatory maintenance activity. Replacement units such as the MTL4544 should be kept as certified spare parts in the site’s critical spares inventory to enable rapid like-for-like substitution without re-certification delays.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous distillation, catalytic cracking, and hydroprocessing units, the MTL MTL4544 protects 4–20 mA signals from pressure transmitters and flow meters installed in Zone 1 classified areas. Its energy-limiting function prevents ignition of hydrocarbon vapors during instrument maintenance or fault conditions, supporting safe operation under API RP 505 and IEC 60079-14 requirements.

Power Generation & Substation Control: In coal-fired, gas turbine, and hydroelectric generating stations, the MTL4544 interfaces turbine speed sensors, flame detectors, and hydrogen seal oil pressure transmitters to DCS systems. Its immunity to high-frequency EMI from generator excitation systems and bus protection relays ensures signal fidelity in electrically noisy environments.

Mining & Mineral Processing: Underground coal mines and surface mineral processing plants classify large areas as Zone 1 or Zone 2 due to methane accumulation or combustible dust. The MTL4544 enables safe connection of belt conveyor load cells, crusher vibration sensors, and pump pressure transmitters to surface control rooms, supporting continuous production without compromising explosion protection.

Water & Wastewater Treatment: Pump stations, chemical dosing facilities, and anaerobic digestion plants handling biogas require intrinsically safe instrumentation in classified areas. The MTL4544 provides reliable signal transmission for level sensors, pH analyzers, and flow transmitters, ensuring uninterrupted process control and regulatory compliance.

Metallurgy & Steel Manufacturing: Blast furnace tuyere pressure monitoring, coke oven gas handling, and ladle metallurgy stations involve both explosive atmospheres and extreme thermal environments. The MTL4544’s wide operating temperature range and robust Zener architecture maintain measurement accuracy and safety circuit integrity under these severe conditions.

Port Terminals & Marine Applications: LNG and LPG loading terminals, tanker manifold areas, and offshore platform topsides require ATEX/IECEx certified instrumentation. The MTL4544 supports safe area DCS connectivity for hazardous area gas detectors, valve position switches, and cargo pump pressure transmitters, meeting SOLAS and IEC 60092 marine electrical standards.

Safety and Quality FAQ

Q1: Does the MTL MTL4544 come with a warranty, and what does it cover?
Yes. Every MTL MTL4544 supplied by NINERMAS is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. We provide direct replacement support to minimize site downtime.

Q2: What pre-shipment testing is performed on each unit?
Each MTL4544 unit undergoes functional verification testing prior to dispatch, confirming correct Zener voltage clamping, current limiting, and continuity of the safety earth connection. Test records are available upon request for quality assurance documentation purposes.

Q3: Is the MTL4544 a direct drop-in replacement for existing MTL4500 Series installations?
Yes. The MTL4544 is designed for direct like-for-like replacement within the MTL4500 Series DIN rail system. It uses the same bus connector footprint and entity parameters, allowing substitution without re-engineering the intrinsic safety loop documentation, provided the replacement is performed by a competent person in accordance with IEC 60079-14.

Q4: Can NINERMAS guarantee long-term supply availability for ongoing maintenance programs?
Yes. NINERMAS maintains dedicated stock of MTL4500 Series components, including the MTL4544, to support both emergency replacement and planned maintenance schedules. We offer supply continuity agreements for facilities requiring guaranteed spare parts availability over multi-year maintenance cycles. Contact us at sale@ninermas.com or +0086 187 5021 5667 to discuss your requirements.
