MTL F802 Safety-Reliable Fieldbus Power Module

MTL F802 Safety-Reliable Fieldbus Power Module for Critical Control Sites

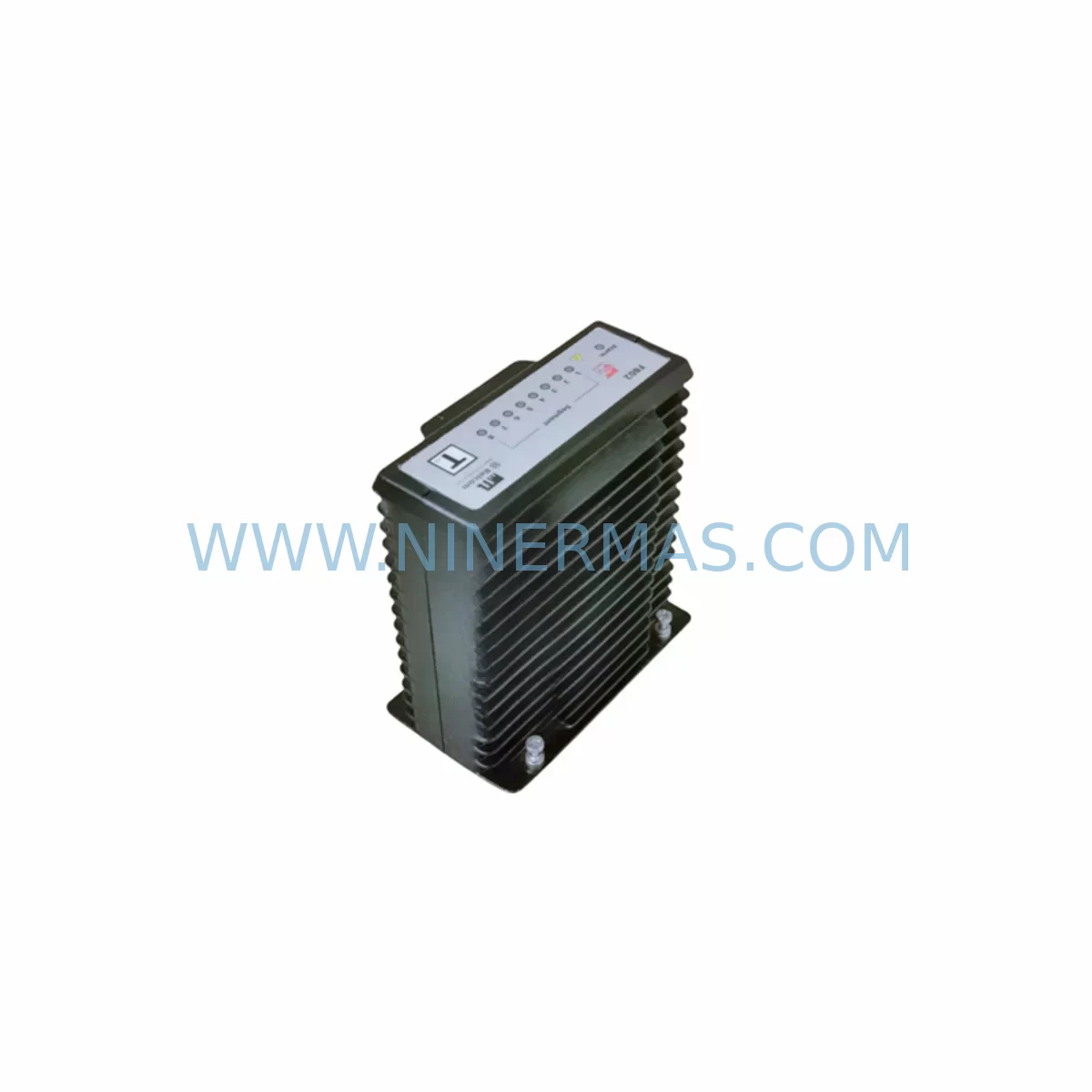

The MTL F802 (RELCOM F802) is a ruggedized Foundation Fieldbus H1 power conditioner and segment power module engineered for continuous, uninterrupted operation in the most demanding industrial control environments. Designed to deliver stable, conditioned DC power to Foundation Fieldbus H1 segments, the F802 eliminates the voltage fluctuations, surge transients, and signal interference that cause control loop instability, spurious trips, and unplanned shutdowns in critical process facilities.

In high-stakes applications — petrochemical reactors, power generation switchgear rooms, mining hoists, water treatment SCADA panels, metallurgical furnace control cabinets, and continuous manufacturing lines — the F802 acts as the backbone of fieldbus segment integrity. Its built-in impedance matching and power conditioning circuitry ensure that every field device on the H1 segment receives clean, stable power regardless of upstream supply variations, cable length, or electromagnetic interference from adjacent VFDs, contactors, or high-current bus bars.

NINERMAS maintains verified stock of the MTL F802 / RELCOM F802 with pre-shipment functional testing and a 12-month warranty, supporting both emergency replacement and long-term spare parts programs for critical infrastructure operators worldwide.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered Foundation Fieldbus control cabinet, the F802 power module does not operate in isolation — it is one critical node in a layered protection architecture. When specifying or replacing the MTL F802, maintenance engineers and instrumentation teams should evaluate the full segment ecosystem to eliminate single points of failure and reduce the risk of control interruption.

On the power supply side, the F802 is typically fed from a redundant 24 V DC rail supported by units such as the MTL FNICO5-RP or similar fieldbus-rated power supplies with built-in redundancy switching. Upstream surge protection — for example, MTL 5051 or MTL 7787+ series Zener barriers or galvanic isolators — protects the segment from transient voltages induced by nearby high-power switching equipment, lightning coupling, or ground potential differences common in large petrochemical or mining installations.

On the segment itself, the F802 works in conjunction with Foundation Fieldbus H1 terminators (active or passive) to maintain correct bus impedance and prevent signal reflections that cause communication errors, device dropouts, or spurious process alarms. Paired with RELCOM FP-2 or FP-3 series fieldbus power conditioners in redundant configurations, the F802 ensures that a single power module failure does not interrupt the segment — a critical requirement in safety instrumented systems and high-availability process loops.

For installations where the fieldbus segment interfaces with a safety instrumented system, the F802 is often deployed alongside Pepperl+Fuchs KFD2-STC4-Ex1 or KFD2-SR2-Ex2.W series isolating switching amplifiers, or within a cabinet that also houses R. Stahl IS1+ series intrinsic safety barriers, ensuring that the power conditioning layer does not compromise the SIL rating of the safety loop. In Emerson DeltaV or Yokogawa CENTUM VP DCS architectures, the F802 segment power module is a recognized compatible component, supporting smooth integration without requiring fieldbus host reconfiguration.

Where high electromagnetic interference is a concern — such as in motor control centers, variable frequency drive (VFD) rooms, or arc furnace control buildings — supplementary fieldbus cable shields, ferrite chokes, and EMC-rated cable glands are recommended alongside the F802 to maintain signal integrity across the full segment length. This multi-layer approach — conditioned power, proper termination, galvanic isolation, and EMC cable management — is the industry-standard strategy for achieving zero unplanned fieldbus segment outages in critical continuous process facilities.

Critical Industrial Safety Applications

The MTL F802 / RELCOM F802 is deployed across a wide range of critical industrial sectors where fieldbus segment reliability directly impacts process safety, regulatory compliance, and production continuity:

Petrochemical & Refining: In crude distillation units, hydrotreaters, and catalytic crackers, Foundation Fieldbus H1 segments connect pressure transmitters, control valves, and safety shutdown valves in critical interlock loops. The F802 ensures that power fluctuations from large motor starts or utility switching events do not propagate onto the fieldbus segment and cause spurious valve closures or missed safety trips.

Power Generation: In coal, gas, and combined-cycle power plants, the F802 supports fieldbus segments in boiler control, turbine protection, and emissions monitoring systems. Its surge suppression capability is particularly valuable in environments where high-voltage switching in adjacent switchgear rooms creates transient coupling risks.

Mining & Minerals Processing: In underground and surface mining operations, control cabinets are exposed to vibration, dust ingress, and wide temperature swings. The ruggedized construction of the F802 makes it a preferred choice for hoist control, crusher automation, and conveyor safety interlock systems where standard industrial components fail prematurely.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on Foundation Fieldbus for pump control, dosing valve automation, and SCADA integration. The F802 provides the stable segment power needed to maintain continuous communication between field instruments and the control system, even in high-humidity pump station environments.

Metallurgy & Steel: In electric arc furnace (EAF) and basic oxygen furnace (BOF) control systems, extreme electromagnetic interference from furnace currents and bus bars represents one of the most challenging environments for fieldbus communication. The F802’s EMI immunity and robust power conditioning make it a reliable choice for these high-interference applications.

Port, Marine & Offshore: On offshore platforms and large vessel automation systems, the F802 supports fieldbus segments in cargo control, ballast management, and engine room automation — environments characterized by vibration, salt air corrosion risk, and wide supply voltage variation from onboard generators.

Safety and Quality FAQ

Q1: Does the MTL F802 / RELCOM F802 come with a warranty?
Yes. Every MTL F802 supplied by NINERMAS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Our warranty support includes technical diagnosis, replacement dispatch, and root cause guidance to help your maintenance team resolve the underlying cause of failure.

Q2: Is the F802 tested before shipment?
Yes. All units undergo pre-shipment functional verification at our facility before dispatch. This includes power output validation and basic communication integrity checks to confirm the module is fully operational before it reaches your site — reducing the risk of receiving a non-functional spare during a critical maintenance window.

Q3: Is the MTL F802 compatible with my existing DCS and fieldbus infrastructure?
The F802 is designed for Foundation Fieldbus H1 segments and is compatible with major DCS platforms including Emerson DeltaV, Yokogawa CENTUM VP, ABB 800xA, and Honeywell Experion. It is also compatible with MTL and RELCOM fieldbus infrastructure components. If you have specific compatibility questions regarding your installation, contact our technical team with your segment configuration details.

Q4: Can NINERMAS support long-term spare parts supply for the F802?
Yes. NINERMAS specializes in long-term spare parts programs for aging and legacy industrial control systems. We maintain stock of the MTL F802 / RELCOM F802 and can support scheduled procurement, consignment stock arrangements, and emergency replacement supply for critical infrastructure operators. Contact us to discuss a tailored spare parts agreement for your facility.
