MKS 1179A00452CR1BV Retrofit-Compatible MFC for Legacy Systems

MKS 1179A00452CR1BV Retrofit-Compatible Mass Flow Controller: Legacy System Integration and Smooth Upgrade Path

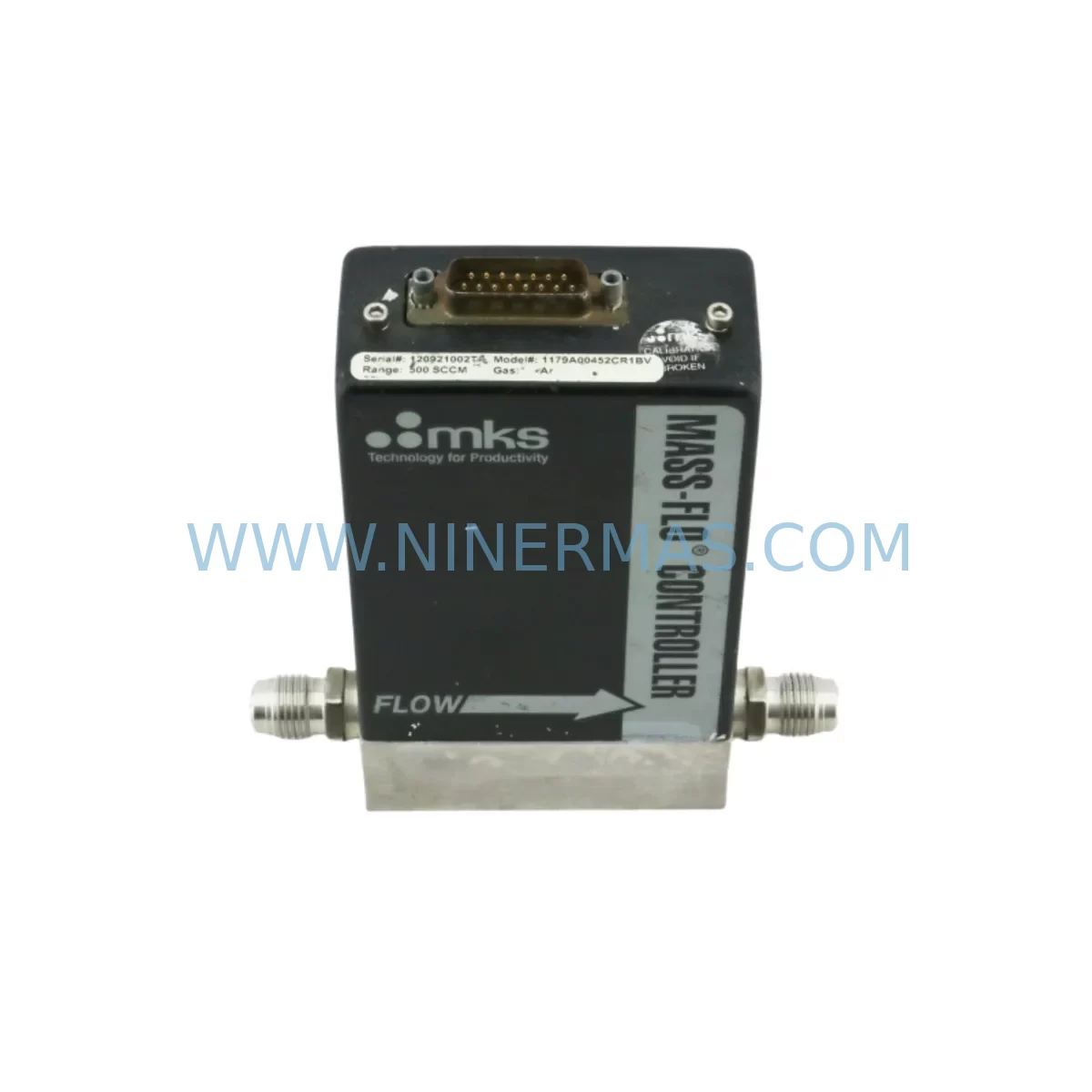

The MKS 1179A00452CR1BV is a precision analog mass flow controller from MKS Instruments’ established 1179A MASS-FLO® series, widely deployed across semiconductor fabrication, chemical vapor deposition (CVD), etch, and industrial gas delivery systems. As original equipment manufacturers phase out support for legacy 1179A-series hardware, facilities running aging process tools face increasing pressure to source verified replacement units that maintain process repeatability without requiring full-scale system redesign. This unit — also cross-referenced under ESA-Y2020A23-11 and ESA-Y3040A23-21 — is stocked, pre-shipment tested, and covered by a 12-month warranty, making it a reliable retrofit solution for engineers managing end-of-life automation assets.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing an MKS 1179A00452CR1BV in a live production environment requires careful pre-installation planning to avoid process drift and unplanned downtime. Before removing the legacy unit, engineers should document the existing wiring harness pin assignments at the DB-15 connector, confirm the ±15 VDC supply rail voltage at the MKS 247D multichannel readout or MKS PR4000B power supply, and verify that the replacement unit’s calibrated gas type and full-scale flow range match the original specification recorded in the process recipe.

In systems where the 1179A MFC is integrated into a multi-channel gas delivery panel alongside other 1179A-series controllers — such as a parallel bank of MKS 1179A00100CR1BV or MKS 1179A01000CR1BV units — it is critical to confirm that the replacement unit’s zero and span calibration aligns with the readout channel scaling set in the MKS 247D or equivalent multichannel controller. Mismatched full-scale ranges between the readout and the MFC will produce incorrect flow delivery even if the physical installation appears correct.

For facilities that have already begun migrating portions of their gas delivery infrastructure to digital platforms, the 1179A00452CR1BV can continue to operate in parallel with newer digital MFCs such as the MKS GE50A or MKS 1559A digital mass flow controller, provided the analog and digital signal domains are properly isolated at the control cabinet level. Signal isolation modules or analog-to-digital interface cards may be required to bridge legacy 0–5 V analog outputs into a digital process control network without introducing ground loops or signal noise.

Backplane and rack space verification is equally important. In older gas panels, the 1179A body occupies a fixed mounting footprint. If the control cabinet has been partially upgraded with newer components — such as MKS 651C pressure controllers, MKS 627B Baratron capacitance manometers, or MKS 946 vacuum system controllers — the available rail space and gas line routing may have changed. Confirm that the replacement MFC can be seated and torqued to the process gas fitting without interference from adjacent components.

Where the legacy system uses an MKS DPC digital power converter or a third-party PLC-based setpoint generator, verify that the analog output card driving the MFC setpoint is still within calibration and capable of sourcing the correct 0–5 V command signal. Degraded analog output cards are a common source of apparent MFC malfunction in aging systems and should be tested independently before concluding that the MFC itself has failed.

Finally, if the process tool’s HMI displays flow values derived from the MFC analog readout — whether through a dedicated MKS 2000B process controller interface or a custom SCADA screen — confirm that the display scaling and alarm setpoints are updated to reflect the replacement unit’s calibration range. Retaining outdated HMI scaling after an MFC swap is a frequent source of post-installation process alarms that can be mistaken for hardware faults.

Downtime Control During System Migration

Minimizing production downtime during an MFC replacement begins with pre-staging the verified replacement unit and all required consumables — new VCR or Swagelok fittings, O-rings, and a calibrated torque wrench — before the maintenance window opens. The 1179A00452CR1BV should be bench-verified for zero flow stability and full-scale response against a known reference before it enters the cleanroom or process bay, eliminating the risk of discovering a calibration issue after the gas line has already been broken.

During the swap, the original process program logic stored in the host controller or recipe management system does not need to be modified, provided the replacement MFC is calibrated to the same gas type and full-scale range as the original. This is one of the key advantages of sourcing a verified 1179A-series replacement rather than attempting to adapt a different MFC model: the analog signal interface, connector pinout, and physical mounting remain identical, so the control system sees no change at the software or wiring level.

After installation, a short controlled flow test at 10%, 50%, and 100% of full scale — with the readout monitored at the MKS 247D or equivalent — confirms that the replacement unit is tracking the setpoint correctly before the process tool is returned to production. This three-point verification typically takes less than 15 minutes and provides documented evidence of correct installation for maintenance records and warranty compliance.

For facilities managing multiple simultaneous MFC replacements across a tool fleet, staggering the swap schedule by tool rather than by gas line minimizes the number of open gas connections at any one time, reducing contamination risk and simplifying the post-maintenance leak check sequence. Each replaced unit should be tagged with the removal date, original installation location, and reason for replacement to support spare parts lifecycle tracking and future procurement planning.

Retrofit Support FAQ

Q1: Is the MKS 1179A00452CR1BV a direct drop-in replacement for my existing 1179A-series MFC?
In most cases, yes. The 1179A series uses a standardized body, DB-15 connector pinout, and ±15 VDC power supply interface. However, you must confirm that the replacement unit’s calibrated gas type and full-scale flow range match your original unit exactly. A unit calibrated for a different gas or range will not deliver accurate flow even if it installs and powers up correctly. Contact us with your original unit’s label information and we will confirm compatibility before shipment.

Q2: Has this unit been tested before shipment, and what does the 12-month warranty cover?
Yes. Every MKS 1179A00452CR1BV unit we ship undergoes pre-shipment flow calibration verification and leak integrity testing. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, incompatible gas exposure, or operation outside the rated pressure and flow specifications. Warranty claims are supported with return material authorization (RMA) and technical review.

Q3: Can I use this MFC in a system that has been partially upgraded to digital flow control?
Yes, with appropriate signal conditioning. The 1179A00452CR1BV operates on a 0–5 VDC analog interface and is fully compatible with legacy analog readout systems such as the MKS 247D. In hybrid systems where some channels have been migrated to digital MFCs, the analog and digital signal domains must be properly isolated to prevent ground loops. If your control system requires a digital setpoint input, an analog-to-digital interface module will be needed to bridge the 1179A’s analog output into the digital control network.

Q4: What is your typical lead time and do you maintain stock for ongoing supply?
We maintain ready inventory of the MKS 1179A00452CR1BV to support urgent maintenance and planned retrofit projects. Standard lead time for in-stock units is 3–7 business days depending on destination. For facilities requiring reserved inventory agreements or scheduled delivery across a multi-tool retrofit program, contact our sales team to discuss long-term supply arrangements. We specialize in supporting end-of-life and discontinued component supply for critical automation assets.
