Mitsubishi FX2N-2AD Retrofit-Compatible Analog Input Module

Mitsubishi FX2N-2AD Retrofit-Compatible Analog Input Module for Legacy Systems

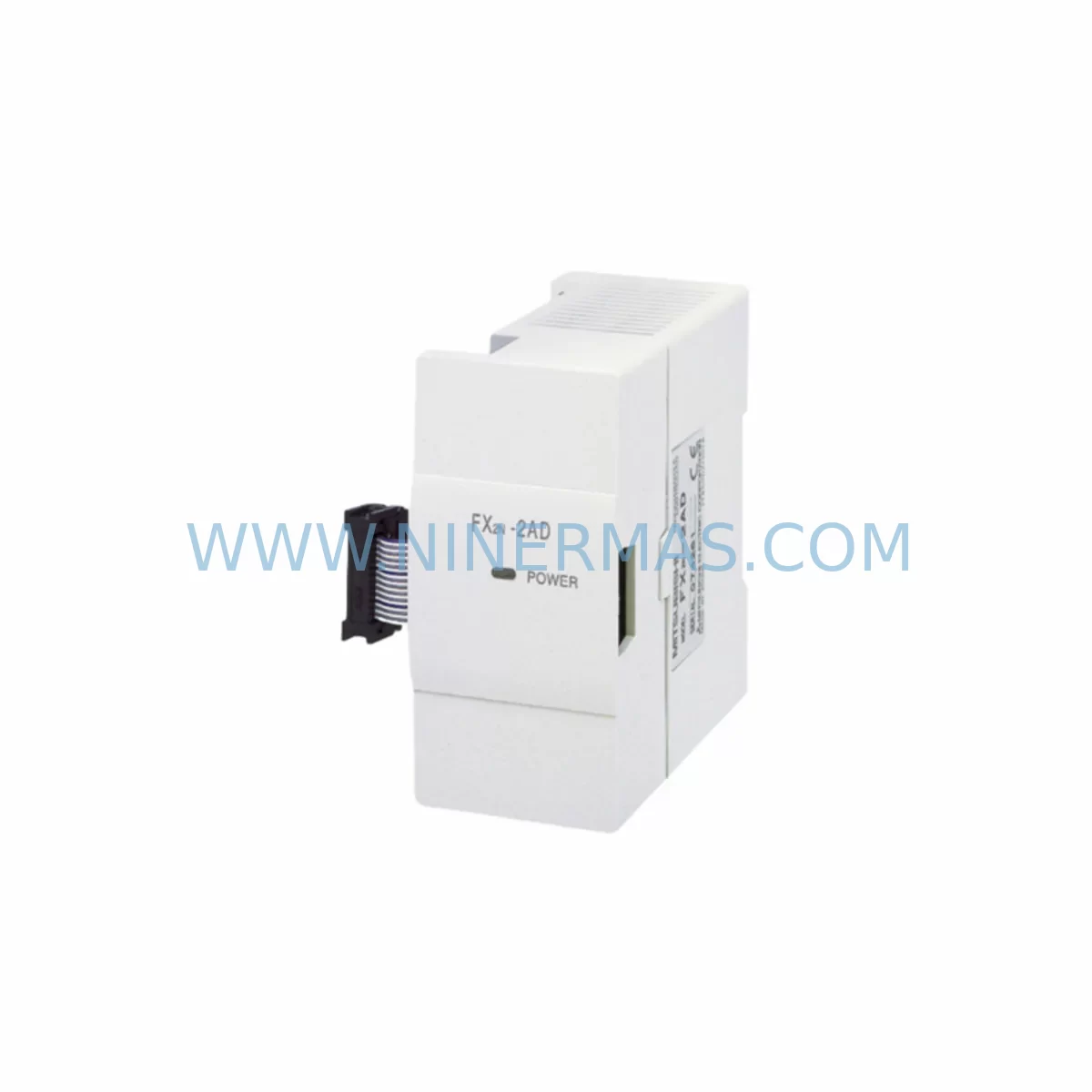

The Mitsubishi FX2N-2AD is a 2-channel analog input expansion module designed for the Mitsubishi MELSEC FX2N programmable logic controller series. As industrial facilities face increasing pressure to extend the operational life of legacy control systems while managing the risks of discontinued spare parts, the FX2N-2AD remains one of the most sought-after retrofit components for FX2N-based control panels. Whether you are replacing a failed analog input card, upgrading a legacy production line, or migrating signal acquisition from an older MELSEC FX1N or FX0N platform, the FX2N-2AD provides a reliable, field-proven solution with minimal disruption to existing wiring and program logic.

Each unit shipped by NINERMAS undergoes pre-shipment functional testing to verify channel accuracy, input range switching, and communication integrity with the FX2N main unit. Our 12-month warranty covers all tested stock, giving procurement engineers and maintenance teams confidence in long-term spare parts availability.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the FX2N-2AD within an active production environment requires careful coordination across multiple system layers. Before scheduling a maintenance window, engineers should retrieve the current PLC program backup using GX Developer or GX Works2 and document all FROM/TO instructions referencing the analog module’s buffer memory (BFM #0 through BFM #31). This ensures that after the physical swap, the replacement module’s offset and gain registers can be restored to match the original calibration, avoiding process deviations on analog-controlled loops.

On the field wiring side, technicians should verify terminal block assignments at the FX2N-2AD’s screw terminals. Voltage input channels require a separate shield ground connection, while current input channels (4–20 mA) must have the correct jumper position confirmed before powering up. If the existing control cabinet also houses an FX2N-4AD (4-channel analog input) or an FX2N-2DA (2-channel analog output) module, the total 5 V bus current draw must be recalculated to confirm the FX2N main unit’s internal power supply remains within specification. In high-density expansion configurations, an FX2N-65EC extension cable or an additional FX2N-CNV-BD board may be required to maintain signal integrity across the backplane.

For facilities migrating from older FX1N or FX0N platforms to the FX2N architecture as part of a broader control system upgrade, the FX2N-2AD is typically introduced alongside a new FX2N-32MR or FX2N-48MT main unit. In these scenarios, the HMI panel — often a Mitsubishi GOT1000 or GOT2000 series touch panel — must have its screen tag database updated to reflect the new device addresses and analog scaling parameters. Communication links between the FX2N main unit and upstream SCADA systems via FX2N-485-BD or FX2N-232-BD communication boards should be verified for baud rate and protocol settings before the cutover.

Where signal isolation is required — particularly in environments with high electrical noise from variable frequency drives or servo amplifiers — inline signal isolators or analog signal conditioners should be installed between field transmitters and the FX2N-2AD input terminals. This is especially relevant in retrofit projects where the original wiring infrastructure was not designed with modern EMC standards in mind. Proper grounding of the FX2N expansion bus and DIN rail earth bonding are essential steps before final commissioning.

NINERMAS maintains committed inventory of FX2N-series expansion modules to support long-term spare parts programs. Customers with multi-site facilities or extended maintenance contracts can arrange bulk stock commitments with fixed lead times, ensuring continuity of supply for legacy FX2N-based lines that are not scheduled for full migration within the next 3–5 years.

Downtime Control During System Migration

Minimizing unplanned downtime during an FX2N-2AD replacement is achievable with a structured pre-maintenance checklist. The recommended approach is to perform the module swap during a scheduled production break rather than an emergency repair, allowing time for the following steps without process pressure:

1. Program Backup and Verification: Before powering down the FX2N main unit, use GX Developer or GX Works2 to upload and verify the complete program, including all special function module parameters. Save the BFM offset and gain values for CH1 and CH2 from the existing FX2N-2AD using a buffer memory monitor session.

2. Physical Swap: Power down the FX2N main unit and all connected expansion modules including any FX2N-8EX digital input expanders or FX2N-8EYR relay output modules. Disconnect field wiring from the FX2N-2AD terminal block, noting wire labels and positions. Install the replacement FX2N-2AD, reconnect field wiring, and confirm jumper settings for voltage or current input mode on each channel.

3. Program Restore and Calibration: Power up the system and download the verified program backup. Use the buffer memory write function in GX Developer to restore the original offset and gain calibration values to BFM #0–#3. Monitor live analog input values against known field transmitter signals to confirm channel accuracy before releasing the line to production.

4. Communication Link Verification: If the FX2N main unit communicates with an upstream DCS, SCADA, or HMI via RS-485 or RS-232 using an FX2N-485-BD or FX2N-232-BD board, confirm that the communication link re-establishes correctly after power-up. Check that the GOT HMI panel displays correct analog values on all relevant screens before signing off on the retrofit.

By following this sequence, most FX2N-2AD replacements can be completed within a 30–60 minute maintenance window, keeping production impact to a minimum and preserving the integrity of the existing control program and field calibration.

Retrofit Support FAQ

Q1: Is the FX2N-2AD a direct drop-in replacement for a failed unit on an existing FX2N system?
Yes. The FX2N-2AD is a like-for-like replacement for any existing FX2N-2AD module. No program modifications are required for a direct swap. You will need to restore the original offset and gain calibration values to the buffer memory after installation, which can be done using GX Developer or GX Works2 buffer memory write functions.

Q2: Can the FX2N-2AD be used with an FX3U or FX3G main unit as part of a platform upgrade?
The FX2N-2AD is designed for the FX2N expansion bus and is not natively compatible with FX3U or FX3G main units without an FX2N-CNV-IF adapter block. If you are migrating to the FX3U platform, consider the FX3U-4AD or FX3U-2AD-PT as the recommended analog input modules for that generation. NINERMAS can advise on the appropriate replacement path based on your existing I/O count and program structure.

Q3: What pre-shipment testing does NINERMAS perform on the FX2N-2AD?
Each FX2N-2AD unit is functionally tested prior to shipment. Testing includes power-on verification, channel input range confirmation for both voltage (0–10 V) and current (4–20 mA) modes, buffer memory read/write integrity checks, and visual inspection for connector and terminal condition. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q4: What is the lead time and inventory availability for the FX2N-2AD?
NINERMAS maintains committed stock of FX2N-2AD modules to support urgent maintenance and planned retrofit projects. Standard orders are processed within 1–3 business days. For bulk procurement or long-term spare parts programs with fixed lead time commitments, please contact our sales team directly. We support multi-site inventory programs for facilities managing extended FX2N platform lifecycles.
