Mitsubishi FX1S-20MT-001 Service-Ready Spare Part

Mitsubishi FX1S-20MT-001 Service-Ready Spare Part for Industrial Maintenance

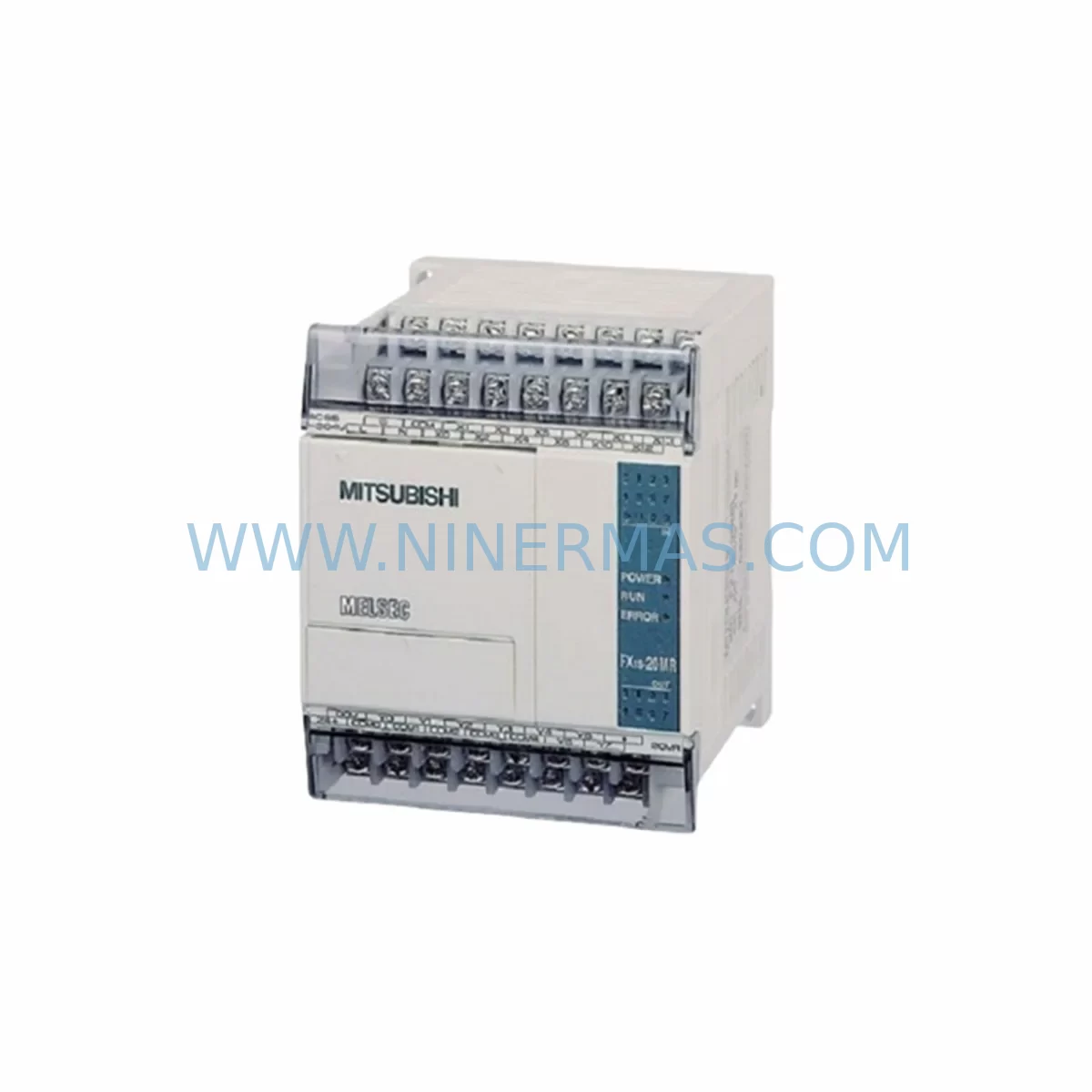

The Mitsubishi Electric FX1S-20MT-001 is a compact, high-reliability programmable logic controller from the MELSEC FX1S series, widely deployed across manufacturing lines, packaging equipment, material handling systems, and process control panels throughout Asia, Europe, and the Americas. As a service-ready spare part sourced and tested by NINERMAS, this unit is prepared to support maintenance engineers and procurement teams who need a dependable replacement to minimize unplanned downtime and extend the operational life of existing automation systems.

For maintenance engineers managing aging FX1S-based control cabinets, having a verified spare on hand is not optional — it is a core risk mitigation strategy. The FX1S-20MT-001 features 12 DC inputs and 8 transistor outputs (sink type), a built-in 2,000-step program memory, and supports high-speed pulse output up to 100 kHz, making it suitable for positioning and motion control tasks in legacy systems where replacing the entire control architecture is not economically justified.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance engineer identifies a failed or degraded FX1S-20MT-001 during a routine control cabinet inspection or emergency fault response, the replacement process involves more than simply swapping the PLC unit. A thorough site assessment should accompany every spare part installation to prevent secondary failures and ensure system continuity.

Before installing the FX1S-20MT-001 replacement, engineers should verify the condition of the 24VDC power supply feeding the input circuit — a failing power supply module such as the FX-1PSU or a third-party DIN rail PSU can cause erratic input behavior that mimics PLC faults. The terminal block wiring on the I/O connector strip should be inspected for loose connections, oxidation, or insulation damage, particularly on high-cycle digital input channels connected to proximity sensors, limit switches, or photoelectric sensors.

If the control cabinet includes an FX1S-CNV-BD communication board or an FX1S-232-BD RS-232C adapter board, these expansion boards must be carefully removed from the faulty unit and re-seated on the replacement PLC before powering up. The program stored in the original unit — if still accessible — should be backed up using GX Developer or GX Works2 programming software via the SC-09 programming cable or USB-SC09-FX adapter prior to removal. If the original program cannot be retrieved, the maintenance team must restore from the most recent backup stored in the plant’s document management system.

For systems where the FX1S-20MT-001 controls stepper motor drives or servo amplifiers via high-speed pulse output on Y0 and Y1, the pulse output parameters, acceleration/deceleration ramps, and positioning data registers (D registers) must be re-entered or restored from backup. Failure to restore these parameters will result in incorrect motion profiles and potential mechanical damage on first power-up.

In cabinets where the FX1S communicates upstream to an HMI panel — such as a GOT1000 series GT1020 or GT1030 terminal — the communication settings (station number, baud rate, and protocol) must match the replacement unit’s configuration. If the HMI uses tag-based addressing linked to specific PLC data registers, a communication test should be performed before returning the line to production.

Maintenance planners should also inspect adjacent components in the same cabinet during a PLC replacement event. Relay output modules, intermediate relay banks (such as MY2N or G2R series), terminal blocks (such as Phoenix Contact or Weidmuller DIN rail terminals), and circuit protection fuses should all be checked for wear. Signal isolators on analog input channels, if present, should be verified for correct output range. A proactive inspection during a planned replacement event is far more cost-effective than a secondary emergency shutdown caused by a component that was already near end-of-life.

NINERMAS maintains stock of FX1S-series spare parts including the FX1S-14MT-001, FX1S-30MT-001, and FX1S-30MR-001 to support maintenance teams managing mixed FX1S installations across multiple production lines. Having a small buffer stock of these units — along with the associated expansion modules and communication adapters — is a recognized best practice for plants operating legacy MELSEC FX-based systems.

Site Replacement Workflow

The on-site replacement of the FX1S-20MT-001 follows a structured workflow designed to minimize downtime and eliminate configuration errors:

Step 1 — Pre-Replacement Preparation: Confirm the replacement unit’s firmware version and I/O configuration match the original. Retrieve the PLC program backup from the plant document system. Prepare the SC-09 or USB-SC09-FX programming cable and a laptop with GX Developer or GX Works2 installed.

Step 2 — Safe Isolation: Follow the plant’s lockout/tagout (LOTO) procedure. Isolate the AC power supply to the control cabinet. Verify zero voltage at the PLC power terminals using a calibrated multimeter.

Step 3 — Removal: Disconnect the I/O terminal blocks (label all wiring before removal). Remove any expansion boards (communication adapters, analog expansion units). Unclip the PLC from the DIN rail or unscrew from the mounting plate.

Step 4 — Installation: Mount the replacement FX1S-20MT-001. Re-seat all expansion boards. Reconnect terminal blocks according to the wiring diagram. Verify all connections are secure and correctly torqued.

Step 5 — Program Restore and Commissioning: Connect the programming cable. Download the verified program backup to the replacement PLC. Set the correct station number and communication parameters. Power up the cabinet and perform an I/O check against the plant’s commissioning checklist.

Step 6 — Functional Verification: Run the system in manual mode to verify all inputs and outputs respond correctly. Confirm HMI communication is restored. Return the line to automatic mode under supervision and monitor for the first 30 minutes of operation.

NINERMAS ships each FX1S-20MT-001 unit after functional testing and provides a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions. Long-term supply agreements are available for maintenance teams requiring guaranteed stock availability.

Spare Parts Support FAQ

Q1: Is the NINERMAS FX1S-20MT-001 a genuine Mitsubishi Electric unit or a compatible replacement?
A: NINERMAS supplies original Mitsubishi Electric FX1S-20MT-001 units sourced through authorized industrial distribution channels. Each unit is inspected and functionally tested before shipment. A 12-month warranty is provided from the date of delivery.

Q2: Can the FX1S-20MT-001 directly replace an FX1S-20MR-001 in an existing installation?
A: The FX1S-20MT-001 (transistor output) and FX1S-20MR-001 (relay output) share the same input configuration and program memory, but the output wiring differs. Transistor outputs require an external 24VDC load power supply and are polarity-sensitive. If the existing wiring was designed for relay outputs, the output circuit wiring must be modified before installing the MT variant. Consult the FX1S hardware manual and verify load compatibility before proceeding.

Q3: How do I verify compatibility before ordering, and what is the lead time?
A: Provide your existing PLC model number, I/O count, and any expansion modules in use to sale@ninermas.com. NINERMAS will confirm compatibility and stock availability within one business day. Standard in-stock units ship within 3–5 business days. Expedited shipping is available for emergency maintenance situations.

Q4: What does the 12-month warranty cover, and how is a warranty claim processed?
A: The 12-month warranty covers functional failures under normal operating conditions, including input/output circuit failures, power supply faults, and communication port defects. Physical damage caused by incorrect wiring, overvoltage, or environmental exposure beyond the rated specification is excluded. To initiate a warranty claim, contact sale@ninermas.com with the order number, fault description, and site photos. NINERMAS will arrange return shipping and provide a replacement or repair within an agreed timeframe.
