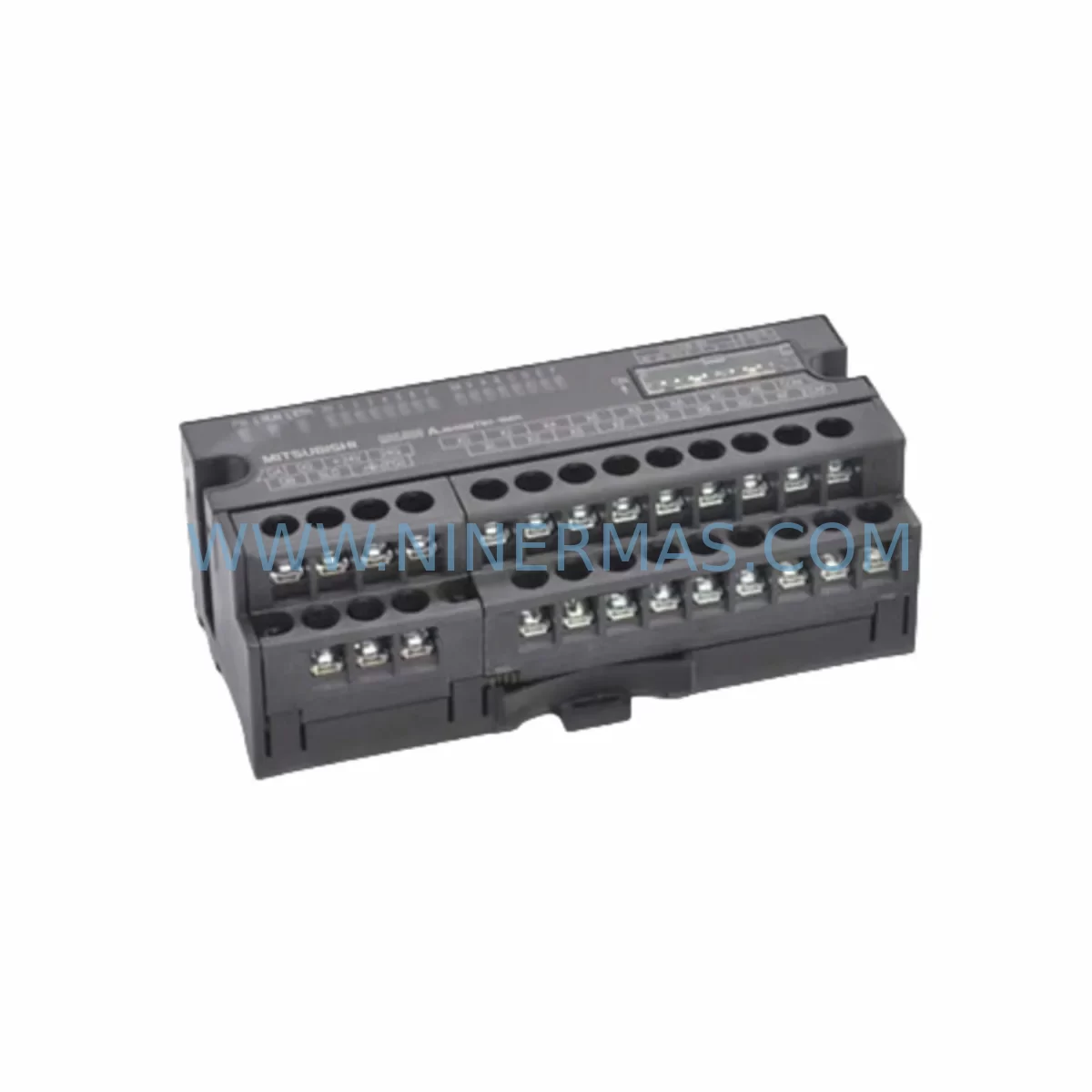

Mitsubishi AJ65MBTL1N-16D Retrofit-Compatible Remote I/O Module

Mitsubishi AJ65MBTL1N-16D Retrofit-Compatible Remote I/O Module for Legacy Systems

The Mitsubishi AJ65MBTL1N-16D is a CC-Link-compatible thin-type remote I/O module delivering 16 points of DC input signal collection for distributed control architectures built on the MELSEC-A and MELSEC-QnA platform families. As legacy CC-Link field networks continue to operate across chemical processing, automotive assembly, food and beverage, and discrete manufacturing facilities, the AJ65MBTL1N-16D remains a critical retrofit and replacement component for engineers managing aging automation infrastructure without the budget or downtime tolerance for full system overhauls.

Designed for thin-type terminal block mounting, this module integrates directly into existing CC-Link remote I/O stations without requiring rack or backplane modifications. Its compact form factor and standardized wiring interface make it a preferred choice for maintenance teams executing like-for-like replacements on production lines where installation space is constrained and rewiring time must be minimized. Each unit supplied by NINERMAS undergoes pre-shipment functional verification to confirm CC-Link communication integrity, input point response, and terminal continuity before dispatch.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the AJ65MBTL1N-16D within an operational CC-Link network requires a structured approach to avoid disrupting adjacent stations and the master controller scan cycle. Before removal, engineers should document the station address setting on the rotary switch, confirm the baud rate DIP switch configuration matches the existing network (typically 156 kbps to 10 Mbps), and verify that the replacement unit’s firmware revision is compatible with the installed CC-Link master.

In systems using the AJ61BT11 CC-Link master module or the newer QJ61BT11N master on a MELSEC-Q rack, the AJ65MBTL1N-16D integrates without parameter changes provided the station number and occupied station count remain identical. For sites that have migrated the master to a MELSEC-iQ-R platform using the RJ61BT11 CC-Link master, backward compatibility with Ver. 1.10 remote I/O stations is maintained, allowing the AJ65MBTL1N-16D to remain in service during phased migration projects.

Wiring adaptation is straightforward: the thin-type terminal block accepts the same M3 screw terminations as the original unit, eliminating the need for ferrule replacement or cable re-labeling in most installations. Where field wiring uses shielded twisted-pair cable for CC-Link trunk lines, the existing CC-Link dedicated cable (Ver. 1.10) and terminating resistors (110 Ω) should be inspected and retained. If the control cabinet also houses AJ65SBTB1-16D or AJ65VBTCE3-16D compact remote I/O modules on the same segment, their station parameters are unaffected by the AJ65MBTL1N-16D swap.

Power supply verification is essential before commissioning: the module draws 24 VDC from the field power supply rail, and the existing S8VS-series or equivalent 24 VDC DIN-rail power supply should be confirmed to have sufficient residual capacity after accounting for all connected I/O loads. For cabinets where the original power budget is marginal, a supplementary Q61P or equivalent power module may be added to the MELSEC-Q base unit to stabilize the backplane supply independently of the field wiring rail.

HMI screen updates are typically not required for a like-for-like AJ65MBTL1N-16D replacement, as the input device addresses mapped in the PLC program (X/Y device assignments) remain unchanged. However, if the retrofit is part of a broader migration from MELSEC-A to MELSEC-Q or MELSEC-iQ-R, the GX Works2 or GX Works3 programming environment should be used to verify device map consistency and re-download the updated project after hardware substitution. Signal isolators such as the FA-TB32XY terminal block conversion unit may be introduced at this stage to bridge wiring differences between old and new I/O module terminal layouts.

Downtime Control During System Migration

Minimizing unplanned downtime during AJ65MBTL1N-16D replacement is achievable through pre-staging and parallel verification. NINERMAS recommends the following sequence for controlled substitution in live production environments:

1. Pre-Commissioning Bench Test: Configure the replacement AJ65MBTL1N-16D to the correct station address and baud rate off-line using a portable CC-Link tester or a spare master module. Confirm all 16 input points respond correctly to 24 VDC test signals before the unit enters the cabinet.

2. Program Backup: Use GX Developer or GX Works2 to upload and archive the current PLC program, including all CC-Link parameter settings, before any hardware change. Store the backup on an isolated engineering laptop and a secondary USB drive.

3. Controlled Shutdown Window: Schedule the physical swap during a planned maintenance window. Isolate the 24 VDC field power to the affected station, disconnect the CC-Link trunk cable, and remove the faulty module. Install the replacement, reconnect the trunk cable, and restore field power in sequence.

4. Network Re-Initialization: Cycle the CC-Link master (AJ61BT11 or QJ61BT11N) to force a network re-scan. Confirm the replacement station appears in the master’s station list with the correct station type and no error flags. Monitor the L ERR LED on the master module for the first 10 scan cycles.

5. Functional Verification: Activate each of the 16 input points from the field device side and confirm correct X-device state changes in the PLC monitor. Cross-reference against the original I/O list to validate signal integrity before returning the line to production.

This structured approach consistently achieves replacement completion within a 30–60 minute maintenance window for experienced automation technicians, preserving production continuity and eliminating the risk of incorrect re-commissioning.

Retrofit Support FAQ

Q1: Is the AJ65MBTL1N-16D a direct drop-in replacement for the original Mitsubishi unit?
Yes. The AJ65MBTL1N-16D supplied by NINERMAS is a genuine or functionally equivalent replacement that matches the original form factor, terminal layout, CC-Link station type, and 16-point DC input specification. No wiring changes or PLC program modifications are required for a like-for-like swap on the same CC-Link segment.

Q2: What pre-shipment testing is performed before dispatch?
Every AJ65MBTL1N-16D unit undergoes CC-Link communication verification, individual input point functional testing, and terminal block continuity checks prior to shipment. A test record is available upon request. All units are covered by a 12-month warranty from the shipment date.

Q3: Can this module operate on a CC-Link network that also includes MELSEC-Q and MELSEC-iQ-R master modules?
Yes. The AJ65MBTL1N-16D is CC-Link Ver. 1.10 compliant and is backward-compatible with QJ61BT11N and RJ61BT11 master modules operating in Ver. 1.10 mode. Mixed-generation CC-Link networks are fully supported, making this module suitable for phased migration projects where not all stations are upgraded simultaneously.

Q4: What is the long-term supply commitment for this discontinued model?
NINERMAS maintains dedicated stock of the AJ65MBTL1N-16D and similar legacy CC-Link remote I/O modules to support customers with extended production lifecycles. Long-term supply agreements with fixed lead times are available for facilities requiring guaranteed spare parts availability over multi-year maintenance contracts. Contact our team to discuss volume commitments and scheduled delivery programs.
