Metso IOP371 Retrofit-Compatible I/O Processor for Legacy DCS

Metso IOP371 Retrofit-Compatible I/O Processor for Legacy DCS: Seamless Upgrade for Aging Automation Systems

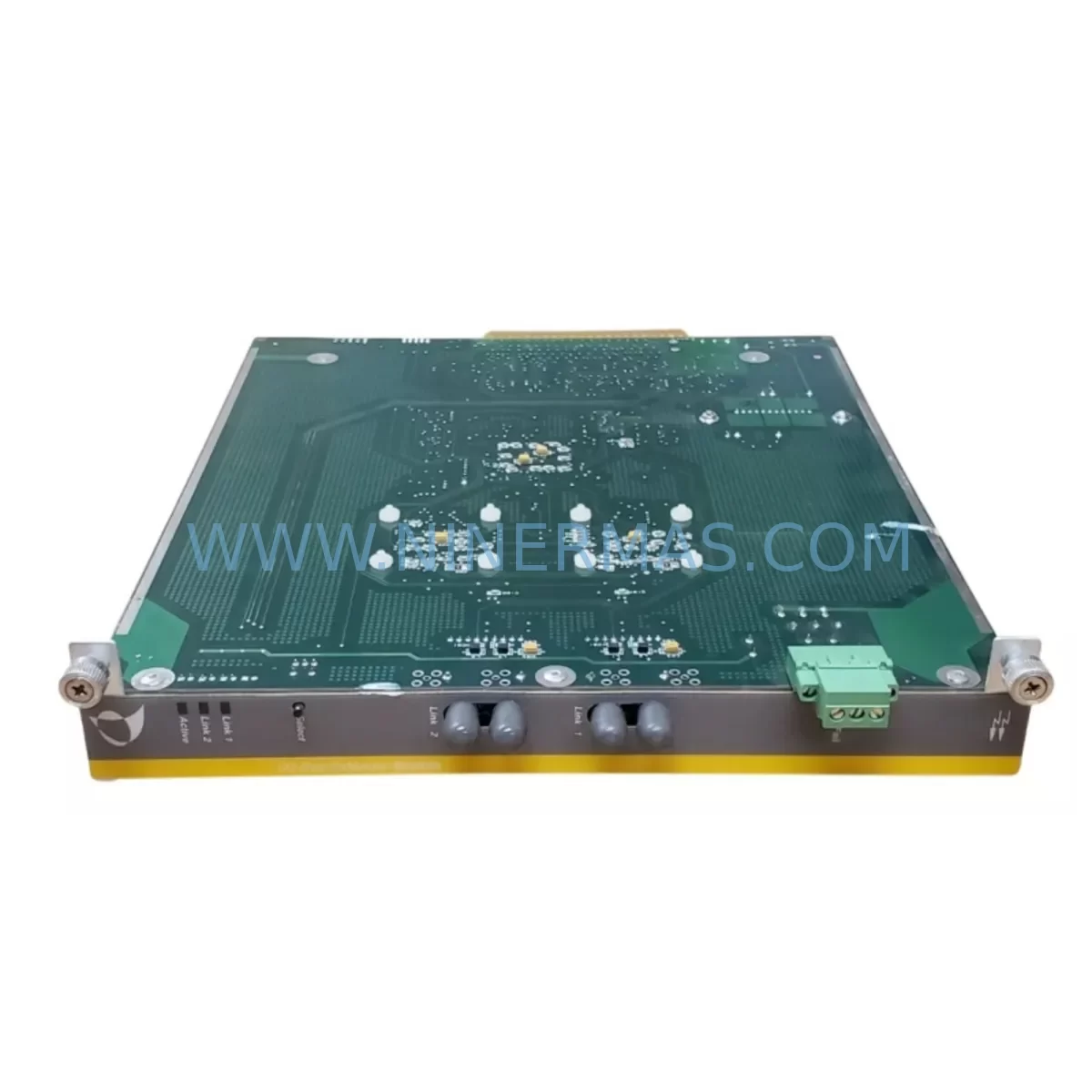

The Metso IOP371 is an I/O bus processor module originally designed for the Metso DNA (Dynamic Network of Applications) distributed control system — one of the most widely deployed DCS platforms in pulp and paper, power generation, and process industries. As Metso DNA installations age and original hardware reaches end-of-life, the IOP371 has become a critical retrofit component for engineers tasked with extending the operational life of legacy control systems without undertaking a full platform migration.

At NINERMAS, we supply original and compatible IOP371 modules with full functional verification, 12-month warranty, and rapid global shipping. Whether you are replacing a failed unit, building a spare parts buffer, or planning a phased control system upgrade, the IOP371 is a proven solution for maintaining continuity in your existing DNA architecture.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the IOP371 in a live or recently shut-down Metso DNA system requires careful pre-work to avoid extended downtime and configuration errors. The IOP371 interfaces directly with the I/O bus backbone of the DNA rack, coordinating data exchange between field I/O modules and the system controller. Before removal, engineers should document the existing module address, bus segment assignment, and any jumper or DIP switch settings on the unit.

In most DNA installations, the IOP371 shares a rack with companion modules such as the AI-16 analog input module, AO-8 analog output module, and MIO-12 multifunction I/O module. These modules continue to operate independently during an IOP371 swap, but their data will be temporarily unavailable to the controller until the new IOP371 is initialized and the bus re-established. Coordinating the swap window with the process control team is essential.

Power supply integrity is a common oversight during I/O processor replacements. The PWR-24 rack power module must be verified for adequate capacity before inserting the replacement IOP371, particularly in racks that have been expanded with additional I/O cards since original commissioning. Overloaded power rails can cause intermittent faults that are difficult to diagnose post-installation.

Communication continuity is another key consideration. In DNA systems using ACN-RTR rack controllers or ACN-EC Ethernet communication modules, the IOP371 replacement must be followed by a bus re-scan and address confirmation from the engineering workstation. Failure to re-confirm the module address can result in the controller mapping I/O data to incorrect process variables, creating hazardous mismatches between field signals and HMI displays.

For installations that include BIU-8 bus interface units or CIU-8 communication interface modules in adjacent racks, the IOP371 swap may temporarily interrupt inter-rack communication. Planning the replacement during a scheduled maintenance window — rather than as an emergency repair — allows time to verify all bus segments are restored before returning the system to automatic control.

Signal isolation should also be reviewed during the retrofit. If the existing installation uses external signal isolators between field instruments and the AI-16 or AO-8 modules, confirm that these devices remain within calibration and that their output ranges match the IOP371’s expected input specifications. Mismatched signal ranges are a frequent source of post-retrofit calibration errors.

Finally, if the retrofit is part of a broader migration from Metso DNA to a newer platform — such as Valmet DNA or a third-party DCS — the IOP371 replacement may serve as an interim measure while the full migration is planned. In this scenario, maintaining a buffer stock of IOP371 modules, along with compatible IOP351 and IOP361 units, ensures that the legacy system remains operational throughout the transition period without risking unplanned shutdowns.

Downtime Control During System Migration

Minimizing downtime during an IOP371 replacement begins with preparation, not execution. Before the maintenance window opens, the engineering team should export a full backup of the DNA application, including all function block configurations, I/O assignments, and alarm setpoints. This backup serves as the recovery baseline if the replacement module requires re-initialization or if bus communication is not restored within the expected timeframe.

During the swap, the process should be isolated at the field level — not at the controller level — wherever possible. Placing field instruments in manual mode or activating bypass logic in the DNA application allows the control system to maintain safe output states while the IOP371 is physically replaced. This approach protects the original program logic and avoids the risk of the controller issuing unintended commands during the module transition.

After insertion of the replacement IOP371, the bus initialization sequence should be monitored from the DNA engineering workstation. Confirm that the module appears on the bus with the correct address and that all associated I/O channels report valid signal values before releasing the process back to automatic control. Any channel that reports a fault or out-of-range value should be investigated before the maintenance window closes.

For critical processes where even brief interruptions are unacceptable, consider pre-staging the replacement IOP371 in a test rack with the same address and configuration as the installed unit. This allows the module to be verified against the actual DNA application before the live swap, reducing the risk of configuration errors and shortening the actual replacement time to minutes rather than hours.

Retrofit Support FAQ

Q: Is the IOP371 a direct drop-in replacement for the IOP351 or IOP361?
A: In most Metso DNA rack configurations, the IOP371 is functionally compatible with IOP351 and IOP361 slots. However, firmware revision and bus address settings must be verified before installation. NINERMAS can provide technical documentation to support compatibility confirmation for your specific rack revision.

Q: How is the IOP371 tested before shipment?
A: Every IOP371 supplied by NINERMAS undergoes full functional verification on a Metso DNA test bench, including bus communication, I/O channel response, and power rail integrity. A test certificate is included with each shipment. Units that do not pass all test criteria are not dispatched.

Q: What warranty is provided with the IOP371?
A: All IOP371 modules supplied by NINERMAS carry a 12-month warranty from the date of shipment. The warranty covers functional defects and includes return-and-replace support. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q: Can NINERMAS supply IOP371 modules for urgent or emergency orders?
A: Yes. NINERMAS maintains buffer stock of IOP371 and related Metso DNA spare parts to support emergency dispatch. Contact sale@ninermas.com or call +0086 187 5021 5667 to confirm availability and arrange expedited shipping to your facility.
