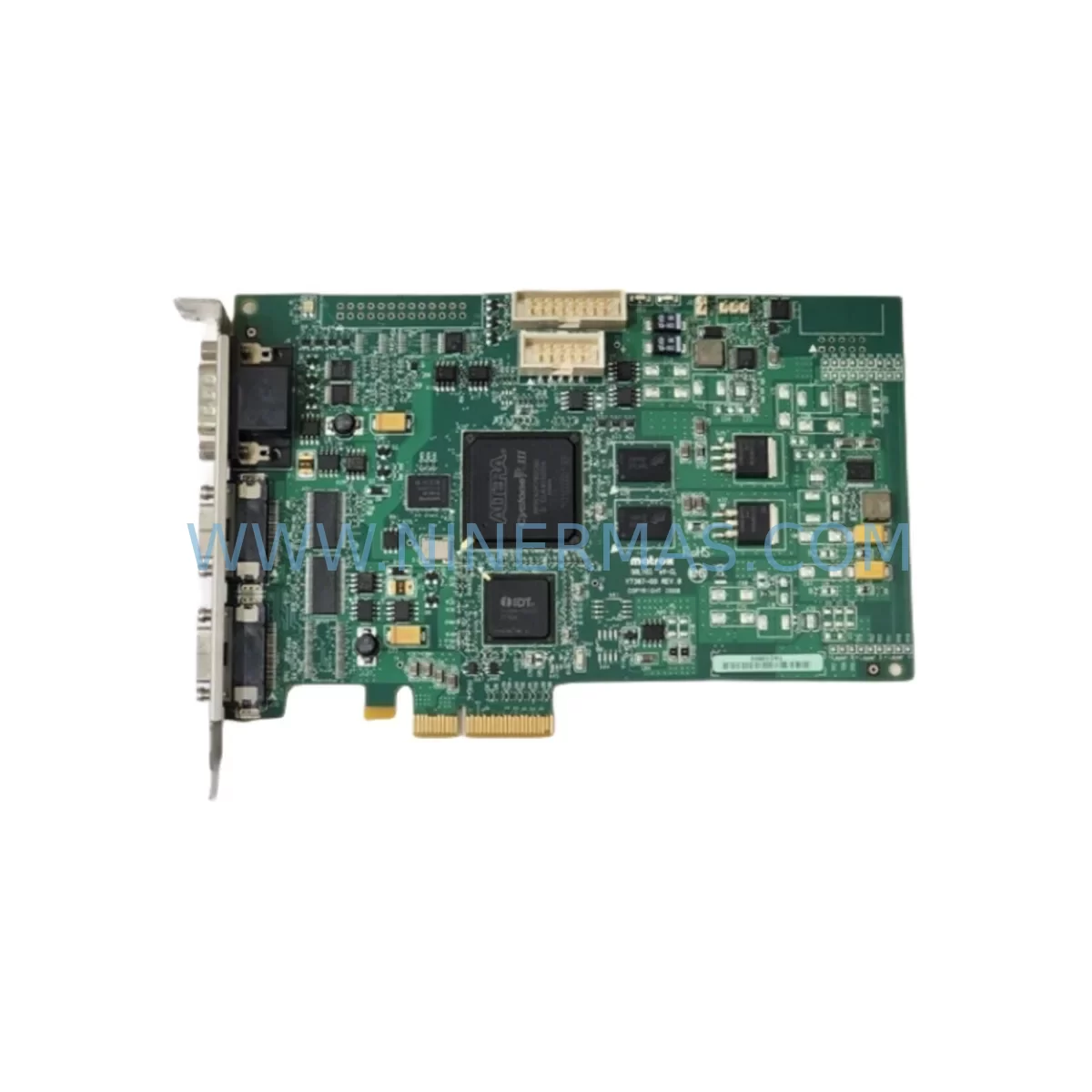

The Matrox SOL2MEVCLB is a ruggedized Camera Link frame grabber module from the Matrox Solios series, engineered for demanding machine vision and industrial imaging applications. As a critical interface between industrial cameras and host processing systems, the SOL2MEVCLB plays a central role in automated inspection lines, robotic guidance systems, and high-speed quality control stations. When this module fails or degrades, the entire vision-guided production line is at risk of unplanned downtime — making a verified, service-ready spare unit an essential component of any proactive maintenance strategy.

At NINERMAS, we supply the SOL2MEVCLB as an original-specification spare part, pre-tested before shipment and backed by a 12-month warranty. Our inventory is maintained to support urgent replacement requests, planned annual overhauls, and long-term spare parts programs for facilities running Matrox Solios-based vision systems.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules replacement of the Matrox SOL2MEVCLB, the scope of inspection should extend beyond the frame grabber itself. A Camera Link frame grabber sits at the intersection of camera hardware, host PC infrastructure, and software imaging pipelines — meaning adjacent components are equally subject to wear and should be evaluated during the same maintenance window.

Begin with the Camera Link cables connecting the industrial camera to the SOL2MEVCLB. These MDR-26 or SDR-26 cables are subject to mechanical fatigue in environments with frequent cable movement or vibration. Degraded cables are a leading cause of intermittent frame drops that are often misdiagnosed as frame grabber failure. Replacing cables alongside the SOL2MEVCLB eliminates this ambiguity and restores signal integrity in a single intervention.

Next, assess the host PC power supply unit (PSU) and the PCIe slot power delivery. Frame grabbers draw consistent power from the PCIe bus; an aging PSU with voltage ripple can cause erratic frame grabber behavior. If the host system is also due for review, consider the Matrox Radient eCL or Matrox Rapixo CL as potential upgrade paths within the Matrox Camera Link ecosystem, depending on throughput requirements.

For facilities running multi-camera inspection cells, the Matrox SOL2MEVCLB is often paired with a second frame grabber channel or a Matrox Solios eCL unit to handle parallel camera feeds. Verify that the companion frame grabber is also within its service life and that the Matrox Imaging Library (MIL) software license and driver version are compatible with the replacement hardware before installation.

In control cabinet environments, inspect the 24VDC industrial power supply feeding the camera illumination system and any I/O trigger modules that synchronize camera exposure with conveyor or robot motion. Trigger signal integrity is critical — a degraded opto-isolated I/O card or a failing signal isolator can introduce timing jitter that manifests as blurred or misaligned images, even with a fully functional frame grabber installed.

For systems integrated into a broader PLC or DCS architecture, confirm that the Ethernet or serial communication interface between the vision PC and the PLC (e.g., PROFINET, EtherNet/IP, or OPC-UA gateway) remains stable post-replacement. Any firmware update applied to the host PC during the maintenance window may affect communication stack behavior. Additionally, review the HMI display connection and any DVI or DisplayPort adapters used for operator interface — these are often overlooked during frame grabber swaps but can affect system restart validation.

Finally, for facilities with legacy systems, consider stocking a spare Camera Link camera unit compatible with the SOL2MEVCLB alongside the frame grabber itself. Camera sensors degrade over time in high-cycle inspection environments, and having both the frame grabber and a validated camera spare on hand ensures the fastest possible recovery from a dual-component failure scenario.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the host PC PCIe slot type and available bandwidth. Verify that the replacement SOL2MEVCLB matches the original board revision if the Matrox MIL driver version is locked to a specific hardware revision. Download the latest compatible MIL driver from Matrox prior to the maintenance window.

Step 2 — Safe Shutdown & ESD Precautions: Power down the host PC and vision system following your site LOTO (Lockout/Tagout) procedure. Use an ESD wrist strap when handling the SOL2MEVCLB. PCIe frame grabbers are sensitive to electrostatic discharge — improper handling can cause latent damage that only manifests under thermal stress during operation.

Step 3 — Physical Swap: Remove the failed SOL2MEVCLB from the PCIe slot. Seat the replacement module firmly, ensuring the gold edge connector is fully engaged. Reconnect Camera Link cables to the correct channel ports (CH1/CH2) as per the original wiring diagram. Torque MDR connector thumbscrews to finger-tight to avoid connector stress.

Step 4 — Driver Installation & System Validation: Power on the host PC. Install or confirm the Matrox MIL driver recognizes the new SOL2MEVCLB. Run a live grab test using Matrox Intellicam or your site’s vision application to confirm frame acquisition, trigger response, and image quality meet specification. Log the replacement date, board serial number, and test results in your maintenance record system.

Step 5 — Return to Production: Re-enable the production line and monitor the first 30 minutes of operation for any anomalies. Update your spare parts inventory record to reflect the consumed unit and initiate a reorder to maintain your minimum stock level.

Spare Parts Support FAQ

Q1: Is the Matrox SOL2MEVCLB still available as a new spare part, or is it an end-of-life component?
The SOL2MEVCLB is a mature Matrox Solios series product. NINERMAS maintains stock of original-specification units to support facilities running legacy Matrox Camera Link vision systems. We provide long-term supply commitments for customers requiring ongoing procurement across multi-year maintenance programs. Contact our team to discuss a dedicated stock reservation.

Q2: How is the SOL2MEVCLB tested before shipment?
Every unit supplied by NINERMAS undergoes pre-shipment functional verification, including PCIe interface continuity checks and Camera Link signal path validation. Units are shipped in anti-static packaging with inspection documentation. Our 12-month warranty covers defects in materials and workmanship from the date of delivery.

Q3: Can the SOL2MEVCLB be used as a direct drop-in replacement for other Matrox Solios variants?
The SOL2MEVCLB is a specific variant within the Matrox Solios Camera Link family. Compatibility with other Solios variants (e.g., Solios eA/XA, Solios eCL) depends on the Camera Link configuration (Base/Medium/Full) and the MIL software version in use. NINERMAS recommends providing your existing board part number and MIL version for compatibility confirmation before ordering.

Q4: What is the recommended spare parts stocking strategy for facilities running multiple Matrox SOL2MEVCLB units?
For facilities with 3 or more SOL2MEVCLB units in active service, we recommend maintaining a minimum of 1 cold spare per 5 installed units, with a reorder trigger set at 1 unit remaining. For critical single-line installations where downtime cost is high, a 1:1 hot spare ratio is advisable. NINERMAS offers blanket order agreements and consignment stock programs to support high-availability maintenance strategies.
