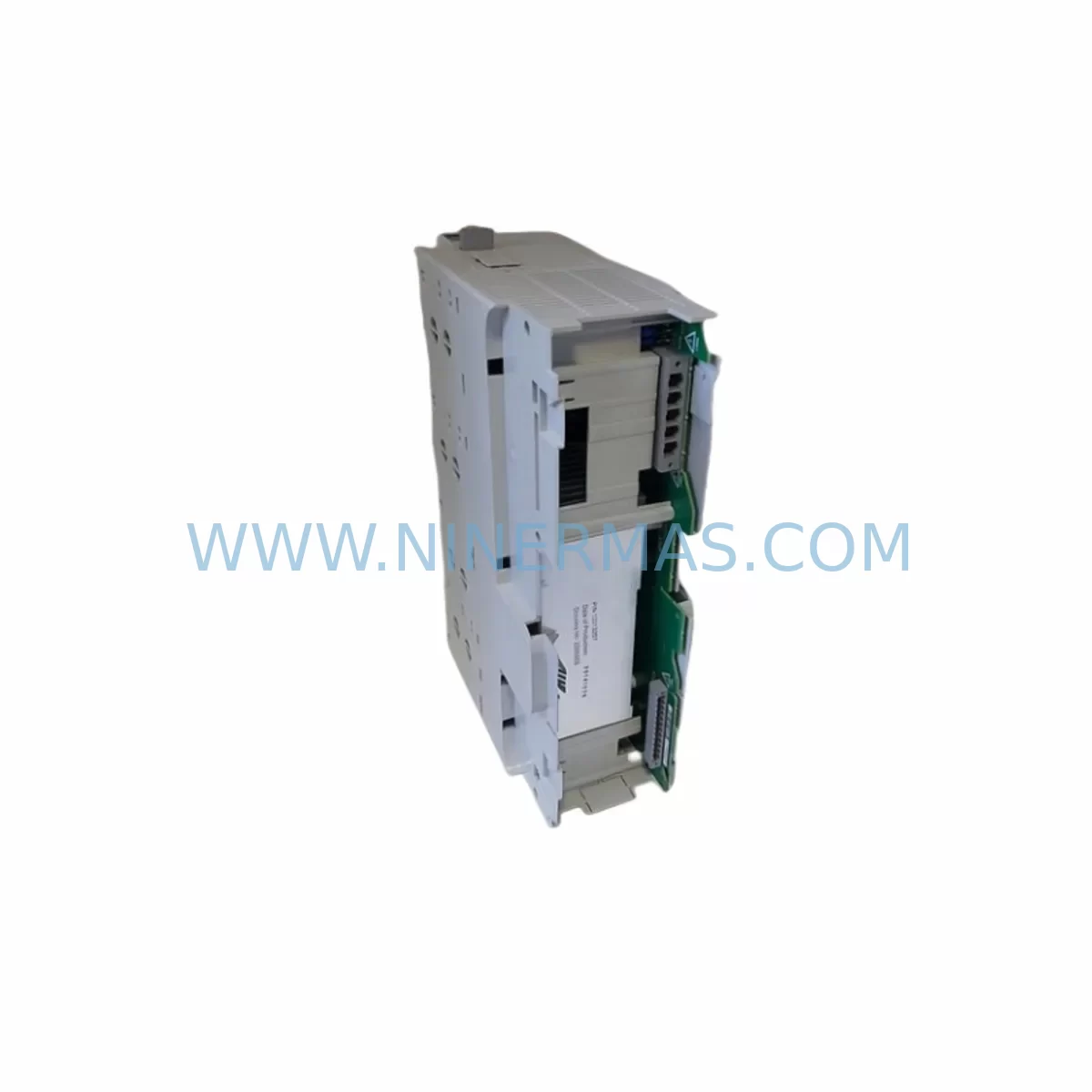

LTI MOTION LSC-070-2-50-560-P5B0R1PM0 Safety-Reliable Servo Drive

LTI MOTION LSC-070-2-50-560-P5B0R1PM0 Safety-Reliable Servo Drive for Critical Control Sites

The LTI MOTION LSC-070-2-50-560-P5B0R1PM0 is a high-performance servo drive from the LSC-070 series, engineered for demanding industrial environments where control loop integrity and operational continuity are non-negotiable. Designed to deliver precise motion control under continuous production loads, this unit is a trusted replacement and upgrade solution for facilities operating legacy LTI MOTION LSC-070 series installations. With a rated output current of 50 A, a DC bus voltage range up to 560 V, and a compact yet robust form factor, the LSC-070-2-50-560-P5B0R1PM0 is purpose-built for critical control cabinets in petrochemical, power generation, mining, water treatment, metallurgy, port logistics, and continuous manufacturing environments.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In high-stakes control environments — from continuous chemical reactors to heavy-load conveyor drives — a single servo drive failure can cascade into unplanned downtime, process deviation, or safety interlock activation. The LSC-070-2-50-560-P5B0R1PM0 addresses these risks through a combination of hardware-level protection and intelligent drive management.

Within a typical LSC-070 series control cabinet, this drive operates alongside complementary components that form a complete motion safety architecture. The LTI MOTION LSC-070 regenerative power supply module stabilizes the shared DC bus, preventing voltage spikes from braking events from propagating to adjacent drives. Paired with an LTI MOTION LSC-070 braking resistor assembly, excess regenerative energy is safely dissipated rather than reflected back into the supply network — a critical safeguard in high-inertia applications such as centrifuges, winders, and hoisting equipment.

For communication integrity in high-EMI environments — common in arc furnace facilities, variable-frequency drive-dense panels, and heavy motor rooms — the drive’s shielded fieldbus interface supports PROFIBUS DP and CANopen protocols with robust error detection. When integrated with a Siemens SIMATIC S7-300 or S7-400 PLC via PROFIBUS, the LSC-070-2-50-560-P5B0R1PM0 enables deterministic motion sequencing with sub-millisecond cycle times, reducing the risk of signal drift and command latency that can cause axis misalignment or interlock faults.

Power quality is another critical factor in servo drive longevity. Deploying a line reactor or EMC input filter upstream of the LSC-070-2-50-560-P5B0R1PM0 attenuates harmonic distortion and surge transients from the supply network — particularly important in facilities sharing power infrastructure with large induction motors or welding equipment. An uninterruptible power supply (UPS) module for the control logic section ensures that the drive’s safety functions and parameter memory remain intact during momentary supply interruptions.

For encoder feedback integrity, the P5B0R1PM0 option code indicates resolver and incremental encoder input compatibility, making it directly interchangeable with legacy LSC-070 installations using Heidenhain ERN or ROD series encoders or standard resolver transducers. This eliminates the need for signal converter modules during replacement, reducing commissioning time and the risk of wiring errors in live panels.

Thermal management within the control cabinet is supported by the drive’s internal fan cooling and thermal derating logic. When ambient temperatures approach the upper operating limit, the drive automatically reduces output current to protect power semiconductors — a passive safety measure that extends MTBF in high-temperature enclosures found in foundry, glass, and cement plant environments. Supplementing this with a cabinet air conditioning unit or heat exchanger rated for the total drive dissipation ensures stable operation year-round.

Critical Industrial Safety Applications

The LTI MOTION LSC-070-2-50-560-P5B0R1PM0 is deployed across a wide range of safety-critical and continuous-process industries:

Petrochemical & Refinery: In compressor train control and pump drive applications, the drive’s STO (Safe Torque Off) function integrates directly with emergency shutdown (ESD) systems, ensuring that rotating equipment is de-energized safely without mechanical brake wear. Its resistance to airborne hydrocarbon contamination — when installed in sealed, purged enclosures — makes it suitable for Zone 2 adjacent control rooms.

Power Generation: In coal handling, ash conveyor, and cooling tower fan drives, the LSC-070-2-50-560-P5B0R1PM0 provides stable torque control under variable load conditions. Its built-in overcurrent and overvoltage protection prevents drive trips during grid disturbances, maintaining auxiliary system availability during peak generation periods.

Mining & Mineral Processing: Conveyor belt drives, crusher feed systems, and flotation cell agitators demand drives that can withstand high dust levels, vibration, and frequent start-stop cycles. The LSC-070 series’ robust DC bus architecture and configurable current limits protect both the drive and the connected motor from mechanical shock loads.

Water & Wastewater Treatment: Pump and blower drives in water treatment facilities require continuous, unattended operation. The drive’s fieldbus connectivity enables remote monitoring of torque, speed, and fault status via SCADA systems, allowing maintenance teams to detect developing faults before they cause process interruptions.

Metallurgy & Steel: In rolling mill auxiliary drives and ladle transfer systems, precise speed and torque control is essential for product quality and personnel safety. The LSC-070-2-50-560-P5B0R1PM0’s 2-axis architecture allows coordinated motion control of multiple axes from a single drive unit, reducing panel space and simplifying safety interlock wiring.

Port Logistics & Crane Systems: Hoist and travel drives in port cranes and overhead cranes require drives with proven anti-sway and load-holding capabilities. The drive’s resolver feedback compatibility ensures accurate position control even in high-vibration, outdoor-adjacent environments.

Safety and Quality FAQ

Q1: Does the LSC-070-2-50-560-P5B0R1PM0 come with a warranty?
Yes. Every unit supplied by NINERMAS COMPANY LIMITED carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with direct technical assistance and replacement unit coordination.

Q2: How is each unit tested before shipment?
All LSC-070-2-50-560-P5B0R1PM0 units undergo pre-shipment functional verification including power-on self-test, communication interface check, and output stage integrity inspection. Units sourced from original manufacturer stock or certified refurbishment channels are prioritized to ensure field-ready condition upon delivery.

Q3: Is this drive compatible with existing LSC-070 series installations without hardware modification?
Yes. The LSC-070-2-50-560-P5B0R1PM0 is a direct form-fit-function replacement for equivalent LSC-070 series units with matching current rating, voltage class, and option codes. The P5B0R1PM0 option suffix confirms resolver and encoder feedback compatibility, eliminating the need for signal adapters in most legacy installations. Always verify the full option code against your existing drive nameplate before ordering.

Q4: Can NINERMAS support long-term supply for this end-of-life or hard-to-source component?
Yes. NINERMAS maintains dedicated inventory reserves for LTI MOTION LSC-070 series components, including the LSC-070-2-50-560-P5B0R1PM0, to support customers with multi-year maintenance contracts and planned replacement programs. Contact our team to discuss scheduled supply agreements, consignment stock options, and priority allocation for critical spare parts programs.
