LINTEC MC-3102E-NC Safety-Reliable Mass Flow Controller N2 500 SCCM

LINTEC MC-3102E-NC Safety-Reliable Mass Flow Controller for Critical Control Sites

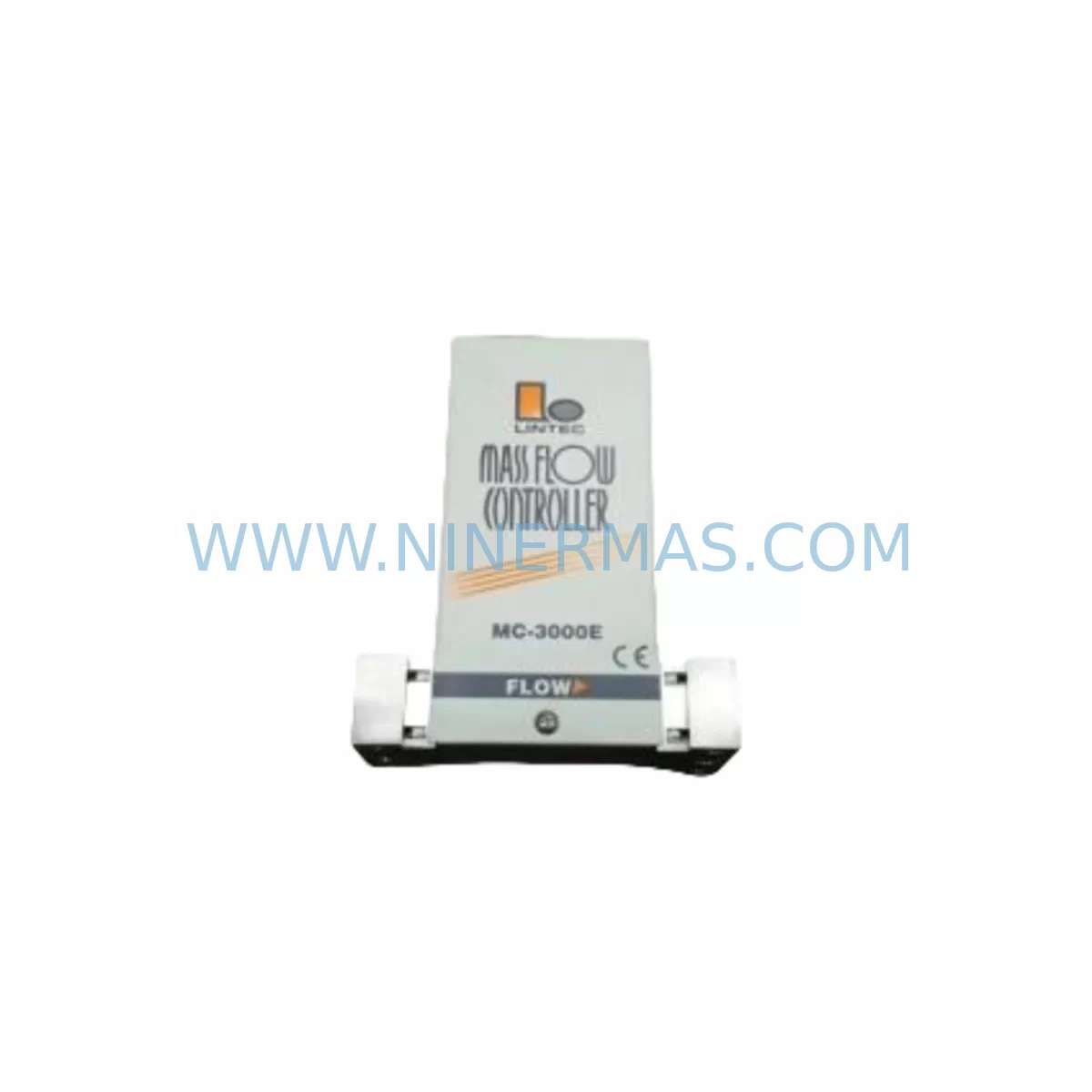

The LINTEC MC-3000E MC-3102E-NC is a precision mass flow controller (MFC) engineered for nitrogen (N₂) gas at a full-scale range of 500 SCCM. Designed for critical process control environments where flow accuracy, signal stability, and uninterrupted operation are non-negotiable, this unit delivers the safety-reliable performance demanded by semiconductor fabrication, chemical processing, power generation, and continuous industrial manufacturing sites. As a direct replacement and upgrade solution for the MC-3000 Series platform, the MC-3102E-NC maintains full backward compatibility while incorporating enhanced internal diagnostics and improved EMI shielding to reduce the risk of signal drift and control interruption in high-electromagnetic-interference environments.

At NINERMAS, every MC-3102E-NC unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. We maintain dedicated stock to support long-term spare parts programs, ensuring your procurement team can plan replacements without lead-time uncertainty or unplanned downtime risk.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In critical control cabinets serving continuous production lines, a single point of flow measurement failure can cascade into process upsets, safety interlock activation, or unplanned shutdowns. The LINTEC MC-3102E-NC is engineered to minimize these risks through tight closed-loop control, fast valve response, and stable analog signal output — even under conditions of high vibration, thermal cycling, and electromagnetic interference from adjacent variable frequency drives (VFDs) or high-current switching equipment.

For a complete and resilient control architecture, the MC-3102E-NC is commonly deployed alongside complementary components. Upstream gas pressure regulation is typically handled by precision pressure regulators such as the LINTEC PR-3000 Series pressure regulator, which conditions inlet pressure to maintain stable MFC operating conditions. On the power supply side, a 24 VDC DIN-rail power supply with surge protection — such as units from the Phoenix Contact QUINT or MEAN WELL DR Series — provides clean, regulated power to the MFC and associated I/O modules, reducing the risk of voltage transients corrupting the analog setpoint signal.

Signal integrity between the MC-3102E-NC and the PLC or DCS is further protected by analog signal isolators (e.g., Phoenix Contact MCR or Weidmüller ACT20P series), which galvanically decouple the 4–20 mA loop and suppress ground loop interference. In installations where the MC-3102E-NC is integrated into a safety instrumented system (SIS), it is paired with safety relay modules such as the Pilz PNOZ or Schmersal SRB series to enforce interlock logic and ensure fail-safe valve closure on demand.

For communication-intensive architectures, the MFC analog output is often digitized via HART-compatible analog input modules or Profibus PA / Foundation Fieldbus interface converters, enabling real-time flow diagnostics within the plant DCS. Surge protection on field wiring is provided by SPD terminal blocks (e.g., Phoenix Contact TT-SLKK5 or Dehn DEHNguard series), protecting the MFC signal lines from lightning-induced transients in outdoor or exposed cable runs. Complementing the installation, LINTEC MC-3000 Series manifold blocks and fittings ensure leak-free gas connections, maintaining system integrity in high-purity or hazardous gas applications.

Critical Industrial Safety Applications

The LINTEC MC-3102E-NC N2 500 SCCM mass flow controller is deployed across a broad range of critical industrial environments where precise gas flow control is directly linked to process safety and product quality.

In semiconductor and electronics manufacturing, the MC-3102E-NC controls nitrogen purge flows in diffusion furnaces, CVD chambers, and reflow ovens, where flow deviation of even a few SCCM can compromise wafer yield or trigger safety shutdowns. In petrochemical and refinery operations, it manages inert gas blanketing flows on storage tanks and reactor vessels, preventing oxygen ingress and reducing explosion risk in accordance with IEC 60079 hazardous area requirements.

In power generation facilities — including thermal, nuclear, and renewable energy plants — the MC-3102E-NC is used in hydrogen cooling system purge circuits and transformer gas monitoring loops, where reliable flow control is essential to equipment protection and personnel safety. Water treatment and municipal utility plants deploy it in chlorine dosing and ozone generation systems, where accurate gas flow directly determines disinfection efficacy and regulatory compliance.

In metallurgical and steel production environments, the unit controls protective atmosphere flows in annealing furnaces and sintering lines, operating reliably despite high ambient temperatures, vibration from rolling mills, and heavy electromagnetic interference from arc furnaces. Port and marine terminal applications include LNG vapor control and inert gas system (IGS) flow management aboard tankers and at loading arms, where the MC-3102E-NC’s stainless steel wetted path and robust sealing ensure safe operation in salt-laden, humid environments.

Across all these applications, the MC-3102E-NC’s combination of high repeatability, fast dynamic response, and compatibility with standard 4–20 mA and 0–5 VDC control architectures makes it a trusted spare part for maintenance engineers managing long-lifecycle process equipment.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the LINTEC MC-3102E-NC?
The 12-month warranty provided by NINERMAS covers manufacturing defects, internal component failures, and performance deviations from published specifications under normal operating conditions. It applies from the date of shipment and includes technical support for installation and commissioning. Units that fail within the warranty period are repaired or replaced at no additional cost, subject to inspection confirming the failure is not due to misuse, incorrect installation, or exposure beyond rated environmental limits.

Q2: What pre-shipment testing is performed on each MC-3102E-NC unit?
Every MC-3102E-NC unit dispatched by NINERMAS undergoes functional verification prior to shipment. This includes flow calibration confirmation at the rated 500 SCCM full-scale point, leak integrity check, signal output linearity verification across the 4–20 mA and 0–5 VDC ranges, and valve response time measurement. Units that do not meet LINTEC’s published accuracy and repeatability specifications are quarantined and not shipped. A test record is available upon request for quality-critical procurement.

Q3: Is the MC-3102E-NC a direct drop-in replacement for existing MC-3000 Series MFCs?
Yes. The MC-3102E-NC is designed as a direct mechanical and electrical replacement for MC-3000 Series mass flow controllers. It shares the same manifold block footprint, port dimensions, connector pinout, and signal interface standards as the original MC-3000 platform. No modifications to existing piping, wiring, or PLC configuration are required in standard replacement scenarios. For installations with non-standard wiring or modified manifold configurations, NINERMAS technical support can advise on compatibility prior to order.

Q4: Can NINERMAS support long-term or scheduled spare parts supply for the MC-3102E-NC?
Yes. NINERMAS operates a dedicated spare parts program for critical industrial components including the LINTEC MC-3000E Series. We maintain committed stock of the MC-3102E-NC to support planned maintenance schedules, annual turnaround programs, and emergency replacement requirements. Long-term supply agreements with fixed pricing and priority allocation are available for customers with multi-unit or multi-site requirements. Contact our team at sale@ninermas.com to discuss a tailored supply arrangement.
