Lenze E94AYAE Retrofit-Compatible Parameter Module for Legacy Systems

Lenze E94AYAE Retrofit-Compatible Parameter Module for Legacy Systems

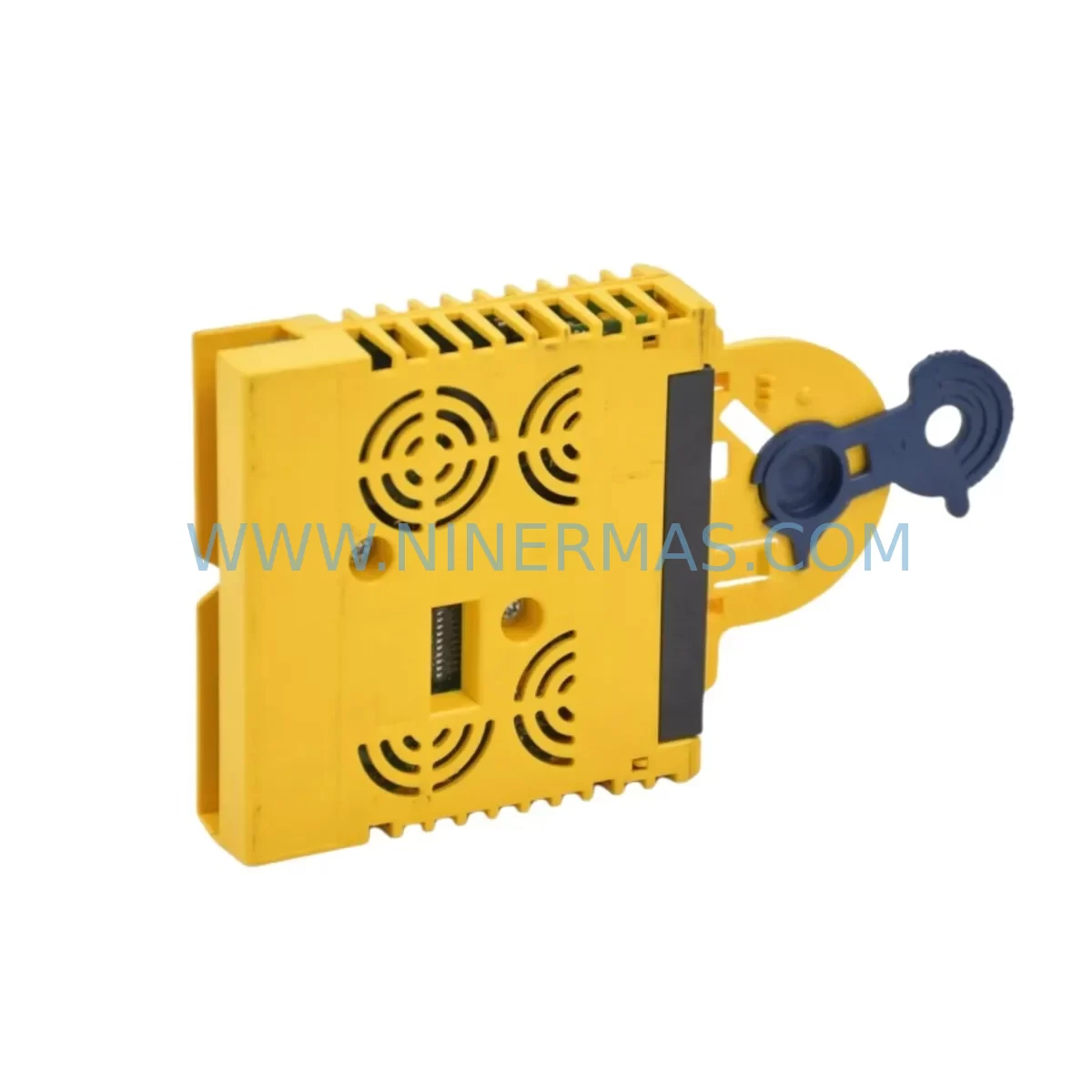

The Lenze E94AYAE is a parameter module designed for the Lenze 9400 series servo inverter platform, widely deployed across legacy automation lines in packaging, material handling, textile, and general-purpose motion control applications. As production environments age and original equipment manufacturers discontinue support for older drive generations, the E94AYAE has become a critical component in retrofit projects, spare parts lifecycle extension programs, and control cabinet modernization initiatives. NINERMAS maintains verified stock of the E94AYAE to support engineers and maintenance teams who need a reliable, tested replacement without extended lead times.

The E94AYAE stores drive-specific parameter sets, application configurations, and motor data directly on the module, enabling rapid parameter transfer between inverter units during field replacement. This is particularly valuable in multi-axis systems where consistent parameter sets across all drive nodes are essential for synchronized motion performance. When replacing a failed Lenze 9400 inverter — such as the E94ASHE or E94AZHE series — the E94AYAE allows technicians to restore the original parameter configuration without requiring a laptop connection or engineering software during the initial commissioning phase, significantly reducing unplanned downtime on the production floor.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the E94AYAE into an existing or upgraded control architecture requires a structured approach to hardware compatibility, wiring verification, and software alignment. In a typical Lenze 9400-based control cabinet, the inverter communicates with a higher-level controller — often a Lenze L-force Controller or a third-party PLC — via a fieldbus communication module such as the E94AYCEN (EtherCAT) or E94AYCCA (CANopen). Before swapping the parameter module, engineers should confirm that the stored parameter set on the E94AYAE matches the firmware version of the target inverter unit, as version mismatches can cause parameter rejection or incomplete uploads.

In retrofit scenarios involving older Lenze 8400 series drives being migrated to the 9400 platform, the E94AYAE plays a central role in preserving application logic continuity. Motor nameplate data, ramp profiles, torque limits, and speed references previously configured in the 8400 environment must be re-entered or adapted for the 9400 parameter structure. During this process, the Lenze E94AYAE serves as the portable configuration carrier, allowing the same parameter set to be deployed across multiple replacement inverters on the same machine line without repeated manual entry.

Power supply compatibility is another critical checkpoint. The 9400 inverter series typically draws 24 VDC control voltage from a dedicated Lenze PSL-24V or equivalent DIN-rail power supply unit within the control cabinet. Before commissioning the replacement inverter with the E94AYAE installed, verify that the 24 VDC rail is within tolerance and that the supply capacity is sufficient to support all connected I/O modules, communication cards, and safety relays simultaneously. Undersized power supplies are a common cause of intermittent faults during post-retrofit startup.

Terminal wiring on the 9400 inverter — including analog reference inputs (X3), digital I/O terminals (X4), motor feedback connections (X8), and the motor power terminals — should be documented and photographed before the old unit is removed. The E94AYAE retains parameter data but does not store wiring configurations; any changes to terminal assignments must be reflected in both the physical wiring and the parameter set. For systems using an E94AYBS safety module or an E94AYCPN PROFINET communication card, confirm that these accessory modules are correctly seated and recognized by the inverter after the parameter module is installed.

In multi-axis gantry or conveyor systems, the E94AYAE is often used in conjunction with the Lenze ECSEA or ECSER servo drive series for coordinated motion. When upgrading or replacing drives in these environments, maintaining consistent parameter versions across all axes is essential to prevent speed or torque imbalances that could damage mechanical components or trigger safety shutdowns. The E94AYAE’s plug-and-play parameter transfer capability makes it an indispensable tool for maintaining fleet consistency across large multi-drive installations.

Downtime Control During System Migration

Minimizing production downtime during a drive replacement or control system migration is a primary concern for plant engineers and maintenance managers. The E94AYAE directly supports this objective by enabling pre-loaded parameter transfer — the replacement inverter can be configured and tested on the bench before the production line is taken offline. By reading the parameter set from the failed unit’s E94AYAE (if the module itself is undamaged) or from a previously backed-up module, technicians can prepare the replacement drive to an operational state before the maintenance window begins.

During the actual swap, the sequence should follow a defined procedure: isolate and lock out the inverter, remove the communication module and safety module if fitted, extract the E94AYAE from the failed unit, install it in the replacement inverter, reconnect all terminal wiring per the documented layout, restore power, and initiate a parameter upload from the module. This process typically takes 20 to 45 minutes per axis for an experienced technician, compared to 2 to 4 hours for a full manual recommissioning from scratch. The time savings are compounded in multi-axis systems where several drives may need to be replaced simultaneously.

To further protect original program logic and HMI screen configurations during migration, it is recommended to maintain a backup of the parameter set using Lenze Engineer software prior to any hardware change. HMI panels connected to the 9400 system — such as those running on the Lenze XT HMI platform — should have their project files archived separately, as drive parameter changes can affect variable mappings and alarm configurations displayed on the operator interface. Communication link integrity between the PLC, the inverter, and the HMI should be verified using the network diagnostic tools available in the Lenze Engineer environment before returning the line to production.

Retrofit Support FAQ

Q1: Is the Lenze E94AYAE a direct replacement for a corrupted or failed parameter module on a 9400 series inverter?
Yes. The E94AYAE is the standard parameter module for the Lenze 9400 servo inverter series. A new or pre-loaded E94AYAE can be installed directly into the front slot of any compatible 9400 inverter. If the original module’s data is intact, the parameter set can be read and transferred to the new module using Lenze Engineer software before the failed unit is removed from service.

Q2: What should I verify before uploading parameters from the E94AYAE to a replacement inverter?
Confirm that the firmware version of the replacement inverter is compatible with the parameter set stored on the E94AYAE. Lenze 9400 inverters may reject parameter uploads if there is a significant firmware version mismatch. Check the inverter’s firmware version via the keypad display or Lenze Engineer, and update the firmware if necessary before initiating the parameter transfer.

Q3: Does NINERMAS provide pre-tested E94AYAE units, and what is the warranty coverage?
Yes. All E94AYAE units supplied by NINERMAS undergo functional verification prior to shipment. Each unit is covered by a 12-month warranty from the date of delivery. In the event of a warranty claim, NINERMAS provides replacement or repair support. Contact our technical team at sale@ninermas.com for pre-sales compatibility confirmation or post-sales support.

Q4: Can the E94AYAE be used to clone parameter sets across multiple inverters of the same type?
Yes, within the same inverter model and firmware version. The E94AYAE can be used to replicate a validated parameter set across multiple 9400 inverters on the same machine line, which is particularly useful during large-scale retrofit projects or when building a standardized spare parts inventory. Each inverter should be individually validated after parameter upload to confirm correct motor identification and communication link establishment.
