Lam 716-230577-371 Retrofit-Compatible Process Ring for Legacy Systems

Lam 716-230577-371 Retrofit-Compatible Process Ring for Legacy Systems

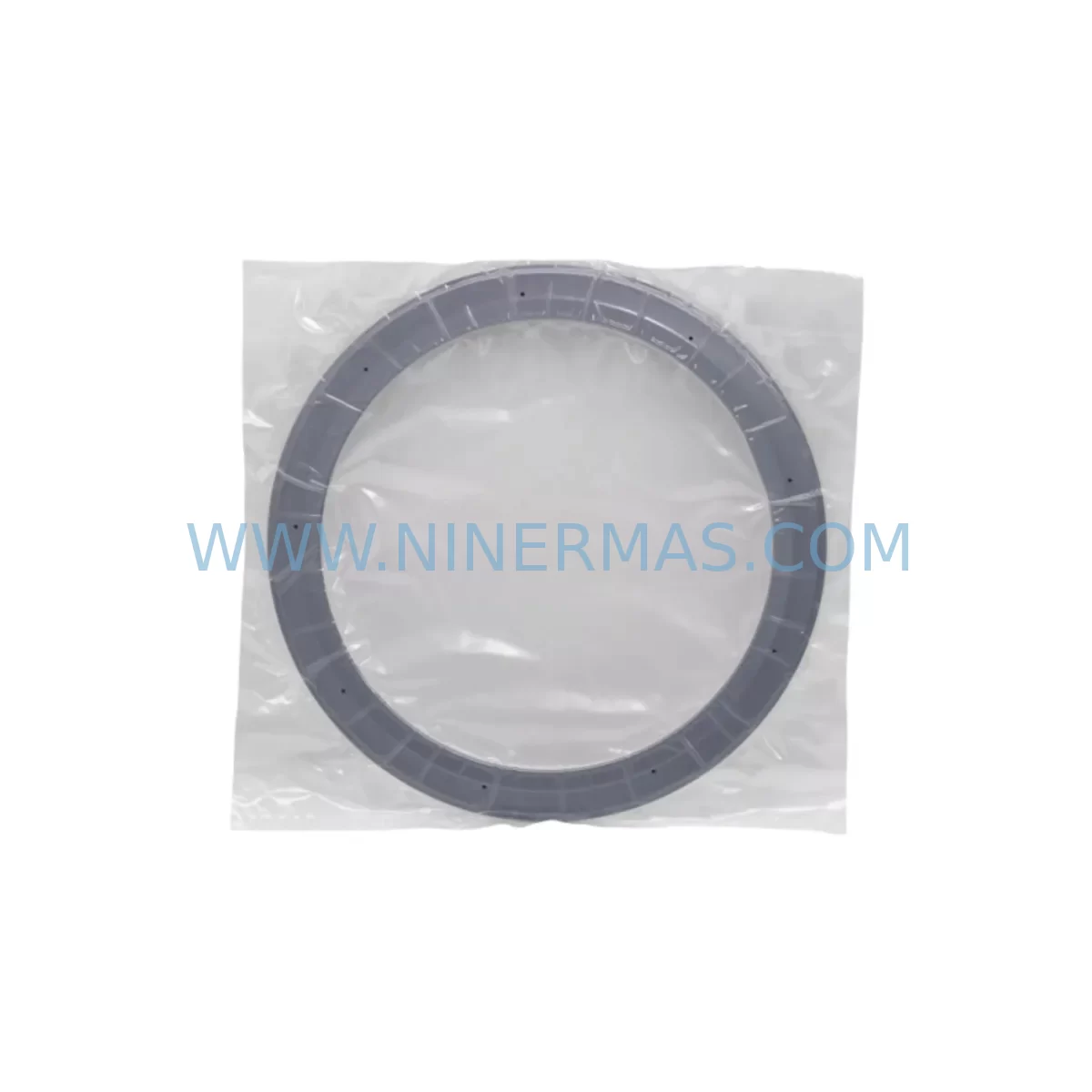

The Lam Research 716-230577-371 is a ruggedized process ring engineered for sustained performance in high-density plasma etch environments. As semiconductor fabs continue to operate legacy Lam Research etch platforms well beyond their original design lifecycle, sourcing reliable replacement components for discontinued chamber assemblies has become a critical operational challenge. NINERMAS maintains verified inventory of the 716-230577-371 process ring to support retrofit programs, unplanned chamber-down events, and planned preventive maintenance cycles across aging Lam Research process modules.

This process ring is cross-referenced against alternate part numbers 0190-40177 and 0240-23355, covering multiple chamber configurations and tool generations. Engineers planning a chamber refurbishment or a like-for-like replacement should confirm the chamber body revision, the confinement ring stack configuration, and the RF power delivery architecture before installation to ensure dimensional and electrical compatibility.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 716-230577-371 process ring requires a structured approach that accounts for the interdependencies within the plasma etch chamber assembly. The process ring does not operate in isolation — its dimensional tolerances directly affect the confinement ring gap, the plasma boundary uniformity, and the etch profile across the wafer surface. Before scheduling a chamber-down event, maintenance engineers should pull the current chamber history log, review the last particle qualification data, and confirm that the replacement process ring matches the installed chamber body revision.

During the same maintenance window, it is common practice to inspect and replace adjacent consumable components to maximize the interval between future shutdowns. The edge ring assembly, which controls the plasma sheath angle at the wafer perimeter, should be evaluated for erosion. The chamber liner, which protects the chamber body from plasma exposure, should be inspected for deposition buildup and dimensional wear. If the confinement ring set shows asymmetric erosion patterns, replacement of the full confinement ring stack alongside the 716-230577-371 process ring will restore plasma symmetry more reliably than a single-component swap.

For tools running on legacy RF power delivery architectures, the RF match network should be re-tuned after the process ring replacement to account for any change in the chamber impedance profile. The bias RF generator and the source RF generator should both be verified against their calibration baselines. If the tool is equipped with an electrostatic chuck (ESC) assembly, the chuck voltage and helium backside pressure should be re-qualified as part of the post-maintenance process recipe validation.

Gas delivery integrity is another critical checkpoint. The gas distribution plate and the showerhead assembly should be inspected for blockage or erosion that could affect gas flow uniformity after the chamber is reassembled. Any deviation in gas distribution will compound the effect of a new process ring and make it difficult to isolate the root cause of etch non-uniformity during qualification. Engineers should also verify the chamber pressure control valve response and the turbomolecular pump baseline before running the first qualification wafer.

For facilities managing multiple Lam Research etch tools, maintaining a small buffer stock of the 716-230577-371 process ring alongside related consumables — including focus rings, TCP (Transformer Coupled Plasma) window assemblies, and upper electrode components — reduces the risk of extended unplanned downtime when a chamber-down event occurs outside of a scheduled maintenance cycle. NINERMAS supports this approach by offering pre-shipment functional inspection and documentation for all critical chamber components.

Downtime Control During System Migration

Minimizing chamber downtime during a process ring replacement requires preparation before the tool is taken offline. The replacement 716-230577-371 should be on-site and inspected for dimensional conformance before the maintenance window begins. A pre-kitted replacement package — including the process ring, any co-replaced consumables, and the required installation hardware — reduces the time the chamber spends open and exposed to ambient contamination.

The original process recipe parameters, including RF power setpoints, gas flow rates, chamber pressure targets, and ESC temperature profiles, should be documented and saved before the chamber is vented. This ensures that the post-maintenance qualification run starts from a known baseline rather than requiring a full recipe re-optimization. If the tool’s process control software supports recipe versioning, the current recipe set should be archived before any hardware change is made.

During reassembly, torque specifications for all fasteners should be followed precisely, as over-torquing or under-torquing the process ring mounting hardware can introduce mechanical stress that affects plasma uniformity. After the chamber is pumped down and the leak check is completed, a conditioning run should be performed before the first qualification wafer to stabilize the chamber surfaces and establish a consistent plasma environment. Particle monitoring during the conditioning run provides an early indicator of any assembly issues before product wafers are processed.

For facilities with tight production schedules, coordinating the maintenance window with the production planning team to align with a natural break in the wafer lot flow reduces the impact on overall fab throughput. NINERMAS can support expedited shipment for unplanned chamber-down events to minimize the gap between the decision to replace and the availability of the replacement component on the tool.

Retrofit Support FAQ

Q: Is the 716-230577-371 a direct replacement for part numbers 0190-40177 and 0240-23355?
A: Yes. The 716-230577-371 is cross-referenced against 0190-40177 and 0240-23355. However, engineers should confirm the chamber body revision and confinement ring configuration on their specific tool before installation, as minor dimensional variations may exist across tool generations.

Q: Does NINERMAS perform pre-shipment testing on the 716-230577-371 process ring?
A: Yes. All units are subject to pre-shipment dimensional inspection and documentation. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and dimensional non-conformance.

Q: What other components should be replaced at the same time as the 716-230577-371?
A: Best practice is to inspect the edge ring, chamber liner, and confinement ring set during the same maintenance window. Depending on the tool’s process history, the focus ring and upper electrode assembly may also be due for replacement. Replacing related consumables together maximizes the maintenance interval and simplifies post-maintenance qualification.

Q: How quickly can NINERMAS ship the 716-230577-371 for an unplanned chamber-down event?
A: NINERMAS maintains ready inventory of the 716-230577-371 to support urgent requirements. Contact our team directly at sale@ninermas.com or +0086 187 5021 5667 to confirm availability and arrange expedited shipment.
