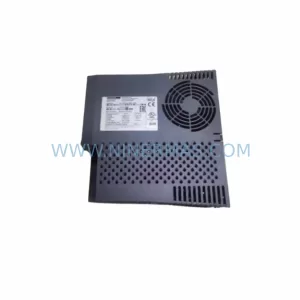

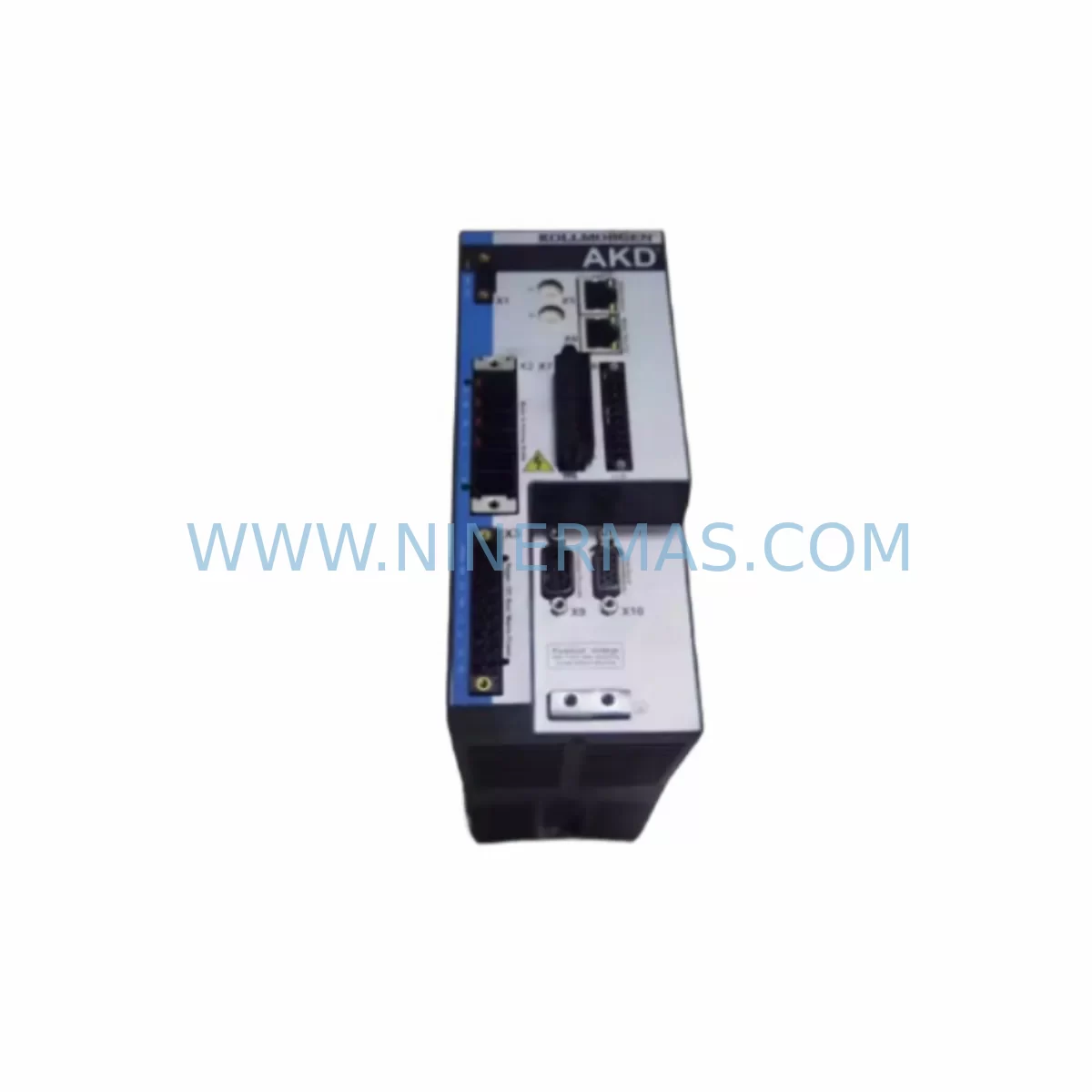

Kollmorgen AKD-P00606-NBCC-I000 Servo Drive Spare

Kollmorgen AKD-P00606-NBCC-I000 Servo Drive Spare: Service-Ready Replacement for Industrial Maintenance

The Kollmorgen AKD-P00606-NBCC-I000 is a high-performance servo drive from the AKD Series, engineered for precision motion control in demanding industrial environments. As a service-ready spare part, it is an essential component for maintenance engineers managing CNC machining centers, robotic assembly lines, packaging equipment, printing presses, and automated material handling systems. With a continuous output current of 6A, EtherCAT (CoE) communication interface, and a compact panel-mount form factor, this drive delivers the responsiveness and reliability that critical production sites demand.

At NINERMAS, every AKD-P00606-NBCC-I000 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. Whether you are building a preventive maintenance inventory, recovering from an unplanned drive fault, or upgrading an aging servo system, this unit ships ready for immediate installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for servo-driven production lines goes well beyond stocking a replacement drive. When a Kollmorgen AKD-P00606-NBCC-I000 fails or is scheduled for replacement during a planned shutdown, maintenance engineers should conduct a systematic inspection of the entire servo axis and its associated control infrastructure to prevent repeat failures and minimize future downtime.

Begin with the motor feedback cable and power cable connecting the drive to the servo motor — typically a Kollmorgen AKM series motor such as the AKM42G or AKM52G. Damaged cable shielding, loose connector pins, or corroded terminals are among the most common root causes of drive faults and should be replaced proactively. Inspect the 24VDC control power supply feeding the drive’s logic circuit; an unstable or undersized supply can cause intermittent enable faults and communication dropouts. A dedicated 24V DIN rail power supply with adequate current reserve is strongly recommended.

Check the EtherCAT network topology — verify that the EtherCAT master controller (such as a Beckhoff CX or TwinCAT-based IPC) correctly enumerates the replacement drive node and that the network cable between the master and the AKD-P00606-NBCC-I000 is intact and properly terminated. If the system uses a Kollmorgen AKD-PDMM (drive-based multi-axis master), confirm that the PDMM firmware version is compatible with the replacement unit.

Inspect the STO (Safe Torque Off) safety circuit wiring — the AKD series implements STO as a hardware safety function, and any loose wiring on the STO1/STO2 terminals will prevent the drive from enabling. Verify the safety relay or safety PLC output driving the STO inputs, and confirm that the safety circuit meets the required SIL or PLd rating for the application.

Review the DC bus capacitor bank condition if the system uses a shared DC bus configuration with a Kollmorgen AKD-REGEN regenerative resistor or a common bus supply. Aging capacitors can cause bus overvoltage faults during deceleration. Also inspect the EMC line filter installed upstream of the drive — a properly rated filter is essential for suppressing conducted emissions in environments with variable frequency drives, contactors, or high-power switching equipment nearby.

For multi-axis systems, check the terminal block wiring on the I/O connector — analog reference inputs, digital enable signals, and fault relay outputs should all be verified with a multimeter before powering up the replacement drive. If the machine uses a Kollmorgen S700 or AKD2G drive on adjacent axes, confirm that the shared motion program and axis parameters are correctly mapped to the new drive’s node address.

Finally, verify that the motor brake circuit (if applicable) is correctly wired and that the brake release relay is functioning. An improperly released brake during drive commissioning can cause mechanical damage and represents a safety hazard on vertical or gravity-loaded axes.

Site Replacement Workflow

Replacing an AKD-P00606-NBCC-I000 on a live production site requires a structured approach to minimize downtime and ensure a safe, successful restart. Follow this recommended workflow:

Step 1 — Pre-Replacement Preparation: Back up the existing drive parameters using Kollmorgen’s WorkBench software before the drive is powered down. Save the .akd parameter file to a secure location. If the drive is already faulted and cannot communicate, retrieve the last known parameter backup from your maintenance records. Confirm that the replacement unit’s firmware version matches or is compatible with the existing system.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure. Isolate the AC mains supply, the 24VDC control supply, and the STO safety circuit. Allow the DC bus to discharge fully (minimum 5 minutes after mains isolation) before touching any drive terminals.

Step 3 — Physical Replacement: Remove the faulty drive from the panel. The AKD-P00606-NBCC-I000 uses a standard panel-mount or DIN rail form factor — confirm that the mounting hardware and cable connectors are undamaged before installing the replacement. Reconnect all cables in the correct sequence: feedback first, then I/O, then STO, then EtherCAT, and finally AC mains and motor power.

Step 4 — Parameter Restore and Commissioning: Power up the 24VDC control supply first. Connect WorkBench and restore the saved parameter file. Verify motor feedback type, current limits, velocity limits, and homing parameters. Perform a low-speed jog test before returning the axis to automatic mode.

Step 5 — System Verification: Confirm EtherCAT network status, verify all I/O signals, and run a full motion cycle at reduced speed before resuming normal production. Document the replacement in your maintenance log.

Spare Parts Support FAQ

Q1: Is the AKD-P00606-NBCC-I000 a direct drop-in replacement for my existing AKD drive?
Yes. The AKD-P00606-NBCC-I000 is a direct replacement for any existing AKD-P00606-NBCC-I000 installation. The mechanical form factor, connector pinout, and parameter structure are identical. After restoring your saved parameter file via WorkBench, the replacement drive will operate identically to the original unit. If your existing drive has a different suffix (e.g., -NACC or -NBEC), contact our technical team to confirm compatibility before ordering.

Q2: What pre-shipment testing does NINERMAS perform on this unit?
Every AKD-P00606-NBCC-I000 unit shipped by NINERMAS undergoes a functional power-on test, communication interface verification, and visual inspection for physical damage. Units that do not pass testing are not shipped. A test record is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can NINERMAS supply this part on an ongoing basis for long-term maintenance contracts?
Yes. NINERMAS maintains stock of the AKD-P00606-NBCC-I000 and other AKD Series components to support long-term maintenance and MRO procurement programs. We can provide scheduled delivery, reserved stock arrangements, and volume pricing for customers with recurring spare parts requirements. Contact our sales team to discuss your inventory strategy.

Q4: What should I do if my replacement drive shows a fault immediately after installation?
The most common causes of immediate post-installation faults are: incorrect parameter file restore (wrong motor type or feedback configuration), STO circuit not properly wired or enabled, motor feedback cable not fully seated, or DC bus not fully discharged before installation causing a residual fault latch. Use WorkBench to read the fault code and refer to the AKD Installation Manual for fault code definitions. Our technical support team is available to assist with remote troubleshooting.
