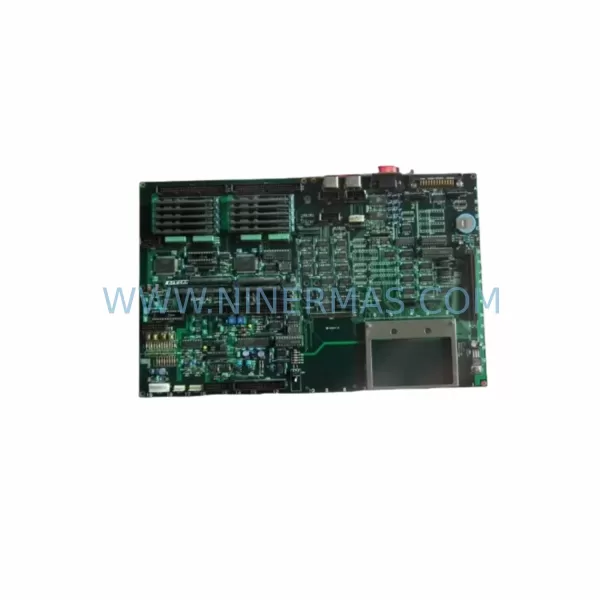

KOKUSAI KOMS-A2 CXP-544A Service-Ready Spare Part

KOKUSAI KOMS-A2 CXP-544A Service-Ready Spare Part for Industrial Maintenance

The KOKUSAI KOMS-A2 CXP-544A is a critical communication and process module designed for the KOMS-A2 series semiconductor diffusion furnace control systems. As legacy KOKUSAI equipment continues to operate in high-volume fabs and specialty process lines worldwide, maintaining a reliable inventory of service-ready spare parts such as the CXP-544A is essential for minimizing unplanned downtime and sustaining continuous production throughput. NINERMAS stocks the CXP-544A as an original, tested spare part backed by a 12-month warranty, ready for immediate dispatch to maintenance teams globally.

Whether you are executing a scheduled annual overhaul, responding to an emergency fault alarm, or building a proactive spare parts buffer for your KOMS-A2 furnace line, the CXP-544A represents a non-negotiable line item in any serious maintenance BOM. Its role in the KOMS-A2 control architecture — managing communication handshakes, process sequencing signals, and inter-module data exchange — means that a failed or degraded CXP-544A can cascade into recipe execution errors, temperature profile deviations, and full process chamber shutdowns.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance engineer identifies a fault or degraded performance in the CXP-544A, the replacement workflow should extend beyond the module itself. The KOMS-A2 control cabinet integrates a tightly coupled set of components, and a communication module failure is frequently symptomatic of broader electrical stress or aging across the system. A thorough site inspection should include the KOMS-A2 power supply unit that feeds the control backplane — voltage ripple or insufficient current capacity can accelerate communication module wear. The KOMS-A2 backplane board connector pins and edge contacts should be cleaned and inspected for oxidation before installing the replacement CXP-544A.

Procurement engineers building a comprehensive spare parts kit for the KOMS-A2 line should also consider stocking the KOMS-A2 I/O interface board, which handles digital and analog signal routing between the process chamber and the control system. A failed I/O board can mimic communication faults and should be ruled out during fault isolation. Similarly, the KOMS-A2 temperature controller module and associated thermocouple signal conditioners are high-wear items in diffusion furnace environments and should be part of any annual PM spare parts list.

For facilities running extended campaigns without scheduled downtime windows, maintaining at least one spare CXP-544A communication module alongside a spare KOMS-A2 CPU or host controller board is strongly recommended. The KOMS-A2 relay output module — responsible for controlling heater contactors, gas valve actuators, and interlock circuits — should also be inspected during any communication fault event, as relay chatter or coil degradation can introduce noise on the control bus. Fuse blocks and 24VDC control power fuses within the cabinet should be checked and replaced as part of the corrective maintenance cycle.

For facilities with networked KOMS-A2 systems, the host communication interface card and any RS-232/RS-485 serial communication adapters connecting the furnace controller to the fab MES or SCADA system should be verified for signal integrity after a CXP-544A replacement. Terminal blocks and DIN rail-mounted signal isolators on the I/O wiring side are often overlooked but are critical for maintaining clean signal references in high-EMI furnace environments.

Site Replacement Workflow

Replacing the KOKUSAI KOMS-A2 CXP-544A in the field follows a structured procedure to minimize downtime and ensure system compatibility. Begin by placing the KOMS-A2 furnace in a safe idle state and confirming that all active process recipes have been completed or safely aborted. Power down the control cabinet following the KOKUSAI lockout/tagout procedure. Remove the faulty CXP-544A by releasing the module retention latch and carefully extracting it from the backplane slot — note the slot address for correct reinstallation of the replacement unit.

Before inserting the new CXP-544A, visually inspect the backplane connector for bent pins, debris, or corrosion. Insert the replacement module firmly until the retention latch engages. Restore control power and allow the KOMS-A2 system to complete its self-diagnostic boot sequence. Verify that the communication status LEDs on the CXP-544A indicate normal operation and that no fault codes are present on the KOMS-A2 HMI operator panel. Run a dry-cycle process recipe to confirm that all process sequencing, temperature setpoint communication, and interlock logic are functioning correctly before returning the furnace to production.

This hot-swap-compatible replacement approach — when executed with a pre-tested, original spare part — typically restores the KOMS-A2 furnace to full operation within 30 to 90 minutes, compared to multi-day delays associated with sourcing parts through OEM channels after a failure event. Maintaining a local spare parts buffer with the CXP-544A and associated modules is the most effective strategy for protecting production continuity on aging KOKUSAI equipment.

Spare Parts Support FAQ

Q1: Is the CXP-544A compatible with all KOMS-A2 series configurations?
The CXP-544A is designed for the KOKUSAI KOMS-A2 series control platform. Compatibility should be confirmed against your specific furnace model and software revision. NINERMAS technical support can assist with compatibility verification based on your equipment serial number and current firmware version prior to order placement.

Q2: What testing is performed before shipment?
All CXP-544A units supplied by NINERMAS undergo functional verification and visual inspection prior to dispatch. Each unit is shipped with a test record and is covered by a 12-month warranty from the date of shipment, covering defects in materials and workmanship under normal operating conditions.

Q3: How should the CXP-544A be stored if purchased for inventory buffer stock?
Store the CXP-544A in its original anti-static packaging in a dry, temperature-controlled environment (10°C to 30°C, relative humidity below 70%, non-condensing). Avoid exposure to direct sunlight, magnetic fields, or corrosive atmospheres. Inspect packaging integrity annually and rotate stock on a first-in, first-out basis.

Q4: Can NINERMAS support long-term supply agreements for the CXP-544A?
Yes. NINERMAS offers long-term supply commitments for critical spare parts including the KOMS-A2 CXP-544A, supporting multi-year procurement planning for facilities managing legacy KOKUSAI equipment. Contact our team to discuss volume pricing, reserved stock programs, and scheduled delivery arrangements aligned with your annual maintenance calendar.
