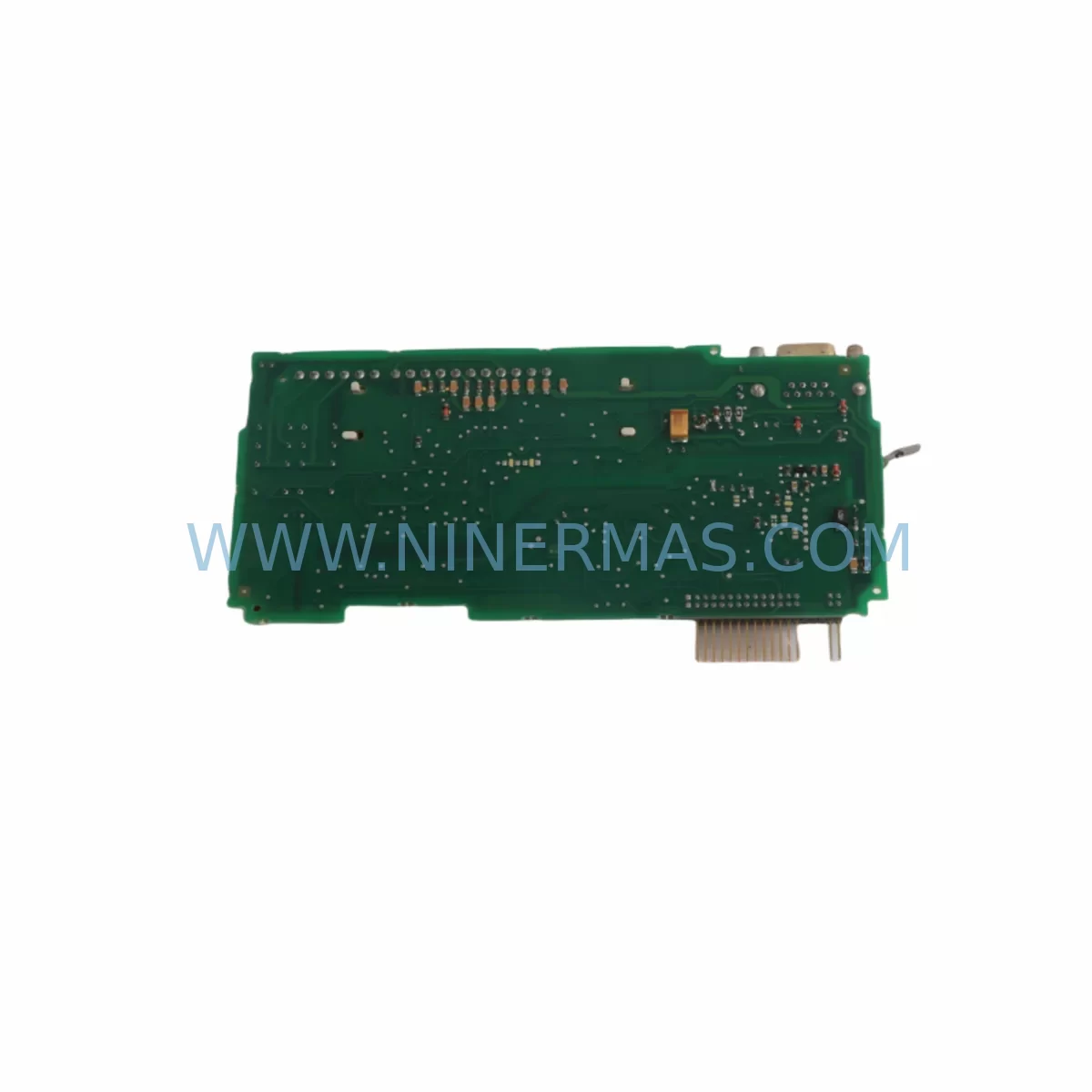

KEB 3BF523A-0029 Retrofit-Compatible Drive Card for Legacy Systems

KEB 3BF523A-0029 Retrofit-Compatible Drive Card for Legacy Systems

The KEB 3BF523A-0029 is a retrofit-ready drive card designed for seamless integration into aging COMBIVERT-series variable frequency drive (VFD) platforms. As legacy KEB COMBIVERT F4, F5, and S4 series drives approach end-of-life and spare parts become increasingly scarce, the 3BF523A-0029 provides a reliable, drop-in compatible solution for engineers and maintenance teams tasked with extending the operational life of existing automation infrastructure. Whether you are managing a planned upgrade cycle or responding to an unplanned drive failure, this module is pre-tested and ready for immediate deployment.

Industrial facilities running legacy KEB COMBIVERT drives often face a critical decision: full system replacement or targeted component-level retrofit. The 3BF523A-0029 supports the latter approach, enabling engineers to restore drive functionality without replacing the entire control cabinet, rewiring terminal blocks, or rewriting PLC logic. This significantly reduces both capital expenditure and planned downtime windows.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the KEB 3BF523A-0029 into a legacy control system requires a structured pre-retrofit assessment. Engineers should begin by auditing the existing COMBIVERT drive configuration, including the installed firmware version, parameter set, and any application-specific macro settings stored in the drive’s non-volatile memory. A full parameter backup using the KEB COMBIVERT programming cable (such as the KEB USB-PC interface) is strongly recommended before any hardware swap is initiated.

Terminal wiring compatibility is a key consideration. The 3BF523A-0029 card interfaces with the drive’s control terminal strip, which typically handles analog reference inputs (0–10 V or 4–20 mA), digital I/O signals, relay outputs, and encoder feedback lines. Technicians should verify that existing field wiring — including shielded signal cables from sensors, encoders, and HMI panels — remains compatible with the card’s input impedance and signal voltage specifications.

In multi-axis or coordinated motion applications, the 3BF523A-0029 may operate alongside other COMBIVERT modules sharing a common DC bus or synchronized via a CANopen network. In such configurations, the replacement card’s node address and baud rate settings must match those of the original unit to avoid communication faults on the fieldbus. If the system also includes a KEB COMBIVERT C6 controller or a third-party PLC communicating over Profibus-DP or Modbus RTU, the protocol mapping should be verified against the existing gateway or communication module configuration.

For control cabinets that also house KEB power supply modules, input chokes, braking resistors, or EMC filters, the physical installation of the 3BF523A-0029 should be planned to maintain adequate clearance and airflow. In retrofit scenarios where the original card slot is occupied by a failed module, the replacement card can typically be inserted without mechanical modification, provided the backplane connector is undamaged.

HMI integration is another area requiring attention. If the existing operator panel — whether a KEB-native HMI or a third-party touchscreen — communicates with the drive via a serial link or fieldbus, the replacement card must support the same communication profile. Parameter mapping between the HMI screen tags and the drive’s process data objects (PDOs) should be validated after installation to ensure that speed references, fault codes, and status words are correctly displayed and transmitted.

In systems where I/O expansion modules, signal isolators, or safety relay modules are wired into the drive’s control circuit, the retrofit plan should include a point-by-point I/O verification step. This ensures that all digital inputs (e.g., run/stop, fault reset, speed preset selection) and analog outputs (e.g., actual speed feedback, torque output) function correctly after the card replacement. Where signal isolation is required between the drive and a DCS or SCADA system, dedicated signal isolators should remain in the circuit and be re-verified for correct scaling.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a failed KEB 3BF523A-0029 in a live production environment. The recommended approach is to prepare the replacement card in advance — including pre-loading drive parameters where the hardware supports offline configuration — so that the physical swap can be completed within a single planned maintenance window.

Before removing the failed card, the original program logic stored in the connected PLC (whether a Siemens S7, Allen-Bradley ControlLogix, or Mitsubishi MELSEC platform) should be backed up and verified. If the drive is part of a closed-loop control system, the process should be placed in manual or local control mode to prevent uncontrolled actuator movement during the card exchange.

After installing the 3BF523A-0029, a structured commissioning sequence should be followed: power-on self-test, parameter upload, I/O signal verification, no-load motor run, and finally a loaded test run at reduced speed before returning the drive to full automatic operation. This sequence protects both the mechanical load and the control system from commissioning-related faults.

For facilities with strict change management requirements, the retrofit should be documented with before-and-after parameter printouts, wiring photographs, and a commissioning sign-off checklist. All units supplied by NINERMAS are pre-shipment tested and include a 12-month warranty, reducing the risk of repeat failures and supporting audit trail requirements.

Retrofit Support FAQ

Q1: Is the KEB 3BF523A-0029 a direct replacement for the original card in my COMBIVERT drive?
In most COMBIVERT F4, F5, and S4 series applications, the 3BF523A-0029 is a direct form-fit-function replacement. However, customers should confirm the firmware revision and hardware variant of the original card against the replacement unit, as minor hardware revisions may affect parameter compatibility. Our technical team can assist with cross-referencing.

Q2: What commissioning steps are required after installing the replacement card?
After physical installation, restore the backed-up parameter set via the programming interface, verify all I/O signal assignments, confirm fieldbus node address and baud rate settings, and perform a no-load test run before resuming production. If the original parameter file is unavailable, our team can provide guidance on default parameter configuration for common COMBIVERT applications.

Q3: Does the unit come with a warranty, and has it been tested before shipping?
Yes. All KEB 3BF523A-0029 units supplied by NINERMAS are function-tested prior to dispatch and covered by a 12-month warranty from the date of delivery. In the event of a warranty claim, our team will arrange replacement or repair with minimal lead time to protect your production continuity.

Q4: What is the typical lead time and stock availability?
We maintain stock of the KEB 3BF523A-0029 to support urgent retrofit and breakdown replacement requirements. Lead times vary by destination, but in-stock units are typically dispatched within 1–3 business days. Contact our sales team for current availability and expedited shipping options.
