KARL MAYER CDB34.005C2.4 H36 1 5KW: Service-Ready Spare Part for Industrial Maintenance

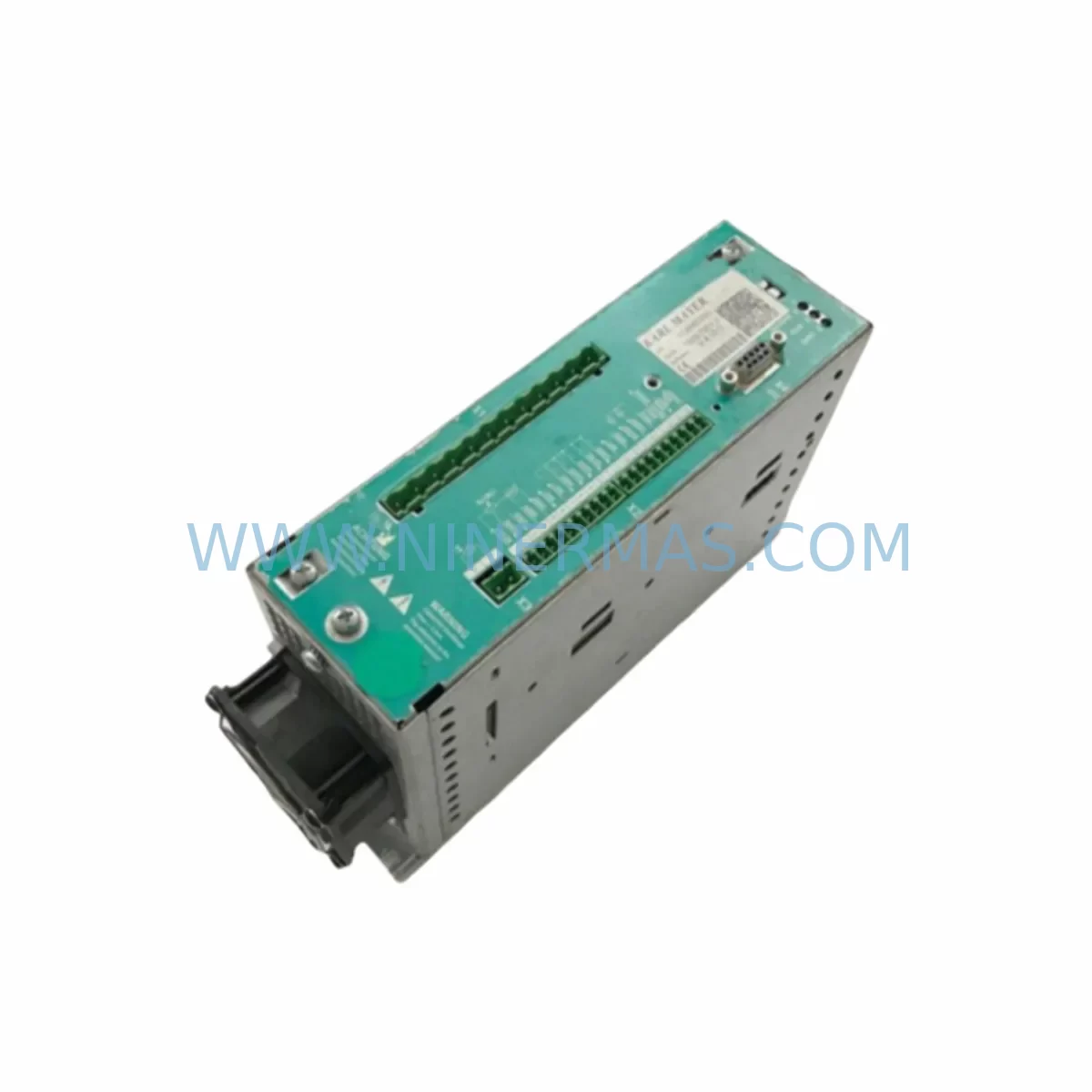

The KARL MAYER CDB34.005C2.4 H36 1 5KW is a precision drive module engineered for the CDB34 series warp knitting machines. As a critical motion-control component delivering 1.5 kW of regulated drive power, this unit governs beam let-off and take-up synchronization — functions that are directly tied to fabric quality, machine uptime, and production continuity. When this module degrades or fails, the result is immediate: pattern deviation, tension irregularities, or a full production stop. Sourcing a verified, service-ready replacement is not optional — it is the fastest path back to operation.

At NINERMAS, every CDB34.005C2.4 H36 1 5KW unit is pre-shipment tested, individually inspected, and dispatched with a 12-month warranty. We maintain long-term stock commitments for KARL MAYER CDB34 series components to support planned maintenance cycles, emergency breakdowns, and multi-site spare parts programs across textile manufacturing facilities worldwide.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the CDB34.005C2.4 H36 1 5KW drive module is rarely an isolated task. In a KARL MAYER CDB34 warp knitting machine, the drive system is deeply integrated with the machine’s electrical and control architecture. A thorough maintenance engineer will use a drive replacement event as an opportunity to audit the surrounding components and prevent secondary failures.

Begin with the DC bus capacitors and power supply module feeding the CDB34 drive rack — capacitor aging is a leading cause of drive instability and should be checked whenever a drive unit is swapped. Inspect the 24V auxiliary power supply that powers the control logic board; a marginal supply voltage can cause erratic encoder feedback and false fault codes even after a new drive is installed. Review the encoder cable and feedback connector between the drive and the servo motor — damaged shielding or loose connectors are a frequent source of recurring drive faults on high-cycle textile machines.

Check the KARL MAYER CDB34 main control board and its communication interface to the drive — any corrupted parameter set or firmware mismatch will prevent the replacement drive from commissioning correctly. If the machine uses a PROFIBUS or CANopen communication module for coordinated axis control, verify node addressing and termination resistors before restarting. Inspect the I/O terminal blocks and relay outputs in the control cabinet for signs of overheating, loose wiring, or contact oxidation — these are common failure points in high-vibration textile environments.

For machines with integrated HMI panels or operator terminals, confirm that the drive parameter backup is current before replacement; restoring drive parameters from the HMI after installation is a critical commissioning step. Also inspect the motor contactor, circuit breaker, and fuse assembly upstream of the drive — a nuisance trip or blown fuse that triggered the original failure may indicate an upstream fault that will damage the new drive if left unresolved. Finally, review the signal isolation modules and surge protection devices on the encoder and analog reference lines — these low-cost components protect the drive from transient damage and are frequently overlooked during emergency repairs.

Maintaining a structured spare parts kit for the CDB34 series — including at minimum one drive module, one power supply board, one set of encoder cables, and one communication module — is the most effective strategy for reducing mean time to repair (MTTR) and protecting production schedules.

Site Replacement Workflow

Step 1 — Isolation & Safety: De-energize the machine at the main isolator. Discharge the DC bus and verify zero voltage with a calibrated meter before opening the control cabinet. Follow LOTO procedures.

Step 2 — Parameter Backup: If the existing drive is still partially functional, use the KARL MAYER service software or HMI to export the current drive parameter set. This backup is essential for commissioning the replacement unit.

Step 3 — Physical Removal: Disconnect all power, encoder, and communication connectors from the CDB34.005C2.4 H36 1 5KW module. Label each connector before removal. Unmount from the cabinet rail and remove the unit.

Step 4 — Installation: Mount the replacement CDB34.005C2.4 H36 1 5KW on the cabinet rail. Reconnect all connectors in sequence — power first, then encoder, then communication bus. Verify connector seating and cable routing.

Step 5 — Parameter Restore & Commissioning: Load the backed-up parameter set into the new drive via the HMI or service tool. Verify motor direction, encoder feedback polarity, and speed reference scaling before enabling the axis.

Step 6 — Test Run: Run the machine at reduced speed and monitor drive current, temperature, and fault registers for a minimum of 15 minutes before returning to full production speed. Document the replacement in the machine maintenance log.

This workflow minimizes downtime, ensures system compatibility, and protects the new drive from commissioning errors — the most common cause of premature failure after a spare parts replacement.
