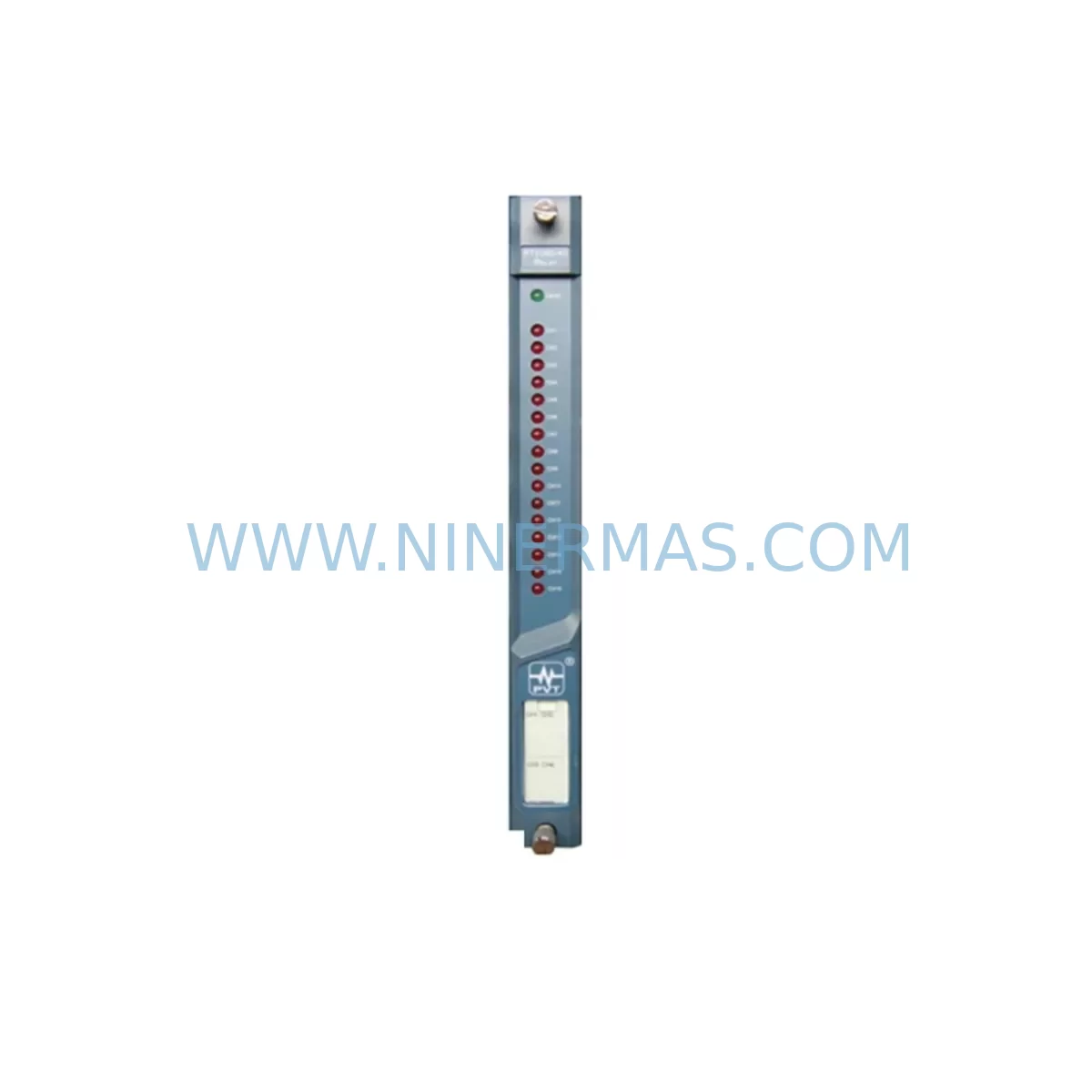

ICH PT2060/53-A0-H Safety-Reliable Relay Proximity Module

ICH PT2060/53-A0-H Safety-Reliable Relay Proximity Module for Critical Control Sites

The ICH PT2060/53-A0-H is a ruggedized relay proximity module engineered by Provib Tech for deployment in the most demanding industrial environments. Designed to deliver uninterrupted signal integrity and relay switching reliability, this module is purpose-built for critical control sites where control loop interruption, spurious trip, or signal drift can result in unplanned downtime, process hazards, or costly production losses. Whether installed in a heavy-duty control cabinet serving a petrochemical reactor, a power generation interlock panel, or a mining conveyor safety circuit, the PT2060/53-A0-H provides the robust, safety-reliable performance that maintenance engineers and automation specialists depend on.

The PT2060 series from Provib Tech is specifically developed to address the operational realities of continuous production facilities. Unlike standard proximity modules, the PT2060/53-A0-H incorporates ruggedized relay output circuitry rated for high-cycle switching, ensuring consistent contact performance even under sustained vibration, thermal cycling, and high electromagnetic interference (EMI) conditions common in steel mills, cement plants, and offshore platforms. Its hardened housing and conformal-coated PCB provide reliable protection against dust ingress, condensation, and corrosive atmospheres — meeting the environmental demands of IEC 60068 test conditions for industrial field equipment.

In safety-critical interlock architectures, signal reliability is non-negotiable. The PT2060/53-A0-H is engineered to minimize the risk of false triggering, contact bounce, and relay chatter that can compromise Emergency Shutdown (ESD) systems, Safety Instrumented Systems (SIS), or machine guarding circuits. When integrated alongside complementary components such as the Provib Tech PT2060/53-A0 standard variant, ICH proximity sensors from the PT series, and DIN-rail relay bases compatible with the PT2060 footprint, the module forms a coherent, field-proven safety relay chain that reduces single-point failure risk across the entire detection-to-actuation loop.

For control cabinet builders and panel integrators, the PT2060/53-A0-H is designed for straightforward DIN-rail mounting and plug-in terminal connectivity, reducing installation time and eliminating wiring errors during commissioning. Its compact form factor allows dense packing in space-constrained marshalling cabinets without compromising heat dissipation. When used in conjunction with 24 VDC power supply modules, surge protection terminal blocks, and signal isolators within the same cabinet, the PT2060/53-A0-H contributes to a holistic cabinet-level risk reduction strategy — protecting against power surges, ground loops, and transient overvoltage events that are prevalent in high-voltage switchgear rooms and variable frequency drive (VFD) environments.

Provib Tech’s PT2060 platform is widely deployed in industries where continuous operation is mandatory and maintenance windows are strictly limited. In water treatment facilities, the module monitors pump seal proximity and valve position feedback within SCADA-integrated control loops. In metallurgical plants, it provides reliable position detection for ladle transfer cars and rolling mill safety gates operating under extreme thermal and vibration stress. In port and marine applications, it supports crane anti-collision systems and hatch cover position monitoring where salt spray and humidity would rapidly degrade standard relay modules. The PT2060/53-A0-H’s -H (Harsh) designation confirms its suitability for these environments, offering extended operating temperature range and enhanced sealing compared to the base PT2060 variant.

For facilities managing legacy control systems or executing retrofit projects on end-of-life automation platforms, the PT2060/53-A0-H serves as a direct replacement module compatible with existing wiring harnesses and relay socket configurations. Maintenance teams can execute hot-swap replacements during scheduled turnarounds without requiring panel redesign or re-engineering. This backward compatibility is critical for plants operating legacy PLC I/O modules, older DCS marshalling panels, or relay logic control cabinets where sourcing equivalent replacement parts has become increasingly difficult. NINERMAS maintains verified stock of the PT2060/53-A0-H to support urgent spare parts requirements, with same-day dispatch capability for in-stock units.

Every PT2060/53-A0-H unit supplied by NINERMAS undergoes pre-shipment functional verification, including relay coil energization testing, contact resistance measurement, and output switching confirmation. This outgoing quality check ensures that the module arrives on-site ready for immediate installation, eliminating the risk of receiving a defective unit during a critical maintenance window. All units are supplied with a 12-month warranty covering manufacturing defects and premature component failure under normal operating conditions, providing procurement teams and plant engineers with the assurance needed for long-term spare parts planning.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Effective risk reduction in industrial control cabinets requires a layered approach that addresses every potential failure mode — from power quality to signal integrity to mechanical reliability. The PT2060/53-A0-H relay proximity module is most effective when deployed as part of a coordinated cabinet protection strategy. In a typical safety-critical marshalling cabinet, the module works in concert with 24 VDC DIN-rail power supply units that provide stable, regulated voltage even during mains fluctuations, preventing relay coil undervoltage drop-out that could cause spurious de-energization of safety circuits.

Upstream of the power supply, surge protection devices (SPDs) and transient voltage suppressors clamp lightning-induced and switching transients before they reach sensitive relay coil circuitry. In environments with significant conducted EMI — such as cabinets co-located with variable frequency drives (VFDs) or soft starters — the addition of signal isolators and galvanic isolation barriers between the proximity sensor input and the relay module output prevents ground loop interference from causing false relay actuation. The PT2060/53-A0-H’s inherent EMI hardening complements these external protection measures, providing a defense-in-depth architecture.

For communication-intensive cabinets integrating PROFIBUS DP repeaters, Modbus RTU converters, or Ethernet switches within the same enclosure, the relay module’s low-noise relay switching characteristics reduce the risk of communication anomalies caused by contact arc interference. When the PT2060/53-A0-H is used alongside safety relay modules (such as those from the Pilz PNOZ or Schmersal SRB series) in dual-channel safety circuits, it provides the auxiliary switching capacity needed to expand safety relay output contacts without compromising the integrity of the monitored safety function. Terminal block surge arresters at field cable entry points further protect the module from field-side transients originating from long cable runs in outdoor or exposed installations.

Planned preventive maintenance programs benefit from the PT2060/53-A0-H’s plug-in relay socket design, which allows module replacement in under two minutes without disturbing field wiring — a critical advantage in facilities where control system access is restricted to narrow maintenance windows. Maintaining a verified spare parts inventory that includes the PT2060/53-A0-H alongside compatible relay socket bases, proximity sensor heads, and DIN-rail terminal blocks ensures that corrective maintenance can be completed within a single shift, minimizing mean time to repair (MTTR) and protecting production continuity.

Critical Industrial Safety Applications

The PT2060/53-A0-H relay proximity module is deployed across a broad spectrum of critical industrial sectors where control system reliability directly impacts operational safety and regulatory compliance.

In petrochemical and refinery environments, the module provides reliable position feedback for emergency isolation valve (EIV) actuators and high-integrity pressure protection system (HIPPS) valve position monitoring. Its resistance to hydrocarbon vapors, high ambient temperatures, and aggressive cleaning agents makes it suitable for installation in Zone 2 classified areas when housed in appropriate Ex-rated enclosures. The relay output interfaces directly with Safety Instrumented System (SIS) logic solvers, providing the volt-free contact signal required by IEC 61511 functional safety standards.

In power generation and electrical utilities, the PT2060/53-A0-H monitors turbine bearing proximity, generator rotor position, and circuit breaker auxiliary contact status within protection relay panels. Its high EMI immunity is essential in high-voltage substations where strong magnetic fields from bus bars and transformers can induce interference in conventional proximity modules. The module’s extended temperature range accommodates the elevated ambient conditions found in turbine halls and boiler rooms.

In mining and mineral processing, the module is used for conveyor belt alignment monitoring, crusher jaw position detection, and hopper level proximity sensing in environments characterized by heavy dust loading, mechanical shock, and continuous vibration. The -H designation’s enhanced conformal coating provides protection against the conductive dust and moisture combinations that cause premature failure in standard relay modules.

In water and wastewater treatment, the PT2060/53-A0-H monitors pump seal condition, valve open/close position, and screen filter level within SCADA-integrated control loops. Its reliable relay output ensures that alarm and interlock signals reach the control room without the signal degradation caused by long cable runs in humid underground pump stations.

In port, shipyard, and marine applications, the module supports crane anti-collision systems, hatch cover position monitoring, and mooring winch limit detection in salt-laden, high-humidity environments where corrosion resistance and vibration tolerance are paramount.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the PT2060/53-A0-H?
All PT2060/53-A0-H units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, premature component failure, and relay contact performance degradation under normal operating conditions as specified in the Provib Tech datasheet. Warranty claims are processed with priority to minimize impact on plant operations.

Q2: What pre-shipment testing is performed on each unit?
Every PT2060/53-A0-H undergoes a functional verification test prior to dispatch. This includes relay coil energization at rated voltage, contact resistance measurement on both normally open (NO) and normally closed (NC) contacts, and output switching cycle confirmation. Units that do not pass all test criteria are quarantined and not shipped. A test record is available upon request for quality-critical procurement processes.

Q3: Is the PT2060/53-A0-H compatible with existing PT2060 relay socket bases and wiring?
Yes. The PT2060/53-A0-H is dimensionally and electrically compatible with standard PT2060 series relay socket bases and DIN-rail mounting accessories. It can be used as a direct drop-in replacement for existing PT2060 variants in the field without requiring panel modifications or re-termination of field wiring, making it ideal for like-for-like replacement during corrective or preventive maintenance.

Q4: Can NINERMAS support long-term and repeat supply of the PT2060/53-A0-H?
Yes. NINERMAS maintains dedicated stock of the PT2060/53-A0-H to support ongoing spare parts programs for facilities with multiple installed units. We offer framework supply agreements for plants requiring scheduled replenishment, and our sourcing network enables us to fulfill urgent requirements even for components that have reached end-of-production status with the original manufacturer. Contact our technical sales team to discuss your long-term supply requirements.
