Horiba SEC-Z719MGX Service-Ready Spare Part for Industrial Maintenance

Horiba SEC-Z719MGX Service-Ready Spare Part for Industrial Maintenance

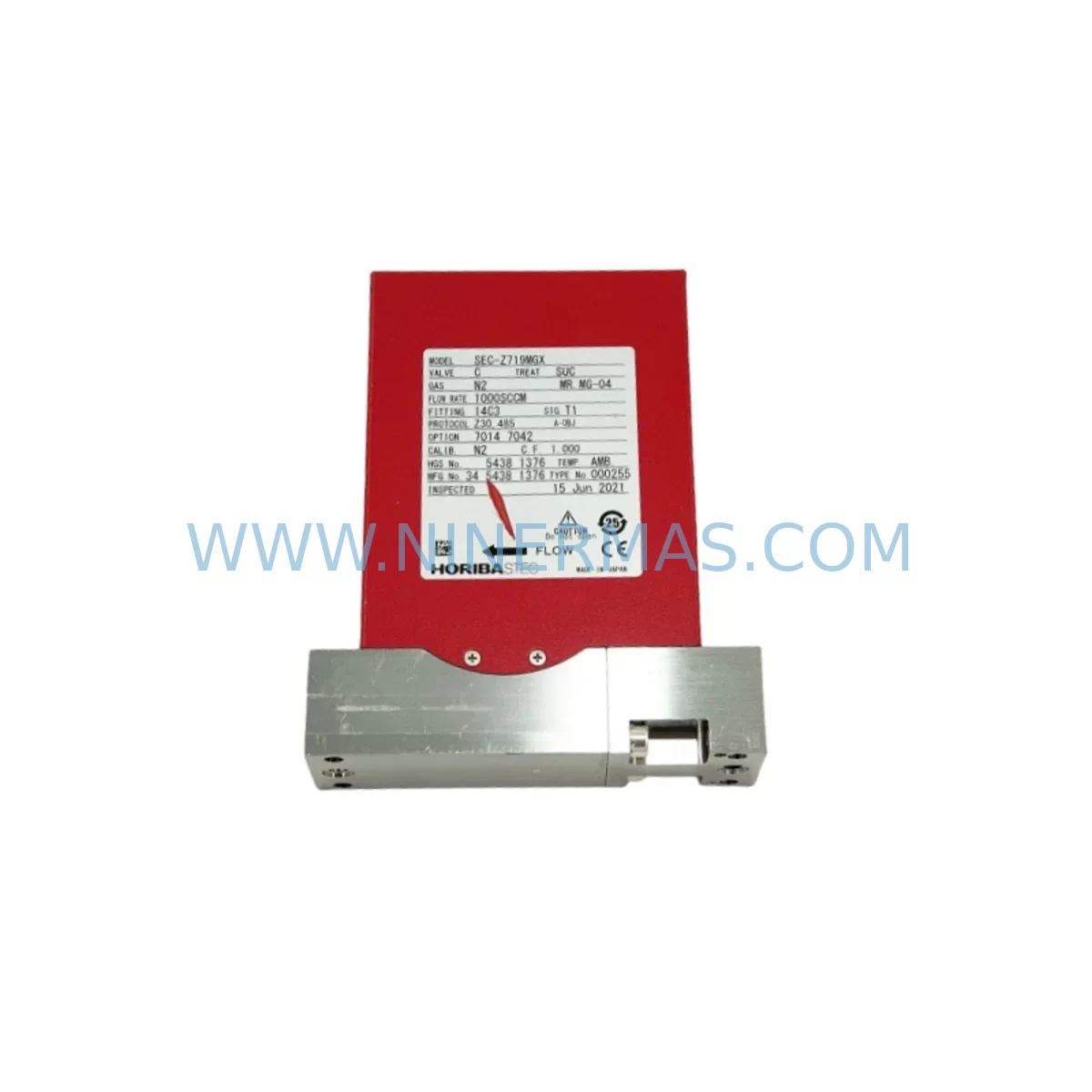

The Horiba SEC-Z719MGX (full part reference: SUR11HGBFRKG/W/US-100-IPF, SU8000, 4022.436.4502) is a digital mass flow controller (MFC) engineered for precision gas delivery in semiconductor fabrication, chemical vapor deposition (CVD), dry etching, diffusion furnace, and advanced process control environments. As a critical flow-path component in gas panel assemblies, the SEC-Z719MGX governs real-time gas flow rates with high repeatability and fast response, making it indispensable for process stability and yield protection in high-purity gas systems.

At NINERMAS, every SEC-Z719MGX unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and dispatched with a 12-month warranty. Our service-ready inventory is maintained specifically to support maintenance engineers and procurement teams who require fast, reliable access to end-of-life and long-lead-time automation components — without compromising on quality or traceability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a SEC-Z719MGX requires replacement during a scheduled preventive maintenance (PM) cycle or an unplanned shutdown, maintenance engineers should treat the event as an opportunity to audit the entire gas delivery sub-system. The SEC-Z719MGX does not operate in isolation — it is embedded within a network of interdependent components whose condition directly affects process repeatability and equipment uptime.

Begin by inspecting the Horiba STEC SEC-Z512MGX and SEC-Z714MGX units installed on adjacent gas lines within the same panel. These sibling MFCs share the same power distribution rail and D-sub signal harness; a failure in one unit often indicates thermal stress or contamination affecting the entire row. Simultaneously, verify the condition of the Horiba PAC-D2 pressure controller upstream — pressure instability is a leading cause of MFC zero drift and premature valve wear.

Check the SU8000 MFC controller platform communication integrity. The SEC-Z719MGX communicates via the SU8000 digital interface; inspect the RS-485 signal cable, D-sub connector pins, and termination resistors for corrosion or mechanical damage. A degraded communication link can produce false flow readings that mimic MFC hardware failure, leading to unnecessary replacements.

Inspect the ±15 VDC and +24 VDC power supply modules feeding the gas panel. Voltage ripple or rail sag under load will cause SEC-Z series MFCs to report unstable flow. Replace any power supply showing output deviation beyond ±2% of nominal. Also audit the signal isolation modules between the MFC interface board (4022.436.4502) and the process controller I/O cards — degraded isolation can introduce ground loops that corrupt flow setpoint signals.

For gas panel wiring, inspect the VCR face-seal fittings and gas line purge valves adjacent to the SEC-Z719MGX installation point. Particulate contamination from a worn fitting can enter the MFC flow body and cause irreversible sensor damage. Replace any fitting showing signs of galling or leak history. Additionally, review the Horiba SEC-N series needle valves and manual isolation valves in the same gas stick — these are frequently overlooked during MFC-focused maintenance but are critical for safe gas isolation during replacement.

Finally, confirm that the process recipe calibration file stored in the SU8000 controller matches the replacement SEC-Z719MGX’s calibration certificate. A mismatch between the stored K-factor and the installed unit’s actual calibration will produce systematic flow error across all process steps using that gas line.

Site Replacement Workflow

Step 1 — Isolation and Purge: Close the upstream manual isolation valve and downstream process valve. Initiate a nitrogen purge sequence through the gas stick to clear residual process gas from the SEC-Z719MGX flow body. Confirm purge completion via the SU8000 controller purge status indicator before breaking any fittings.

Step 2 — Electrical Disconnection: Power down the MFC panel section via the dedicated circuit breaker. Disconnect the D-sub signal cable and power connector from the SEC-Z719MGX. Label all connectors before removal to prevent mis-wiring during reinstallation — the SEC-Z series uses polarized connectors, but pin-for-pin verification against the 4022.436.4502 interface board wiring diagram is mandatory.

Step 3 — Mechanical Removal: Loosen the VCR nut on the inlet and outlet fittings using the correct torque wrench. Remove the SEC-Z719MGX from the gas panel mounting bracket. Cap all open fittings immediately with clean VCR plugs to prevent contamination ingress.

Step 4 — Replacement Unit Verification: Before installing the NINERMAS-supplied SEC-Z719MGX, verify the part number, calibration gas, full-scale range, and interface type against the process specification sheet. Confirm the unit’s pre-shipment test certificate is present. Check that the SU8000 controller firmware version is compatible with the replacement unit’s digital protocol revision.

Step 5 — Installation and Recommissioning: Install the replacement unit, torque VCR fittings to specification, reconnect electrical connectors, and restore power. Perform a zero and span verification via the SU8000 interface. Run a controlled flow test at 10%, 50%, and 100% of full scale before returning the gas line to process service. Document the replacement in the equipment maintenance log with the unit serial number and calibration certificate reference.

This structured workflow minimizes gas panel downtime to under four hours for a single MFC replacement and ensures full process compatibility without requiring a full system requalification.

Spare Parts Support FAQ

Q1: Is the NINERMAS SEC-Z719MGX an original Horiba STEC unit or a compatible replacement?
All SEC-Z719MGX units supplied by NINERMAS are original Horiba STEC manufactured components sourced from verified industrial supply channels. We do not supply aftermarket or remanufactured substitutes. Each unit is accompanied by a pre-shipment functional test report confirming flow accuracy, valve response, and communication integrity.

Q2: What is the lead time and how is long-term supply managed for end-of-life SEC-Z series MFCs?
NINERMAS maintains a dedicated reserve inventory of SEC-Z series components specifically to support customers operating legacy gas panel systems where OEM supply has been discontinued. Standard lead time for in-stock units is 3–7 business days for international shipment. For customers requiring guaranteed long-term supply, we offer reserved inventory agreements that lock in quantity and pricing for 12–24 month horizons.

Q3: How do I confirm compatibility between the SEC-Z719MGX and my existing SU8000 controller system?
Compatibility is determined by three parameters: the calibration gas and full-scale range (encoded in the SUR11HGBFRKG/W/US-100-IPF suffix), the interface type (digital RS-485 via D-sub per the 4022.436.4502 board), and the SU8000 firmware revision. Share your existing unit’s nameplate data and SU8000 firmware version with our technical team at sale@ninermas.com and we will confirm compatibility before shipment.

Q4: What does the 12-month warranty cover and what is the claims process?
The NINERMAS 12-month warranty covers functional failure under normal operating conditions, including flow sensor drift beyond specification, valve actuation failure, and communication interface faults. Physical damage caused by incorrect installation, over-pressure, or chemical contamination is excluded. To initiate a warranty claim, contact sale@ninermas.com with the unit serial number, pre-shipment test certificate reference, and a description of the observed fault. Replacement units are dispatched within 5 business days of claim approval.
