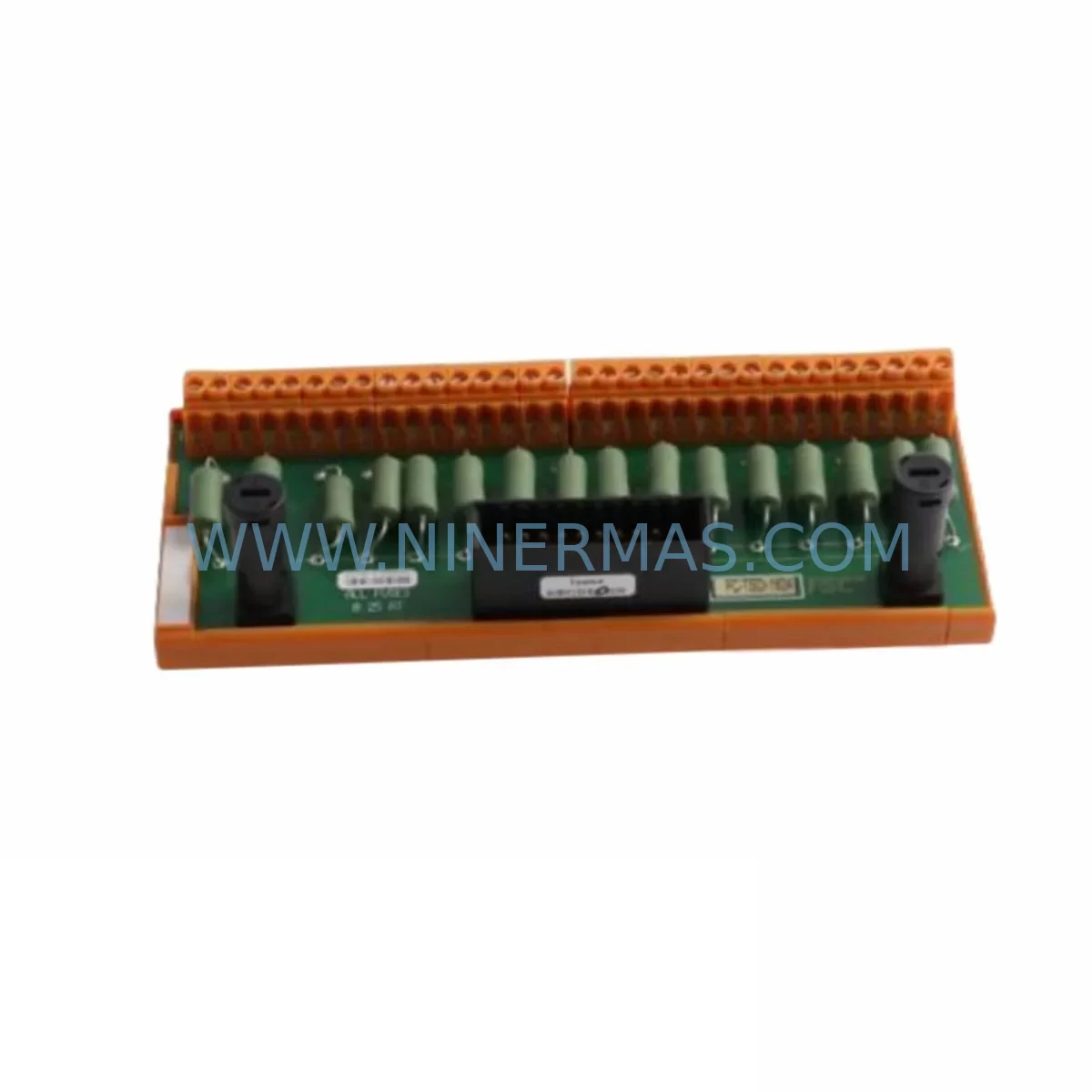

Honeywell X22206604 Retrofit Analog Input for Legacy Systems

Honeywell X22206604 Retrofit Analog Input for Legacy Systems

The Honeywell X22206604 is a retrofit-compatible analog input module engineered for direct integration into legacy Honeywell TDC 3000 and High Performance Manager (HPM) distributed control system architectures. As manufacturing facilities worldwide face the challenge of sustaining aging automation infrastructure, the X22206604 provides a verified, pre-tested replacement path that eliminates the need for full platform migration. Whether your facility is managing a phased control cabinet upgrade, extending the operational life of an existing HPM rack, or recovering from an unplanned module failure, the X22206604 delivers the signal acquisition reliability your process demands — with full backward compatibility and a 12-month warranty on every unit shipped.

Sourced from long-term inventory reserves and subjected to pre-shipment functional testing, each X22206604 unit is validated against original Honeywell factory specifications before dispatch. This ensures that field engineers receive a module ready for immediate installation, minimizing unplanned downtime and reducing the risk associated with sourcing end-of-life components from unverified channels.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the X22206604 into an existing HPM-based control system begins well before the module arrives on site. Retrofit planning must account for the full scope of the I/O subsystem, including the HPM I/O Link interface card (such as the 51304453-150), which governs communication between the analog input module and the HPM processor. Engineers should verify that the I/O link is operating within its rated channel capacity before adding or replacing modules in the rack.

The HPM processor module — commonly the 51309218-175 or equivalent — must be confirmed as compatible with the firmware revision of the replacement X22206604. In cases where the processor firmware predates the module’s manufacturing revision, a firmware update may be required to ensure stable handshaking and correct channel enumeration. This step is frequently overlooked during emergency replacements and can result in intermittent signal dropouts or module non-recognition at startup.

Power supply capacity is a critical verification point. The HPM power supply module (such as the 51305348-100) must be assessed for available headroom before adding the X22206604 to the rack. Each analog input channel draws a defined current load, and an undersized or aging power supply can introduce noise, cause module resets, or trigger nuisance alarms across adjacent I/O cards including digital input modules like the 51304485-150.

Terminal block wiring must be mapped against the original as-built drawings before the legacy module is removed. The X22206604 uses a standard HPM field termination assembly, and in most installations the existing field wiring can be retained without modification. However, engineers should inspect terminal torque, insulation condition, and shield grounding continuity — particularly in installations where the original module has been in service for more than ten years.

For facilities that also operate analog output channels in the same control loop — for example, using the 51304516-200 analog output module — it is advisable to verify the complete loop integrity after the X22206604 is commissioned. Signal isolation between input and output channels should be confirmed using a loop calibrator before returning the loop to automatic control.

Where the retrofit scope extends to communication infrastructure, engineers may need to review the HPM communication module (51304337-150) and its connection to the plant-wide UCN highway. If the control cabinet upgrade involves relocating the HPM rack or extending the UCN segment, the 51305865-275 communication gateway should be inspected for termination resistance and cable continuity. Backplane and rack assemblies — including the 51304441-175 rack chassis — should be visually inspected for corrosion, damaged connectors, or cracked PCB traces that could affect module seating and signal integrity.

Signal conditioners such as the 51304362-150 may be present in the field wiring path between the process transmitter and the X22206604 input terminals. These devices should be tested for output accuracy and loop power compliance as part of the pre-commissioning checklist. A faulty signal conditioner can mask a correctly functioning analog input module and lead to unnecessary repeat replacements.

Finally, HMI screen assignments and historian tag configurations in the Honeywell Experion or TDC 3000 operator station must be reviewed after module replacement. Channel address changes, even minor ones, can cause tag mismatches that result in incorrect process variable display or failed alarm annunciation. A structured commissioning checklist covering module address, channel scaling, alarm limits, and HMI tag verification is strongly recommended before the loop is returned to service.

Downtime Control During System Migration

Minimizing production downtime during an analog input module replacement requires a structured, pre-planned approach that protects existing program logic and maintains field control continuity throughout the migration window. The X22206604 is designed for hot-swap compatibility within the HPM rack architecture, but the replacement procedure should still be executed during a scheduled maintenance window wherever process safety permits.

Before initiating the physical swap, the HPM controller should be placed in a controlled state with critical loops transferred to manual or local control at the field device level. This prevents process upsets caused by signal interruption during module removal. The existing module’s channel configuration — including engineering unit ranges, alarm setpoints, and filter time constants — should be exported from the Honeywell Configuration Studio and retained as a reference document for post-installation verification.

During installation, the X22206604 should be inserted into the correct rack slot with the I/O link powered down to that slot if the rack design permits selective power isolation. After seating, the I/O link should be re-enabled and the module allowed to complete its self-diagnostic cycle before channel data is accepted by the HPM controller. Engineers should monitor the system status display for any fault codes or communication errors during the first five minutes of operation.

Post-installation, a full loop check should be performed on each channel using a calibrated signal source. Process variable readings at the operator station should be compared against the field instrument output to confirm scaling accuracy. Alarm function tests should be conducted before the loop is returned to automatic control. Total planned downtime for a single-module replacement using this procedure typically ranges from 45 minutes to two hours, depending on the number of active channels and the complexity of the associated HMI configuration.

For multi-module retrofit projects involving simultaneous replacement of several I/O cards across one or more HPM racks, a phased migration plan with individual loop verification at each stage is strongly recommended. This approach limits the scope of any single commissioning error and allows production to resume on verified loops while remaining modules are being commissioned.

Retrofit Support FAQ

Q: Is the X22206604 a direct drop-in replacement for the original Honeywell module in my HPM rack?
A: Yes. The X22206604 is designed as a direct slot replacement for the original Honeywell analog input module in standard HPM rack configurations. No hardware modification to the rack, backplane, or field termination assembly is required in most installations. Engineers should confirm the rack slot address and I/O link channel assignment match the original module configuration before powering up.

Q: Has the unit been tested before shipment?
A: Every X22206604 unit undergoes pre-shipment functional testing against original Honeywell factory specifications. Testing covers channel signal acquisition accuracy, I/O link communication handshaking, and self-diagnostic response. A test report is available upon request. Units are shipped with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Q: What is the lead time and inventory availability?
A: The X22206604 is held in long-term inventory reserve. Standard lead time for in-stock units is 3–7 business days for international shipments. For urgent requirements, expedited dispatch is available — contact our sales team directly to confirm current stock levels and shipping options for your region.

Q: What support is available if I encounter compatibility issues during commissioning?
A: Our technical support team provides pre-sale compatibility verification and post-sale commissioning guidance for all X22206604 installations. We can assist with rack address configuration, I/O link parameter settings, and Honeywell Configuration Studio tag assignments. If a unit is found to be non-functional upon installation under normal operating conditions, it is covered under the 12-month warranty and will be replaced or refunded at no additional cost.
