Honeywell 51405047-175 CC-PCF901 Retrofit Field Termination

Honeywell 51405047-175 CC-PCF901 Retrofit Field Termination Panel: Legacy-Compatible Upgrade for Experion PKS Systems

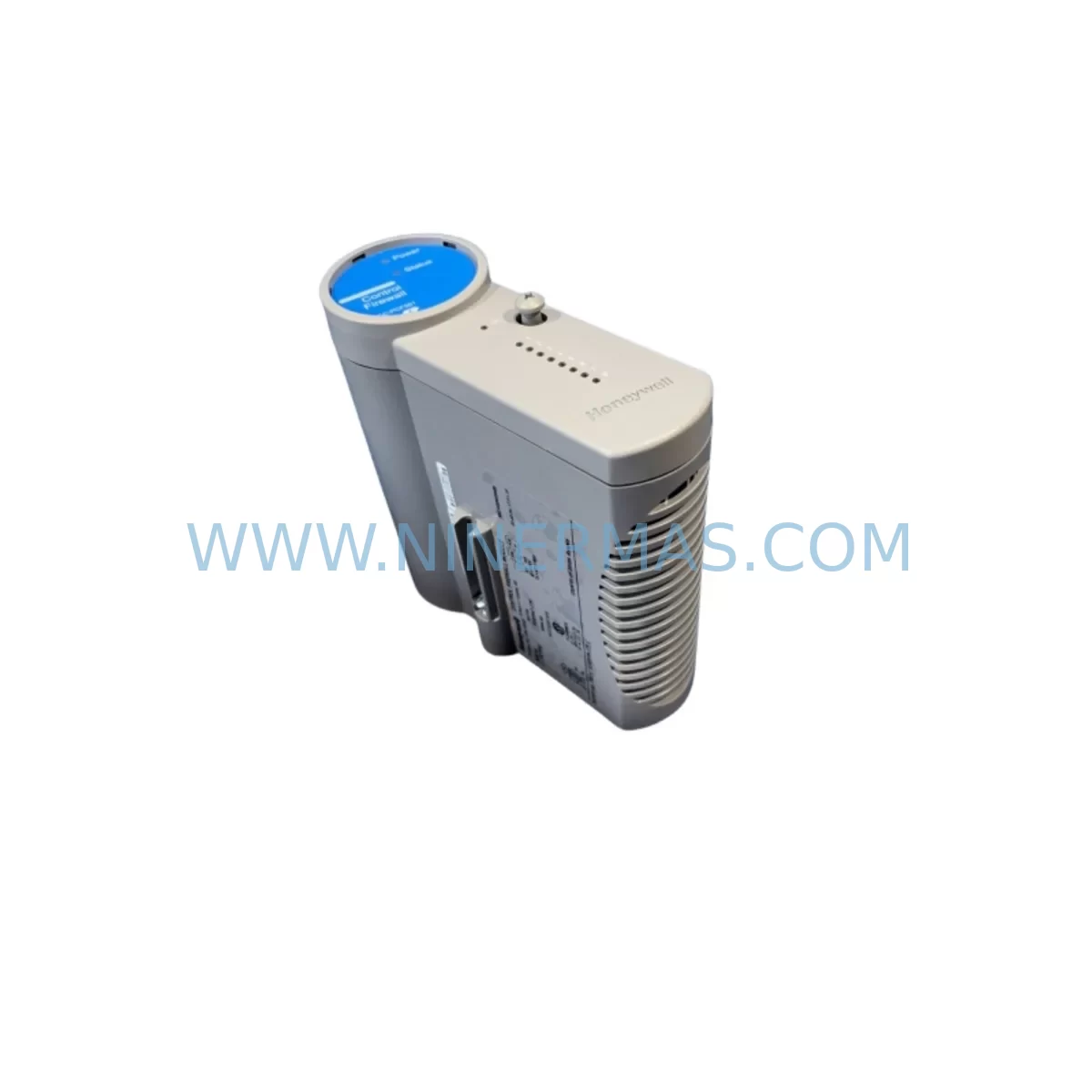

The Honeywell 51405047-175 CC-PCF901 is a Process Controller Field Termination Panel engineered for the Experion PKS platform, specifically designed to interface with the C300 Process Controller series. As legacy DCS installations age and OEM support windows close, the CC-PCF901 remains a critical spare part and retrofit component for facilities seeking to extend the operational life of their existing control architecture without committing to a full platform migration.

NINERMAS maintains verified stock of the 51405047-175 CC-PCF901, fully tested prior to shipment and backed by a 12-month warranty. Each unit undergoes functional verification to confirm terminal integrity, backplane connector alignment, and signal path continuity before dispatch — ensuring that your retrofit or emergency replacement proceeds without unexpected commissioning delays.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the CC-PCF901 within a live Experion PKS environment requires careful pre-planning across multiple system layers. Before scheduling a maintenance window, engineers should audit the existing rack configuration to confirm that the target slot is correctly mapped in the Experion Control Builder database. The C300 controller paired with this termination panel typically operates alongside redundant controller modules — if the primary C300 has failed, the standby unit may already be carrying the full process load, and the replacement window must be coordinated to avoid a single-point-of-failure condition.

Field wiring connected to the CC-PCF901 terminals must be documented against the original loop drawings. In many aging installations, as-built drawings have drifted from the physical wiring state, so a physical terminal-by-terminal verification is strongly recommended before disconnecting any signal cables. Analog input signals from transmitters, thermocouple inputs, and discrete I/O connected through associated IOTA modules — such as the CC-TAIX11 or CC-TDIL01 — must be individually confirmed and tagged before removal.

Power distribution within the control cabinet is another critical checkpoint. The CC-PCF901 draws its operating power from the rack power supply, typically a CC-PWRR01 redundant power supply module. Before inserting the replacement unit, verify that the available power budget on the rack bus is sufficient, particularly if other modules such as the CC-SCMB01 system cabinet module or additional I/O termination panels have been added since the original commissioning.

Communication continuity is equally important. The Experion PKS FTE network relies on dual-path Ethernet topology, and the CC-PCF901 connects to this network through the C300 controller’s FTE ports. During the swap, the FTE switch configuration — often a Cisco IE series industrial switch — should be verified to ensure that both network paths remain active. Any interruption to the FTE ring during the replacement procedure can trigger controller failover events that affect upstream SCADA displays and historian data continuity.

For facilities also managing Honeywell Safety Manager or Safety Builder integration alongside the Experion PKS system, the replacement of a C300-associated termination panel should be coordinated with the safety system engineer to confirm that no safety function inputs are routed through the affected termination panel. Related safety I/O modules and their associated CC-SCMB01 or SM-series components must remain fully operational throughout the retrofit window.

Where the retrofit involves migrating from an older TDC-3000 or HPM (High-Performance Process Manager) architecture to the Experion PKS C300 platform, the CC-PCF901 plays a foundational role in the new I/O termination layer. In these migration projects, engineers must also plan for the replacement of legacy MC-TDIY22 or MC-TAIH12 I/O modules with their Experion-compatible equivalents, and ensure that the Experion Control Builder strategy has been fully converted and validated before cutover.

Downtime Control During System Migration

Minimizing unplanned downtime during a CC-PCF901 replacement is achievable with a structured pre-outage checklist. The most effective approach is to perform all preparatory steps — configuration backup, loop documentation verification, spare parts staging, and FTE network health check — during normal production hours, so that the actual hardware swap can be completed within a tightly controlled maintenance window, typically two to four hours for a like-for-like replacement.

Before powering down the affected rack slot, export a full backup of the C300 controller configuration from Experion Control Builder. This backup preserves all control strategy logic, PID tuning parameters, alarm setpoints, and module addressing data. If the replacement unit requires a fresh configuration download, this backup file is the authoritative source and eliminates the risk of configuration drift between the old and new hardware.

During the physical swap, maintain field signal continuity where possible by using temporary signal jumpers or by placing affected control loops in manual mode at the DCS operator station. Operators should be briefed on which process variables will be unavailable during the window, and manual control procedures should be confirmed and ready before the outage begins. HMI faceplates associated with the affected C300 node will show communication fault banners during the swap — this is expected behavior and should be communicated to the control room team in advance to avoid unnecessary alarm response actions.

After the replacement CC-PCF901 is seated and the rack is powered, allow the C300 controller to complete its self-diagnostic sequence before initiating the configuration download. Verify FTE network connectivity from both primary and secondary paths before returning loops to automatic control. A structured loop-by-loop checkout — confirming signal values, control output response, and alarm function — is the final step before closing the maintenance window and returning the system to full production status.

Retrofit Support FAQ

Q1: Is the 51405047-175 CC-PCF901 a direct replacement for all CC-PCF901 variants?
The 51405047-175 is a specific revision of the CC-PCF901 field termination panel. For like-for-like replacement, confirm that the revision suffix on the failed unit matches or is superseded by the 51405047-175 revision. NINERMAS technical support can assist with cross-referencing revision compatibility based on your system’s Experion PKS version and C300 firmware level.

Q2: What pre-shipment testing is performed on the CC-PCF901?
Every 51405047-175 unit shipped by NINERMAS undergoes functional verification including backplane connector inspection, terminal block integrity check, and visual inspection for component damage or corrosion. Units are packaged in anti-static ESD-safe materials with humidity indicators to ensure safe transit to site. A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions.

Q3: Can the CC-PCF901 be used in a mixed-revision Experion PKS rack?
In most cases, yes — the CC-PCF901 is designed to operate within standard Experion PKS rack configurations alongside other C300-series modules. However, if your rack contains modules from significantly different firmware generations, a compatibility review with your Honeywell system integrator or NINERMAS technical team is recommended before installation to avoid unexpected behavior during the controller initialization sequence.

Q4: What is the typical lead time and stock availability?
NINERMAS maintains ready stock of the Honeywell 51405047-175 CC-PCF901 to support emergency replacement and planned maintenance programs. Standard orders are processed and dispatched within 1–3 business days. For large-quantity procurement or long-term spare parts programs requiring committed stock allocation, contact our sales team to discuss framework agreements and priority inventory reservation.
