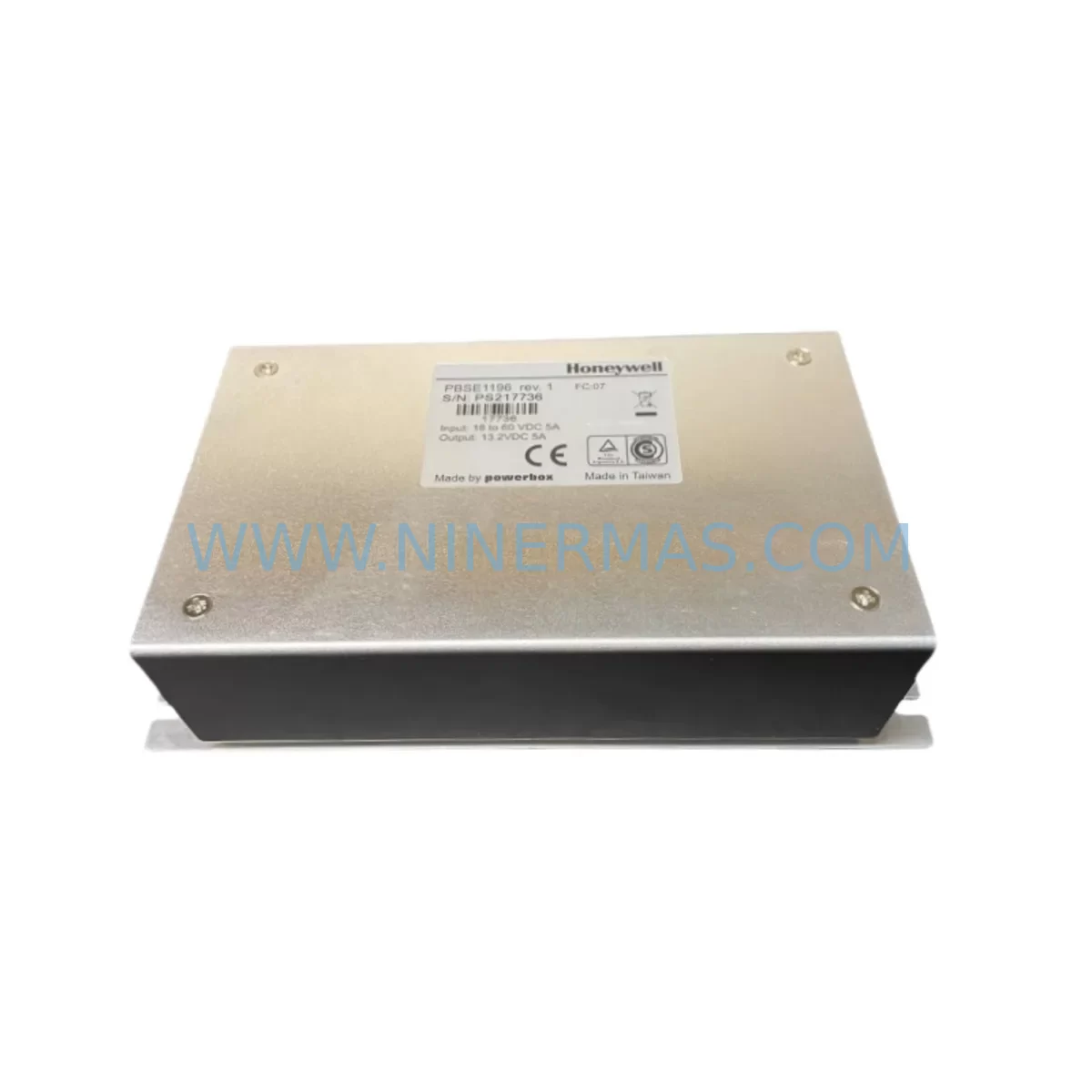

The Honeywell PBSE1196 is an original power supply module engineered for the Experion PKS (Process Knowledge System) distributed control system platform. Designed to deliver stable, regulated DC power to backplane-mounted I/O and controller modules, the PBSE1196 is a critical component in continuous process industries including oil & gas, petrochemical, power generation, pulp & paper, and pharmaceutical manufacturing. When this module fails or degrades, the consequences extend beyond a single cabinet — entire process segments can lose control authority, triggering emergency shutdowns and costly unplanned downtime.

At NINERMAS, every PBSE1196 unit is sourced as an original Honeywell spare, pre-shipment tested under load conditions, and dispatched with a 12-month warranty. Our service-ready inventory model means your procurement team can confirm availability, lead time, and compatibility before raising a purchase order — eliminating the guesswork that delays critical maintenance windows.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the PBSE1196 in an Experion PKS cabinet is rarely an isolated task. Maintenance engineers conducting a planned or emergency replacement should treat the power supply swap as an opportunity to audit the full electrical environment of the affected cabinet. A degraded power supply often masks or accelerates wear in adjacent components — and a thorough inspection during the replacement window can prevent the next unplanned shutdown.

Begin with the upstream AC feed: verify the input circuit breaker rating and condition, and check the terminal block connections on the AC input side for signs of heat discoloration or loose torque. If the cabinet uses a 24 VDC bus distribution rail, inspect the associated fuse holders and blade fuses — a failing PBSE1196 can cause nuisance fuse blows that are misdiagnosed as I/O faults. Honeywell’s own 51309276-150 power distribution assembly and associated terminal barrier strips are common co-inspection items in Experion PKS cabinets.

On the I/O side, the PBSE1196 feeds power to backplane-mounted modules including analog input cards such as the CC-PAIH01 (HART-enabled analog input) and digital output modules like the CC-PAON01. After restoring power, verify that all I/O modules re-enumerate correctly on the Experion server and that no latent communication faults have been logged. If the cabinet includes a TC-FPCXX2 field power conditioner or a 51405098-100 I/O link interface module, confirm their status LEDs and diagnostic registers before returning the loop to automatic control.

Communication integrity should also be validated post-replacement. Experion PKS systems using TC-CCR014 redundant controller modules or TC-IXR061 I/O extender modules rely on stable backplane power for deterministic scan cycle performance. A brief power interruption during module swap can trigger controller switchover events — document these in your maintenance log and confirm bumpless transfer was achieved. For cabinets with CC-TDIL01 digital input modules connected to field devices, verify that all input states are correctly reflected in the Experion HMI after power restoration.

Signal isolation is another area to audit. If the cabinet includes 51304453-150 signal conditioners or galvanic isolators between field transmitters and I/O cards, check their power indicator LEDs and output signal levels. These components are often overlooked during power supply replacements but can develop ground loop issues when the power reference changes. Finally, inspect the backplane connector seating on all adjacent modules — vibration over time can cause partial ejection that only manifests as intermittent faults under thermal cycling.

For sites running legacy Honeywell Series C or TDC 3000 systems alongside Experion PKS, the CC-TAIX01 analog input module and associated 10006/2/1-series termination assemblies may also be present in the same cabinet. Confirm their power draw is within the PBSE1196’s rated output capacity after replacement, particularly if additional I/O cards have been added since the original cabinet design.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement PBSE1196 SKU matches the installed unit. Cross-reference the label on the existing module with the Honeywell part number database. Note whether the installed unit is PBSE1196 or the functionally equivalent PBSE1120 — both are supported by NINERMAS inventory and share the same backplane connector pinout and output specification.

Step 2 — System state documentation: Before de-energizing, capture a screenshot or export of the Experion PKS cabinet’s current I/O status, controller health, and any active alarms. This baseline accelerates post-replacement verification and satisfies MOC (Management of Change) documentation requirements at most regulated sites.

Step 3 — Safe isolation: Follow site LOTO (Lockout/Tagout) procedures for the AC input feed to the cabinet. Confirm zero energy state with a calibrated voltage tester before touching any backplane components.

Step 4 — Module extraction and installation: Release the PBSE1196 retention latch, slide the module out along the backplane guide rails, and inspect the backplane connector for bent pins or contamination. Insert the replacement unit firmly until the latch engages. Do not force — misalignment will damage the backplane connector.

Step 5 — Power restoration and validation: Re-energize the AC input and observe the PBSE1196 status LED sequence. A steady green LED indicates normal operation. Monitor the Experion server for module re-enumeration events and confirm all I/O points return to their pre-shutdown states within the expected scan cycle time.

Step 6 — Post-replacement documentation: Record the replaced module’s serial number, installation date, and technician ID in your CMMS (Computerized Maintenance Management System). Update the spare parts inventory to trigger a replenishment order — maintaining at least one PBSE1196 in local stock is recommended for sites with no redundant power supply configuration.

Spare Parts Support FAQ

Q1: Is the PBSE1196 compatible with both C200 and C300 Experion PKS controller families?
Yes. The PBSE1196 is designed for use across the Experion PKS backplane ecosystem, including C200, C300, ACE, and EHPM configurations. Always verify the backplane revision and power budget before installation, particularly in mixed-generation cabinets where older Series C I/O may be co-located with newer Experion hardware.

Q2: What is the difference between PBSE1196 and PBSE1120?
The PBSE1120 is a predecessor model with a narrower input voltage range and slightly lower output current rating. The PBSE1196 is the current-generation replacement and is backward-compatible with PBSE1120 installations in most configurations. NINERMAS stocks both SKUs and can advise on direct substitution based on your cabinet’s power budget and backplane revision.

Q3: How does NINERMAS verify the condition of spare modules before shipment?
Every PBSE1196 unit undergoes a pre-shipment functional test under rated load conditions. Output voltage, ripple, and protection circuit response are verified against Honeywell’s original specification. Units that fail any parameter are quarantined and not dispatched. A test report is available upon request for quality-critical procurement processes.

Q4: What long-term supply options are available for end-of-life Honeywell Experion PKS components?
NINERMAS maintains a dedicated reserve inventory for end-of-life and last-time-buy Honeywell Experion PKS components, including the PBSE1196. Long-term supply agreements (LTSAs) are available for sites requiring guaranteed annual allocation. Contact our procurement team to discuss reserved stock arrangements, lead time commitments, and multi-year pricing frameworks that align with your plant’s maintenance cycle.
