Honeywell MU-PLAM02 51304362-100 Retrofit Module TDC 3000

Honeywell MU-PLAM02 51304362-100 Retrofit-Compatible Module for Legacy TDC 3000 Systems

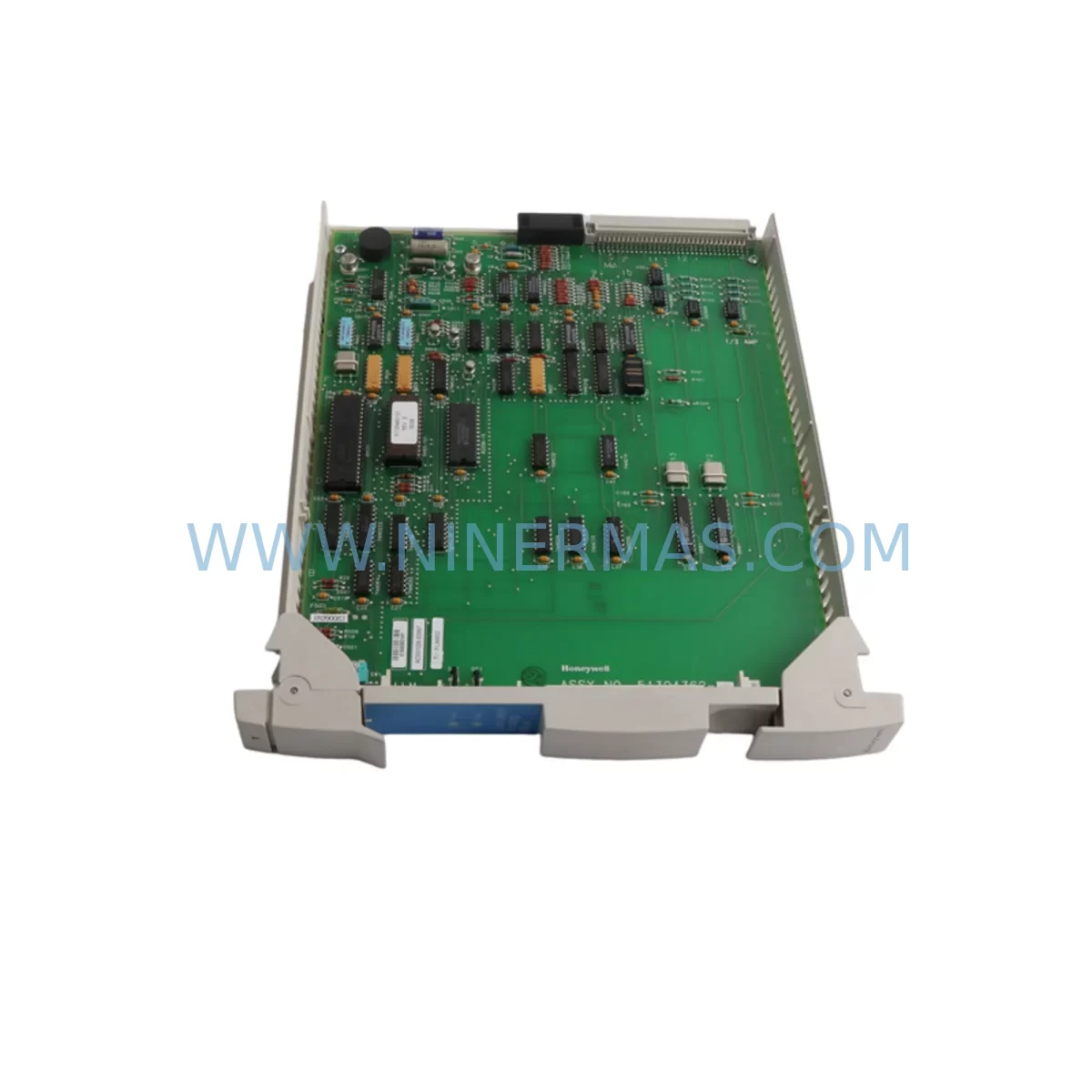

The Honeywell MU-PLAM02 (Part No. 51304362-100) is a process logic and automation module originally designed for the TDC 3000 Distributed Control System — one of Honeywell’s most widely deployed DCS platforms across refining, petrochemical, power generation, and continuous manufacturing industries. As the TDC 3000 platform approaches end-of-life and spare parts become increasingly scarce, the MU-PLAM02 51304362-100 remains a critical component for facilities that must maintain operational continuity without committing to a full system migration.

At NINERMAS, we specialize in sourcing, testing, and supplying retrofit-compatible modules for legacy industrial control systems. The MU-PLAM02 51304362-100 we supply is fully tested prior to shipment, backed by a 12-month warranty, and supported by our technical team for installation and commissioning guidance.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the MU-PLAM02 51304362-100, engineers must evaluate the full control architecture — not just the module itself. In a typical TDC 3000 environment, this module operates within a card cage alongside other critical components such as the MC-TDOY22 Digital Output Module, MC-TAIH02 Analog Input Module, and the PM-IOLINK I/O Link Module, all of which share backplane power and communication resources.

Before initiating a replacement, the engineering team should audit the existing TDC 3000 HPM (High-Performance Process Manager) configuration to confirm that the MU-PLAM02 slot address, module type designation, and CL (Control Language) program references are correctly mapped. Any mismatch in module addressing can cause the HPM to flag a hardware fault, triggering an unplanned process shutdown.

Power budget verification is equally critical. The 51109443-100 Power Supply Module or equivalent must have sufficient headroom to support the MU-PLAM02 alongside co-installed modules. In aging cabinets, capacitor degradation in the power supply can cause intermittent module resets — a common failure mode that is often misdiagnosed as a module fault rather than a power issue.

For facilities also managing communication infrastructure, the NIM (Network Interface Module) and HG (Highway Gateway) components must be confirmed operational before the replacement module is brought online. If the LCN segment is shared with other HPMs or AMPs (Application Modules), a node address conflict can prevent the MU-PLAM02 from registering on the network.

In cases where the retrofit is part of a broader migration toward Honeywell Experion PKS, the MU-PLAM02 replacement may serve as a bridge solution while C300 Controllers and EHPM (Emulation HPM) modules are staged for parallel operation. This phased approach allows facilities to maintain production continuity while progressively decommissioning legacy TDC 3000 hardware.

I/O expansion during the retrofit window is also an opportunity to introduce FOUNDATION Fieldbus or HART-enabled I/O modules where field instruments support it, reducing the long-term dependency on legacy analog I/O cards. Signal isolators and marshalling panels may need to be reconfigured to accommodate new I/O module pinouts if the retrofit involves any hardware generation change.

For HMI continuity, existing GUS (Global User Station) or US (Universal Station) displays typically do not require modification for a like-for-like MU-PLAM02 replacement. However, if the retrofit involves a module revision change (e.g., from -100 to -150 suffix), display engineers should verify that all associated schematic and faceplate references remain valid in the PHD Historian and alarm management system.

Programming cable access via the Honeywell Control Builder or legacy TDC 3000 Engineering Console should be confirmed available on-site before the maintenance window begins. Having a verified backup of the control database, including all CL programs, tuning parameters, and module configurations, is non-negotiable before any hardware swap.

Downtime Control During System Migration

Minimizing downtime during a TDC 3000 module replacement requires a structured pre-outage preparation protocol. For the MU-PLAM02 51304362-100, the recommended approach is a cold-swap during a planned maintenance window, with the following sequence:

1. Pre-Outage Preparation: Export and archive the full TDC 3000 control database. Document all active alarms, loop statuses, and module health indicators. Confirm that the replacement MU-PLAM02 has been bench-tested and that its firmware revision is compatible with the target HPM. Prepare the engineering console and programming cable for immediate post-installation verification.

2. Controlled Shutdown: Place all affected control loops in manual mode at the operator station. Coordinate with field operators to confirm that all final control elements (valves, drives, dampers) are in a safe state. Notify upstream and downstream process units of the planned interruption. Power down only the affected card cage segment — avoid full HPM shutdown if adjacent modules are serving live loops.

3. Module Swap: Remove the faulty or end-of-life MU-PLAM02 from its slot. Inspect the backplane connector for corrosion, bent pins, or debris. Insert the replacement module firmly and confirm the card cage latch is fully engaged. Restore power to the card cage and observe the module status LEDs for normal initialization sequence.

4. Post-Installation Verification: From the engineering console, confirm that the MU-PLAM02 registers on the LCN with the correct node address and module type. Download the archived control program to the module and verify all CL logic blocks are active. Return control loops to automatic mode incrementally, monitoring process variables for stability. Confirm alarm and historian data continuity at the GUS or PHD station.

With proper preparation, a like-for-like MU-PLAM02 replacement can typically be completed within a 2–4 hour maintenance window, significantly reducing production impact compared to an unplanned failure scenario.

Retrofit Support FAQ

Q1: Is the MU-PLAM02 51304362-100 a direct drop-in replacement for my existing TDC 3000 module?
A: In most cases, yes — provided the slot address, backplane revision, and HPM firmware are compatible. We recommend sharing your HPM configuration details with our technical team before ordering so we can confirm compatibility. Revision suffix differences (e.g., -100 vs. -150) may affect firmware compatibility and should be verified.

Q2: How is the module tested before shipment?
A: Every MU-PLAM02 51304362-100 unit we supply undergoes functional testing on a compatible TDC 3000 test bench prior to shipment. We verify power-up initialization, LCN communication registration, and basic I/O response. A test report is available upon request.

Q3: What is your lead time and do you maintain stock?
A: We maintain inventory of the MU-PLAM02 51304362-100 and can typically ship within 3–7 business days. For urgent requirements, expedited shipping is available. Contact our sales team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock levels.

Q4: What does the 12-month warranty cover?
A: Our 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It includes free replacement for DOA (Dead on Arrival) units confirmed within 30 days of receipt. Warranty does not cover damage resulting from incorrect installation, overvoltage, or physical mishandling. Our technical team is available to assist with installation guidance to help avoid preventable failures.
