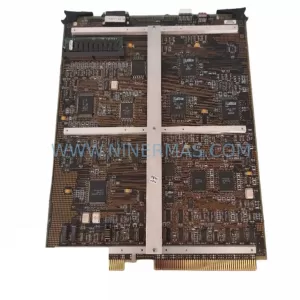

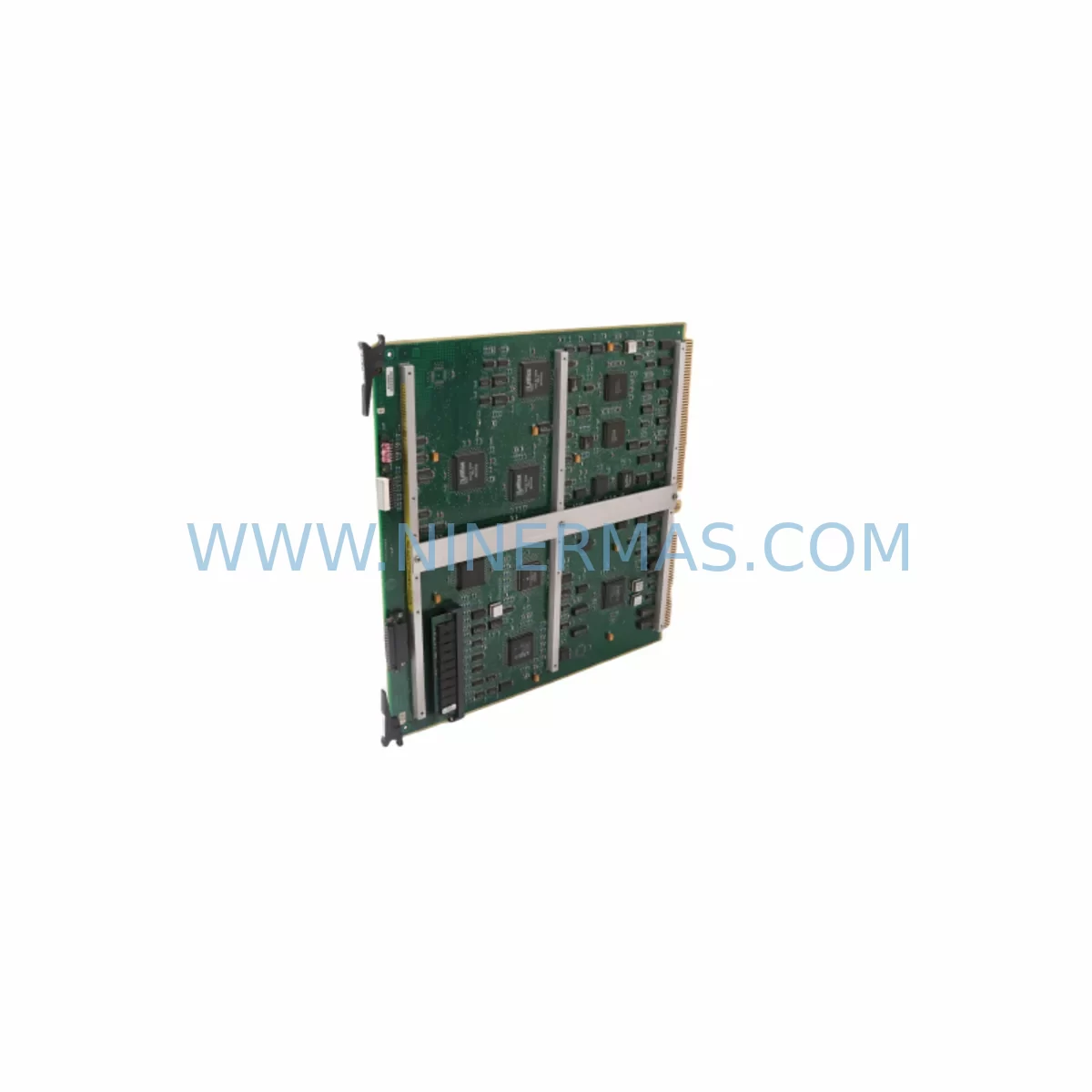

Honeywell K2LCN-4 51402615-400 LCN Node Interface Board

Honeywell K2LCN-4 51402615-400 LCN Node Interface Board: Retrofit-Compatible Upgrade for TDC 3000 & TPS Legacy DCS

The Honeywell K2LCN-4 (part number 51402615-400) is a ruggedized Local Control Network (LCN) node interface PC board designed for operation within Honeywell TDC 3000 and TPS distributed control systems. As one of the most widely deployed DCS platforms in refining, petrochemical, power generation, and chemical processing industries, the TDC 3000 / TPS architecture continues to serve as the backbone of critical process control infrastructure worldwide. With Honeywell having formally discontinued active manufacturing support for many TDC 3000 LCN-series components, sourcing a verified, pre-tested K2LCN-4 51402615-400 replacement board has become a priority for maintenance engineers managing aging control systems.

NINERMAS supplies the K2LCN-4 51402615-400 from managed inventory, with each unit subject to pre-shipment functional verification and covered by a 12-month warranty. Our stock supports both emergency breakdown replacements and planned spare parts programs for facilities committed to extending the operational life of their TDC 3000 or TPS control infrastructure.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a K2LCN-4 51402615-400 board within an operational TDC 3000 or TPS system requires careful pre-work to avoid unplanned downtime and protect existing process logic. The LCN is the communication spine of the TDC 3000 architecture, interconnecting all major processing nodes — including the High-Performance Process Manager (HPM), the Application Module (AM), the History Module (HM), the Network Interface Module (NIM), and the Universal Control Network (UCN) Gateway. A failed or degraded K2LCN-4 can disrupt node-to-node communication across the entire LCN segment, causing loss of control visibility, alarm suppression, or process shutdowns.

Before initiating a K2LCN-4 replacement, maintenance teams should audit the chassis power supply capacity. The TDC 3000 node enclosures typically rely on dedicated Honeywell power supply modules — such as the 51401469-100 series — to deliver regulated DC power to all installed cards via the backplane. Confirming that the power supply is within its rated load capacity before adding or swapping a board prevents secondary failures during the replacement procedure.

Terminal wiring and backplane slot assignments are equally critical. The K2LCN-4 interfaces with the LCN coaxial cable through dedicated BNC or coaxial termination points on the node chassis. Engineers should document the existing coaxial cable routing, termination resistor placement, and LCN segment topology before removing the failed board. In multi-segment LCN architectures, the LCN Extender module or LCN Bridge components may also need to be verified for signal integrity after the replacement is complete.

Node address configuration on the K2LCN-4 is managed through onboard DIP switches or jumper settings. The replacement board must be configured to match the node address of the original unit before insertion. Failure to replicate the correct node address will prevent the node from rejoining the LCN token ring, causing the associated HPM, AM, or NIM to appear offline from the Honeywell Universal Station (US) or GUS operator workstation. After installation, LCN diagnostics available through the engineer workstation should be used to confirm token acquisition and network participation.

For facilities also managing UCN (Universal Control Network) infrastructure, the UCN Gateway module — which bridges the LCN and UCN layers — should be monitored during the replacement window. Any interruption to LCN communication can temporarily affect UCN polling cycles and I/O response times for field devices connected through Remote Multiplexers (RMUs) or Smart Transmitter Interfaces (STIs). Coordinating the K2LCN-4 replacement with the UCN polling schedule minimizes the risk of spurious alarms or control interruptions at the field level.

Where the retrofit scope extends beyond a single board replacement — for example, when upgrading an entire TDC 3000 node enclosure or migrating from TDC 3000 to Experion PKS — the K2LCN-4 replacement is often one step in a broader migration plan that includes updating the Application Module software, reconfiguring HMI displays on the GUS or Experion Station, and validating communication links between legacy LCN nodes and new Experion C300 or C200 controllers. NINERMAS can support multi-component spare parts programs covering the full scope of TDC 3000 LCN infrastructure, including LCN node boards, chassis backplanes, power supply modules, and communication interface cards.

Downtime Control During System Migration

Minimizing downtime during a K2LCN-4 replacement is achievable with structured preparation. The TDC 3000 LCN architecture supports hot-standby configurations in some node types, allowing a replacement board to be staged and verified before the failed unit is removed from service. Where hot-standby is not available, the replacement window should be coordinated with the process team to align with planned shutdowns, low-demand production periods, or scheduled maintenance outages.

Prior to the replacement, a full backup of the node’s configuration data — including control strategies loaded in the associated HPM or AM, alarm setpoints, and historian tag assignments — should be captured using the Honeywell Control Builder or equivalent configuration management tool. This backup protects against data loss in the event that the replacement procedure requires a node reload or re-initialization.

During the physical swap, the LCN coaxial cable connections should be handled carefully to avoid disturbing the termination resistors at the segment ends. Improper termination is a common cause of LCN communication errors after board replacement and can be difficult to diagnose without LCN diagnostic tools. Once the K2LCN-4 51402615-400 replacement board is seated and the node address is confirmed, the node should be powered up and monitored through the engineer workstation for successful LCN token acquisition before process control is restored.

For facilities managing multiple simultaneous LCN node replacements or broader TDC 3000 modernization projects, NINERMAS recommends establishing a staged spare parts inventory covering the most failure-prone LCN components. This approach reduces the risk of extended downtime caused by secondary failures discovered during the primary replacement procedure and supports a controlled, low-risk migration timeline.

Retrofit Support FAQ

Q1: Is the K2LCN-4 51402615-400 a direct drop-in replacement for my existing TDC 3000 LCN node board?
Yes. The K2LCN-4 51402615-400 is designed as a direct replacement for the same part number in TDC 3000 and TPS node enclosures. Before installation, confirm that the node address DIP switch settings on the replacement board match the configuration of the original unit. No firmware updates or software changes are required for a like-for-like replacement.

Q2: What pre-shipment testing does NINERMAS perform on the K2LCN-4 51402615-400?
Each K2LCN-4 51402615-400 unit supplied by NINERMAS undergoes functional verification prior to dispatch. This includes power-on testing and communication interface checks to confirm the board is operational before it leaves our facility. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can the K2LCN-4 51402615-400 be used in a TDC 3000 system that is being partially migrated to Experion PKS?
Yes. During a phased migration from TDC 3000 to Experion PKS, existing LCN nodes — including those using the K2LCN-4 board — can continue to operate alongside new Experion C300 or C200 controllers via the LCN/Experion bridge architecture. The K2LCN-4 replacement supports continuity of the legacy LCN segment during the migration period, protecting existing control strategies and HMI configurations until the full cutover is completed.

Q4: What is the typical lead time and stock availability for the K2LCN-4 51402615-400?
NINERMAS maintains managed inventory of the K2LCN-4 51402615-400 to support both emergency replacement and planned spare parts programs. Lead times vary based on current stock levels. Contact our team at sale@ninermas.com or +0086 187 5021 5667 for real-time availability and delivery timelines.
