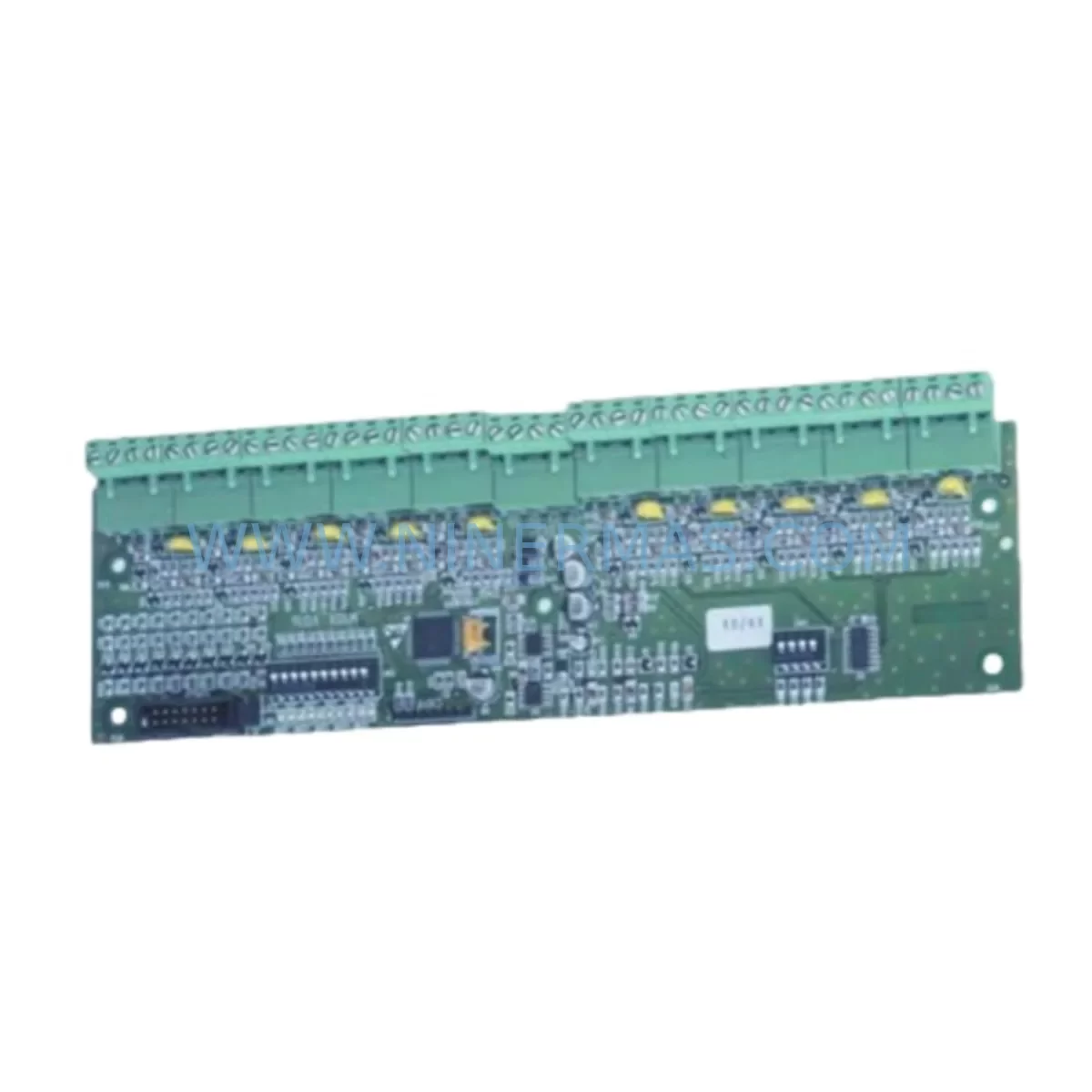

Honeywell FS-SCCNTL01 Retrofit Safety Controller Module

Honeywell FS-SCCNTL01 Retrofit Safety Controller Module: Legacy System Compatibility & Smooth Upgrade

The Honeywell FS-SCCNTL01 is a ruggedized safety controller module engineered for demanding industrial environments and purpose-built to support the modernization of aging automation infrastructures. As legacy safety systems approach end-of-life and original spare parts become increasingly scarce, the FS-SCCNTL01 provides a reliable, retrofit-compatible replacement path for facilities operating Honeywell Safety Manager platforms and related safety instrumented system (SIS) architectures. NINERMAS maintains verified in-stock inventory of the FS-SCCNTL01 with a 12-month quality warranty, enabling procurement teams and maintenance engineers to source this critical component without extended lead times.

Industrial plants running older Honeywell FSC (Fail Safe Controller) or Safety Manager generations frequently encounter obsolescence challenges: discontinued firmware support, unavailable backplane slots, and incompatible I/O wiring schemes. The FS-SCCNTL01 addresses these challenges directly by maintaining backward-compatible communication interfaces and preserving the terminal block pinout conventions familiar to field technicians. Before initiating a retrofit, engineers should verify the existing rack’s backplane interface version, confirm available power supply headroom from the co-installed Honeywell FS-PSU01 or equivalent power module, and document the current module address assignments to avoid address conflicts during hot-swap or cold-replacement procedures.

Wiring adaptation is a critical step in any FS-SCCNTL01 installation. Field teams should cross-reference the existing terminal wiring against the FS-SCCNTL01 datasheet, paying particular attention to the 24 VDC input rails, shield grounding terminals, and any analog signal conditioning paths previously managed by legacy Honeywell FS-AIO01 analog I/O modules. Where the original system used discrete digital I/O through FS-DIO01 modules, the replacement controller’s I/O map must be validated against the existing PLC program logic to ensure no channel reassignment occurs silently during the migration.

Communication protocol continuity is equally important. Many legacy Honeywell Safety Manager installations rely on HART, Modbus RTU, or proprietary FSC bus protocols for integration with the plant DCS. The FS-SCCNTL01 supports these communication stacks, but engineers must confirm that the co-installed Honeywell FS-COM01 communication module firmware is compatible with the replacement controller’s protocol stack version. Where Profibus DP or FOUNDATION Fieldbus segments are present, a protocol migration plan should be prepared in advance, including updated network segment addressing and GSD file revisions for the Profibus master.

For facilities upgrading from older rack generations, physical installation space must be confirmed before ordering. The FS-SCCNTL01 occupies a standard Safety Manager rack slot, but mixed-generation racks may have mechanical keying differences that require adapter brackets. The rack’s FS-RK08 or FS-RK16 chassis should be inspected for slot availability, and any co-resident modules such as the Honeywell FS-SOE01 sequence-of-events recorder or FS-RTD01 temperature input module should be documented to ensure the new controller’s interrupt handling does not conflict with their scan cycles.

HMI screen updates are often overlooked during safety controller replacements. If the plant HMI — whether a Honeywell Experion PKS station or a third-party SCADA system — references specific controller node addresses or tag names tied to the legacy module, those references must be updated in the HMI project database before commissioning the FS-SCCNTL01. Failure to synchronize HMI tag mappings with the replacement controller’s configuration can result in spurious alarms or masked fault conditions during the initial post-replacement operational period.

Program logic compatibility should be verified using the Honeywell Safety Builder or equivalent SIS programming environment. The existing safety function logic, including SIL-rated interlock sequences and proof test routines, should be compiled and simulated against the FS-SCCNTL01’s firmware version prior to live installation. Any deprecated function blocks from older firmware releases must be replaced with current equivalents, and the updated program should undergo a formal Factory Acceptance Test (FAT) or bench test before field deployment.

NINERMAS recommends a structured commissioning sequence for FS-SCCNTL01 retrofits: (1) power-down the affected rack segment and isolate field wiring; (2) photograph and label all terminal connections before removal of the legacy module; (3) install the FS-SCCNTL01 and restore wiring per the verified terminal schedule; (4) apply power and confirm module self-diagnostics pass without fault codes; (5) download the validated safety program and verify I/O channel responses against the field instrument loop; (6) perform a functional proof test of all safety functions before returning the system to operational mode. This sequence minimizes unplanned downtime and ensures control continuity throughout the migration.

Every FS-SCCNTL01 unit supplied by NINERMAS undergoes pre-shipment functional testing, including power-on self-test verification and communication port integrity checks. Units are shipped with original or equivalent packaging to prevent transit damage to the module’s ruggedized housing and connector pins. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, providing procurement and maintenance teams with confidence in the replacement component’s reliability over the initial post-retrofit operational period.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the Honeywell FS-SCCNTL01 into an existing automation system requires a methodical approach to component inventory and interface mapping. Begin by auditing the current control cabinet for all co-resident modules: the FS-PSU01 power supply module, FS-DIO01 digital I/O modules, FS-AIO01 analog input/output modules, and any FS-COM01 communication interface modules. Each of these components interacts directly with the safety controller and must be confirmed as compatible with the FS-SCCNTL01’s firmware and backplane protocol before the retrofit proceeds.

Where the existing system includes a Honeywell FS-SOE01 sequence-of-events recorder, engineers should verify that the SOE module’s interrupt polling rate is compatible with the FS-SCCNTL01’s scan cycle time to avoid missed event timestamps during high-frequency fault conditions. Similarly, if FS-RTD01 resistance temperature detector input modules are present in the rack, their signal conditioning parameters should be re-validated after the controller replacement to confirm that temperature alarm setpoints and engineering unit conversions remain accurate.

For plants that use a Honeywell FS-RK16 16-slot rack as the primary safety system chassis, the physical slot assignment of the FS-SCCNTL01 should be documented in the system architecture drawing before installation. In multi-rack configurations, the inter-rack communication cables and termination resistors must be inspected and replaced if degraded, as aging communication infrastructure can introduce latency or data errors that are incorrectly attributed to the new controller module after installation.

Signal isolators installed between field instruments and the safety controller’s I/O terminals should also be reviewed during retrofit planning. Where galvanic isolation barriers or Zener barriers are present in the intrinsically safe wiring circuits, their entity parameters must be re-verified against the FS-SCCNTL01’s input specifications to maintain the integrity of the Ex ia or Ex ib certification for the associated field instruments. Any programming cable used for initial configuration — such as the Honeywell Safety Builder USB programming interface — should be tested for compatibility with the replacement module’s firmware version before the scheduled maintenance window begins.

Downtime Control During System Migration

Minimizing unplanned downtime during a safety controller migration requires advance preparation across three domains: program backup, wiring documentation, and commissioning sequence planning. Before removing the legacy module, a full backup of the existing safety program — including all configuration parameters, I/O force tables, and communication node settings — should be archived to a secure engineering workstation. This backup serves as the recovery baseline if the FS-SCCNTL01 commissioning encounters unexpected compatibility issues that require a temporary rollback to the original configuration.

Where process conditions permit, a partial migration strategy can further reduce risk. By configuring the FS-SCCNTL01 in a parallel test rack and validating its program execution against simulated I/O signals before the live cutover, engineering teams can identify and resolve compatibility issues without exposing the production process to extended control interruptions. This approach is particularly valuable in continuous process industries — such as oil and gas, chemical, or power generation — where safety system downtime directly impacts production throughput and regulatory compliance.

During the live cutover, field technicians should follow a pre-approved isolation and reinstatement procedure that sequences the de-energization of field instruments, the physical module swap, the program download, and the I/O verification steps in a defined order. Communication with the control room operator should be maintained throughout the procedure to ensure that any process deviations triggered by the temporary loss of safety system coverage are identified and managed promptly. After the FS-SCCNTL01 is commissioned and all safety functions are verified, a formal return-to-service record should be completed and filed in the plant’s safety management system to satisfy functional safety audit requirements.

Retrofit Support FAQ

Q1: Is the Honeywell FS-SCCNTL01 a direct drop-in replacement for the legacy FSC safety controller modules?
A: The FS-SCCNTL01 is designed to be retrofit-compatible with Honeywell Safety Manager rack architectures. While it maintains the same backplane slot form factor and supports the same core communication protocols as legacy FSC modules, engineers should verify the specific rack generation, firmware version, and I/O module compatibility before installation. NINERMAS can provide pre-shipment configuration verification upon request.

Q2: What commissioning steps are required after installing the FS-SCCNTL01?
A: After physical installation, the validated safety program must be downloaded to the module using Honeywell Safety Builder. I/O channel responses should be verified against field instrument loops, and a full functional proof test of all safety interlock sequences must be completed before returning the system to operational mode. NINERMAS supplies a pre-tested unit with passing self-diagnostic results to reduce on-site commissioning time.

Q3: Does NINERMAS provide wiring and terminal compatibility documentation for the FS-SCCNTL01?
A: Yes. NINERMAS can provide available technical documentation, including terminal wiring schedules and interface specifications, to support retrofit planning. Customers are encouraged to contact sale@ninermas.com with their existing system configuration details to receive tailored compatibility guidance before ordering.

Q4: What warranty and inventory availability does NINERMAS offer for the FS-SCCNTL01?
A: All FS-SCCNTL01 units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. NINERMAS maintains verified in-stock inventory to support urgent replacement requirements, with pre-shipment functional testing performed on every unit before dispatch. Contact sale@ninermas.com or +0086 187 5021 5667 for current stock availability and lead time confirmation.
