Honeywell FC-USI-0001 V1.0 Service-Ready Spare Part

Honeywell FC-USI-0001 V1.0 Service-Ready Spare Part: Spare Replacement & Downtime Risk Control

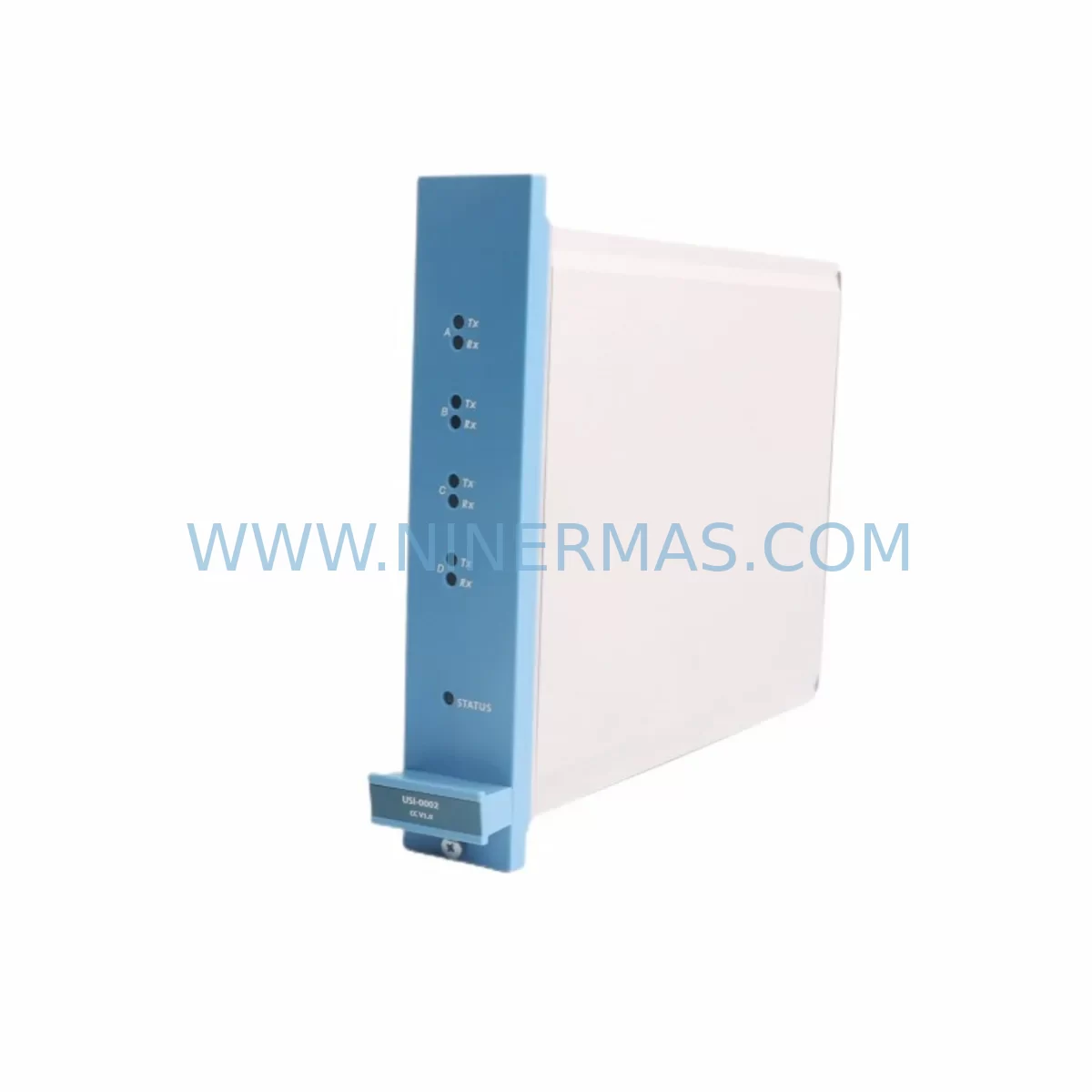

The Honeywell FC-USI-0001 V1.0 is a critical universal safety interface module designed for the Honeywell Safety Manager series — one of the most widely deployed safety instrumented systems (SIS) in process industries including oil & gas, petrochemical, power generation, and chemical manufacturing. When this module fails or reaches end-of-life, the consequences extend far beyond a single component: the entire safety loop integrity is at risk, and unplanned downtime can cost thousands of dollars per hour.

At NINERMAS, we stock the FC-USI-0001 V1.0 as a service-ready spare part, fully tested before shipment, backed by a 12-month warranty, and available for rapid dispatch to minimize your plant’s exposure to safety system downtime. Whether you are a maintenance engineer managing a scheduled turnaround or a procurement engineer building a strategic spare parts inventory, this listing is designed to support your operational continuity goals.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the FC-USI-0001 V1.0 is rarely an isolated task. In a properly managed safety instrumented system, the USI module sits at the intersection of field signal conditioning, logic solver communication, and safety output actuation. A thorough maintenance plan requires evaluating the surrounding components in the same safety loop and control cabinet.

During a scheduled replacement of the FC-USI-0001 V1.0, maintenance engineers should simultaneously inspect the Honeywell FC-PSU-0001 power supply module that feeds the Safety Manager chassis — a degraded power supply is a common root cause of intermittent USI faults. The FC-SDO-0824 digital output module and FC-SDI-1616 digital input module in the same chassis should be checked for diagnostic alarms, as I/O faults often accompany USI communication errors.

For sites running the Safety Manager alongside a Honeywell Experion PKS DCS, the FC-SCMB-0001 safety communication module and associated Modbus or FOUNDATION Fieldbus interface cards should be verified for firmware compatibility after any USI replacement. Mismatched firmware versions between the USI and the communication module are a known source of post-maintenance faults.

Procurement engineers building a comprehensive spare parts kit for a Safety Manager installation should also consider stocking the FC-TSDI-1616 terminal board and FC-TSDO-0824 terminal board, which interface field wiring to the I/O modules. These terminal boards are subject to mechanical wear from repeated field wiring connections and should be treated as consumable spares in high-maintenance environments.

Signal integrity in the safety loop depends on the quality of the signal isolators and barriers installed between field instruments and the Safety Manager I/O. Zener barriers or galvanic isolators from brands such as MTL or Pepperl+Fuchs, rated for the specific signal type (4–20 mA, discrete, HART), should be inspected and replaced on a defined cycle. Fuse protection on the 24 VDC field supply rails — typically 2A or 4A DIN rail fuse holders — should also be checked during any USI replacement event.

For older Safety Manager installations approaching end-of-life, the FC-RPSM-0001 redundant processor module and FC-BPSA-0001 backplane assembly are components that procurement teams should evaluate for strategic stocking. These long-lead-time items are frequently the bottleneck in emergency recovery scenarios when a Safety Manager system experiences a catastrophic failure.

Finally, the HMI workstation running Honeywell’s Safety Builder or FSC Engineering Tool should be verified for software compatibility with the replacement FC-USI-0001 V1.0 firmware version. An incompatible engineering workstation can prevent successful download of the safety application after module replacement, extending downtime unnecessarily.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the FC-USI-0001 V1.0, confirm the Safety Manager is in a safe state or that the process has been brought to a safe condition per your site’s Management of Change (MOC) procedure. Document the current module diagnostic status via the Safety Builder HMI.

Step 2 — Compatibility Confirmation: Verify that the replacement FC-USI-0001 V1.0 firmware version matches the existing system configuration. Cross-reference the part number label on the replacement unit with the system’s hardware configuration report. NINERMAS ships units with original firmware; if a specific firmware version is required, please specify at time of order.

Step 3 — Physical Replacement: Power down the affected chassis slot per Honeywell’s documented procedure. Remove the faulty module, insert the replacement FC-USI-0001 V1.0, and secure the module latch. Reconnect any field wiring via the associated terminal board.

Step 4 — System Restart and Diagnostic Check: Power up the chassis and monitor the Safety Manager diagnostic display for fault codes. Use the Safety Builder engineering tool to confirm the module is recognized and communicating correctly on the safety backplane. Verify all I/O channels associated with the USI are reading correctly before returning the system to operational status.

Step 5 — Documentation and Spare Parts Replenishment: Update your maintenance management system (CMMS) with the replacement event details. Immediately initiate a purchase order for a replacement spare to restore your on-hand inventory level — NINERMAS offers long-term supply agreements to ensure continuous availability of the FC-USI-0001 V1.0 and associated Safety Manager components.

Spare Parts Support FAQ

Q1: Is the FC-USI-0001 V1.0 still available as a new original part, or is it a refurbished unit?
NINERMAS supplies the FC-USI-0001 V1.0 as an original, service-ready spare part. Each unit undergoes pre-shipment functional testing. We do not supply refurbished or remanufactured units unless explicitly requested and agreed upon in writing. All units are covered by a 12-month warranty from the date of shipment.

Q2: How do I confirm compatibility between the FC-USI-0001 V1.0 and my existing Safety Manager system version?
Compatibility is determined by your Safety Manager chassis generation and the firmware version of your existing USI modules. Please provide your system’s hardware configuration report or the part number of the module being replaced when placing your order. Our technical team will confirm compatibility before shipment.

Q3: What is NINERMAS’s lead time and long-term supply commitment for the FC-USI-0001 V1.0?
For in-stock units, NINERMAS typically ships within 3–5 business days. For emergency requirements, expedited shipping is available. We maintain a long-term supply commitment for Safety Manager series components, including the FC-USI-0001 V1.0, to support plants operating legacy systems beyond Honeywell’s standard product lifecycle. Contact our team to discuss annual supply agreements or consignment stocking arrangements.

Q4: What pre-shipment testing does NINERMAS perform on the FC-USI-0001 V1.0?
Each FC-USI-0001 V1.0 unit is powered up and subjected to functional diagnostic testing prior to shipment. Communication interface integrity, power consumption within specification, and absence of hardware fault codes are verified. A test report is available upon request. Units that do not pass testing are not shipped. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.
