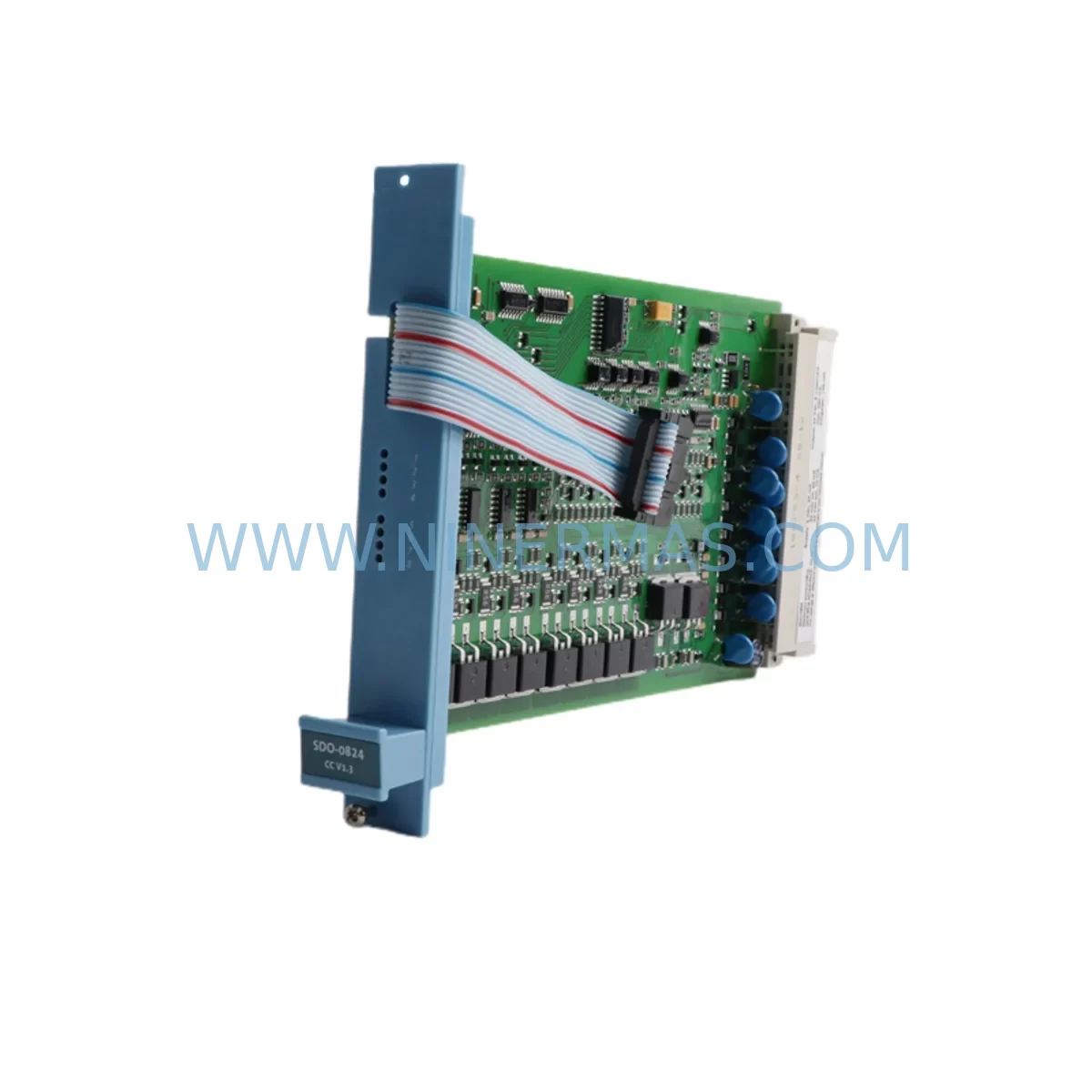

The Honeywell FC-SDO-0824 V1.3 is a digital safety output module designed for the Honeywell FSC (Fail-Safe Controller) Safety Manager series — one of the most widely deployed safety instrumented systems (SIS) in process industries including oil & gas, petrochemical, power generation, and chemical manufacturing. As a service-ready spare part sourced and tested by NINERMAS, this module is available for immediate dispatch to support emergency replacement, planned maintenance, and strategic spare parts inventory programs.

When a safety output channel fails or a module reaches end-of-service life, every minute of unplanned downtime translates directly into production loss and safety risk. The FC-SDO-0824 V1.3 provides 8 channels of digital safety output, interfacing directly with field actuators such as solenoid valves, shutdown valves, and motor contactors. Maintaining at least one verified spare of this module in your control room inventory is a recognized best practice for any facility operating an FSC-based safety system.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the FC-SDO-0824 V1.3 in an FSC Safety Manager cabinet is rarely an isolated task. Experienced maintenance engineers know that a failed safety output module is often a symptom of broader stress on the safety loop — and a planned replacement window is the ideal time to inspect and verify the health of adjacent components.

During any FC-SDO-0824 replacement, the field wiring termination blocks and marshalling panels connected to the 8 output channels should be inspected for corrosion, loose terminals, and insulation degradation. The FC-SDI-1616 digital input module and FC-SAI-1620 analog input module in the same rack should be checked for diagnostic alarms, as input-side faults can mask output module failures during routine testing. The FSC power supply module (typically the FC-PSU series) supplying the rack should be load-tested — an aging or undersized power supply is a common root cause of intermittent output module faults.

The FSC backplane and rack chassis should be visually inspected for bent connector pins and oxidation on the module edge connectors. If the system uses redundant output voting (1oo2 or 2oo3 architecture), the companion output modules in the redundant channel should be cross-checked for matching firmware revision and hardware version to ensure consistent voting behavior. The FC-HSCB high-speed communication board and any FC-COM communication modules in the cabinet should be verified for active link status, as a communication fault can prevent the safety controller from commanding output state changes.

For facilities using Honeywell Safety Manager with Experion PKS integration, the HMI server connection and the safety network interface card should be confirmed operational after module swap to ensure alarm and status data is correctly reflected in the control room. Relay output wiring to solenoid valve coils should be continuity-tested before re-energizing the loop. If the system includes galvanic isolation barriers or signal isolators between the FC-SDO-0824 output channels and field devices, these should be inspected and replaced on a scheduled basis — they are a common point of silent failure in aging SIS installations.

Fuse protection on the output loop — including any DIN rail fuse terminal blocks protecting individual solenoid circuits — should be verified for correct rating and replaced if discolored or showing signs of thermal stress. Maintaining a documented spare parts kit that includes the FC-SDO-0824 V1.3, matched input modules, power supply modules, and communication cards ensures that your maintenance team can execute a full cabinet restoration within a single planned shutdown window.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the installed module part number and hardware version (V1.3) against the system’s as-built documentation. Verify that the replacement FC-SDO-0824 V1.3 from NINERMAS matches the installed version exactly. Mismatched hardware versions in FSC systems can cause configuration download failures or diagnostic discrepancies.

Step 2 — Safety Bypass and Isolation: Follow your site’s Management of Change (MOC) and Safety Bypass procedures. Place the affected safety function in bypass via the FSC Safety Manager engineering workstation before removing the module. Document the bypass start time and notify the control room.

Step 3 — Module Removal: Power down the rack slot if hot-swap is not supported for this module type in your FSC configuration. Disconnect field wiring from the terminal block. Remove the FC-SDO-0824 V1.3 from the rack slot by releasing the module locking lever and sliding it out along the backplane guide rails.

Step 4 — Replacement Installation: Insert the new FC-SDO-0824 V1.3 into the rack slot, ensuring full backplane connector engagement. Reconnect field wiring to the terminal block, verifying channel-to-terminal mapping against the loop drawing. Restore rack power.

Step 5 — Configuration Download and Functional Test: Using the FSC Safety Manager engineering tool, download the safety application configuration to the new module. Perform a channel-by-channel output function test, verifying that each of the 8 output channels correctly commands its associated field device. Confirm that all diagnostic LEDs show healthy status.

Step 6 — Bypass Removal and Return to Service: Remove the safety bypass via the engineering workstation. Confirm that the safety function is restored to automatic mode and that the control room HMI reflects correct module status. Document the replacement in the maintenance management system (CMMS).

This workflow minimizes exposure time during bypass, reduces the risk of wiring errors, and ensures full functional verification before returning the safety loop to service — consistent with IEC 61511 proof test and maintenance requirements.
