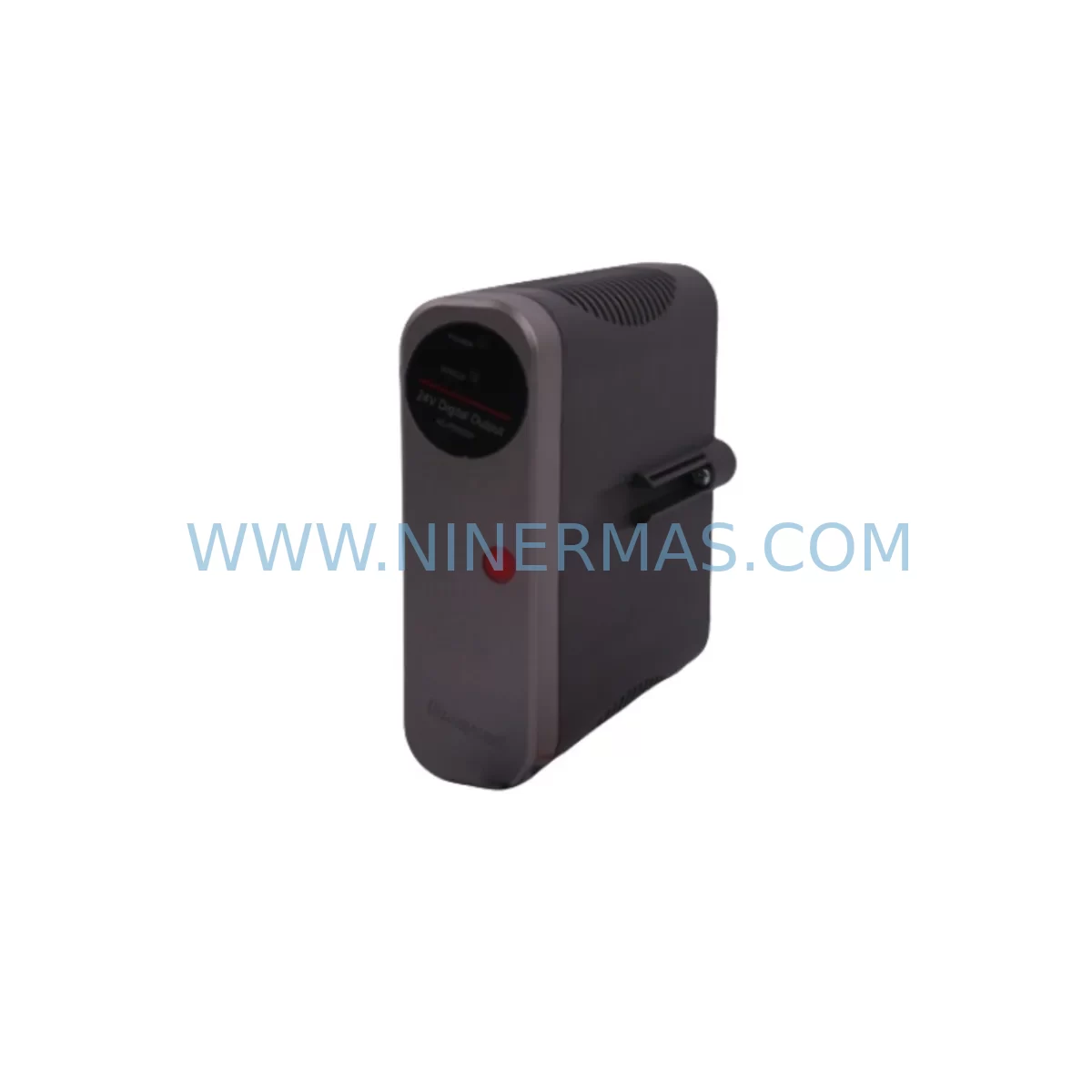

Honeywell FC-RUSIO-3224 Retrofit I/O Module for Legacy Systems

Honeywell FC-RUSIO-3224 Retrofit I/O Module for Legacy Systems

The Honeywell FC-RUSIO-3224 is a Remote Universal I/O module designed for the Honeywell Safety Manager platform, widely deployed in safety-critical automation environments across the petrochemical, oil and gas, power generation, and advanced manufacturing sectors. As legacy Safety Manager installations approach end-of-life or require capacity expansion, the FC-RUSIO-3224 serves as a direct retrofit-compatible replacement for discontinued I/O modules, enabling engineers to extend system service life without replacing the entire safety instrumented system (SIS). This module supports 32 universal I/O channels, offering flexible signal configuration for analog inputs, digital inputs, and digital outputs within a single field-mountable unit.

For facilities managing aging Honeywell Safety Manager FS or SM series installations, the FC-RUSIO-3224 provides a validated upgrade path that preserves existing field wiring, cabinet layouts, and safety logic programs. Its compatibility with the Safety Manager backplane architecture means that replacement projects can be executed with minimal disruption to ongoing production, reducing the risk of unplanned downtime during critical process operations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the FC-RUSIO-3224 into an existing Safety Manager installation requires a structured pre-engineering review covering power budget, terminal wiring, backplane slot allocation, module addressing, and program compatibility. Engineers should begin by auditing the current power supply capacity. The FC-PSU-UNI2450U, a 24VDC universal power supply unit rated at 50W, is the standard companion power module for Safety Manager racks. Before adding or replacing I/O modules, confirm that the installed FC-PSU-UNI2450U or equivalent supply can support the additional load introduced by the FC-RUSIO-3224’s 32-channel configuration. In high-density cabinets, a second power supply may be required to maintain redundancy and meet SIL 2 or SIL 3 power availability requirements.

Terminal wiring adaptation is a critical step in any I/O module replacement. The FC-RUSIO-3224 uses a standard marshalling terminal block arrangement compatible with most existing Safety Manager field wiring harnesses. However, engineers must verify terminal pitch, wire gauge ratings, and shield grounding continuity before reconnecting field cables. For installations that previously used dedicated analog input modules such as the FC-TSAI-1620M or FC-SAI-1620M, the universal channel architecture of the FC-RUSIO-3224 requires software reconfiguration to define each channel’s signal type, range, and engineering unit scaling within the Safety Manager configuration tool.

Backplane slot assignment and module address configuration must be completed before powering the replacement module. The FC-RUSIO-3224 occupies a standard slot in the Safety Manager rack, and its logical address must match the address previously assigned to the removed module in the safety application program. Failure to align module addresses will result in diagnostic faults and may trigger a safety shutdown. Engineers should document the existing address map from the FC-QPP-0002 quad processor pack’s configuration database before beginning any hardware swap.

For installations that include communication-intensive subsystems, such as those using the FC-USI-0002 universal serial interface for Modbus or HART device integration, engineers must verify that the communication link between the FC-RUSIO-3224 and the FC-USI-0002 remains intact after the module swap. Similarly, if the installation uses the FC-BKM-0001 backplane keeper module for rack integrity monitoring, its status should be checked post-installation to confirm that the new I/O module is recognized correctly by the backplane management system.

Digital output modules such as the FC-SDO-0824 and digital input modules such as the FC-TSDI-16UNI may coexist in the same rack as the FC-RUSIO-3224. In mixed-module racks, engineers should verify that the total slot count does not exceed the rack’s maximum capacity and that the FC-TSGAS-1624 gas detection I/O modules, if present, are assigned to dedicated slots with appropriate signal isolation to prevent cross-channel interference. The TC-CCR014 programming cable is recommended for direct laptop-to-Safety Manager configuration access during commissioning, enabling engineers to upload the existing safety program, verify module recognition, and perform online diagnostics without interrupting the running process.

Downtime Control During System Migration

Minimizing planned downtime during an FC-RUSIO-3224 replacement requires a disciplined migration sequence that protects the original safety program logic, maintains field control continuity, and reduces the risk of inadvertent process trips. The recommended approach is to perform all pre-engineering, spare parts staging, and program backup activities during normal production, reserving the physical module swap for a scheduled maintenance window.

Before initiating the hardware replacement, engineers should export a full backup of the Safety Manager application program from the FC-QPP-0002 processor pack using the Safety Manager engineering workstation. This backup preserves all function block configurations, I/O assignments, cause-and-effect matrices, and SIL verification records. The backup should be stored on a secure, offline medium and verified for integrity before the maintenance window begins.

During the maintenance window, the affected I/O module should be placed in bypass mode within the Safety Manager configuration to prevent spurious trips while the physical swap is performed. After installing the FC-RUSIO-3224, engineers should perform a loop check on all 32 channels before releasing the bypass, confirming that each field device is correctly wired, addressed, and responding within its configured engineering range. HMI screens connected to the Safety Manager should be reviewed to confirm that all process variable displays, alarm setpoints, and interlock status indicators are correctly mapped to the new module’s channel assignments.

Post-commissioning, a factory acceptance test (FAT) record and site acceptance test (SAT) checklist should be completed and archived as part of the installation’s safety case documentation. NINERMAS provides pre-shipment testing for all FC-RUSIO-3224 units, including functional verification of all 32 I/O channels, power-on self-test confirmation, and communication link validation, reducing the risk of infant mortality failures during commissioning. All units are covered by a 12-month warranty from the date of shipment, with reserved inventory available to support emergency replacement requirements and long-term spare parts programs.

Retrofit Support FAQ

Q1: Is the FC-RUSIO-3224 a direct drop-in replacement for legacy Honeywell Safety Manager I/O modules?
The FC-RUSIO-3224 is compatible with the Safety Manager SM and FS series backplane architecture and occupies a standard rack slot. However, engineers must verify module address assignment, power supply capacity, and software channel configuration before completing the replacement. Pre-shipment testing is performed on all units to confirm functional readiness prior to delivery.

Q2: What wiring changes are required when replacing a fixed-type I/O module with the FC-RUSIO-3224?
The FC-RUSIO-3224 uses a universal terminal block arrangement compatible with most existing Safety Manager field wiring. If replacing a dedicated analog or digital module, engineers must reconfigure each channel’s signal type in the Safety Manager engineering tool. Terminal pitch and wire gauge should be verified against the FC-RUSIO-3224 installation manual before reconnecting field cables.

Q3: How is module addressing handled during the replacement process?
Module addresses are assigned via DIP switch settings on the FC-RUSIO-3224 and must match the address previously configured in the safety application program stored on the FC-QPP-0002 processor pack. Engineers should document the existing address map before removing the legacy module and verify address recognition using the Safety Manager diagnostic interface after installation.

Q4: What inventory and warranty support does NINERMAS provide for the FC-RUSIO-3224?
NINERMAS maintains reserved inventory of the FC-RUSIO-3224 to support both planned retrofit projects and emergency replacement requirements, with typical lead times significantly shorter than OEM channels for discontinued or long-lead components. All units are covered by a 12-month warranty from the date of shipment and undergo pre-shipment functional testing covering all 32 I/O channels, power-on diagnostics, and communication link verification.
