Honeywell FC-IOCHAS-0001S Retrofit I/O Chassis for Legacy Systems

Honeywell FC-IOCHAS-0001S Retrofit I/O Chassis: Seamless Legacy System Compatibility and Smooth Upgrade Path

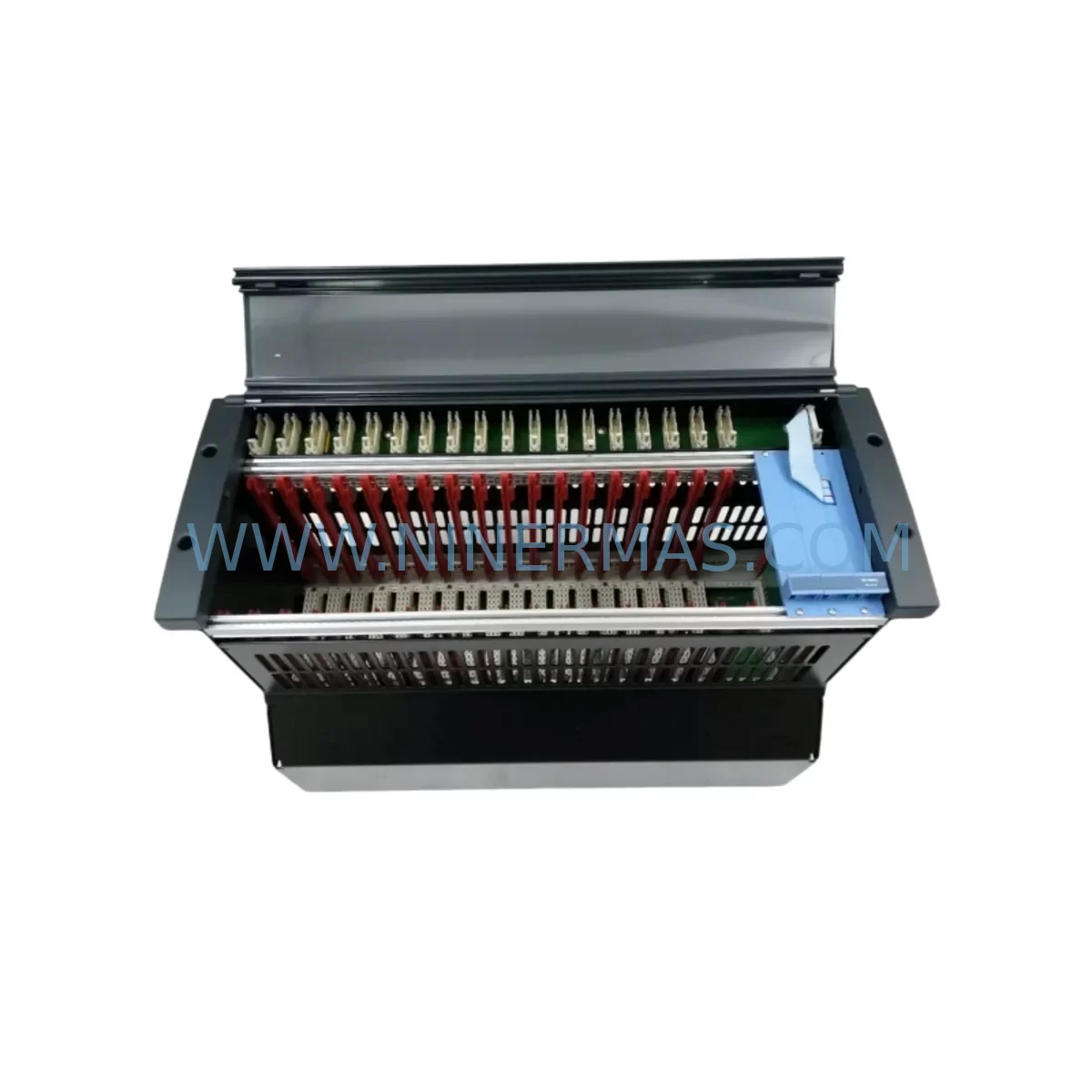

The Honeywell FC-IOCHAS-0001S is a ruggedized I/O chassis module engineered for demanding industrial environments and designed to serve as a direct retrofit-compatible replacement within Honeywell Experion PKS and legacy TDC/TPS distributed control system architectures. As manufacturing facilities worldwide face the challenge of sustaining aging automation infrastructure, the FC-IOCHAS-0001S provides a reliable, field-proven solution for engineers tasked with modernizing control cabinets, expanding I/O capacity, and extending the operational life of existing DCS platforms without requiring a full system overhaul.

This chassis module supports the mounting and backplane interconnection of multiple I/O modules within the Experion PKS FieldConnect series, providing the structural and electrical backbone for signal acquisition and control output in process automation, discrete manufacturing, and hybrid applications. Its ruggedized construction makes it particularly well-suited for harsh environments where vibration, temperature extremes, and airborne contaminants are present — conditions common in petrochemical plants, power generation facilities, and heavy manufacturing sites.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the FC-IOCHAS-0001S into an existing automation environment requires a structured approach that addresses hardware compatibility, wiring adaptation, software configuration, and commissioning validation. Engineers should begin by auditing the current control cabinet layout to confirm available rail space, power distribution capacity, and backplane bus type before committing to a chassis swap.

On the I/O module side, the FC-IOCHAS-0001S is designed to host Honeywell FieldConnect series modules including the FC-TSDI-1624 digital input module and the FC-TSDO-0824 digital output module, both of which are commonly retained during partial retrofits where field wiring is preserved. For analog signal chains, the FC-TSAI-1620M analog input module and FC-TSAO-0420 analog output module slot directly into the chassis and maintain 4–20 mA loop compatibility with existing field transmitters and control valves, eliminating the need to re-terminate field cables at the marshalling panel.

Power supply selection is critical. The FC-PSU-UNI2450U universal power supply module provides 24 VDC at sufficient current capacity to support a fully populated chassis. When replacing an older chassis that drew power from a shared bus, engineers must calculate the aggregate current draw of all installed I/O modules and confirm the new PSU rating exceeds this figure by at least 20% to allow for future expansion and inrush current during startup.

Communication architecture is another key consideration. Sites migrating from legacy Modbus RTU or proprietary TDC bus topologies to Honeywell’s Fault Tolerant Ethernet (FTE) network will need to integrate the FC-IOCHAS-0001S with a TC-CCR014 C300 Controller, which serves as the primary control execution node on the FTE backbone. In redundant configurations, a TC-IXR061 redundancy module can be added to ensure bumpless transfer between primary and backup controllers, protecting process continuity during planned maintenance or unexpected faults.

For sites where FOUNDATION Fieldbus H1 segments are already deployed, the chassis can be paired with compatible FF linking devices to bridge field instrument data into the Experion PKS historian and alarm management system without disrupting existing segment wiring. Signal isolators should be installed on any long cable runs or cross-panel connections to prevent ground loops and noise interference that could corrupt analog readings.

Wiring adaptation between the new chassis terminal blocks and existing field cables should be performed using the FC-CBL-KIT cable assembly kit where available, or via custom-fabricated patch harnesses that preserve the original wire labeling and color coding. Maintaining wire identification continuity is essential for future troubleshooting and reduces the risk of mis-termination during the cutover window.

HMI screen updates are often overlooked during chassis retrofits. When I/O module addresses change as a result of the new chassis slot assignments, all associated HMI faceplates, trend displays, and alarm setpoints must be reviewed and updated in the Experion PKS Station configuration. Failure to synchronize HMI tag references with the updated I/O map can result in spurious alarms or loss of display data immediately after cutover.

Downtime Control During System Migration

Minimizing production downtime during a chassis retrofit is a primary concern for maintenance teams operating in continuous process environments. The FC-IOCHAS-0001S supports a phased migration strategy in which individual I/O modules are transferred from the old chassis to the new one in sequence, with each module verified online before the next is moved. This approach allows the control system to remain partially operational throughout the migration window, reducing the risk of a full process shutdown.

Before beginning the physical swap, engineers should export a full backup of the Experion PKS controller database, including all control module configurations, I/O assignments, tuning parameters, and alarm limits. This backup serves as the recovery baseline if the cutover encounters unexpected issues and must be restored quickly. The TC-CCR014 C300 Controller supports online download of configuration changes, enabling engineers to pre-load the updated I/O map into the controller before the physical chassis swap begins, further compressing the live cutover window.

During the cutover itself, field devices should be placed in manual mode or bypassed at the DCS level to prevent spurious control actions while I/O modules are unpowered. Once the new chassis is installed, powered, and all modules are seated, a systematic loop check should be performed for each I/O point — confirming signal continuity, correct engineering unit scaling, and alarm threshold activation — before returning field devices to automatic control.

Post-cutover monitoring for a minimum of 24 hours is recommended, with maintenance personnel available to respond to any residual configuration discrepancies. NINERMAS provides pre-shipment functional testing for all FC-IOCHAS-0001S units, with test reports available upon request, reducing the likelihood of hardware-related issues during the commissioning phase.

Retrofit Support FAQ

Q1: Is the FC-IOCHAS-0001S a direct drop-in replacement for older Honeywell TDC 3000 or TPS chassis modules?
A: The FC-IOCHAS-0001S is designed for the Experion PKS FieldConnect platform and is not a pin-compatible drop-in for TDC 3000 or TPS chassis. However, it is widely used as the target chassis in TDC-to-Experion migration projects. Mechanical adapter brackets and bus interface modules are available to facilitate installation in legacy cabinet enclosures. NINERMAS can advise on the specific adapter components required based on your existing cabinet drawings.

Q2: What pre-shipment testing is performed on the FC-IOCHAS-0001S before delivery?
A: Each unit undergoes functional power-on testing, backplane bus continuity verification, and visual inspection for physical damage prior to shipment. A test report is available upon request. All units are supplied with a 12-month warranty covering manufacturing defects from the date of delivery.

Q3: Can the FC-IOCHAS-0001S support both digital and analog I/O modules simultaneously in the same chassis?
A: Yes. The chassis supports mixed I/O configurations, allowing digital input modules such as the FC-TSDI-1624, digital output modules such as the FC-TSDO-0824, analog input modules such as the FC-TSAI-1620M, and analog output modules such as the FC-TSAO-0420 to be installed in any combination within the available module slots, subject to power budget constraints.

Q4: How quickly can the FC-IOCHAS-0001S be sourced, and is stock available for urgent requirements?
A: NINERMAS maintains dedicated inventory of the FC-IOCHAS-0001S to support urgent spare parts and retrofit project requirements. Standard lead time for in-stock units is 3–7 business days for international shipment. For time-critical shutdowns or emergency replacements, expedited shipping options are available. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock availability and lead time for your specific requirement.
