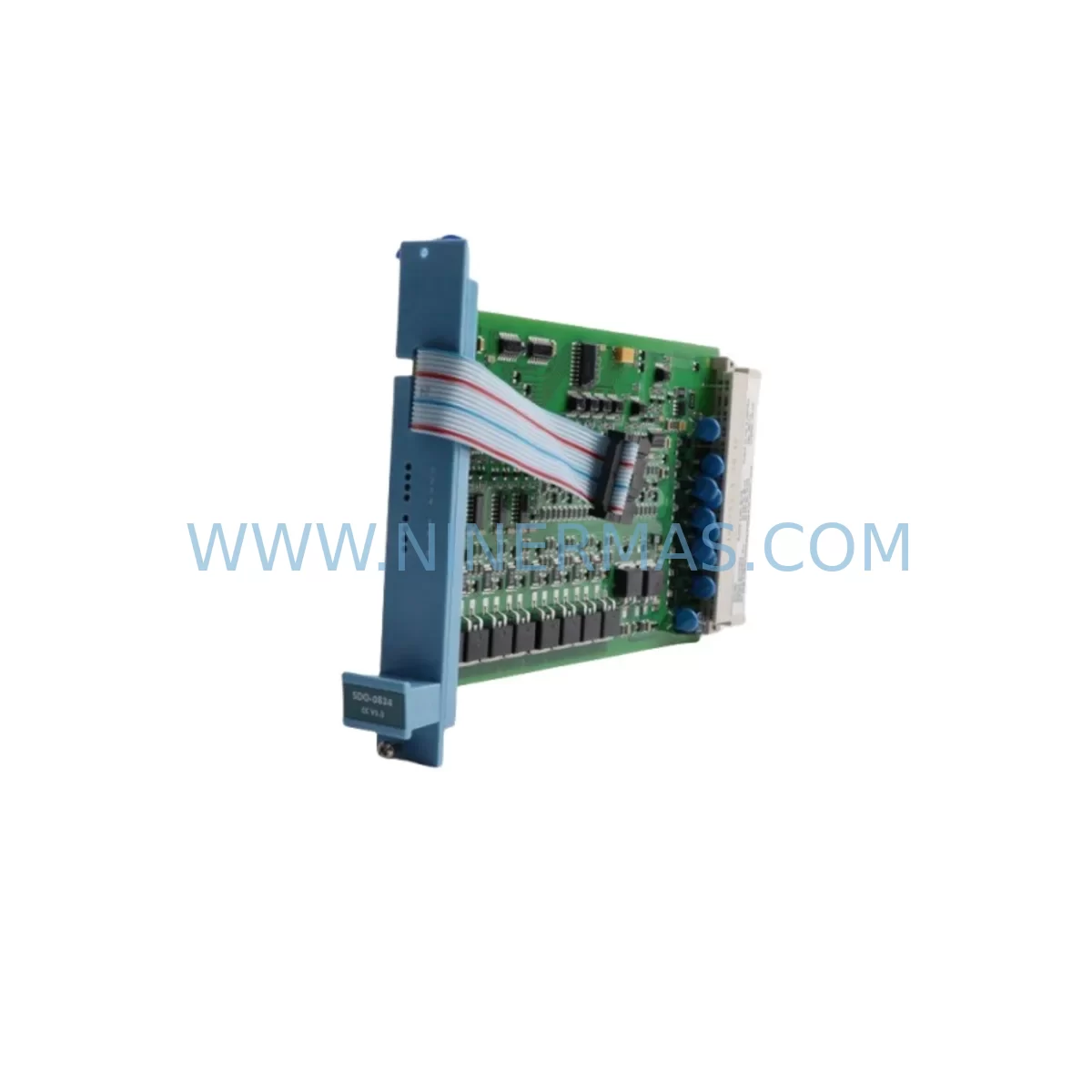

Honeywell FC-IO-0001 V1.0 Retrofit I/O Module Legacy Systems

Honeywell FC-IO-0001 V1.0 Retrofit I/O Module Legacy Systems

The Honeywell FC-IO-0001 V1.0 is an I/O Extension Module designed for the Honeywell FSC (Fail-Safe Controller) Safety Manager platform — one of the most widely deployed safety instrumented systems in the process automation and oil & gas industries. As legacy FSC installations approach end-of-life and original spare parts become increasingly scarce, the FC-IO-0001 V1.0 remains a critical component for facilities that must maintain SIL-rated safety loops, extend system service life, or execute a phased migration to modern safety platforms without full system replacement.

For maintenance engineers managing aging FSC cabinets, the FC-IO-0001 V1.0 provides the I/O expansion capacity needed to sustain existing field wiring, sensor inputs, and actuator outputs without re-engineering the entire control architecture. For procurement engineers, sourcing a verified original module with documented firmware version compatibility is essential to avoid costly commissioning failures or SIL certification re-validation.

NINERMAS supplies the FC-IO-0001 V1.0 as a tested, original Honeywell spare part with full 12-month warranty coverage, pre-shipment functional verification, and long-term inventory availability — supporting both emergency replacement and planned annual maintenance programs.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful FC-IO-0001 V1.0 retrofit begins well before the module arrives on site. Engineers must conduct a thorough pre-replacement audit of the FSC cabinet to confirm that the existing rack infrastructure, power budget, and field wiring are compatible with the replacement module.

Start with the FSC rack and backplane: confirm the target slot is physically available and that the rack backplane is undamaged. The FC-IO-0001 V1.0 draws power from the rack bus, so the installed Honeywell FC-PSU power supply module must have sufficient headroom to support the additional I/O load. If the rack is already near capacity, a supplementary power supply or load redistribution across multiple racks may be required before installation.

Next, review the Honeywell FSC CPU module (such as the FC-CPU-0001 or equivalent) firmware version. The FC-IO-0001 V1.0 is version-specific, and mismatched firmware between the CPU and I/O extension module can result in module non-recognition or SIL loop degradation. Always cross-reference the FSC system configuration file before ordering.

Field wiring termination is another critical checkpoint. The Honeywell FC-TB terminal base or equivalent marshalling terminal blocks must be inspected for corrosion, loose connections, and correct labelling before the new module is seated. In many legacy FSC installations, terminal blocks and field cables have been in service for 10–20 years and may require simultaneous replacement to ensure signal integrity.

For facilities running Honeywell Safety Manager or integrating FSC data into a DCS via Modbus RTU or HART communication, verify that the I/O extension does not conflict with existing communication module addressing. The Honeywell FC-COM communication module slot assignment and node address must remain unchanged during the I/O expansion to avoid disrupting upstream SCADA or historian data feeds.

Where the FSC system interfaces with a Honeywell HMIWeb or Experion PKS HMI, confirm that the I/O tag database reflects the new module’s channel assignments. Failure to update HMI faceplates and alarm configurations before commissioning can result in spurious alarms or missed safety events during the post-replacement functional test.

For installations where the FC-IO-0001 V1.0 is being added as a net-new expansion (rather than a like-for-like replacement), also assess whether signal isolators or Zener barriers are required for intrinsically safe field devices connected to the new I/O channels. In hazardous area applications, IS barriers must be rated and certified for the specific field instrument loop before the I/O module is commissioned.

Finally, ensure that spare fuses and surge protection devices for the FSC cabinet are stocked alongside the FC-IO-0001 V1.0. A complete cabinet audit — covering the rack, CPU, I/O modules, PSU, terminal bases, communication modules, and field wiring — is the most effective way to prevent secondary failures during and after the retrofit.

Downtime Control During System Migration

For safety-critical FSC installations, minimizing downtime during an I/O module replacement is not merely an operational preference — it is a safety and regulatory requirement. The following workflow is recommended to reduce exposure time and protect the integrity of the existing safety program.

Step 1 — Pre-replacement backup: Export the complete FSC configuration, including I/O mapping, cause-and-effect matrix, and SIL loop documentation, using the Honeywell FSC programming tool (Safety Builder or equivalent). Store the backup on an isolated engineering workstation before any hardware is touched.

Step 2 — Bypass and inhibit management: Coordinate with the process safety team to apply appropriate inhibits or bypasses on the affected safety loops before the module is removed. Document all bypasses in the permit-to-work system and set a defined time window for the replacement activity.

Step 3 — Module swap: Power down the affected rack slot (if hot-swap is not supported by the installed FSC version), remove the faulty FC-IO-0001 V1.0, seat the replacement module, and restore rack power. Confirm module LED status indicators show normal operation before proceeding.

Step 4 — Functional verification: Perform a channel-by-channel I/O loop check against the field wiring schedule. Confirm that all DI, DO, AI, and AO channels respond correctly before releasing bypasses. Update the maintenance log and SIL proof test record.

Step 5 — Bypass release and return to service: Remove all inhibits in the correct sequence, confirm HMI alarm status is normal, and obtain sign-off from the process safety engineer before returning the system to automatic mode.

For facilities planning a broader FSC-to-Safety Manager migration, the FC-IO-0001 V1.0 can serve as a bridge component — maintaining existing field wiring and I/O infrastructure while the CPU and communication layers are progressively upgraded. This phased approach significantly reduces the scope of any single maintenance window and allows the safety program to be validated incrementally rather than in a single high-risk cutover.

Retrofit Support FAQ

Q1: Is the FC-IO-0001 V1.0 a direct replacement for all FC-IO variants in the FSC platform?
The FC-IO-0001 V1.0 is a version-specific module. While it is physically compatible with standard FSC rack slots, firmware version alignment with the installed FSC CPU is mandatory. Customers should provide their FSC system configuration version and CPU firmware level when ordering to allow NINERMAS to confirm compatibility before shipment.

Q2: What pre-shipment testing is performed on the FC-IO-0001 V1.0?
Each FC-IO-0001 V1.0 unit supplied by NINERMAS undergoes functional verification prior to dispatch, including power-on self-test and I/O channel continuity checks. A test report is available upon request. The module is covered by a 12-month warranty from the date of shipment against manufacturing defects and functional failure.

Q3: Can the FC-IO-0001 V1.0 be used in a net-new I/O expansion rather than a like-for-like replacement?
Yes, provided the FSC rack has available slots and the installed PSU has sufficient power headroom. Customers must also confirm that the FSC CPU configuration supports the additional I/O module address and that the field wiring and signal conditioning (IS barriers, isolators) are correctly specified for the new channels.

Q4: What is NINERMAS’s long-term supply commitment for the FC-IO-0001 V1.0?
NINERMAS maintains dedicated inventory of the FC-IO-0001 V1.0 to support both emergency replacement and planned annual maintenance programs. For customers with multi-site FSC installations or long-term maintenance contracts, we offer reserved stock arrangements and priority dispatch. Contact sale@ninermas.com to discuss volume pricing and supply agreements.
