Honeywell CC-TDIL51 51307083-175 Safety-Reliable Digital Input Module

Honeywell CC-TDIL51 51307083-175 Safety-Reliable Digital Input Module for Critical Control Sites

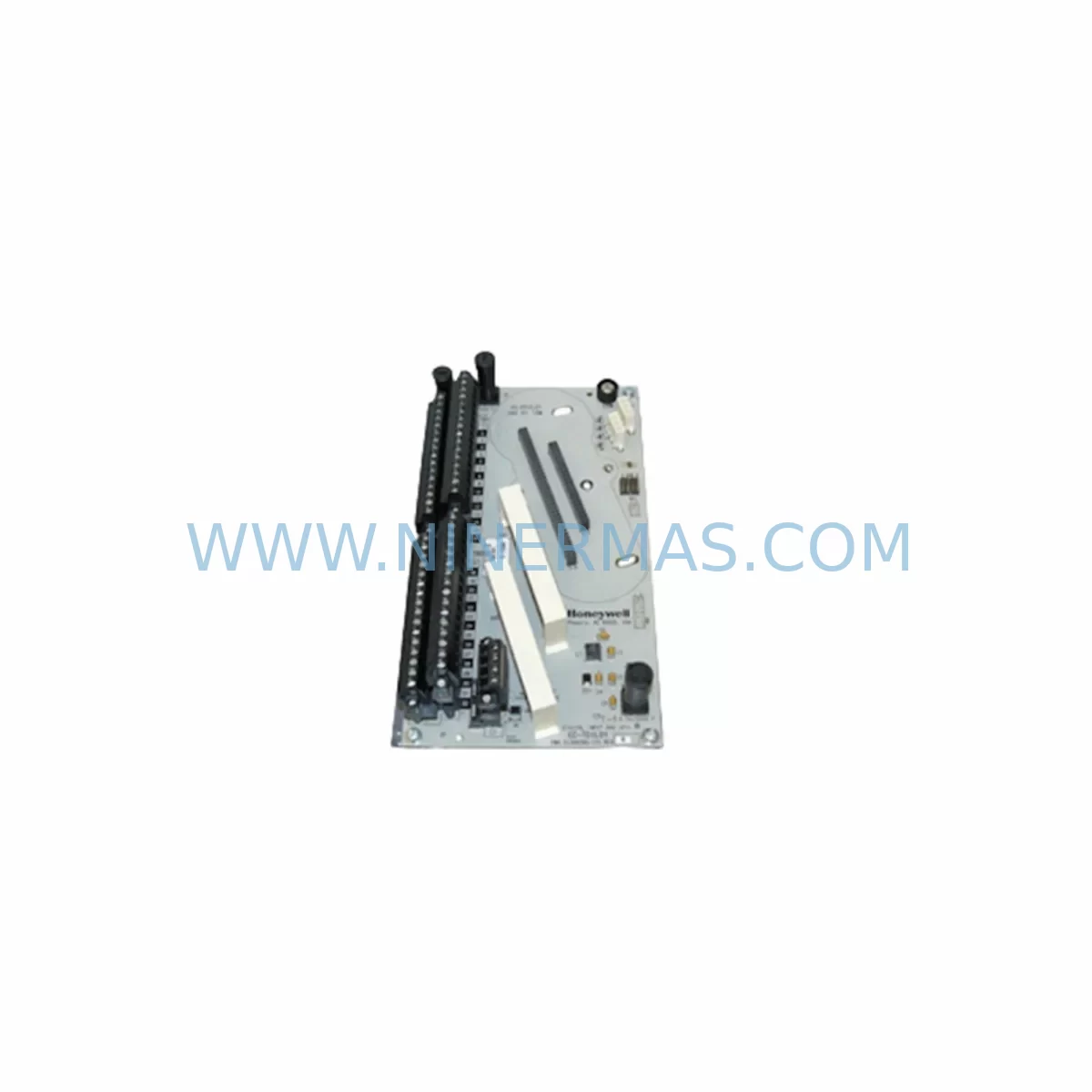

The Honeywell CC-TDIL51 (Part No. 51307083-175) is a ruggedized digital input module engineered for deployment in the most demanding industrial control environments. Designed as a core I/O component within the Honeywell Experion PKS C300 controller architecture, this module delivers deterministic signal acquisition, high noise immunity, and robust field isolation — making it an essential building block for safety-critical process control loops in continuous manufacturing, petrochemical refining, power generation, and heavy industrial operations.

In environments where electromagnetic interference, voltage transients, ground loops, and signal drift can compromise control integrity, the CC-TDIL51 provides the electrical isolation and input conditioning necessary to maintain reliable digital state detection. Its ruggedized design addresses the real-world challenges of high-vibration machinery rooms, dusty and humid field cabinets, and high-temperature process areas where standard I/O modules frequently fail prematurely.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Unplanned digital input failures in a process control cabinet can cascade rapidly — a single misread field signal can trigger spurious shutdowns, missed interlock activations, or dangerous process deviations. The CC-TDIL51 addresses this risk through optical isolation that prevents ground-loop-induced false triggering, and through its deterministic scan cycle that ensures the C300 controller receives accurate, time-stamped digital state data on every scan.

In a well-engineered Experion PKS control cabinet, the CC-TDIL51 operates alongside the CC-TCNT01 (51307087-175) controller node module and the CC-PAIH01 (51307095-175) analog input module, forming a tightly integrated I/O subsystem. Power integrity for the entire I/O chassis is maintained by the CC-PWR01 (51307088-175) power supply module, which provides regulated 24 VDC to all connected I/O modules and protects against input voltage surges and brownouts that could otherwise corrupt digital input states.

For installations in areas with significant electromagnetic interference — such as motor control centers, variable frequency drive (VFD) panels, or high-current bus zones — the CC-TDIL51’s high EMI immunity is complemented by proper cabinet shielding and the use of CC-SCMB02 (51307077-175) marshalling backplane assemblies that physically separate field wiring from controller backplane signals. The CC-TAIX11 (51307096-175) analog input module and CC-TDOB01 (51307084-175) digital output module are commonly co-located in the same I/O chassis, and their reliable operation depends on the same stable power and communication infrastructure that the CC-TDIL51 relies upon.

In safety instrumented system (SIS) adjacent architectures, the CC-TDIL51 is frequently used to monitor the status of emergency shutdown (ESD) valve position switches, motor run/stop feedback signals, and high-level switch inputs from field transmitters. These signals feed directly into the C300 controller’s interlock logic, where any input dropout or signal bounce can result in a spurious trip. The module’s optical isolation and input filtering significantly reduce the risk of nuisance trips caused by field wiring noise or contact bounce from mechanical limit switches.

For communication redundancy, the Experion PKS architecture supports Fault Tolerant Ethernet (FTE) through the CC-PCNT01 (51307089-175) FTE interface module, ensuring that even in the event of a primary network path failure, the CC-TDIL51’s digital input data continues to reach the controller without interruption. This is particularly critical in continuous process plants where a communication dropout can trigger a full unit shutdown.

Critical Industrial Safety Applications

Petrochemical and Refining: In crude distillation units, hydrotreaters, and catalytic cracking plants, the CC-TDIL51 monitors critical valve position feedback, pump run status, and emergency shutdown system (ESD) input signals. Its high noise immunity ensures reliable operation in environments saturated with RF interference from wireless devices, heat tracing controllers, and high-voltage switchgear.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, digital input modules must reliably capture turbine trip signals, breaker status, and generator protection relay outputs. The CC-TDIL51’s deterministic scan and optical isolation make it suitable for these high-stakes monitoring applications where a missed input can result in equipment damage or grid instability.

Mining and Mineral Processing: Conveyor belt interlocks, crusher protection circuits, and ventilation fan status monitoring in underground and surface mining operations demand I/O modules that can withstand heavy vibration, coal dust ingress, and wide temperature swings. The CC-TDIL51’s ruggedized construction and sealed module housing address these environmental stressors directly.

Water and Wastewater Treatment: Pump station control panels, chemical dosing systems, and SCADA-integrated treatment plant controllers rely on accurate digital input acquisition for level switch monitoring, valve position feedback, and alarm input processing. The CC-TDIL51 provides the signal integrity needed for reliable operation in high-humidity, chemically aggressive environments.

Metallurgy and Steel Production: Electric arc furnace control systems, rolling mill automation, and continuous casting lines operate in extreme thermal and electromagnetic environments. The CC-TDIL51’s ability to maintain accurate digital input acquisition under these conditions supports safe furnace interlock operation and prevents costly process interruptions.

Port and Marine Automation: Ship-to-shore crane control systems, bulk material handling terminals, and vessel management systems increasingly use Experion PKS-based automation. The CC-TDIL51 provides reliable digital input acquisition for hoist limit switches, anti-collision systems, and emergency stop circuits in these safety-critical maritime applications.
