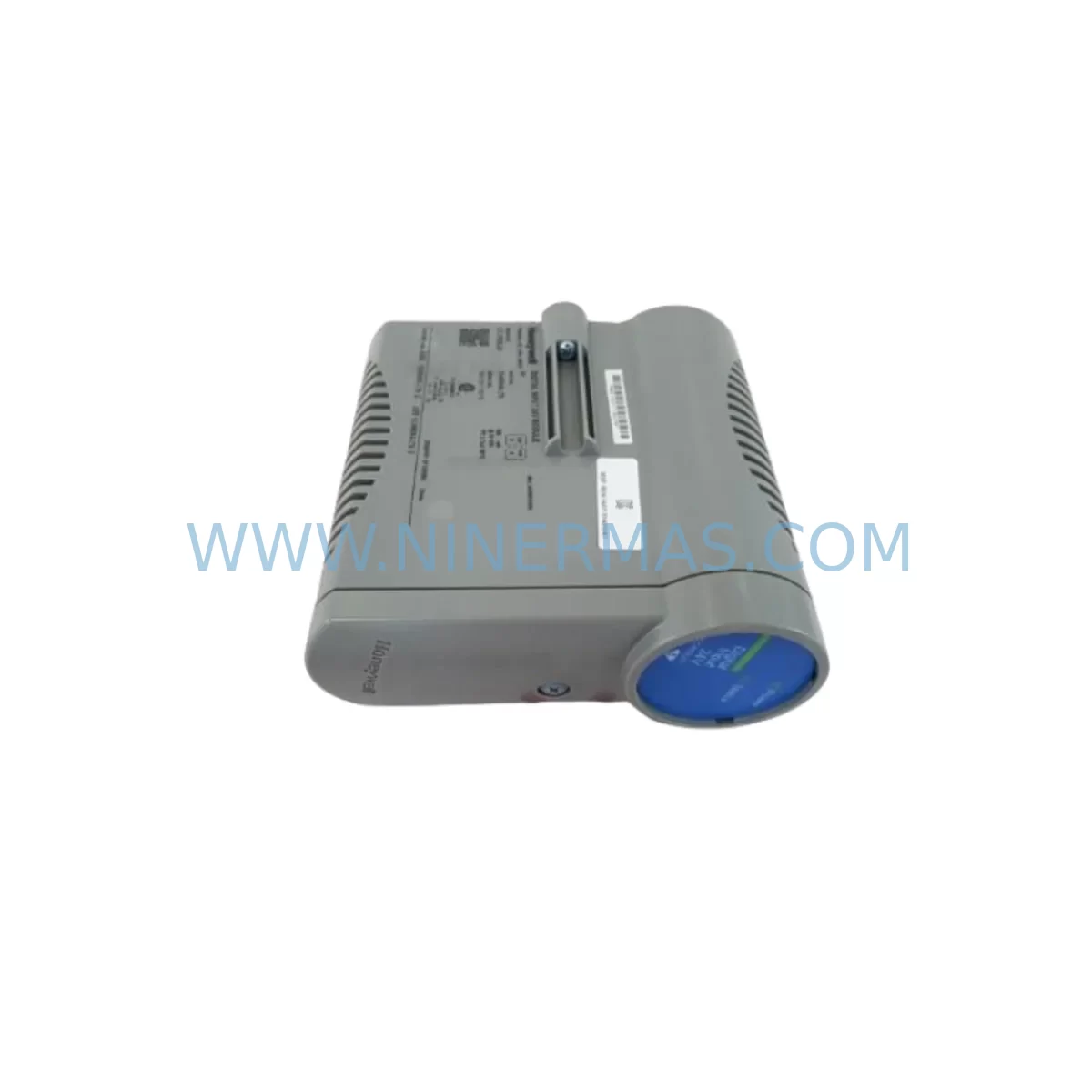

The Honeywell CC-PAON01 (Part No. 51410070-176) is a Process Analog Output module designed for use within the Experion PKS Series C distributed control system platform. As a critical field I/O component, this module provides precision analog output signals to final control elements such as control valves, variable frequency drives, and positioners across continuous process industries including oil & gas, refining, chemical processing, and power generation.

For maintenance engineers managing aging DCS infrastructure, the CC-PAON01 represents a high-priority spare part. Unplanned failure of an analog output module can immediately impact loop control, causing process deviations, safety interlock activations, or unplanned shutdowns. Maintaining a verified, tested spare on the shelf is the most effective strategy to minimize mean time to repair (MTTR) and protect production continuity.

NINERMAS supplies the CC-PAON01 51410070-176 as a service-ready spare, fully tested prior to shipment, with a 12-month warranty and long-term inventory support for facilities committed to extended Experion PKS Series C lifecycle management.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a facility running Honeywell Experion PKS Series C requires a holistic view of the I/O subsystem. The CC-PAON01 does not operate in isolation — it depends on a healthy surrounding infrastructure to deliver reliable analog output performance.

When scheduling a replacement or annual inspection involving the CC-PAON01, maintenance engineers should simultaneously verify the condition of the CC-PAIN01 analog input modules installed on adjacent carriers, as input/output pairs often serve the same process loop and a degraded input module can mask output faults. The CC-PDOB01 digital output module and CC-PDIL01 digital input module on the same I/O carrier should also be inspected for contact wear and channel integrity.

Power integrity is fundamental. The CC-PWR01 Series C I/O power supply module should be checked for output voltage stability and ripple, as marginal power delivery directly affects DAC accuracy on the CC-PAON01. If the cabinet houses a redundant power configuration, both the primary and secondary CC-PWR01 units should be load-tested during the maintenance window.

The C300 Controller backplane connection and its associated CC-TCF901 termination carrier should be inspected for corrosion, loose seating, and backplane connector wear. A poorly seated carrier can cause intermittent channel faults that are difficult to diagnose under live process conditions. The CC-SCMB02 system cabinet module bus extender, where installed, should also be verified for signal integrity.

Field wiring terminations at the CC-TAIX11 or equivalent termination assembly should be checked for terminal torque, wire insulation condition, and shield grounding continuity. In high-vibration environments, terminal loosening is a common root cause of analog output drift. Signal isolators installed between the CC-PAON01 output and field devices should be tested for loop resistance and isolation integrity — degraded isolators can introduce offset errors that appear as module faults.

For facilities using Experion PKS HMI Station or Experion Operator Station displays, confirm that the replacement module’s channel assignments are correctly mapped in the control database before returning loops to automatic. A mismatch between physical channel numbering and the HMI faceplate can result in incorrect valve positioning during the post-maintenance startup sequence.

Procurement engineers should note that the CC-PAON01 51410070-176 is a long-lead item in the open market. NINERMAS maintains dedicated stock to support emergency replacement orders with short lead times, reducing the risk of extended production outages caused by spare parts unavailability.

Site Replacement Workflow

Replacing the CC-PAON01 in a live Experion PKS Series C system requires careful sequencing to protect process integrity and minimize downtime. The following workflow reflects best practices for field replacement under a controlled maintenance window:

1. Pre-Replacement Preparation: Obtain a verified replacement CC-PAON01 51410070-176 from stock. Confirm the firmware revision matches the installed base — check the Experion PKS system software version and cross-reference the module compatibility matrix in the Honeywell hardware documentation. Download and archive the current C300 controller configuration and I/O assignment database before beginning physical work.

2. Loop Isolation: Place all analog output loops served by the module into manual mode at the Experion Operator Station. Notify the process operations team and confirm that all associated final control elements (valves, drives) are in a safe manual position. For safety-instrumented loops, coordinate with the SIS engineer before proceeding.

3. Module Removal: De-energize the I/O carrier slot if hot-swap is not supported for this module revision. Disconnect field wiring at the termination assembly. Remove the CC-PAON01 by releasing the carrier latch and sliding the module out. Inspect the backplane connector for damage or contamination.

4. Replacement Installation: Insert the new CC-PAON01 into the carrier slot. Reconnect field wiring, verifying terminal assignments against the loop drawing. Re-energize the carrier and confirm the module status LED indicates healthy operation in the Experion system display.

5. Loop Verification and Return to Auto: Perform a channel-by-channel output verification using a calibrated loop calibrator. Confirm that each output channel drives the correct mA signal to the field device. Return loops to automatic control sequentially, monitoring process response at the HMI. Document the replacement in the site maintenance management system (CMMS).

This structured approach typically allows a single CC-PAON01 replacement to be completed within a 2–4 hour maintenance window, minimizing production impact and ensuring full system restoration before the end of the shift.

Spare Parts Support FAQ

Q1: Is the CC-PAON01 51410070-176 compatible with all Experion PKS Series C revisions?
The CC-PAON01 is designed for the Experion PKS Series C I/O subsystem and is compatible with Experion PKS R400 and later software releases. For installations running earlier software versions, a firmware compatibility check is recommended before installation. NINERMAS technical support can assist with compatibility verification based on your system’s software revision.

Q2: How is the CC-PAON01 tested before shipment?
Every CC-PAON01 unit supplied by NINERMAS undergoes functional testing prior to shipment, including channel output verification across the full 4–20 mA range, power consumption check, and backplane communication test. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: What is the typical lead time for CC-PAON01 51410070-176?
NINERMAS maintains dedicated inventory of the CC-PAON01 to support both planned maintenance and emergency replacement requirements. Standard orders are typically dispatched within 1–3 business days. For urgent requirements, expedited shipping options are available. Contact sale@ninermas.com or call +0086 187 5021 5667 for real-time stock confirmation.

Q4: Can NINERMAS support long-term supply agreements for CC-PAON01 and related Experion PKS Series C spare parts?
Yes. NINERMAS offers long-term supply agreements for critical DCS spare parts, including the CC-PAON01 and associated Series C I/O modules. These agreements provide price stability, guaranteed stock reservation, and priority dispatch for facilities committed to extended Experion PKS lifecycle support. Contact our sales team to discuss a customized spare parts program for your site.
