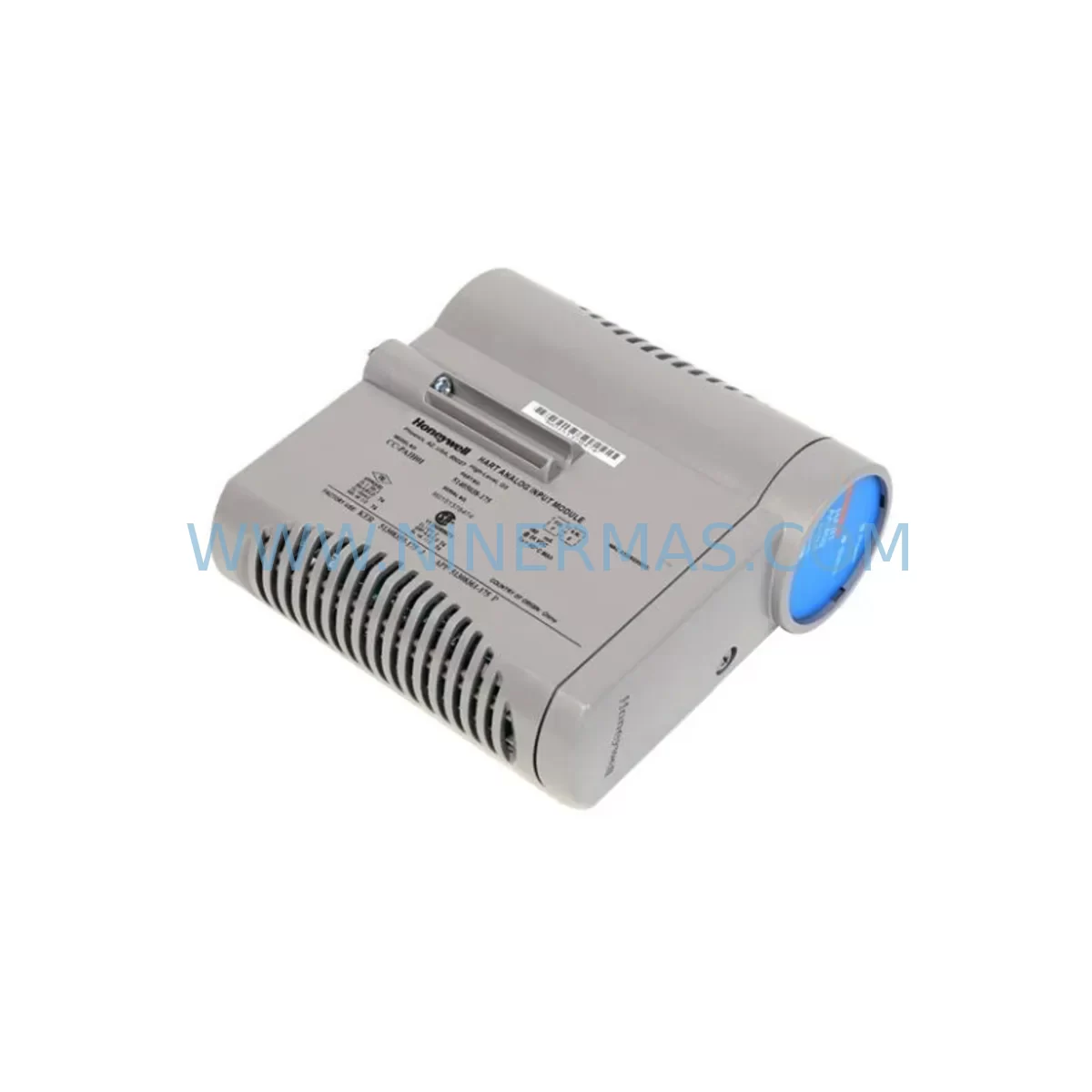

The Honeywell CC-PAIX02 is a ruggedized high-level analog input module designed for the Experion PKS C300 distributed control system. In process industries where continuous uptime is non-negotiable — refining, petrochemical, power generation, and advanced manufacturing — the CC-PAIX02 serves as a critical signal acquisition node, converting field-level analog signals into reliable digital data for the C300 controller. When this module fails or degrades, the consequences extend far beyond a single I/O point: loop integrity is compromised, process visibility is lost, and unplanned downtime begins accumulating costs within minutes.

NINERMAS maintains service-ready stock of the CC-PAIX02 to support maintenance engineers and procurement teams who cannot afford extended lead times on end-of-life or hard-to-source Honeywell components. Every unit is sourced from verified supply channels, inspected against original Honeywell specifications, and tested prior to shipment. A 12-month warranty is standard on all CC-PAIX02 units supplied by NINERMAS, providing documented assurance for your maintenance records and procurement compliance requirements.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the CC-PAIX02 in an active Experion PKS cabinet is rarely an isolated task. Experienced maintenance engineers treat any analog input module swap as an opportunity to audit the surrounding electrical environment and confirm that adjacent components are not contributing to the fault condition or creating latent risks.

Begin with the C300 controller module (TC-CCR014) itself: verify firmware revision compatibility with the replacement CC-PAIX02 and confirm that the I/O Link bus is operating without communication errors. A degraded controller can cause repeated module faults that are incorrectly attributed to the input card. Next, inspect the C300 power supply module (TC-FPCXX2) — insufficient or noisy DC power is a leading cause of analog input drift and module resets. Measure rail voltage under load before installing the replacement unit.

The terminal assembly (CC-TAIX02) that mates with the CC-PAIX02 should be examined for corrosion, loose field wiring terminations, and insulation degradation. In humid or chemically aggressive environments, terminal assemblies often fail before the module itself, and installing a new CC-PAIX02 onto a compromised terminal assembly will reproduce the original fault within weeks. Similarly, check the I/O Link backplane (51309276-150) for physical damage, bent connector pins, and secure seating of all adjacent modules.

If the CC-PAIX02 shares a cabinet with digital I/O, inspect the CC-PDIL01 digital input module and CC-PDOB01 digital output module for status LED anomalies — these can indicate common-mode noise or ground loop issues that affect the entire I/O chassis. For sites running redundant I/O configurations, the TC-IXR061 redundancy module should be tested to confirm automatic switchover is functioning correctly before returning the loop to service.

Analog output modules such as the CC-PAOH02 in the same control loop should be verified for calibration drift, particularly if the process has been running in manual mode during the fault period. Where pulse or frequency inputs are present in the same cabinet, the CC-PCNT01 counter/pulse input module should be checked for signal integrity. Finally, confirm that any signal isolators or barriers installed between field instruments and the CC-PAIX02 terminal assembly are within calibration and have not been damaged by the fault event that triggered the module replacement.

Maintaining a minimum of one spare CC-PAIX02 — alongside spares for the CC-PAIH02 and CC-PAIH01 variants — is recommended for any site operating more than four C300 I/O cabinets. The CC-PAIX02 is an end-of-life component in Honeywell’s current catalog, and spot-market availability is increasingly constrained. Procurement teams should plan for long-term stock agreements to avoid emergency sourcing at premium cost during unplanned outages.

Site Replacement Workflow

Step 1 — Isolation and documentation. Before removing the CC-PAIX02, capture the current module configuration from Experion Control Builder. Export the I/O assignment, channel scaling parameters, and alarm limits. This data is essential for verifying that the replacement module is configured identically and eliminates the risk of process upsets during recommissioning.

Step 2 — Safe removal. Place the affected C300 I/O Link segment in maintenance mode via the Experion operator station. Remove the CC-PAIX02 by releasing the module latch and sliding it clear of the backplane. Inspect the backplane connector for contamination or damage before inserting the replacement unit.

Step 3 — Module installation and configuration download. Insert the service-ready CC-PAIX02 supplied by NINERMAS, confirm the module status LED sequence matches the expected startup pattern, and download the saved configuration from Control Builder. Verify channel-by-channel signal readings against known field instrument values before returning the segment to automatic control.

Step 4 — Loop verification and handover. Perform a live loop check on all eight input channels. Confirm that process values displayed at the Experion HMI match field instrument readings within the specified accuracy band. Document the replacement in your CMMS with the NINERMAS serial number, warranty start date, and pre-shipment test certificate for traceability.

This workflow applies equally when replacing the CC-PAIX02 with a compatible CC-PAIH02 or CC-PAIH01 variant. Confirm firmware compatibility with your C300 controller revision before substituting across sub-variants, as channel count and signal range specifications differ between models.

Spare Parts Support FAQ

Q1: Is the CC-PAIX02 supplied by NINERMAS an original Honeywell component?
Yes. NINERMAS sources CC-PAIX02 units from verified supply channels and does not supply remanufactured or counterfeit components. Each unit is inspected against Honeywell factory specifications and tested for functional performance prior to shipment. A pre-shipment test report is available upon request.

Q2: What is the warranty coverage and how is it applied?
All CC-PAIX02 units supplied by NINERMAS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental conditions outside the module’s rated specifications. Warranty claims are processed directly through NINERMAS — contact sale@ninermas.com with your order reference and fault description.

Q3: Can NINERMAS support long-term supply agreements for the CC-PAIX02?
Yes. Given that the CC-PAIX02 is an end-of-life Honeywell component with constrained market availability, NINERMAS offers reserved inventory agreements for maintenance teams and procurement departments that require guaranteed access to this module over a 12–36 month horizon. Contact our team to discuss minimum quantity commitments and lead time guarantees tailored to your site’s maintenance schedule.

Q4: How do I confirm compatibility between the CC-PAIX02 and my existing C300 system revision?
Compatibility is determined by your Experion PKS software revision and C300 controller firmware version. The CC-PAIX02 is supported from Experion R310 onwards. If you are operating an earlier revision or require cross-compatibility verification with CC-PAIH02 or CC-PAIH01 variants, provide your system revision details when placing your enquiry and NINERMAS will confirm compatibility before shipment.
