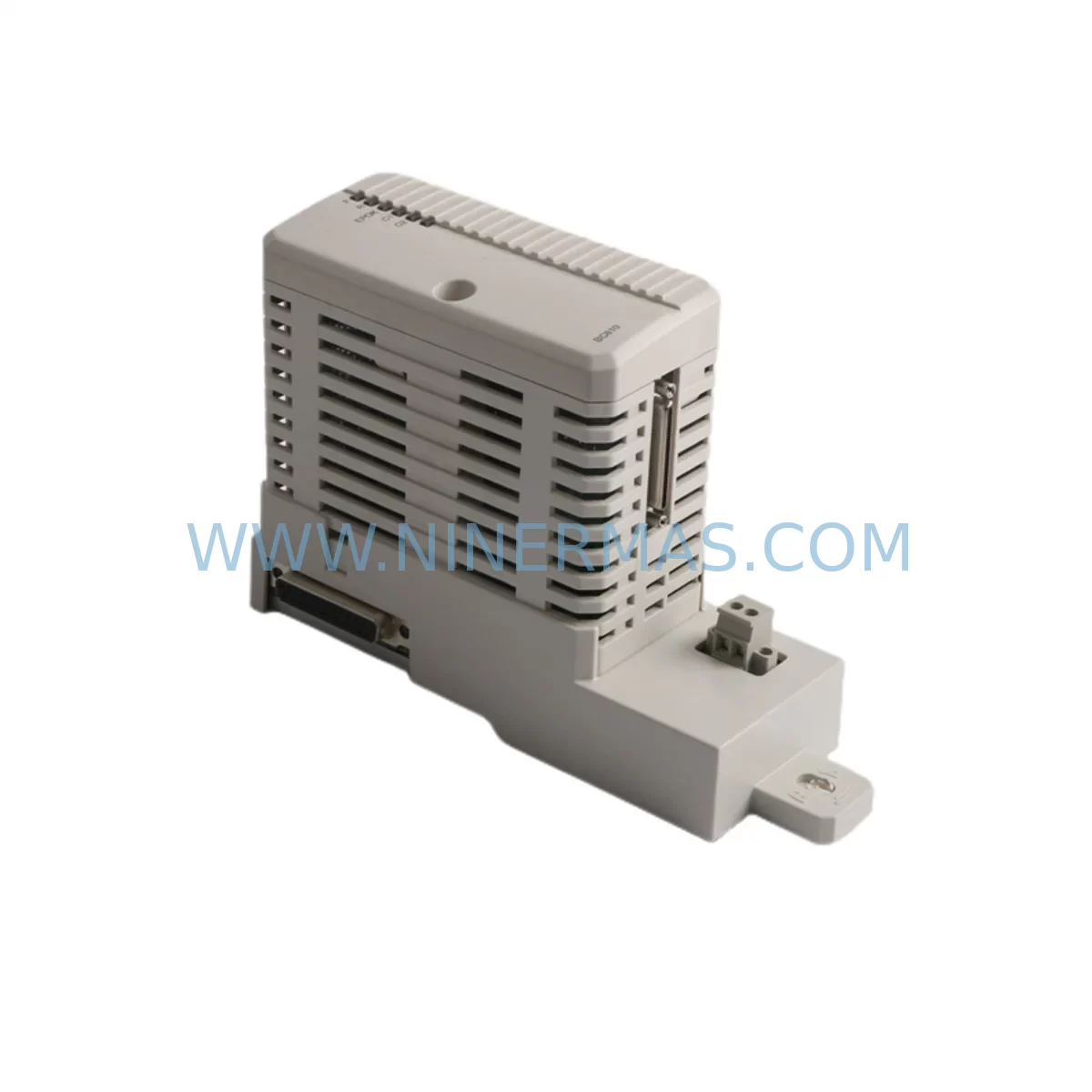

The ABB BC810K01 (part number 3BSE031154R1) is a Communication Interface module designed for the ABB AC800M controller platform — one of the most widely deployed process automation controllers in the oil & gas, power generation, pulp & paper, and chemical industries. As legacy AC800M installations age and original modules reach end-of-life, the BC810K01 remains a critical retrofit component for engineers tasked with maintaining system continuity without a full DCS migration. NINERMAS maintains verified stock of the BC810K01 3BSE031154R1, fully tested before shipment and backed by a 12-month warranty.

The BC810K01 serves as the communication backbone between the AC800M controller and field-level I/O networks, supporting PROFIBUS DP and other industrial fieldbus protocols. In retrofit scenarios, this module allows maintenance teams to replace failed or degraded communication links without modifying the existing controller logic, HMI screens, or field wiring — dramatically reducing downtime and commissioning risk. Whether you are replacing a failed unit on an operating line or building a strategic spare parts inventory for aging AC800M cabinets, the BC810K01 3BSE031154R1 is a direct-fit, plug-compatible solution.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the BC810K01 3BSE031154R1 in an active AC800M system requires a structured approach to avoid disrupting the PROFIBUS network and the field devices connected to it. Before pulling the module, maintenance engineers should document the current PROFIBUS DP node addresses, verify the network topology in ABB Control Builder M, and confirm that the replacement module carries the same firmware revision as the failed unit. In most installations, the BC810K01 occupies a dedicated slot in the PM861 or PM864 controller rack — confirming the slot address and backplane connector condition is an essential pre-replacement step.

During retrofit planning, it is equally important to inspect the surrounding modules in the same cabinet. The TB820V2 PROFIBUS DP optical modem, commonly used alongside the BC810K01 to extend fieldbus reach in large plants, should be checked for signal integrity and connector wear. The S800 I/O modules — including AI810 analog input, AO810 analog output, DI810 digital input, and DO810 digital output — connected downstream on the PROFIBUS segment should be verified for correct node addressing after the CI module is replaced. If the plant uses redundant communication paths, the BC810K01 redundancy partner module must also be inspected and its firmware version confirmed to match.

Power distribution within the control cabinet is another critical checkpoint. The SD821 or SD822 power supply modules feeding the AC800M rack should be load-tested to confirm they can sustain the full rack current draw after the new BC810K01 is installed. Terminal blocks and cable shields on the PROFIBUS trunk cable — typically a 9-pin D-sub connector at the module end — should be inspected for corrosion or loose termination. If the system uses an AF100 fieldbus or INSUM communication network in parallel, those communication links should be verified independently to ensure the PROFIBUS replacement does not affect adjacent network segments.

For plants running ABB 800xA as the supervisory layer, the OPC server configuration and Control Builder M project should be backed up before the swap. After installing the BC810K01 3BSE031154R1, engineers should perform a cold restart of the affected controller, monitor PROFIBUS diagnostic LEDs, and confirm all field device statuses are restored in the 800xA operator station before returning the line to production. NINERMAS recommends keeping at least one BC810K01 as a cold standby spare in any facility running more than two AC800M controllers on PROFIBUS networks.

Downtime Control During System Migration

One of the primary concerns when replacing a BC810K01 in a live production environment is minimizing the window during which the PROFIBUS network is offline. In most AC800M architectures, the controller continues to execute its application program in degraded mode during a communication module failure — outputs hold their last value or go to a safe state depending on the configured fault response. This means the physical replacement can often be performed during a planned short outage rather than a full production shutdown, provided the replacement module is pre-configured and tested before the maintenance window begins.

To further reduce downtime, NINERMAS recommends the following migration workflow: First, use Control Builder M to export the current hardware configuration and application program. Second, pre-configure the replacement BC810K01 offline using a spare PM861 or PM864 rack if available, verifying PROFIBUS address assignments match the production configuration. Third, during the maintenance window, swap the module, perform a warm restart, and monitor the PROFIBUS diagnostic interface for node recovery. Fourth, confirm all S800 I/O field values are reading correctly in the 800xA operator station before releasing the controller to automatic mode.

For systems where the BC810K01 is part of a redundant communication pair, the migration can be performed with zero production impact by switching to the redundant path, replacing the failed module, and then restoring redundancy — a procedure that typically takes less than 15 minutes with a pre-tested spare on hand. This is precisely why NINERMAS maintains ready-to-ship stock of the BC810K01 3BSE031154R1, with full pre-shipment functional testing and same-day dispatch capability for urgent maintenance requirements.

Retrofit Support FAQ

Q1: Is the BC810K01 3BSE031154R1 a direct replacement for all AC800M rack configurations?
Yes. The BC810K01 is designed for universal slot compatibility within the AC800M controller rack family, including configurations using PM861, PM864, and PM866 CPUs. No hardware modification is required. Module address and PROFIBUS parameters are configured entirely in software via Control Builder M, making it a true plug-and-play replacement for the failed original module.

Q2: How does NINERMAS verify the BC810K01 before shipment?
Every BC810K01 3BSE031154R1 unit supplied by NINERMAS undergoes a full functional test on an AC800M-compatible test rack prior to dispatch. This includes PROFIBUS communication verification, backplane interface check, and LED diagnostic confirmation. A test report is available upon request. All units are shipped with ESD-protective packaging and are covered by a 12-month warranty from the date of delivery.

Q3: Can the BC810K01 be used to migrate from an older Advant OCS or MOD 300 system to AC800M?
The BC810K01 is native to the AC800M platform and is not directly compatible with older Advant OCS or MOD 300 hardware. However, in migration projects where the AC800M is being introduced as the new controller platform, the BC810K01 can serve as the PROFIBUS master to retain existing PROFIBUS DP field devices — such as valve positioners, drives, and remote I/O stations — without rewiring, significantly reducing migration cost and risk.

Q4: What is NINERMAS’s lead time and long-term supply capability for the BC810K01 3BSE031154R1?
NINERMAS maintains standing inventory of the BC810K01 3BSE031154R1 and can typically ship within 1–3 business days for standard orders. For customers with planned annual maintenance schedules or multi-site AC800M installations, NINERMAS offers long-term supply agreements and reserved stock arrangements to ensure availability regardless of market conditions. Contact sale@ninermas.com to discuss volume pricing and supply planning.
