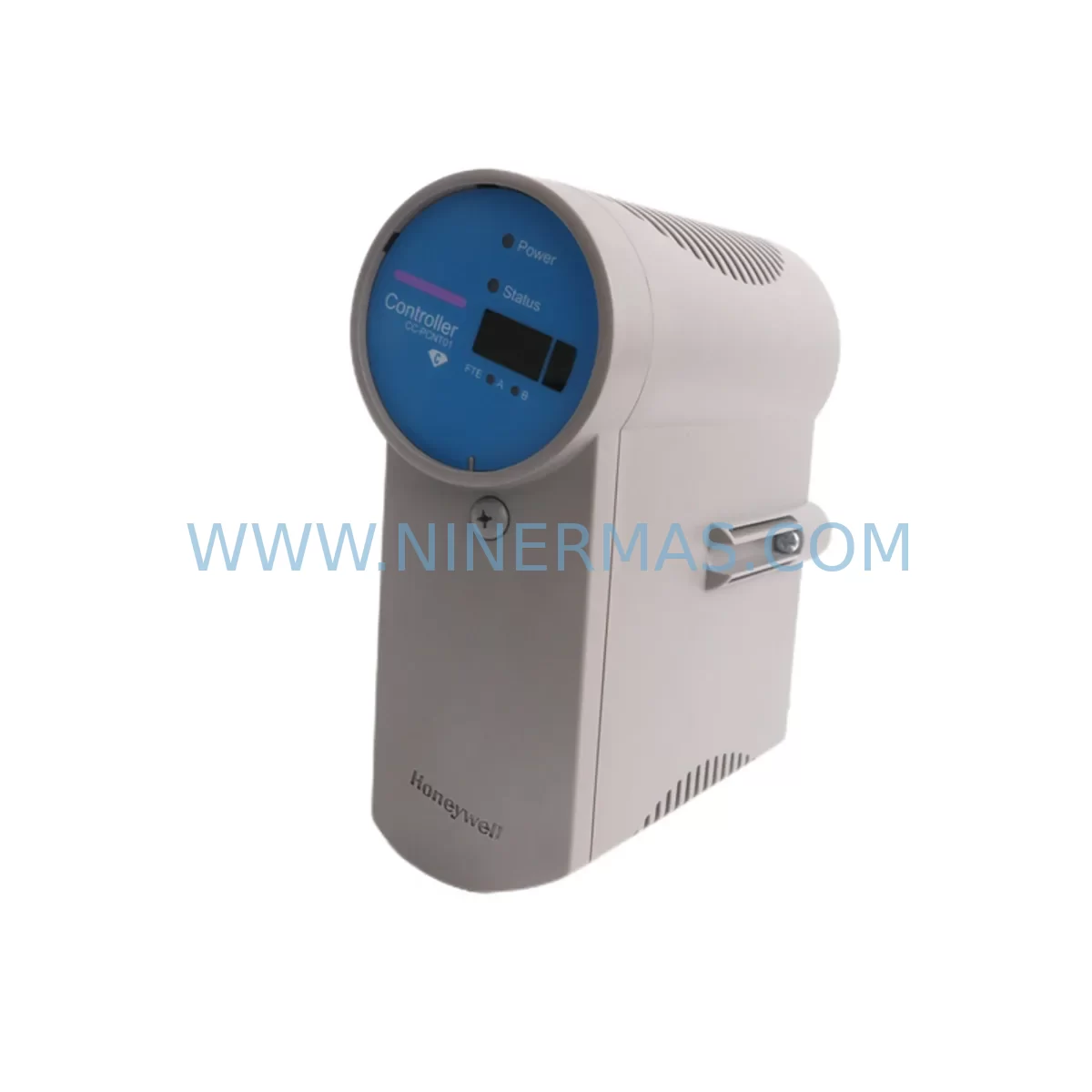

The Honeywell 51405046-175 CC-PCNT01 is a critical process controller module designed for the Honeywell C300 Series Distributed Control System (DCS), widely deployed across refining, petrochemical, power generation, and continuous manufacturing facilities running the Experion PKS platform. When this module fails or reaches end-of-life, the impact on production continuity is immediate — unplanned downtime in DCS-controlled processes can cost thousands of dollars per hour. NINERMAS maintains verified service-ready stock of the 51405046-175 CC-PCNT01 to support emergency replacement, planned annual shutdowns, and long-term spare parts inventory programs.

The CC-PCNT01 functions as the process controller node within the C300 architecture, managing real-time control execution, I/O scanning, and communication with the Experion server infrastructure. Its role in closed-loop control, sequence logic, and regulatory functions makes it one of the highest-priority spare parts in any Honeywell DCS maintenance strategy. Procurement engineers and maintenance planners responsible for Experion PKS systems should treat the 51405046-175 as a Tier-1 critical spare — one that must be available on-site or within rapid delivery reach at all times.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the Honeywell CC-PCNT01 (51405046-175) in a live Experion PKS environment requires a structured approach to avoid cascading failures. Maintenance engineers should treat this replacement as part of a broader control cabinet inspection, not an isolated swap. Before and during the replacement of the CC-PCNT01, the following associated components should be inspected, tested, or held as co-located spares:

Power Supply Modules: The C300 controller chassis relies on dedicated Honeywell power supply modules (such as the CC-PWR01 or equivalent series PSU) to deliver stable DC power to the controller backplane. A degraded power supply is a common root cause of intermittent controller faults. Always verify power rail voltage and ripple before inserting a replacement CC-PCNT01.

Controller Backplane and Chassis: The C300 controller chassis (backplane assembly) provides the physical and electrical interface between the CC-PCNT01 and its I/O links. Inspect backplane connectors for oxidation, mechanical damage, or bent pins. A faulty backplane can cause a new module to fail immediately after installation.

IOTA and I/O Link Modules: The CC-PCNT01 communicates with field I/O through IOTA (I/O Termination Assembly) boards and I/O link cables. During a controller replacement, verify that all I/O link connections are secure and that associated I/O modules — such as analog input modules (CC-TAIX01), analog output modules (CC-TAOX01), and digital I/O modules — are functioning correctly. A failed I/O module can mask a successful controller replacement.

FTE Network Switch and Communication Cables: The CC-PCNT01 connects to the Experion PKS server via Fault Tolerant Ethernet (FTE). Inspect FTE network switches, patch cables, and fiber connections for faults. A degraded FTE link will prevent the replacement controller from establishing server communication, even if the module itself is fully functional.

Redundant Controller Module (CC-PCNT01 Pair): In redundant C300 configurations, the CC-PCNT01 operates as a primary/secondary pair. When replacing one module, inspect the partner module for firmware version alignment and hardware revision compatibility. Mismatched revisions can prevent redundancy synchronization.

Terminal Blocks and Field Wiring: Inspect all terminal blocks connected to the I/O subsystem for loose connections, corrosion, or insulation breakdown. Faulty field wiring is frequently misdiagnosed as a controller module failure.

Signal Isolators and Barriers: In hazardous area installations, Zener barriers and galvanic isolators protect the DCS I/O from field-side faults. These components degrade over time and should be tested during any planned controller maintenance window.

Fuses and Circuit Protection: Check all fuse holders and miniature circuit breakers in the control cabinet. A blown fuse on a 24VDC I/O supply rail can cause multiple I/O channels to appear faulted, leading to unnecessary module replacements.

HMI and Operator Station Connectivity: After replacing the CC-PCNT01, verify that the Experion Station (operator HMI) correctly reflects the restored controller status. Communication faults between the controller and HMI may indicate FTE configuration issues rather than hardware problems.

Maintaining a co-located spare kit that includes the CC-PCNT01, a matched redundant partner, power supply module, and key I/O modules significantly reduces mean time to repair (MTTR) during emergency shutdowns.

Site Replacement Workflow

The Honeywell 51405046-175 CC-PCNT01 is a direct replacement for aging or failed C300 controller modules in Experion PKS systems. The following workflow is recommended for site engineers performing an emergency or planned replacement:

Step 1 — Pre-Replacement Verification: Confirm the failed module’s part number (51405046-175) and hardware revision from the module label or Experion asset management records. Verify that the replacement unit from NINERMAS matches the required revision. Check firmware compatibility with your Experion PKS server version before proceeding.

Step 2 — System State Documentation: Before removing the failed module, document all active control loops, alarm states, and I/O assignments. In a non-redundant configuration, notify operations that the associated control loops will be in manual mode during replacement. In a redundant configuration, confirm that the secondary controller has assumed primary control.

Step 3 — Safe Module Removal: Follow Honeywell’s lockout/tagout procedures for the C300 chassis. Remove the failed CC-PCNT01 by releasing the module locking mechanism and sliding it clear of the backplane. Inspect the backplane connector for damage before inserting the replacement.

Step 4 — Replacement Module Installation: Insert the service-ready 51405046-175 CC-PCNT01 into the chassis slot. Secure the locking mechanism. The module will begin its initialization sequence automatically upon power-up.

Step 5 — Communication and I/O Verification: Monitor the Experion PKS server for controller registration. Verify FTE link status, I/O module communication, and control loop restoration. Confirm that all previously active loops have returned to automatic mode and that no spurious alarms are present.

Step 6 — Post-Replacement Documentation: Record the replacement in the plant maintenance management system (CMMS), including the date, replaced part number, new module serial number, and post-installation test results. Return the failed module to NINERMAS for evaluation if required under warranty terms.

This workflow minimizes downtime, ensures system compatibility, and maintains the integrity of the Experion PKS control architecture. NINERMAS ships all CC-PCNT01 units with pre-shipment functional test documentation to support rapid site acceptance.

Spare Parts Support FAQ

Q1: Is the Honeywell 51405046-175 CC-PCNT01 supplied by NINERMAS an original Honeywell module?
Yes. NINERMAS supplies original Honeywell 51405046-175 CC-PCNT01 modules sourced through verified industrial supply channels. Each unit undergoes pre-shipment inspection and functional verification. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q2: How do I confirm compatibility between the replacement CC-PCNT01 and my existing Experion PKS system?
Compatibility is determined by the hardware revision of the CC-PCNT01 and the firmware version of your Experion PKS server. Provide NINERMAS with your current module’s part number, hardware revision (printed on the module label), and Experion server version. Our technical team will confirm compatibility before shipment. In most C300 installations, the 51405046-175 is a direct plug-in replacement without firmware updates.

Q3: What is NINERMAS’s lead time for the Honeywell 51405046-175 CC-PCNT01, and can you support emergency orders?
NINERMAS maintains ready stock of the CC-PCNT01 (51405046-175) to support both planned procurement and emergency replacement scenarios. Standard orders ship within 1-3 business days. Emergency orders with expedited freight can be arranged with same-day or next-day dispatch depending on destination. Contact our team at sale@ninermas.com or +0086 187 5021 5667 for urgent requirements.

Q4: Can NINERMAS support long-term spare parts supply for Honeywell C300 Series components?
Yes. NINERMAS offers long-term supply agreements for Honeywell C300 Series spare parts, including the CC-PCNT01 and associated modules. For facilities managing aging Experion PKS systems or planning multi-year maintenance contracts, we can provide reserved stock, scheduled delivery programs, and technical support for obsolescence management. All units are covered by a 12-month warranty and shipped with pre-shipment test records.
