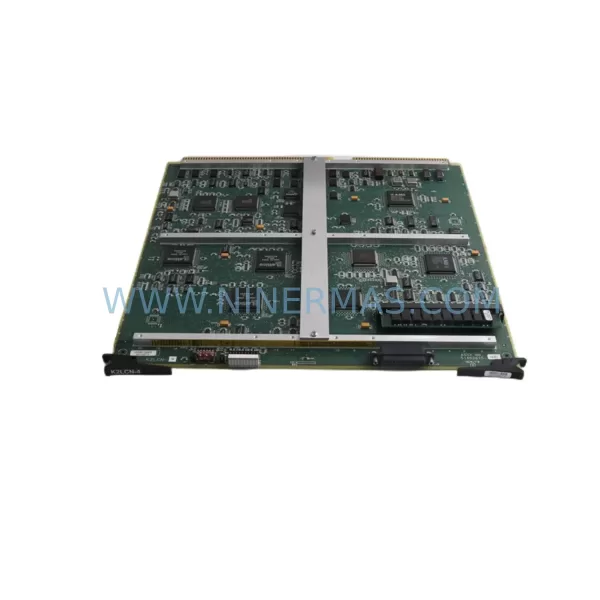

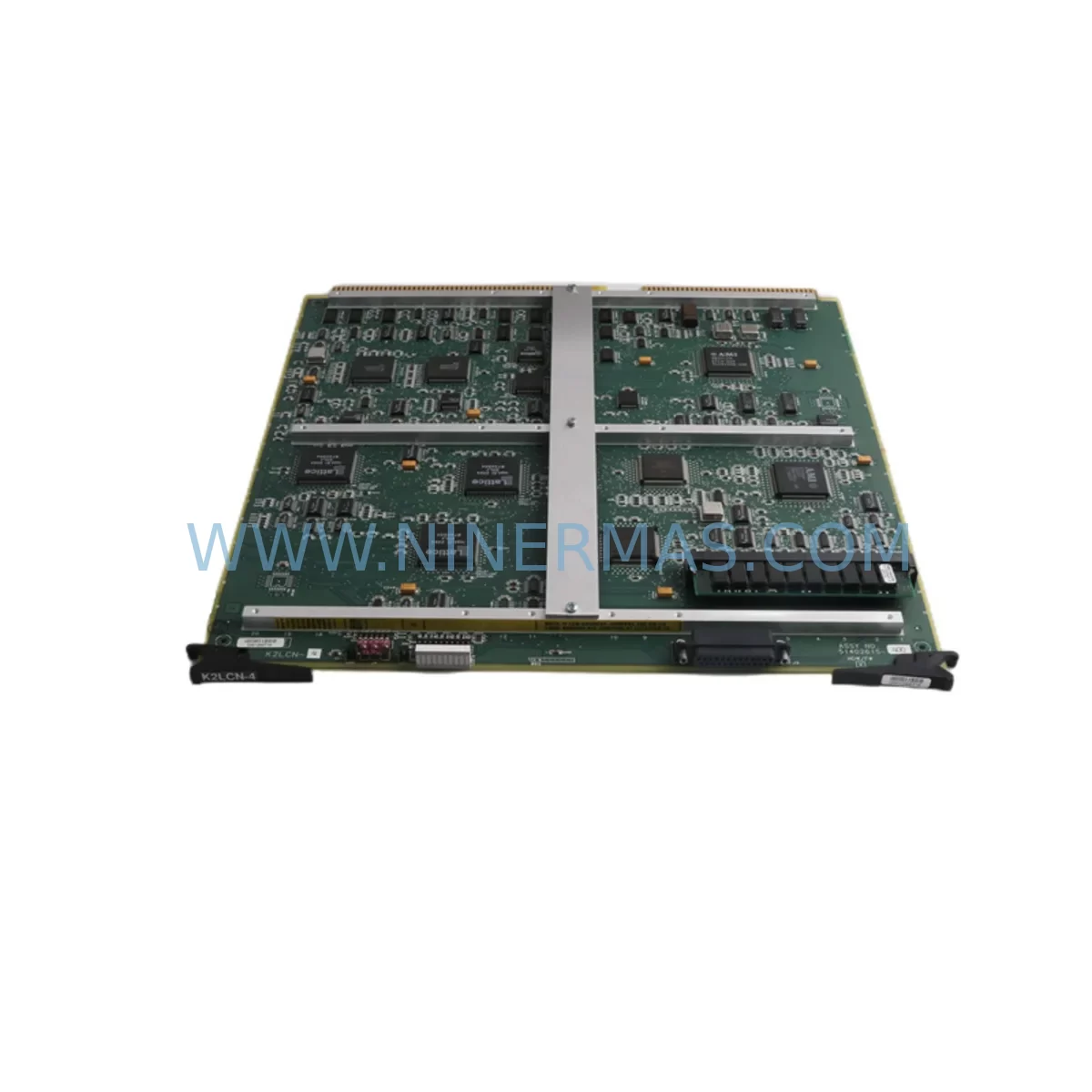

Honeywell 51402615-400 Retrofit-Compatible I/O Module

Honeywell 51402615-400 Retrofit-Compatible I/O Module for Legacy TDC 3000 Systems

The Honeywell 51402615-400 is a proven I/O module originally designed for the TDC 3000 Distributed Control System platform — one of the most widely deployed process automation architectures in refining, petrochemical, and power generation industries. As TDC 3000 components reach end-of-life and OEM support is discontinued, plant engineers and maintenance teams face increasing pressure to source reliable replacement parts that maintain system integrity without triggering a full platform migration.

NINERMAS stocks verified, tested units of the 51402615-400 to support retrofit projects, emergency spare replacements, and planned system upgrades. Each unit undergoes functional verification prior to shipment and is backed by a 12-month warranty, giving procurement and engineering teams the confidence to plan around a reliable supply chain.

Whether you are managing a single-module failure or executing a phased control cabinet modernization, the 51402615-400 fits directly into existing TDC 3000 rack infrastructure, preserving your current wiring, terminal block layouts, and program logic without requiring immediate controller-level changes.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the Honeywell 51402615-400 within an active TDC 3000 environment requires careful pre-engineering to avoid unplanned downtime and configuration errors. The following considerations apply to most retrofit and upgrade scenarios encountered in the field.

Power Supply Capacity: Before installing a replacement 51402615-400, confirm that the existing Honeywell 51401288-100 or equivalent TDC 3000 power supply module can sustain the additional load. Aging power supplies in legacy cabinets often operate near rated capacity, and adding a replacement I/O card without verifying headroom can cause voltage sag or nuisance trips across adjacent modules.

Terminal Block and Field Wiring: The 51402615-400 uses the standard TDC 3000 marshalling terminal arrangement. When pulling the failed module, document the existing field wiring connections against the original loop drawings. In many retrofit scenarios, field cables have been re-tagged or re-routed over the years, making as-built drawings unreliable. Physical verification at the terminal block — including checking for shared commons and shield grounding — is essential before reinserting the replacement unit.

Backplane and Card Cage Slot Address: TDC 3000 card cages assign module addresses based on physical slot position. Confirm the slot address of the original 51402615-400 before removal. If the replacement unit is inserted into a different slot, the controller will not recognize it under the original tag database, requiring a configuration change in the Honeywell Universal Control Network (UCN) node definition — a step that must be coordinated with the DCS engineer to avoid process variable loss.

Program and Logic Compatibility: The 51402615-400 replacement does not require changes to the Control Language (CL) programs or regulatory control blocks already resident in the Honeywell Process Manager (PM) or Advanced Process Manager (APM) controllers, provided the module type and slot address are preserved. This is one of the key advantages of sourcing an identical replacement part rather than attempting a cross-series substitution.

HMI Display and Alarm Mapping: After module reinsertion, verify that the associated process variables are correctly displayed on the Honeywell GUS (Global User Station) or Universal Station operator consoles. Alarm setpoints, engineering unit conversions, and trend historian links should be confirmed live before returning the loop to automatic control.

Communication Link Verification: The TDC 3000 Local Control Network (LCN) and Universal Control Network (UCN) are time-division multiplexed bus architectures. After replacing the 51402615-400, monitor the network diagnostic screens for any communication fault flags or redundancy switchover events that may indicate a seating or address conflict with the new module.

Physical Installation Space: TDC 3000 card cages are fixed-depth enclosures. Confirm that the replacement 51402615-400 card is fully seated and the ejector levers are locked. Partial insertion is a common cause of intermittent I/O faults in legacy DCS cabinets, particularly where card guides have worn over decades of service.

Related Components Commonly Required in the Same Retrofit Scope: In practice, a 51402615-400 replacement is rarely an isolated activity. Engineers frequently identify adjacent components requiring attention during the same maintenance window. Commonly co-replaced or co-verified items include the Honeywell 51304485-100 termination assembly, 51401288-100 power supply module, 51402573-150 I/O link interface module, 51304516-150 analog input card, 51309276-150 digital output module, and the 51401195-100 communication interface card. For cabinet-level upgrades, teams also evaluate the Honeywell 51198685-100 UCN node interface and associated 51401584-100 redundancy modules to extend system life by an additional operational cycle.

Downtime Control During System Migration

Minimizing process interruption is the primary constraint in any TDC 3000 retrofit. The following approach is recommended when replacing the Honeywell 51402615-400 in a live production environment.

Pre-Staging: Receive and bench-test the replacement 51402615-400 before the scheduled maintenance window. Confirm that the module powers up correctly and that no hardware fault indicators are active. NINERMAS ships all units with a functional test report, reducing the risk of receiving a non-operational spare.

Controlled Loop Transfer: Where process conditions allow, transfer affected control loops to manual mode at the operator station before pulling the failed module. This preserves field actuator positions and prevents process upsets caused by loss of the I/O signal during the swap.

Hot-Swap Awareness: TDC 3000 I/O modules are generally not hot-swappable without process impact. Plan the replacement during a scheduled outage or a low-risk production period. Coordinate with the control room operator to confirm that all affected loops are in manual and that the process is in a stable hold condition.

Post-Replacement Verification Sequence: After insertion, follow a structured commissioning sequence: (1) confirm module recognition in the DCS configuration display, (2) verify field signal values against independent instrumentation, (3) check alarm and interlock logic activation, (4) return loops to automatic control one at a time, and (5) monitor for 30 minutes before closing the maintenance record. This sequence protects original program logic and ensures that the replacement has not introduced any latent configuration conflicts.

Documentation Update: Update the plant’s spare parts register, loop drawings, and maintenance history log to reflect the replacement. This supports future retrofit planning and ensures that the next maintenance team has accurate as-built records.

Retrofit Support FAQ

Q: Is the Honeywell 51402615-400 a direct replacement for the original failed unit without any configuration changes?
A: Yes, provided the replacement is inserted into the same card cage slot and the module type matches the original. No changes to the TDC 3000 controller program or UCN node configuration are required when the slot address and module type are preserved.

Q: How do I verify wiring compatibility before installing the replacement module?
A: Cross-reference the existing field wiring against the original loop drawings and the 51402615-400 termination pinout. Pay particular attention to analog signal commons, shield grounding points, and any shared terminal arrangements that may have been modified during previous maintenance activities.

Q: What does the pre-shipment testing process cover?
A: Each NINERMAS-supplied 51402615-400 undergoes power-on functional verification, I/O channel continuity checks, and visual inspection for component condition and connector integrity. A test record is included with each shipment. All units are covered by a 12-month warranty from the date of shipment.

Q: What is the typical lead time and stock availability?
A: NINERMAS maintains inventory of the 51402615-400 to support urgent replacement requirements. Standard orders ship within 3–5 business days. For emergency requirements, contact our team directly to confirm same-day or next-day dispatch availability.
